MI Series 500
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 0001300000 |

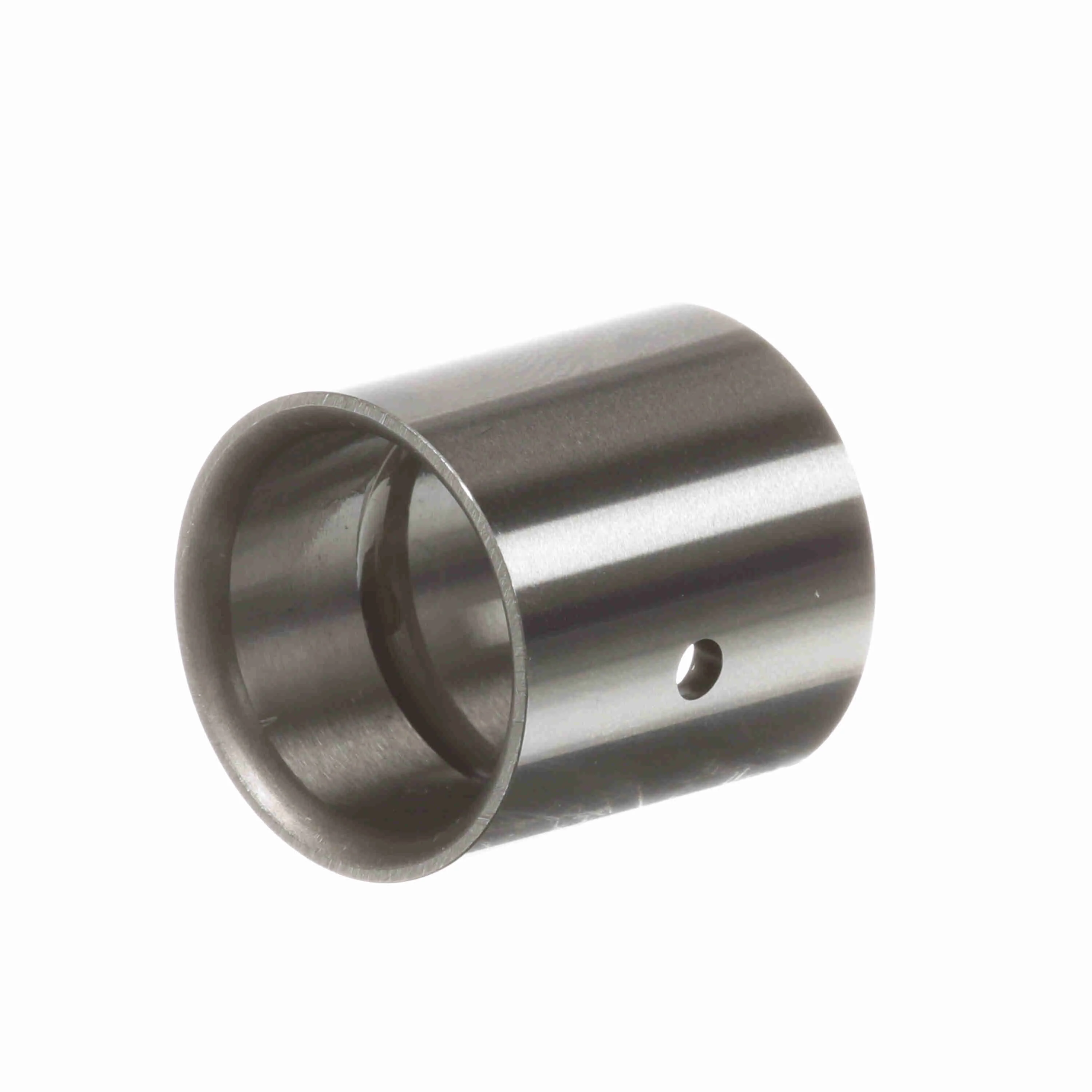

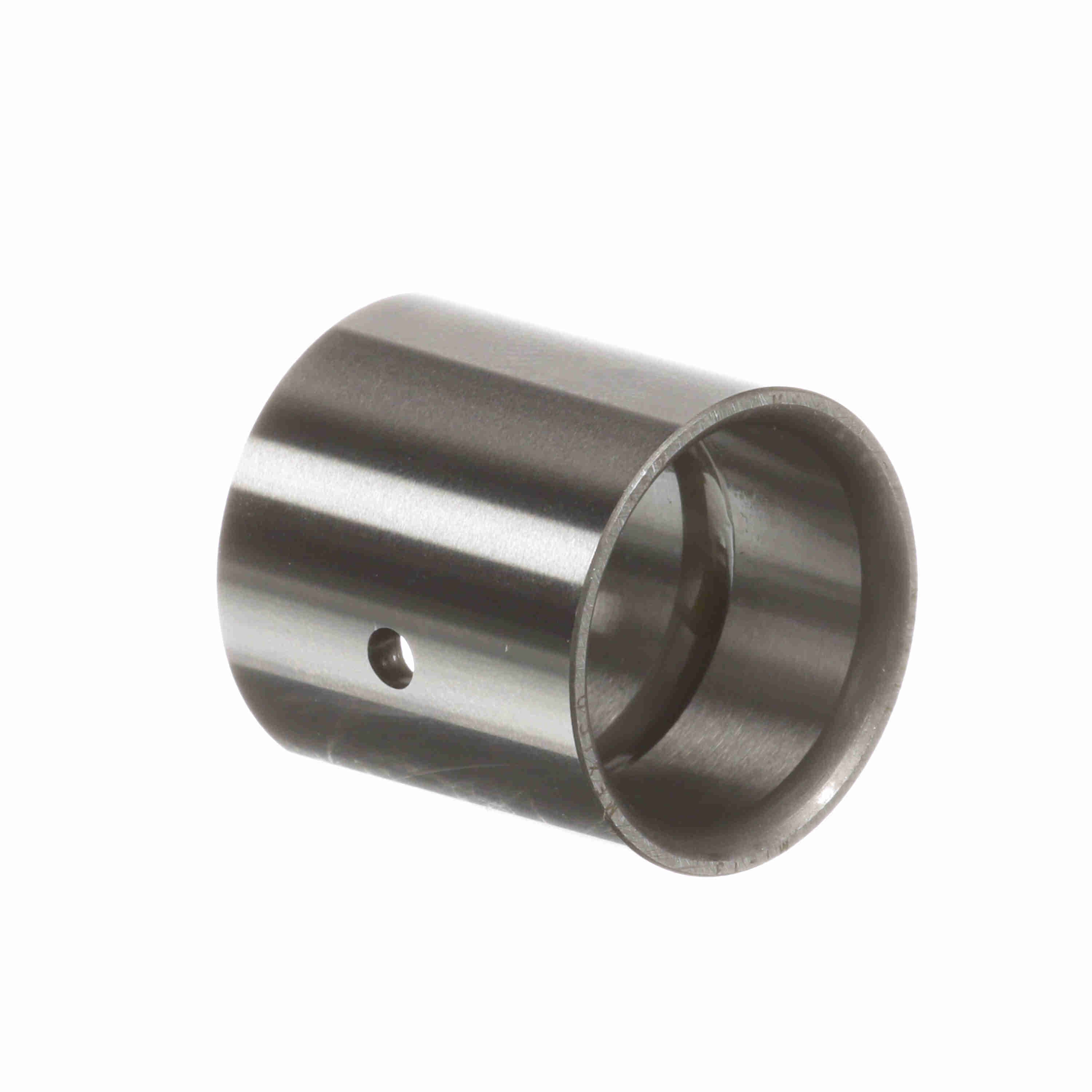

| Product Name | MI 13 |
| Brand | McGill |
| Material | 52100 Bearing Steel |
| Weight | 0.095 lb |
| Package Length | 1.5 in |
| Package Width | 1.75 in |
| Package Height | 2.18 in |
| Overall Width (in) | 1.01 in |
| Housing & Shaft Fillet (in) | 0.04 in |
| Bore Size (in) | 0.8125 in |
| Outside Diameter (in) | 1 in |
| Quantity | Price Each | Save |
|---|---|---|
| 1+ | $29.70 | — |
| Outer Width (in) |
| 1.01 in |
| Hole Diameter (in) | 0.13 in |
| Includes Inner Ring | Yes |
| Series | Standard |
| Cage Material | Steel |
| Number of Rows | 1 |
| Rolling Element | Needle Roller |
| Seal Type | Unsealed |
| Radial Clearance | Normal |
| Bore Type | Straight |
| Sealed | None |
| Full Complement/Caged | Caged |
| Platform | Inner Ring Only |
| Duplexing | No |
| Standard Met | ABMA, ISO |
| Lubrication Hole Type | Lubrication Groove & Hole |
| Enclosure | Open |
| Separable | Nonseparable |
| Component Type | Inner ring only |
| Retainer | No |
| HTC | 8482.99.2540 |
| Country of Origin | Mexico |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-100014 |
| Part NumberiManufacturer catalog number | 0001300000 |
| BrandiManufacturer or product brand | McGill |
| UPCiUniversal Product Code | 726166000141 |
| CategoryiCatalog classification | Bearings > Bearing Accessories |
