MI SERIES
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 0006800000 |

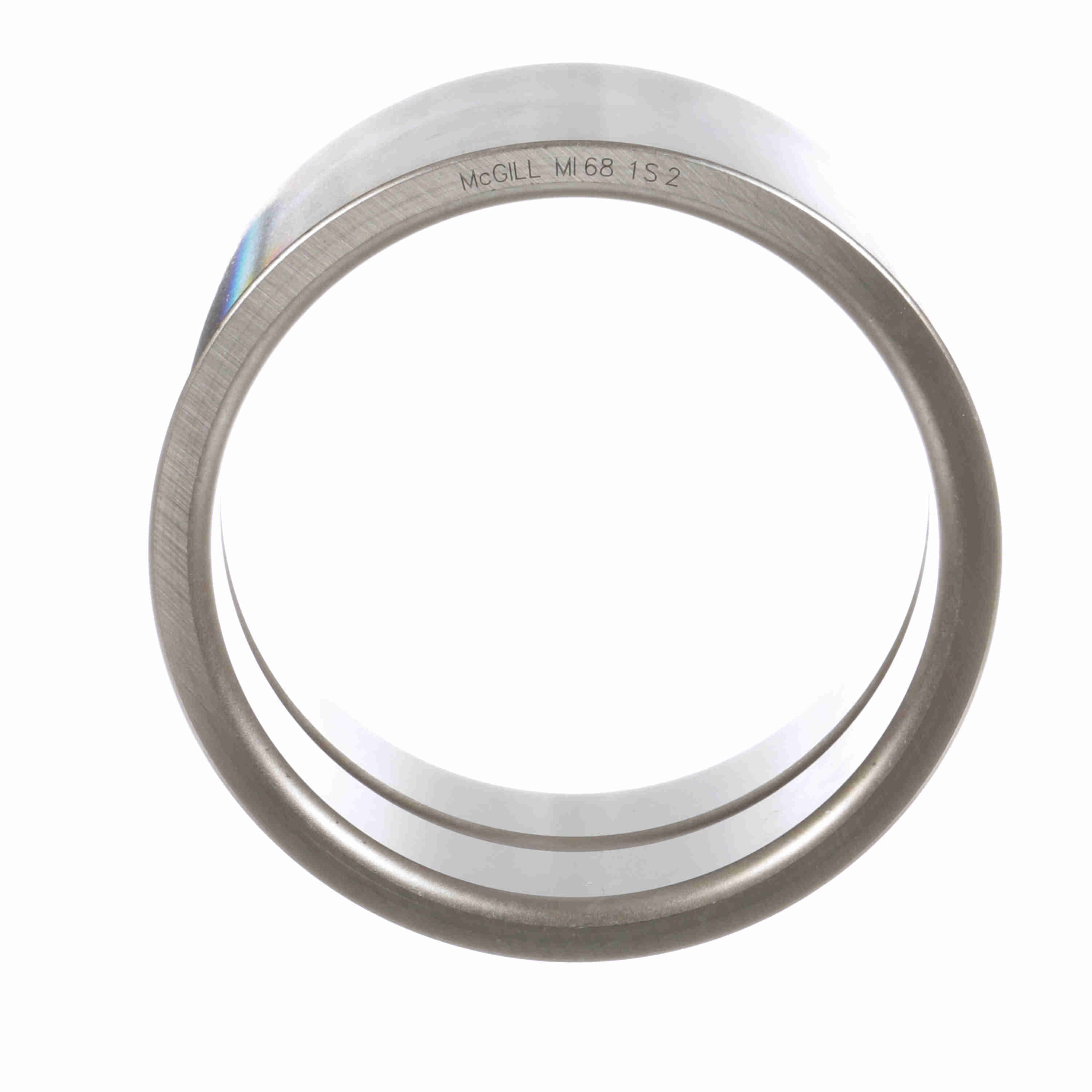

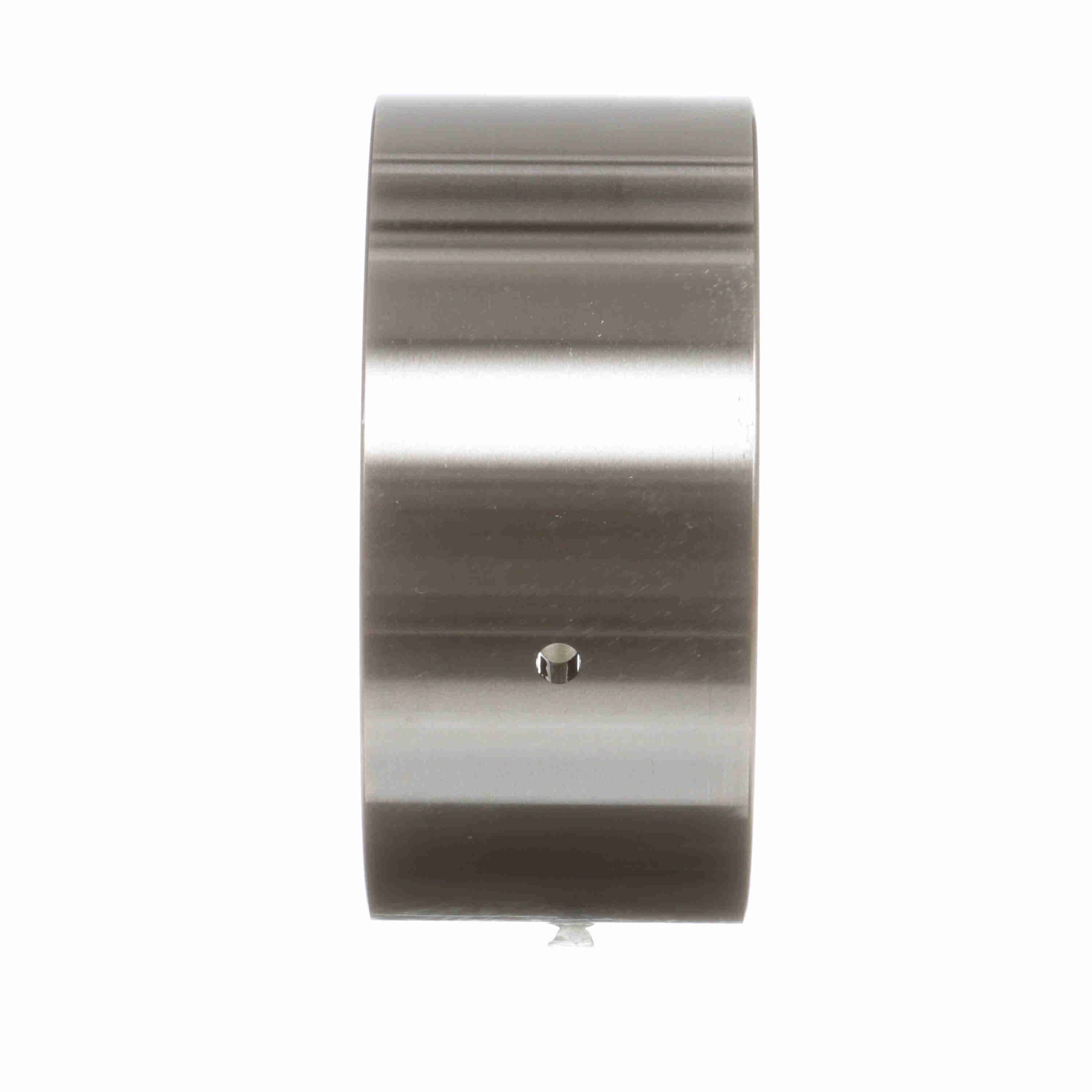

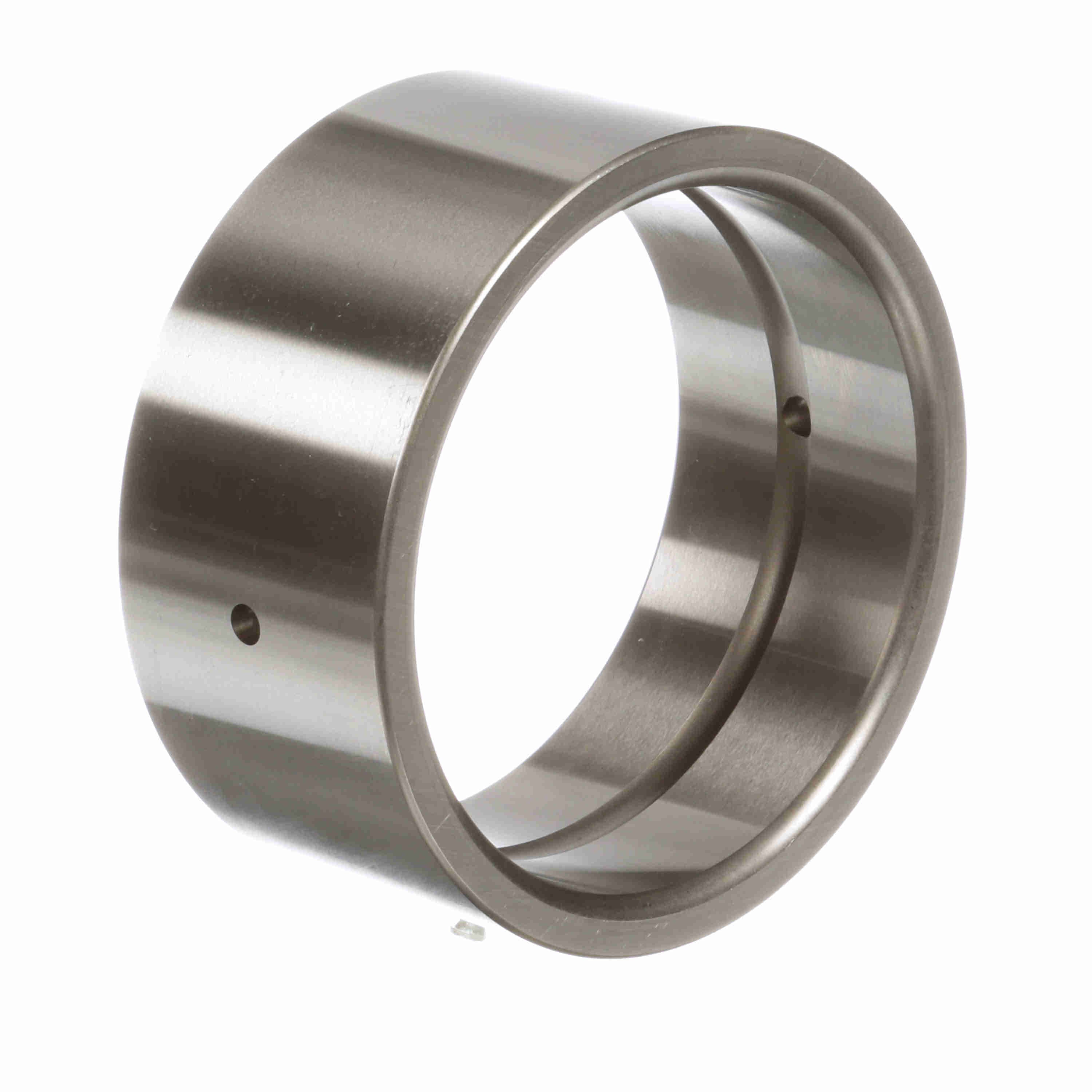

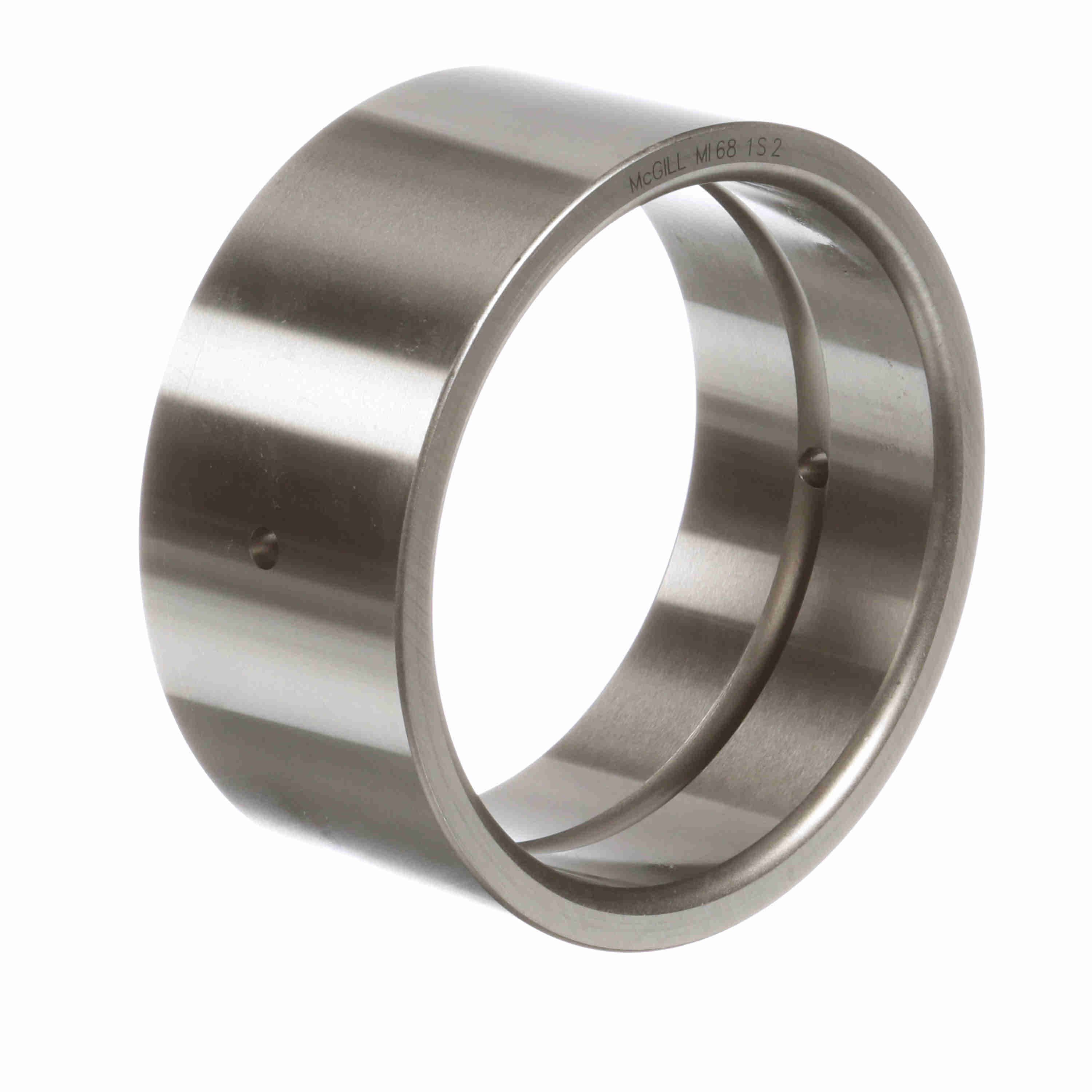

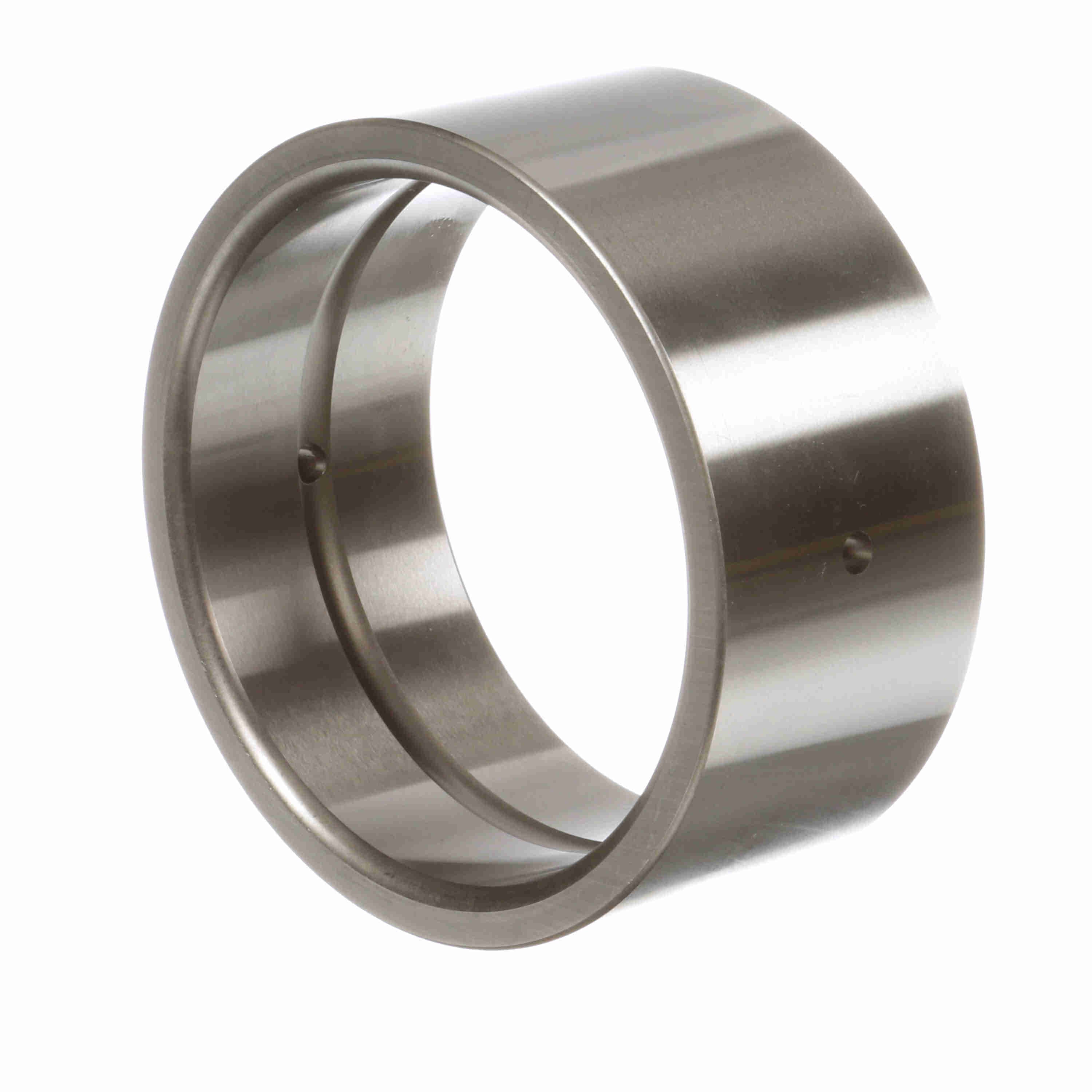

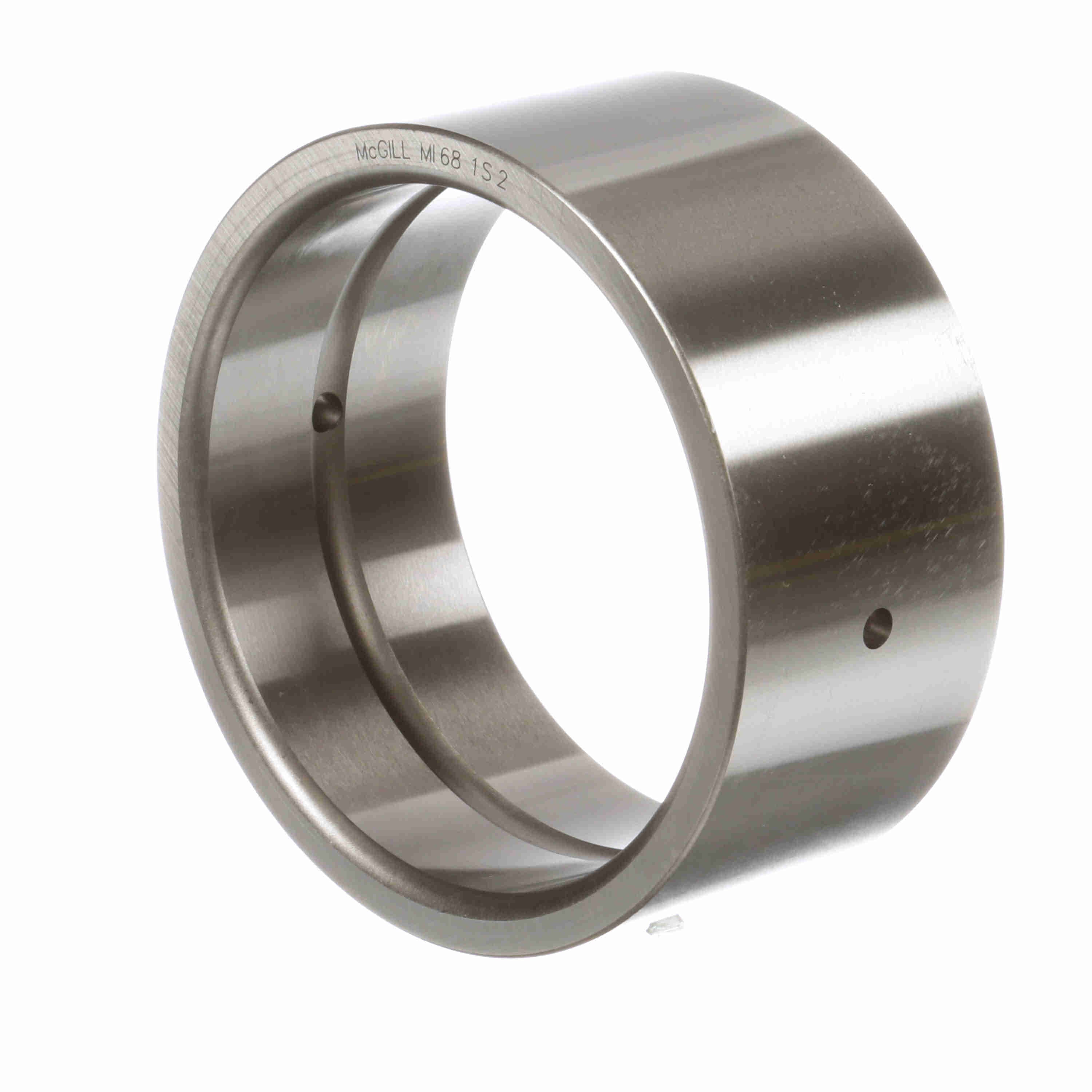

| Product Name | MI 68 |
| Brand | McGill |
| Material | 52100 Bearing Steel |
| Weight | 3.505 lb |
| Package Length | 5.68 in |
| Package Width | 2.12 in |
| Package Height | 5.75 in |
| Overall Width (in) | 2.26 in |
| Housing & Shaft Fillet (in) | 0.1 in |
| Bore Size (in) | 4.2500 in |
| Hole Diameter (in) | 0.25 in |
| Outer Width (in) |
| Quantity | Price Each | Save |
|---|---|---|
| 1+ | $327.04 | — |
| 2.26 in |
| Outside Diameter (in) | 5 in |
| Series | Standard |
| Includes Inner Ring | Yes |
| Cage Material | Steel |
| Number of Rows | 1 |
| Radial Clearance | Normal |
| Seal Type | Unsealed |
| Bore Type | Straight |
| Rolling Element | Needle Roller |
| Duplexing | No |
| Platform | Inner Ring Only |
| Sealed | None |
| Full Complement/Caged | Caged |
| Standard Met | ABMA, ISO |
| Lubrication Hole Type | Lubrication Groove & Hole |
| Enclosure | Open |
| Component Type | Inner ring only |
| Separable | Nonseparable |
| Retainer | No |
| HTC | 8482.99.2540 |
| Country of Origin | Mexico |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-100073 |
| Part NumberiManufacturer catalog number | 0006800000 |
| BrandiManufacturer or product brand | McGill |
| UPCiUniversal Product Code | 726166000905 |
| CategoryiCatalog classification | Bearings > Bearing Accessories |
