MORFLEX COUPLINGS
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 012571 |

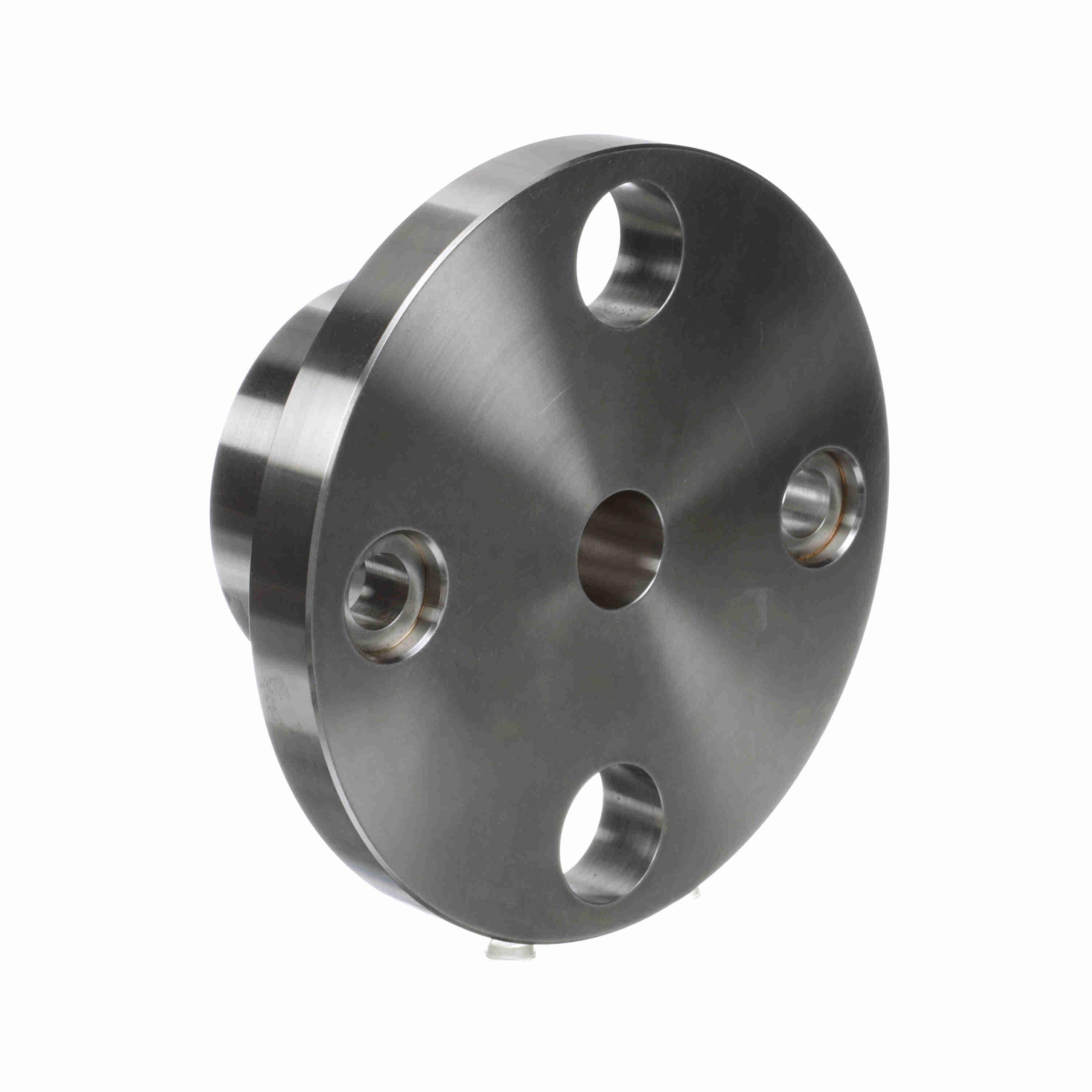

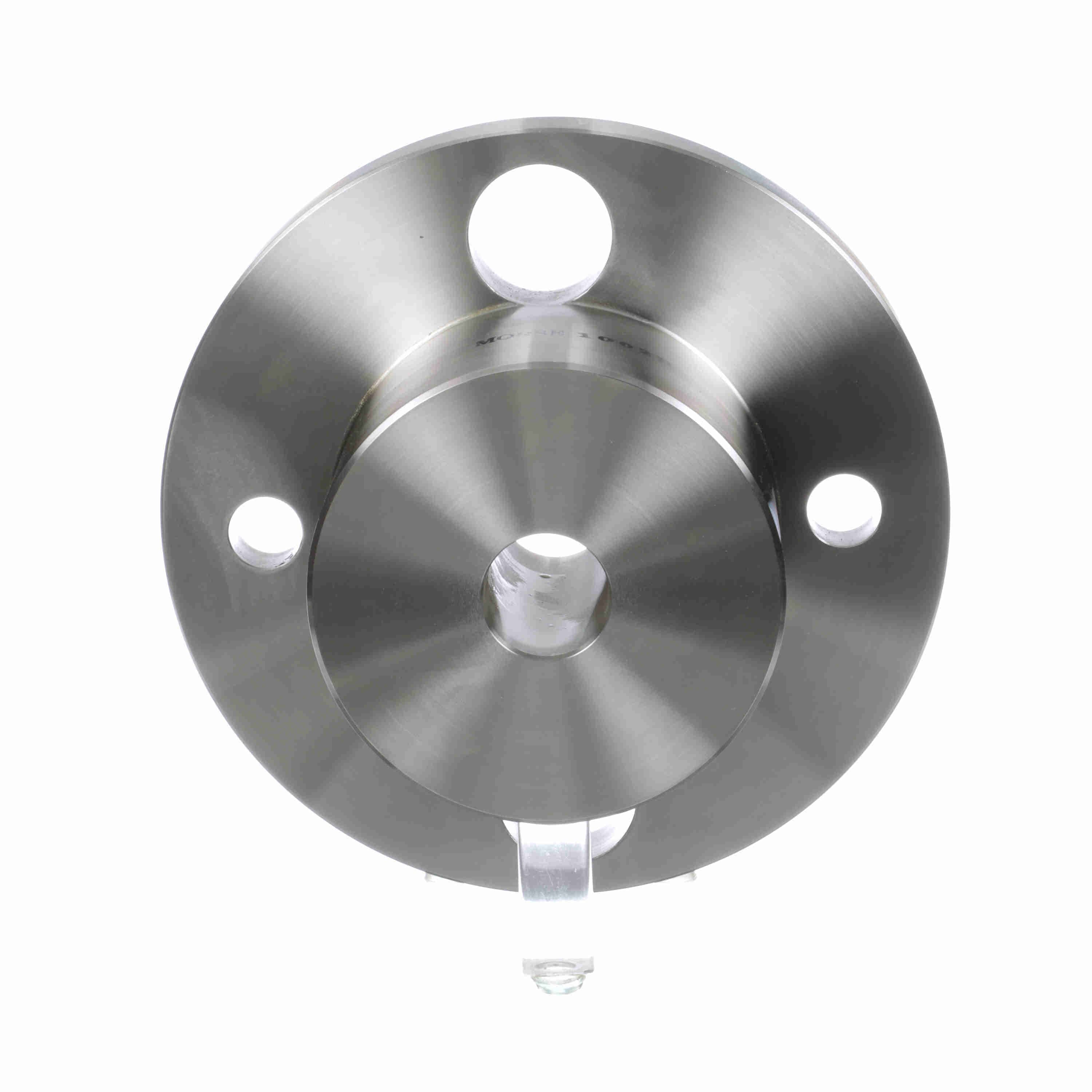

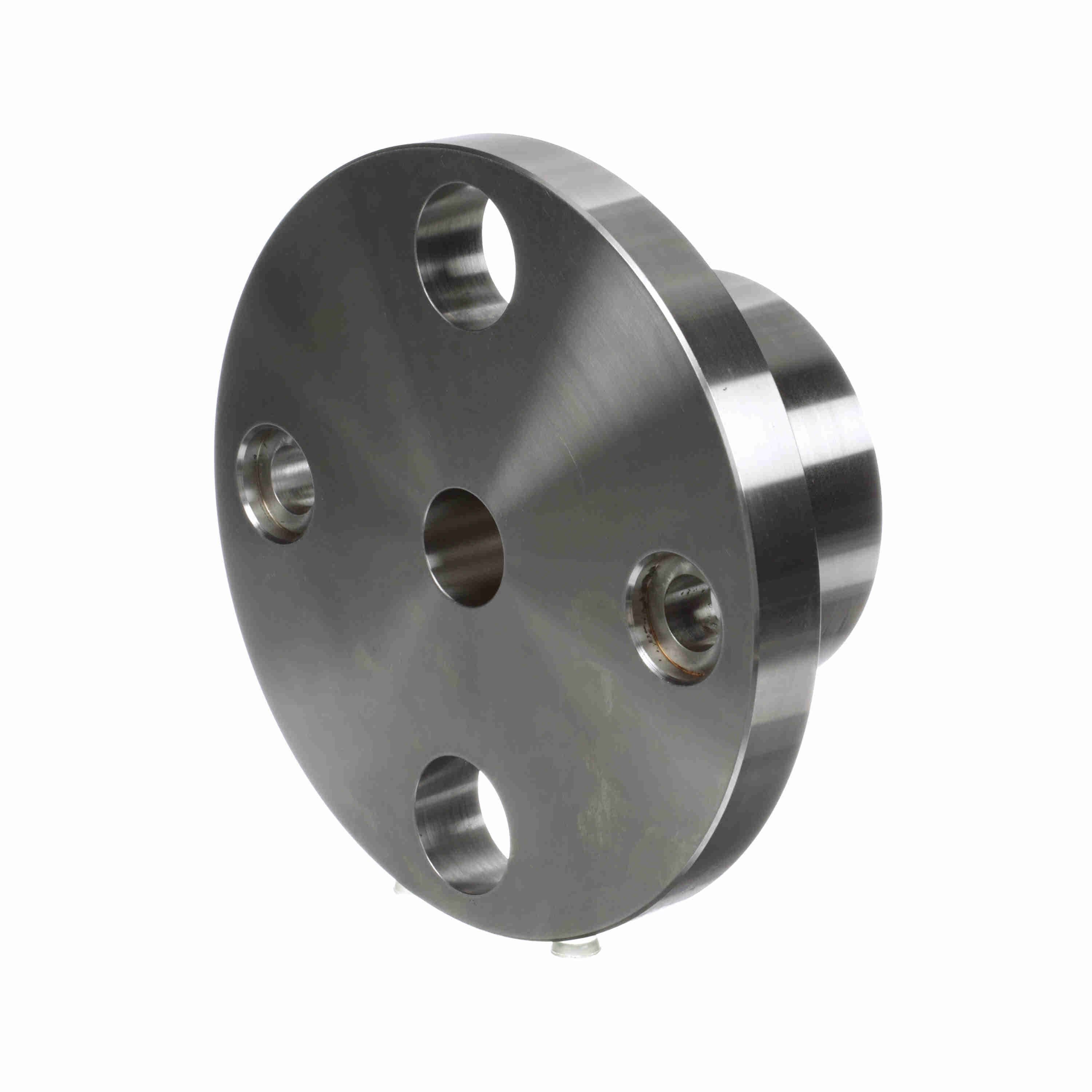

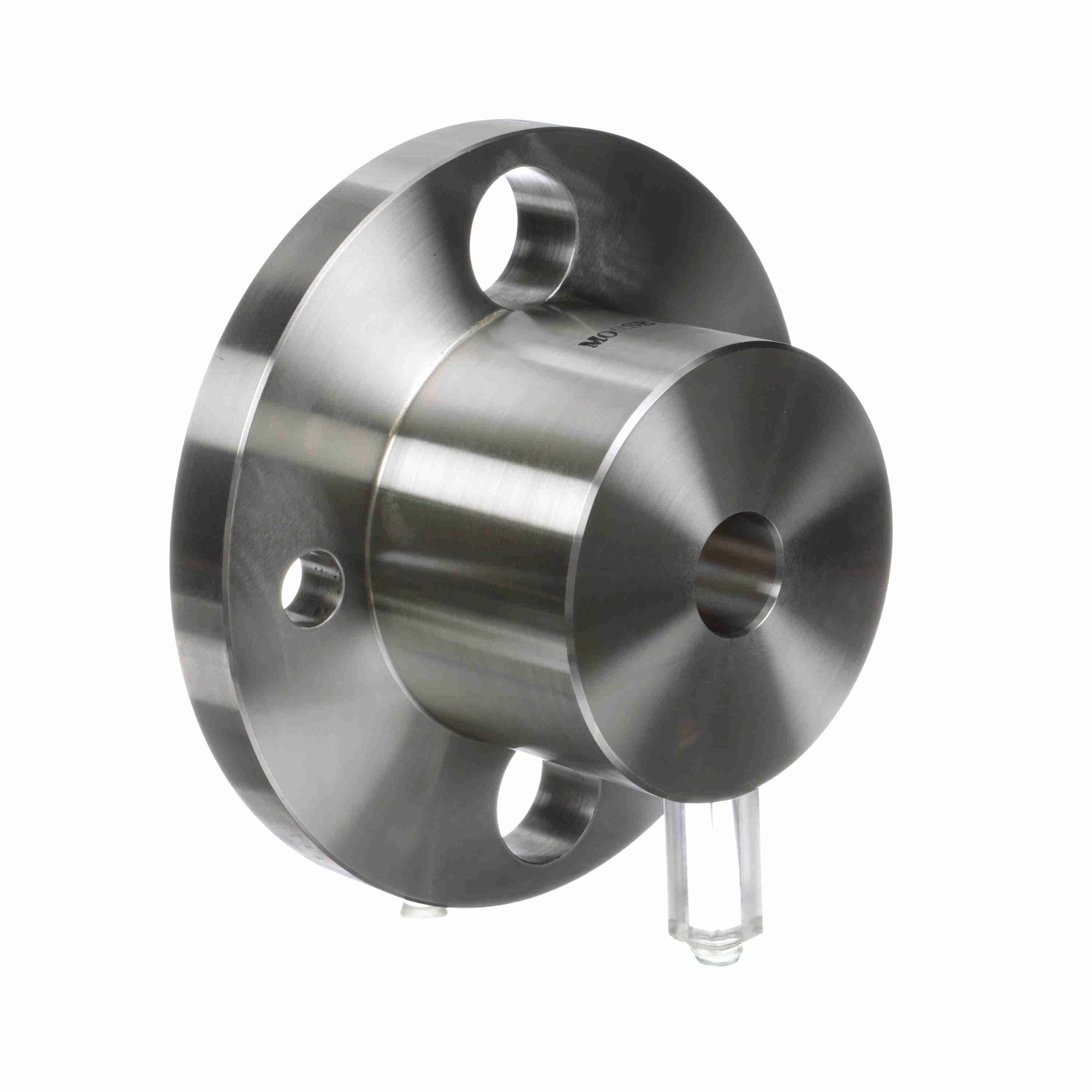

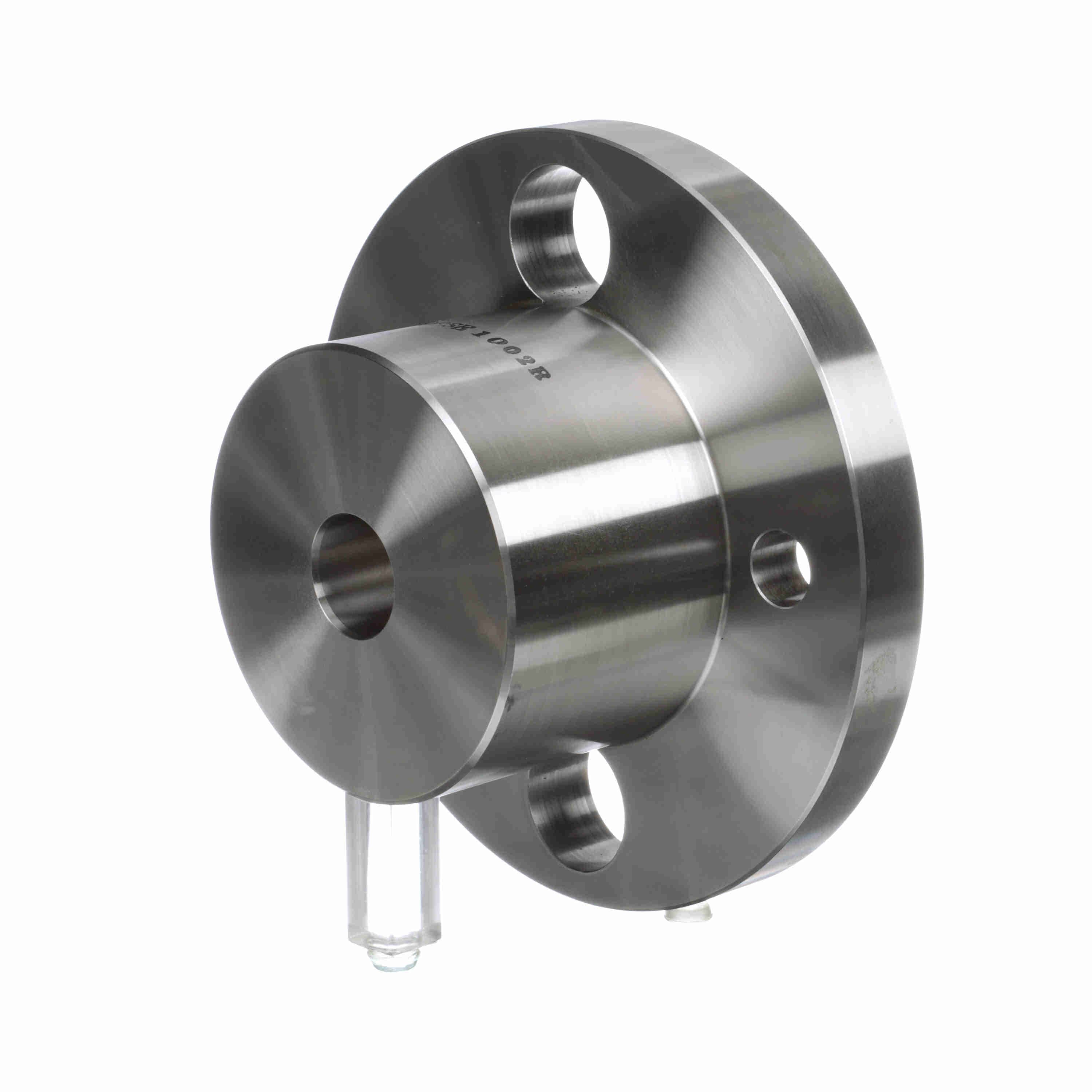

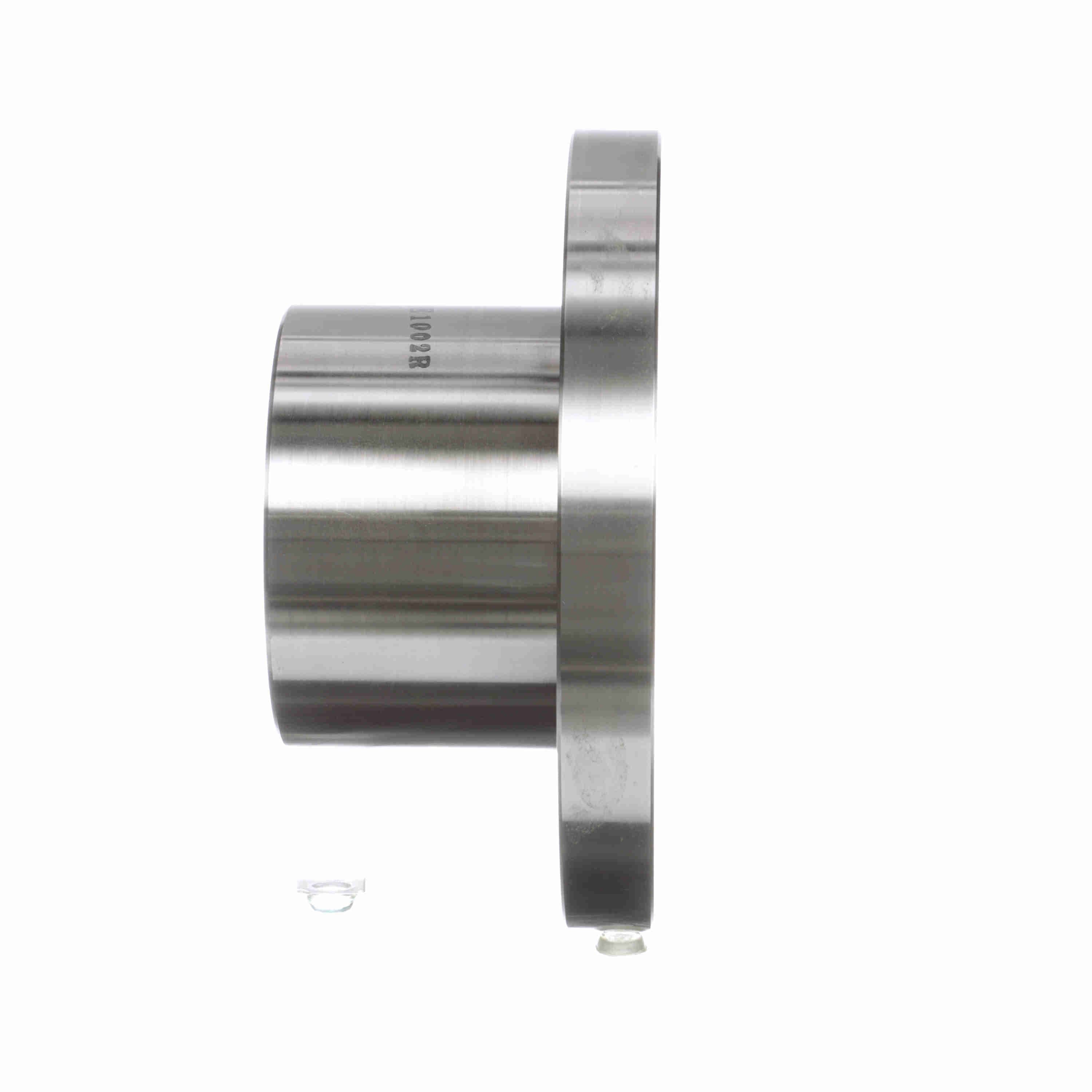

| Product Name | 1002 MORFLEX FLANGE MB |
| Brand | Morse |
| Weight | 27.97 lb |
| Package Length | 9 in |
| Package Width | 9 in |
| Package Height | 5.3 in |
| Bore Size Min (in) | 1.25 in |
| Bore Type | Plain Bore |
| Coupling Size | 1,002 |
| Coupling Type | Elastomeric Coupling |
| Flange Type | Round |
| Lube/Non-Lube |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 9 | $1538.15 | — |
| 10 – 24 | $1381.01 | 10% off |
| 25 – 49 | $1301.10 | 15% off |
| 50+ | $1232.91 | 20% off |
| Non-Lubricated |
| Max Bore w/SS at 180° to KW (in) | 3.25 in |
| Max. Bore w/SS over KW (in) | 2.75 in |
| Measurement System | Imperial |
| Speed Max (rpm) | 4,000 rpm |
| Stock Bore (in) | 1.25 in |
| Torque Rating (ft-lb) | 725 ft/lbs |
| Torque Rating (in-lb) | 8,700 in/lbs |
| HTC | 8483.90.8010 |
| Country of Origin | Taiwan, Republic of China |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-100092 |
| Part NumberiManufacturer catalog number | 012571 |
| BrandiManufacturer or product brand | Morse |
| UPCiUniversal Product Code | 662288372035 |
| CategoryiCatalog classification | Couplings > Driveshaft Couplings |
