SB SERIES MH
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 0310004000 |

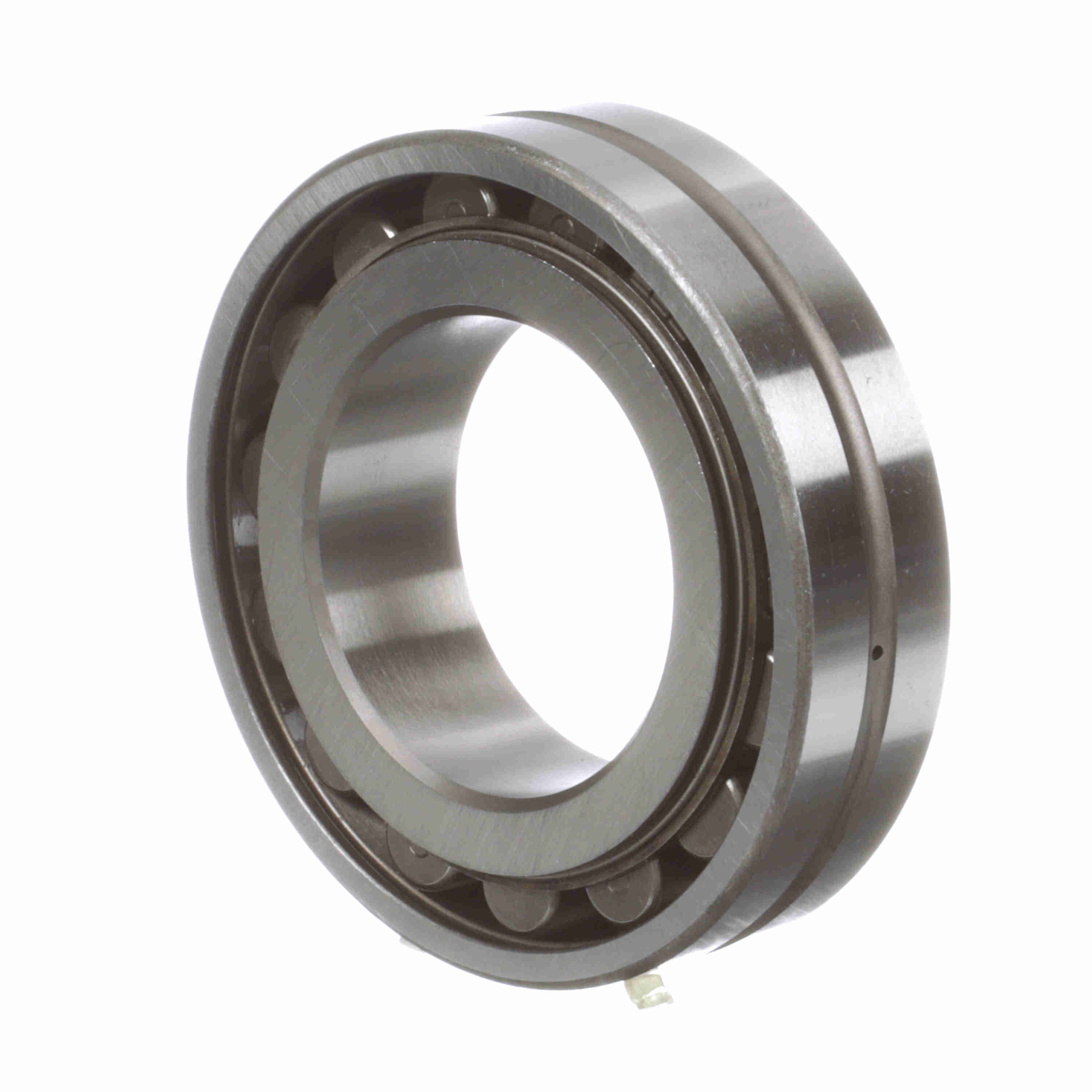

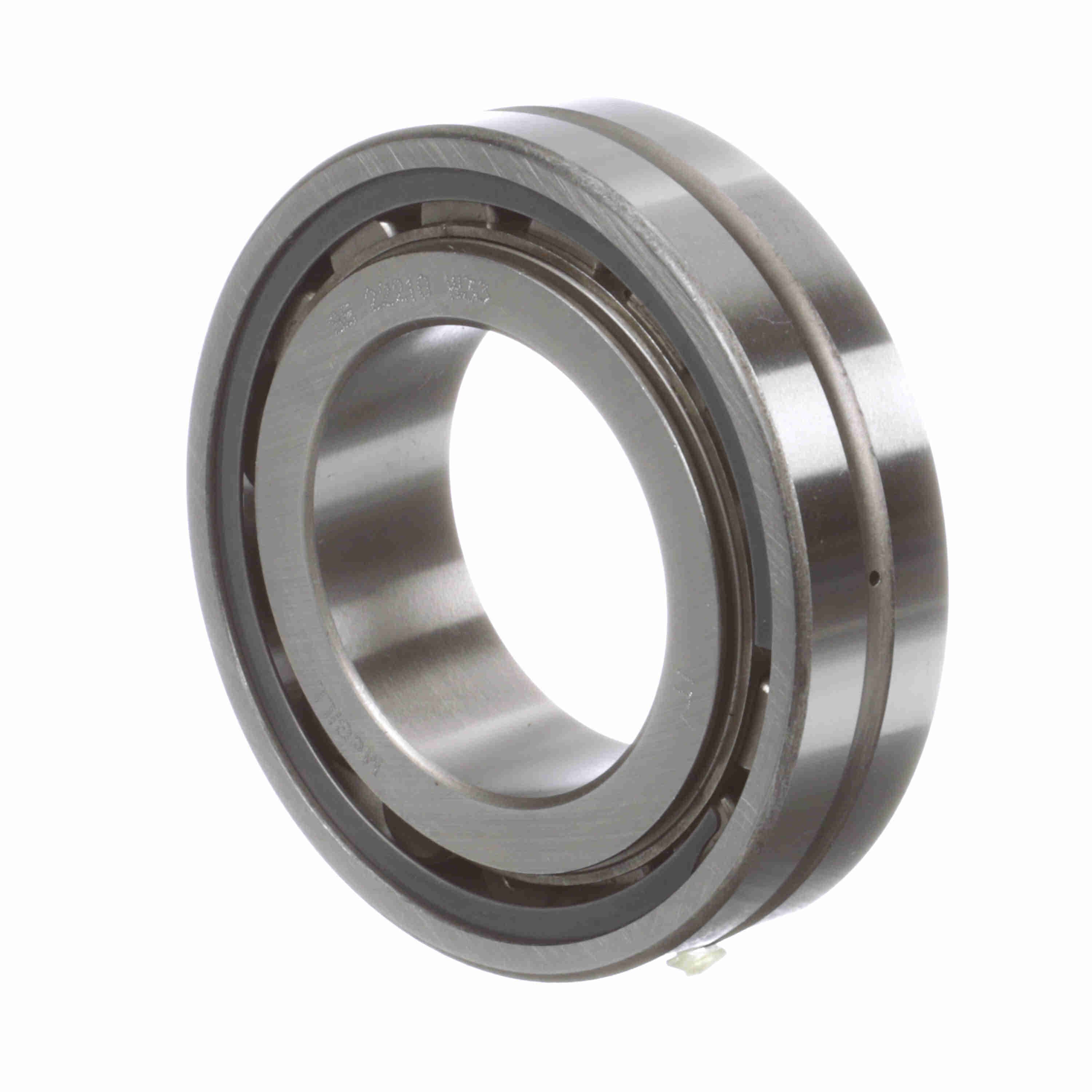

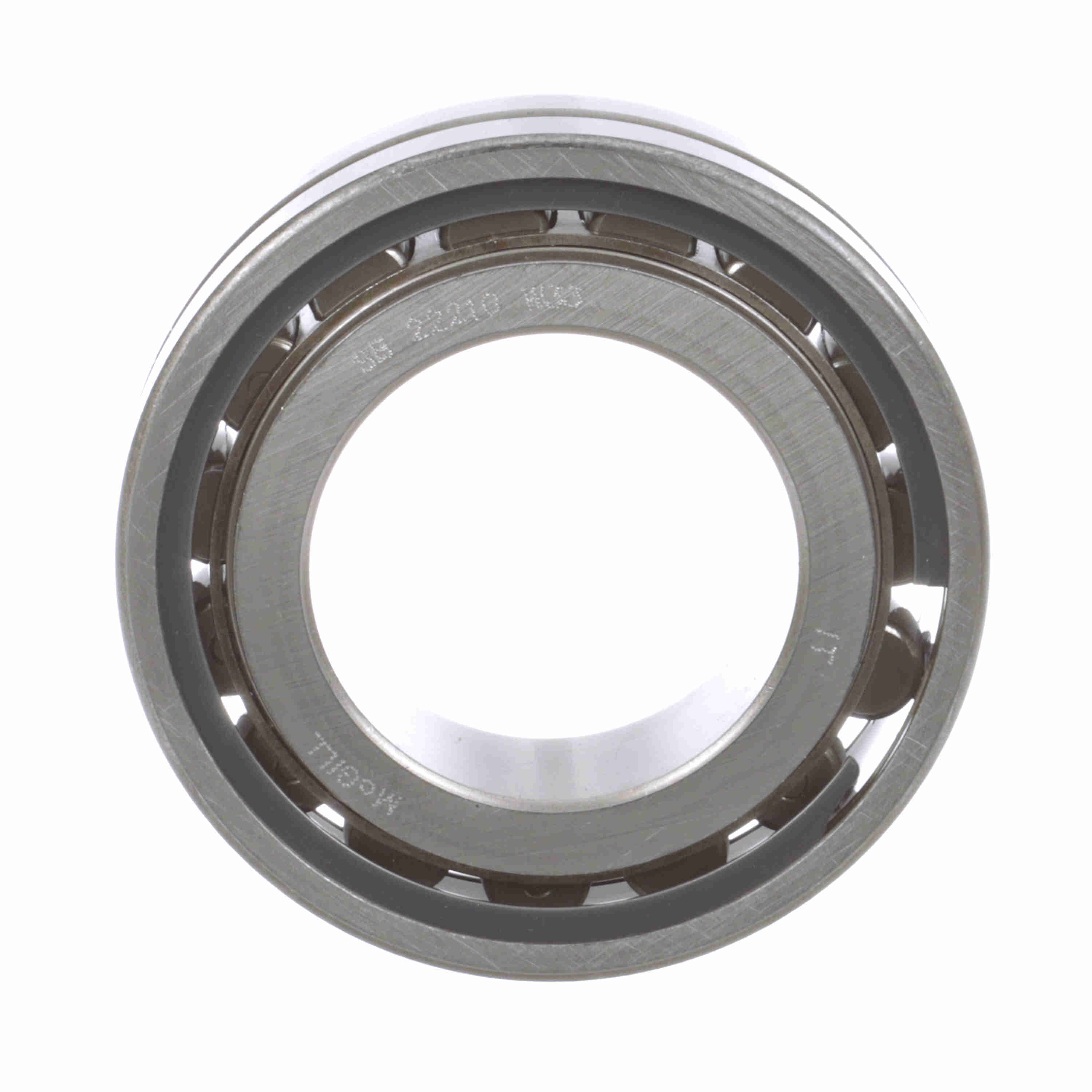

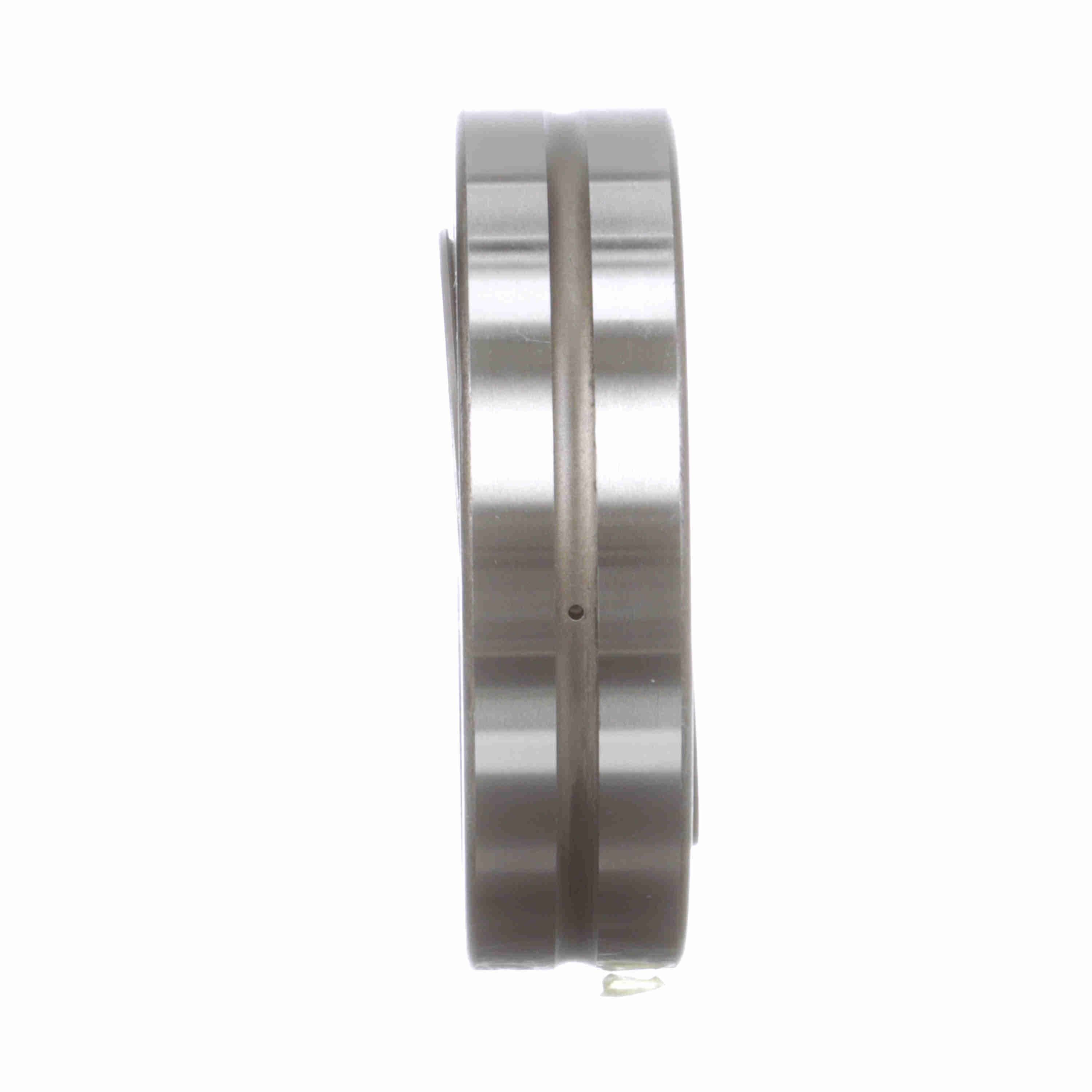

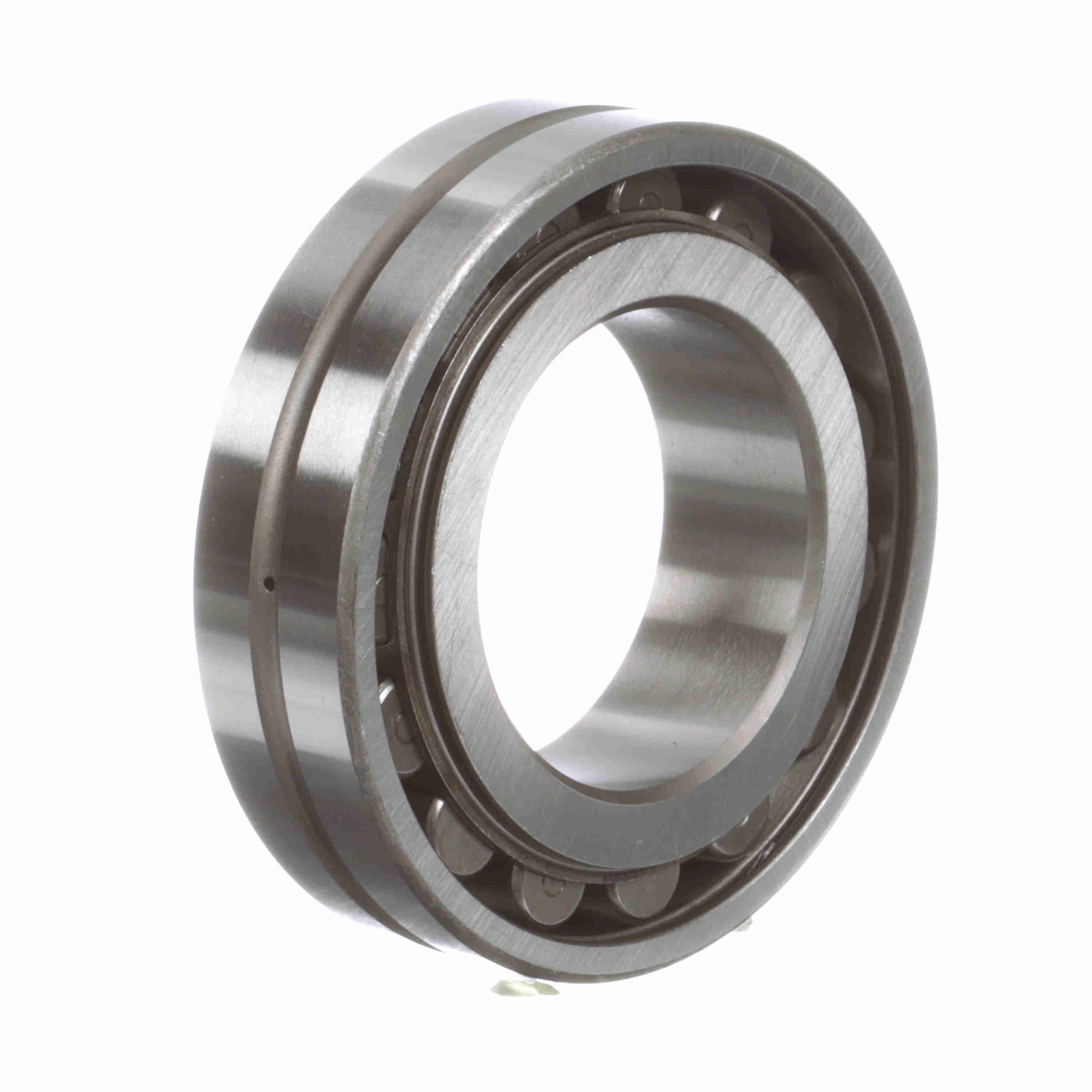

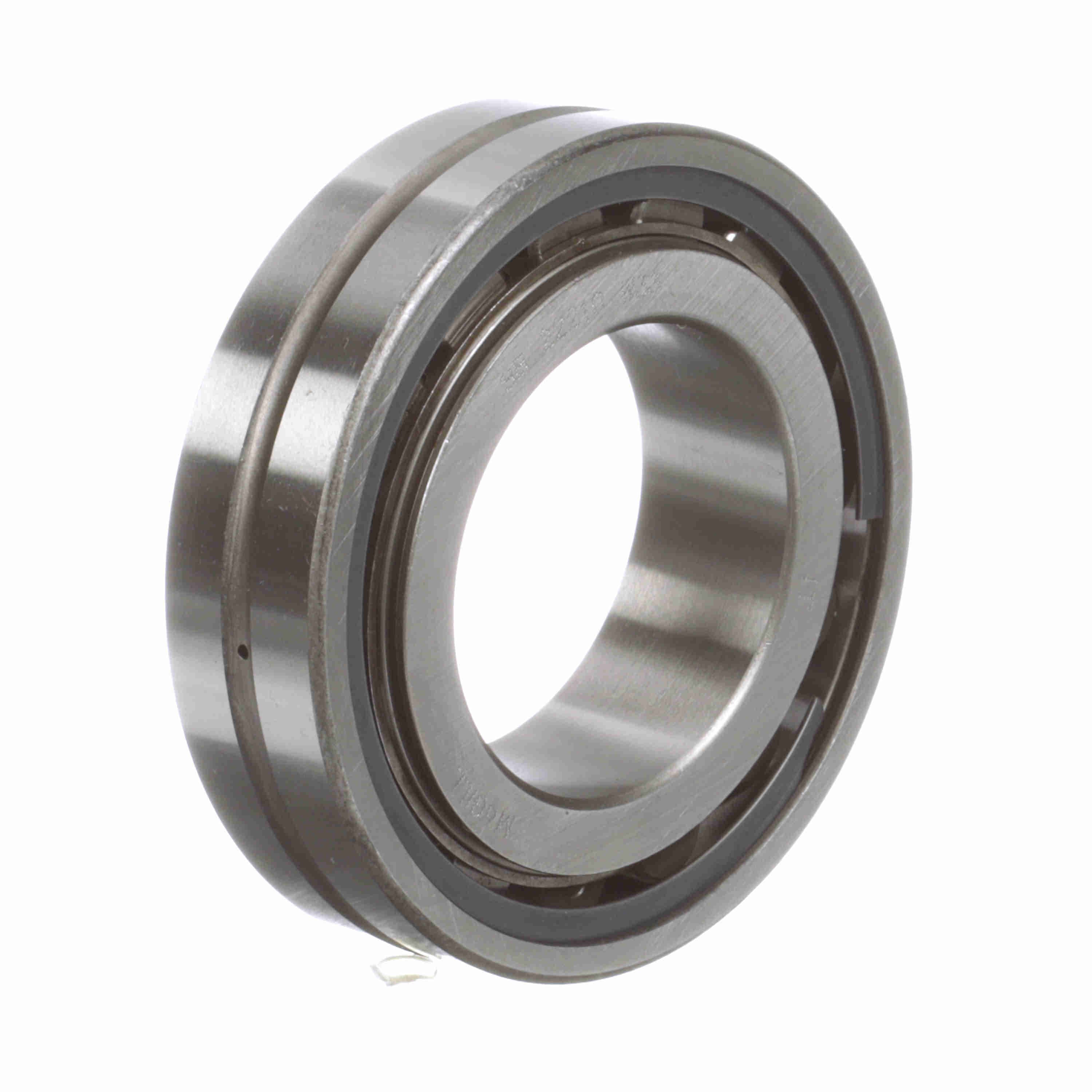

| Product Name | SB 22210 W33 |
| Brand | McGill |
| Material | 52100 Bearing Steel |
| Weight | 1.4 lb |
| Package Length | 3.63 in |
| Package Width | 1 in |
| Package Height | 3.66 in |
| Overall Width (mm) | 23 mm |
| Overall Width (in) | 0.9055 in |
| Housing & Shaft Fillet (in) | 0.039 in |
| Bore Size (mm) | 50 mm |
| Quantity | Price Each | Save |
|---|---|---|
| 1+ | $422.95 | — |
| Shaft Shoulder Diameter (in) |
| 2.25 in |
| Housing Shoulder Diameter (in) | 3.125 in |
| W33 Groove Width (in) | 0.17 in |
| Outside Diameter (mm) | 90 mm |
| Seal Type | Unsealed |
| Series | 22200 |
| Cage Material | Steel |
| Radial Clearance | C0 |
| Angular Misalignment | 3° |
| Bore Type | Straight |
| Number of Rows | 1 |
| Rolling Element | Spherical Roller |
| Misalignment | Yes |
| Platform | SPHERE-ROL® |
| Sealed | None |
| Duplexing | No |
| Full Complement/Caged | Caged |
| Speed (Max) Oil (RPM) | 5,250 rpm |
| Speed (Max) Grease (RPM) | 2,625 rpm |
| Finish/Coating | Uncoated |
| Precision Rating | P0 | ISO 15-2058 |
| Outer Ring Type | Not split |
| Lubrication Hole Type | Lubrication Groove & Hole |
| Dynamic Load Rating (kN) | 83.8 kN |
| Mounting Method | Shaft Mount |
| Maximum Operating Temperature (F) | 300 °F |
| Operating Temperature Range (F) | -30 to 300 °F °F |
| HTC | 8482.30.0040 |
| Country of Origin | United States of America |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-100231 |
| Part NumberiManufacturer catalog number | 0310004000 |
| BrandiManufacturer or product brand | McGill |
| UPCiUniversal Product Code | 726166003548 |
| CategoryiCatalog classification | Bearings > Spherical Roller Bearings |
