SB SERIES MH
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 0313666000 |

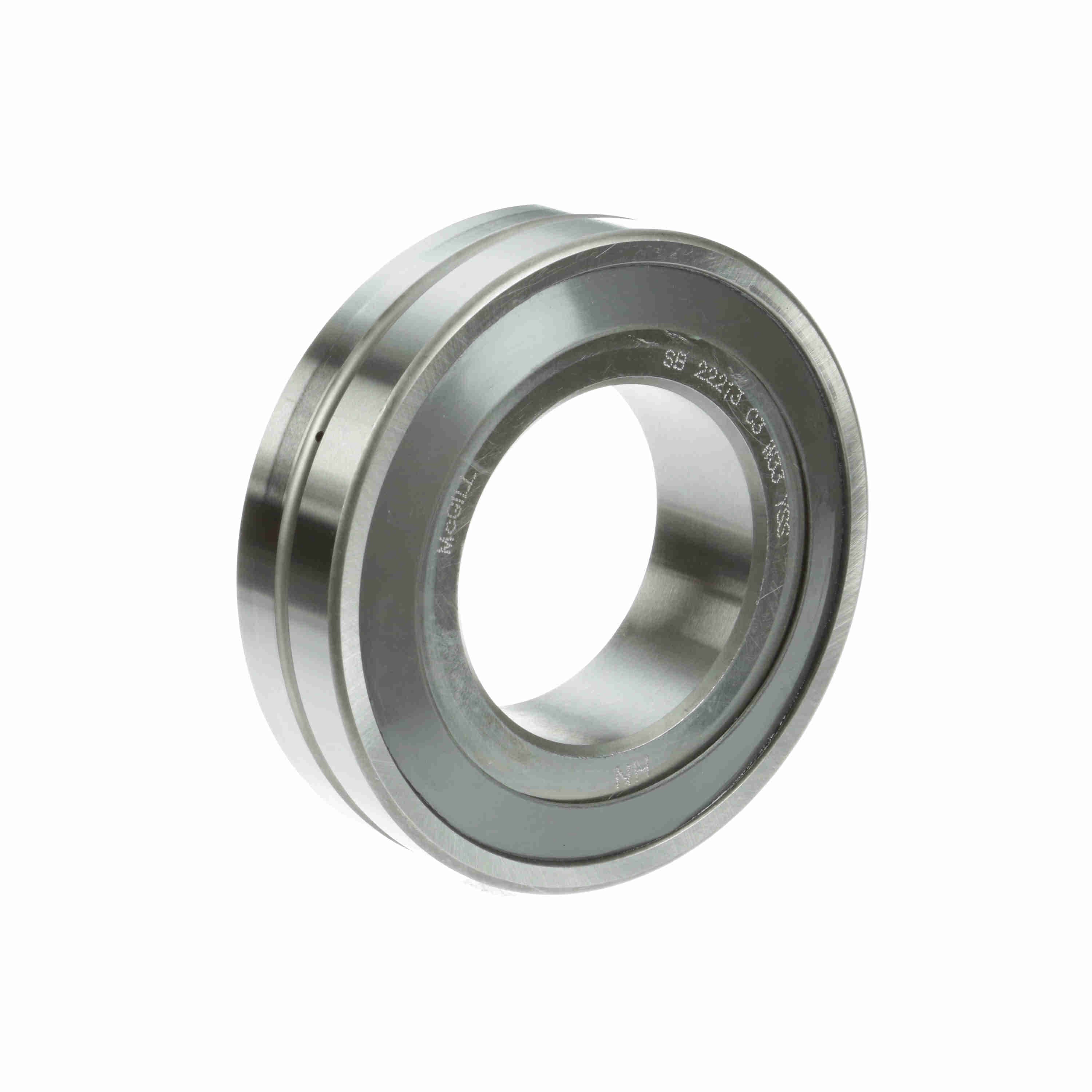

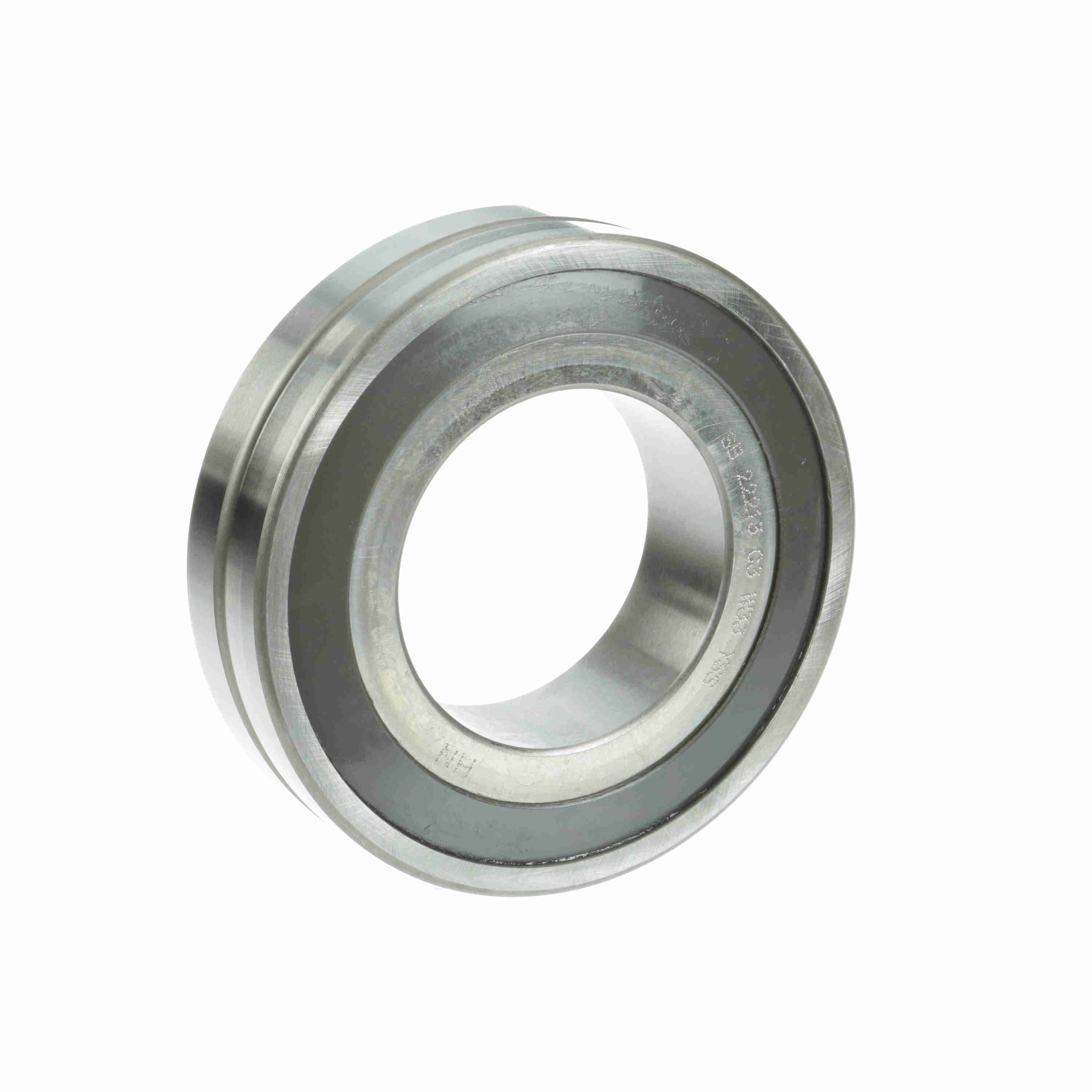

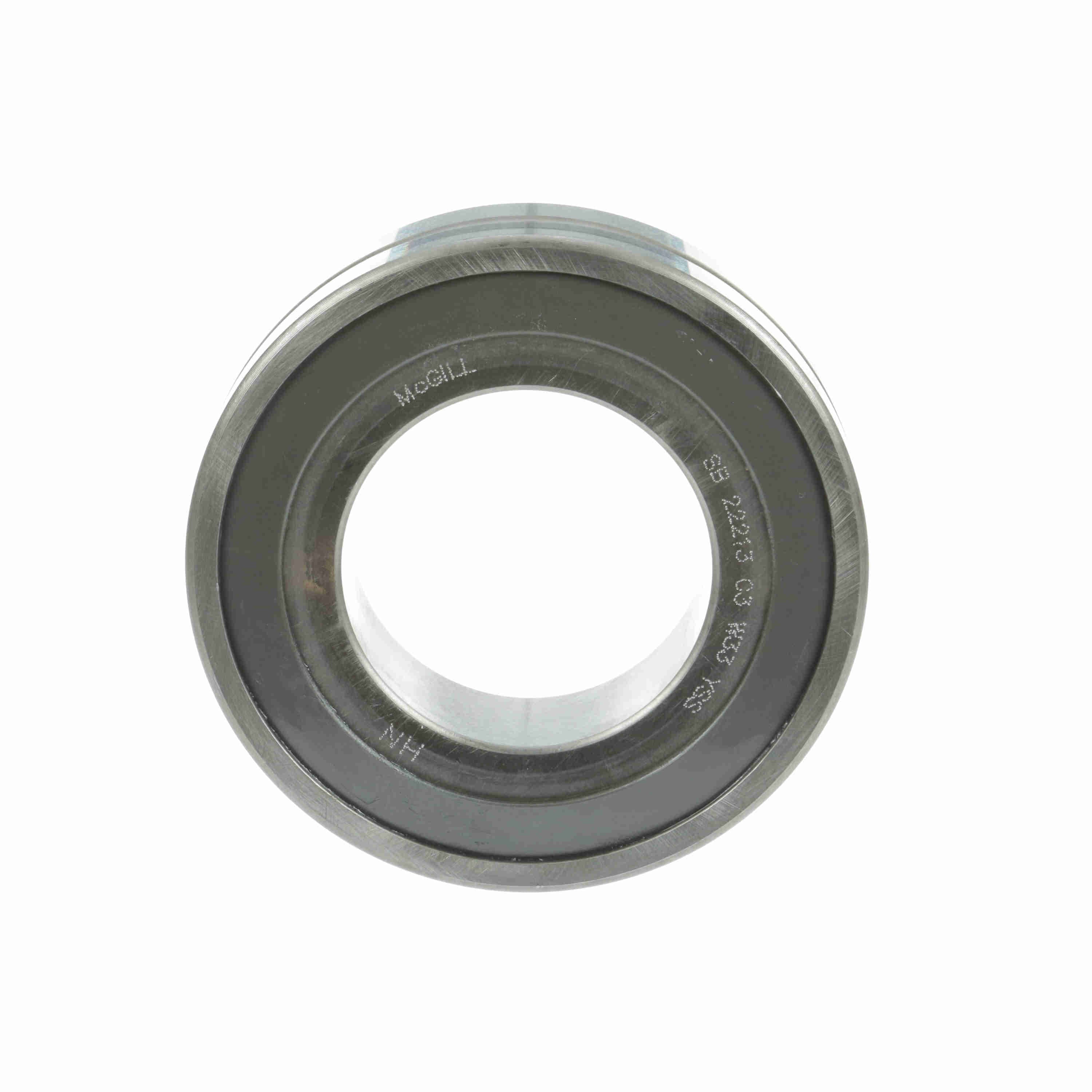

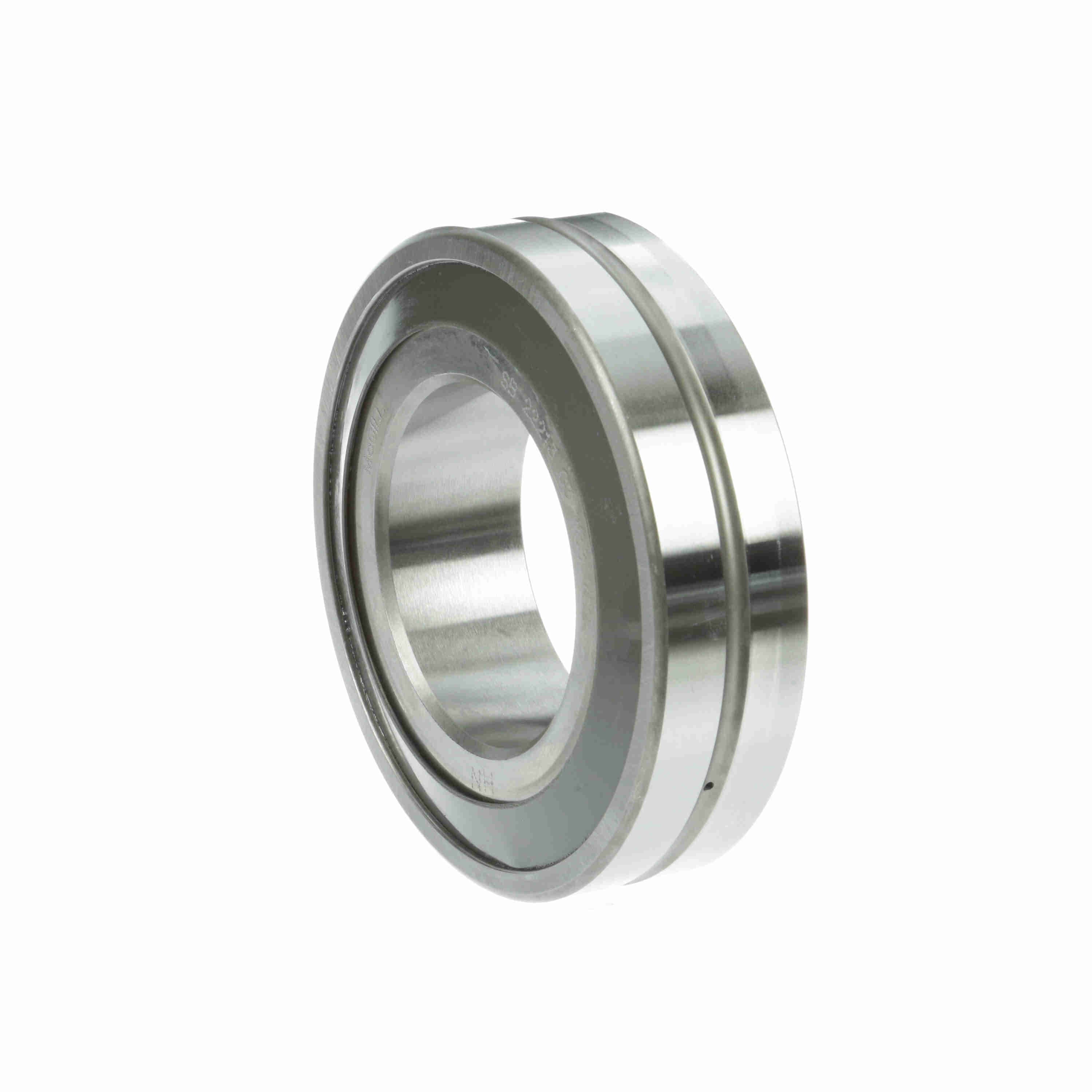

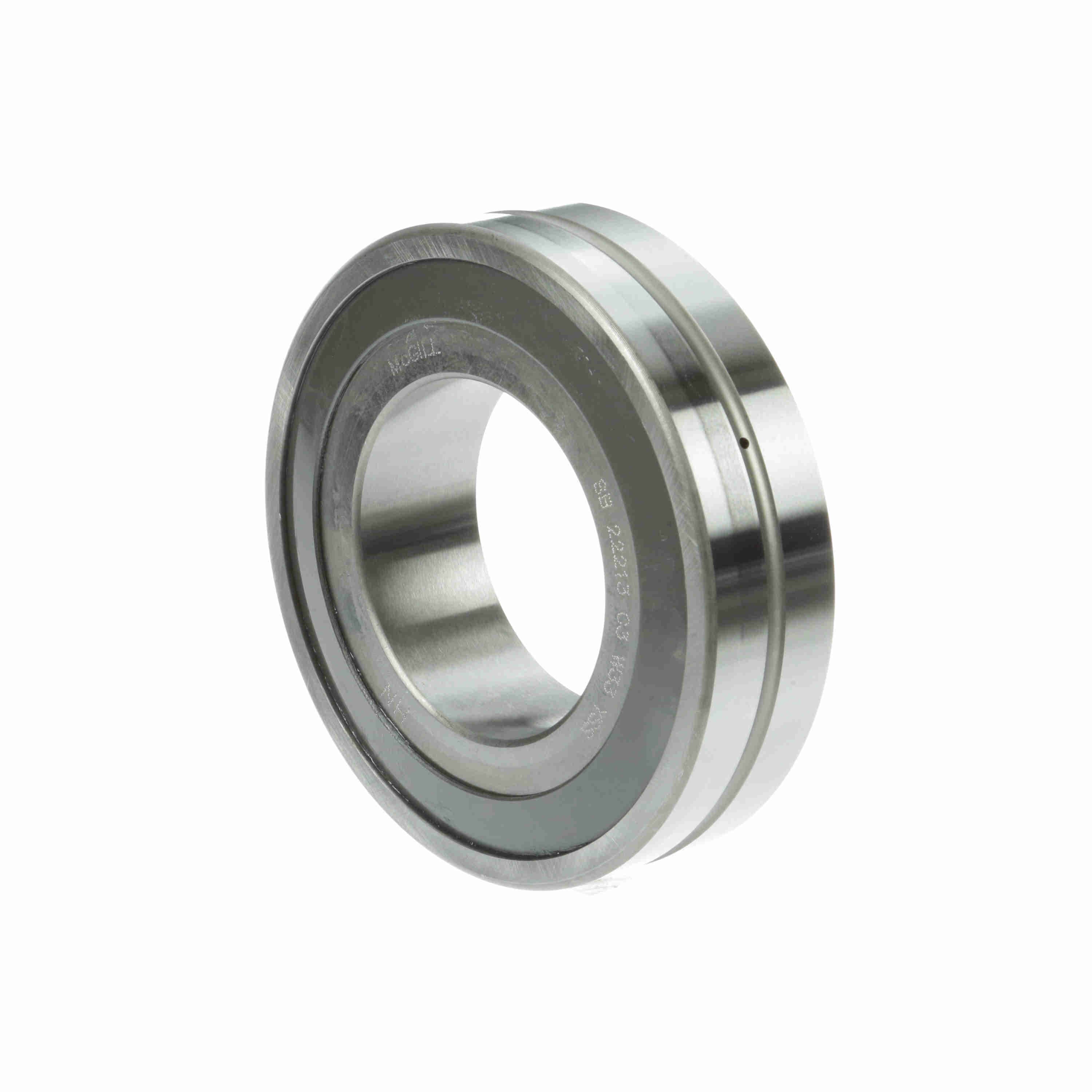

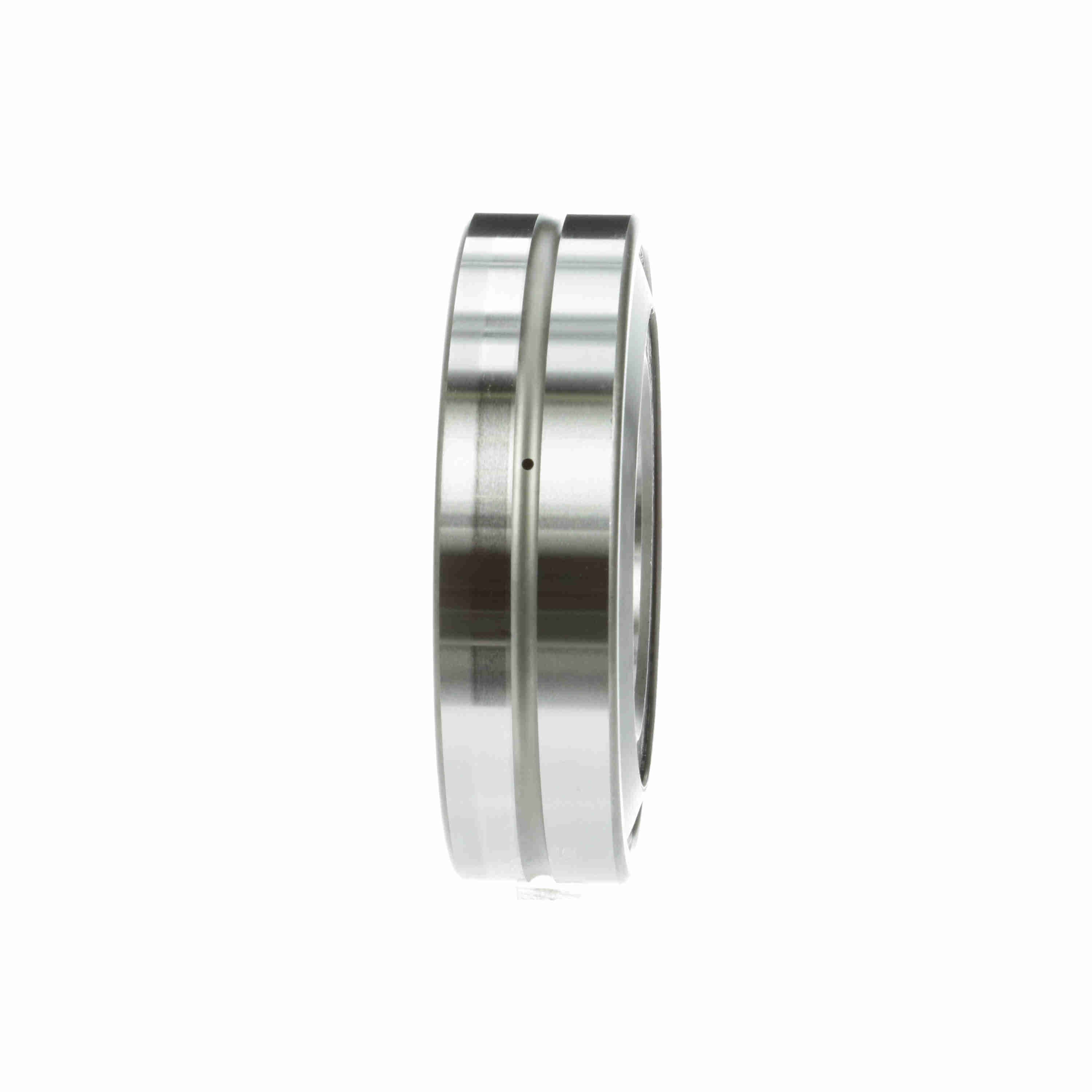

| Product Name | SB 22213 C3 W33 YSS |
| Brand | McGill |
| Material | 52100 Bearing Steel |
| Weight | 3.285 lb |
| Package Length | 5.06 in |
| Package Width | 1.38 in |
| Package Height | 5.06 in |
| Overall Width (mm) | 31 mm |
| Overall Width (in) | 1.2205 in |
| Bore Size (mm) | 65 mm |
| Housing & Shaft Fillet (in) | 0.059 in |
| Quantity | Price Each | Save |
|---|---|---|
| 1+ | $535.85 | — |
| Housing Shoulder Diameter (in) |
| 4.938 in |
| W33 Groove Width (in) | 0.19 in |
| Outside Diameter (mm) | 120 mm |
| YS Seal Minimum Face Clearance | 0.13 |
| Shaft Shoulder Diameter (in) | 2.938 in |
| Seal Type | Double Seal |
| Series | 22200 |
| Cage Material | Steel |
| Number of Rows | 1 |
| Rolling Element | Spherical Roller |
| Bore Type | Straight |
| Angular Misalignment | 1° |
| Misalignment | Yes |
| Radial Clearance | C3 |
| Sealed | Sealed - Both Sides |
| Speed (Max) Oil (RPM) | 3,800 rpm |
| Full Complement/Caged | Caged |
| Speed (Max) Grease (RPM) | 1,900 rpm |
| Platform | SPHERE-ROL® |
| Duplexing | No |
| Outer Ring Type | Not Split |
| Precision Rating | P0 | ISO 15-2008 |
| Lubrication Hole Type | Lubrication Groove & Hole |
| Finish/Coating | Uncoated |
| Dynamic Load Rating (kN) | 159 kN |
| Mounting Method | Shaft Mount |
| Maximum Operating Temperature (F) | 300 °F |
| Operating Temperature Range (F) | -30 to 300 °F °F |
| HTC | 8482.30.0040 |
| Country of Origin | United States of America |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-100295 |
| Part NumberiManufacturer catalog number | 0313666000 |
| BrandiManufacturer or product brand | McGill |
| UPCiUniversal Product Code | 726166005221 |
| CategoryiCatalog classification | Bearings > Spherical Roller Bearings |
