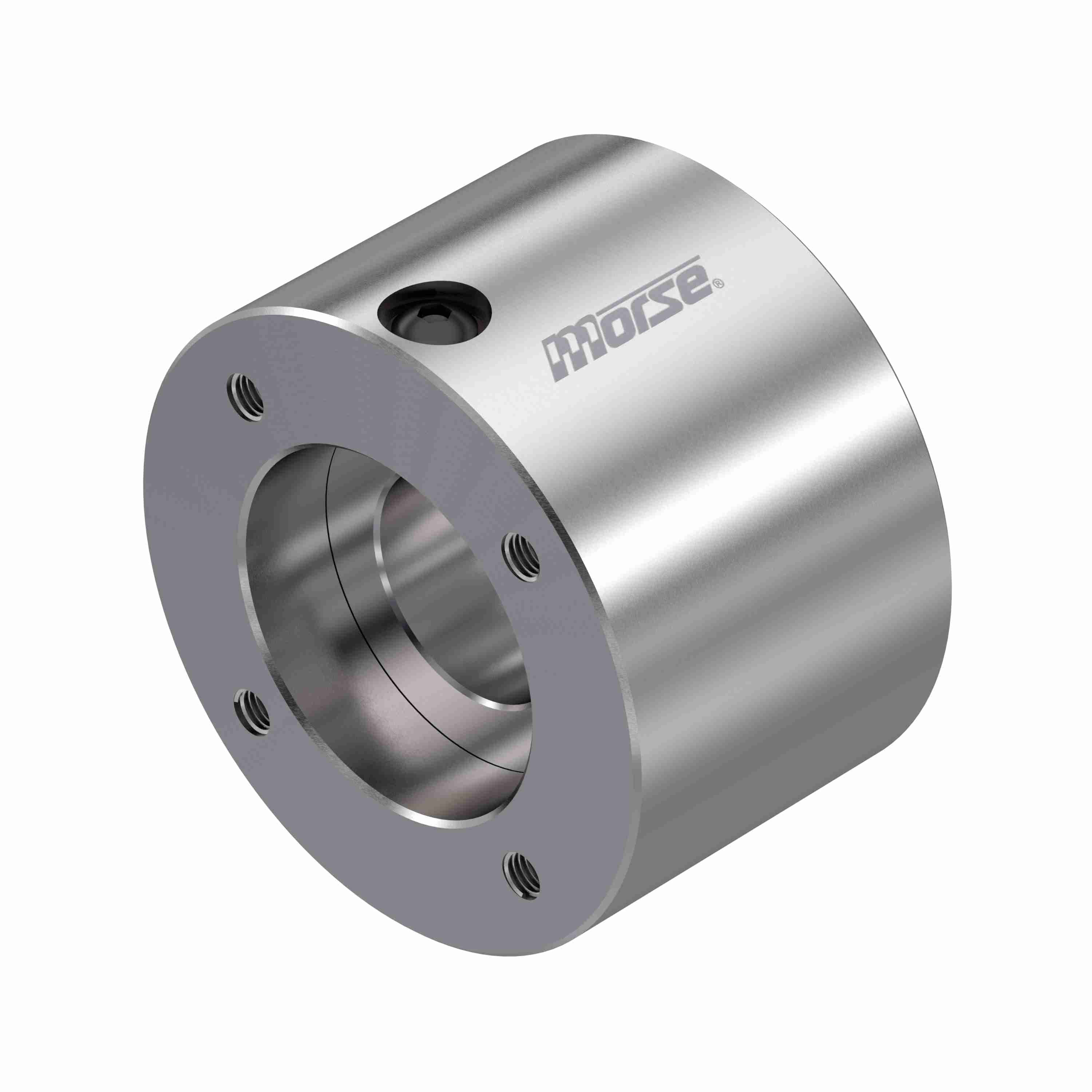

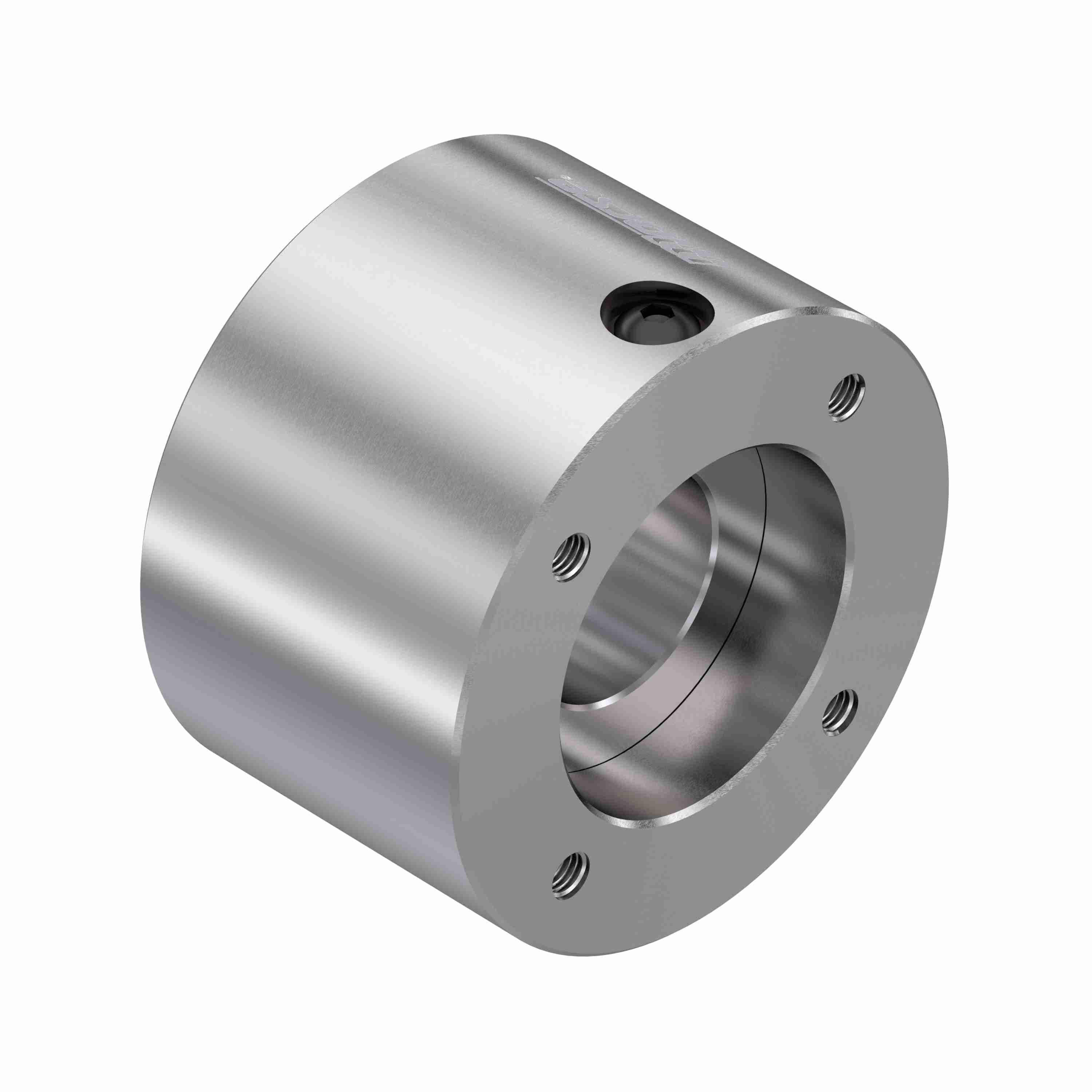

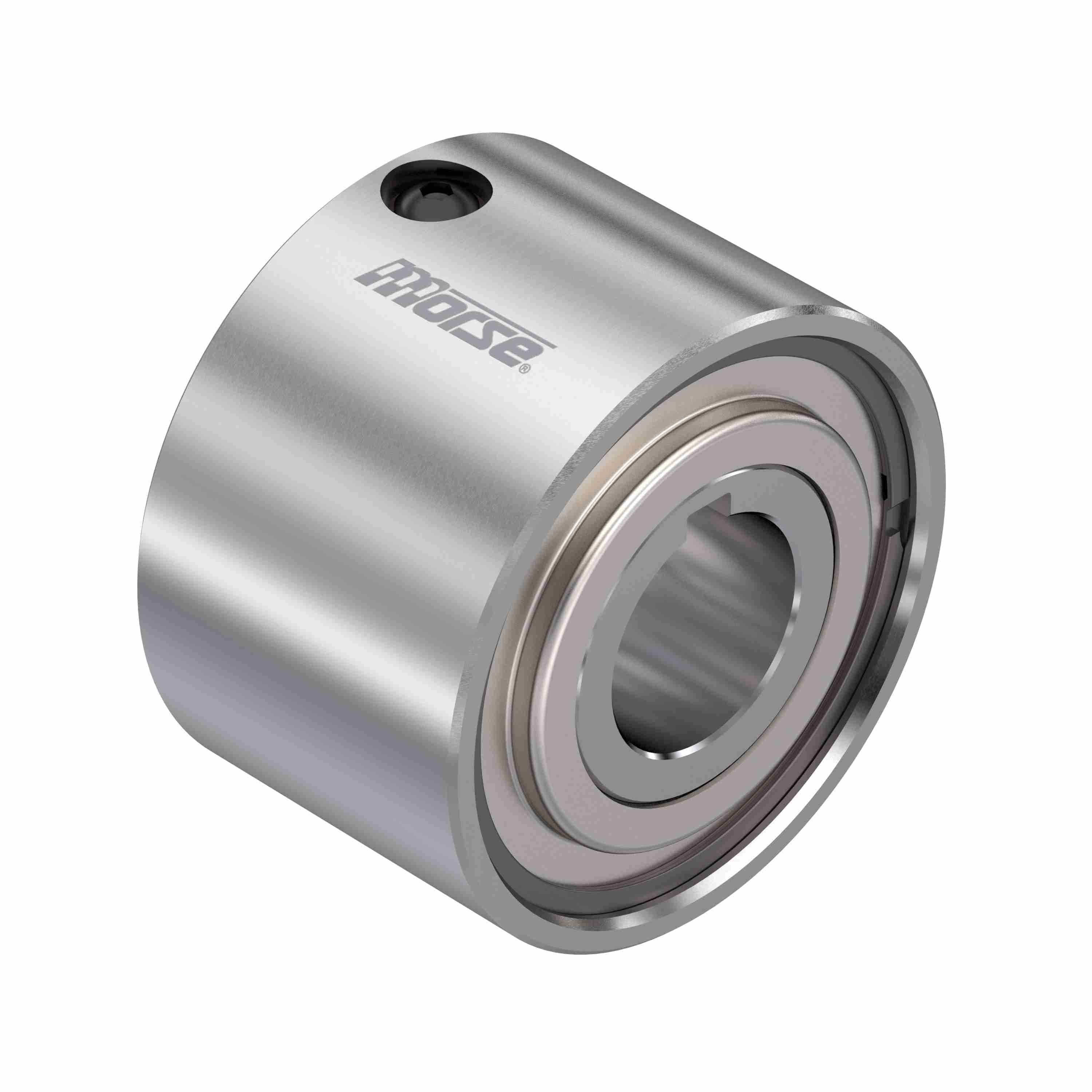

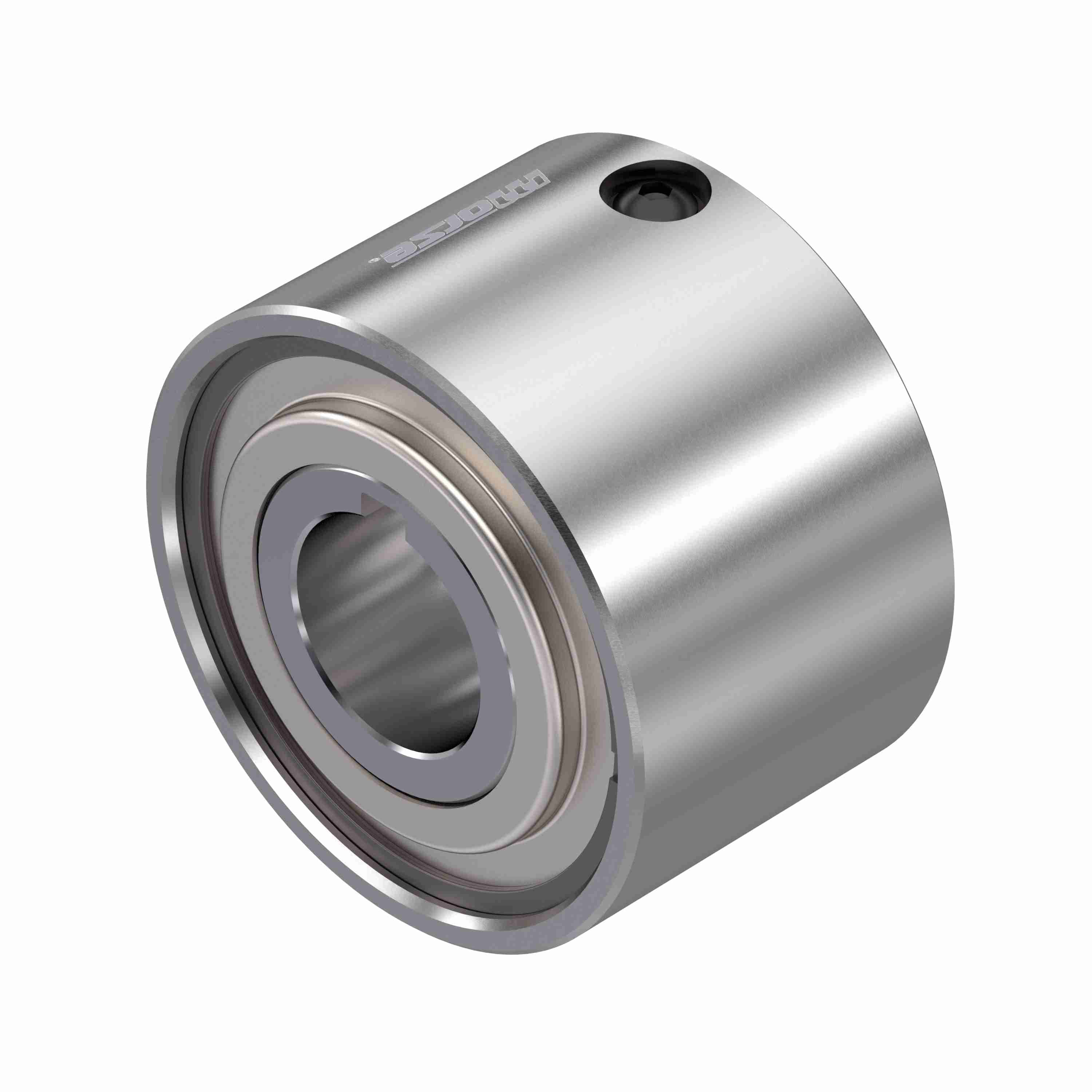

HT SERIES CLUTCH
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 092380 |
| Product Name | HT 20 CLUTCH 1 5/16 LH |
| Brand | Morse |
| Weight | 4.865 lb |
| Package Length | 4.7 in |
| Package Width | 4.4 in |
| Package Height | 3.3 in |
| Snap Ring Ball Brg (Unfurnished) | 304/205 |
| Useable depth of thread | .375 |
| Lubrication Type | Automatic Transmission Fluid - Must Be Added Before Use |
| Overall Diameter (in) | 3.5625 in |
| Model | HT20 |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 9 | $3398.79 | — |
| 10+ | $3128.42 | 8% off |
| Number of Tapped Mounting Holes | 4 |
| Mounting Bolt Circle Diameter | 2.75 |
| Tapped Hole Thread Size | 5/16-24 |
| Nominal Overrunning Drag (ft-lb) | 3.4 |
| Bearing Counterbore Diameter | 2.0470/2.0475 |
| Configuration | LH |
| Rated Torque Capacity (ft.-lbs.) | 154 |
| Type | CAM Clutches |
| Overall Width (in) | 2.28125 in |
| Add'l Bearing Support Requirement | No |
| Backstopping Clutch | Yes |
| Indexing Clutch | Yes |
| Bore Size (in) | 1.3125 in |
| Length Through Bore (in) | 1.6875 in |
| Product Type | HT Series |
| Overrunning Clutch | Yes |
| Bore (Min) (in) | .4875/.4900 in |
| HTC | 8483.60.4040 |
| Country of Origin | Mexico |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-100747 |
| Part NumberiManufacturer catalog number | 092380 |
| BrandiManufacturer or product brand | Morse |
| UPCiUniversal Product Code | 662288384977 |
| CategoryiCatalog classification | Power Transmission > Belt Drive Accessories |
