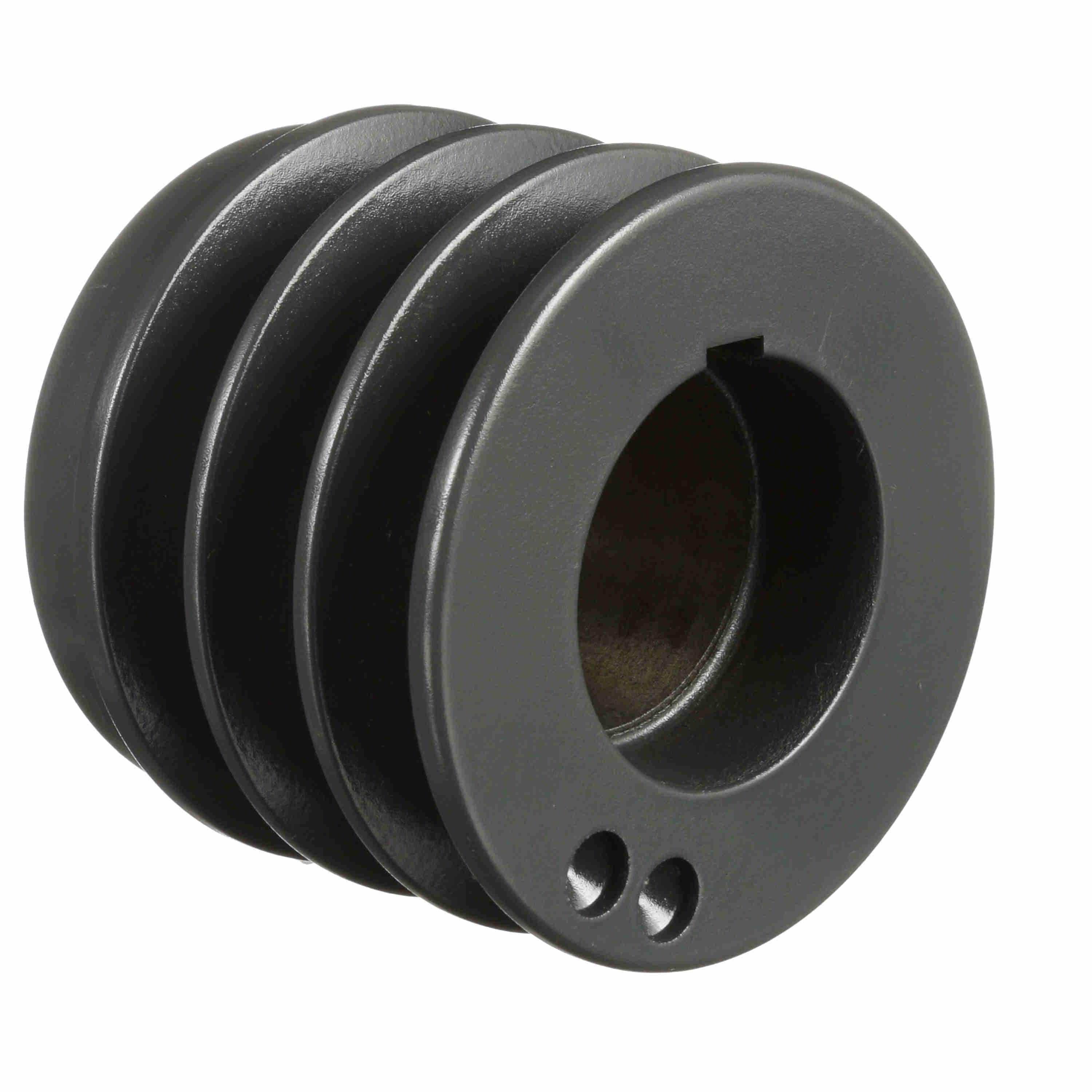

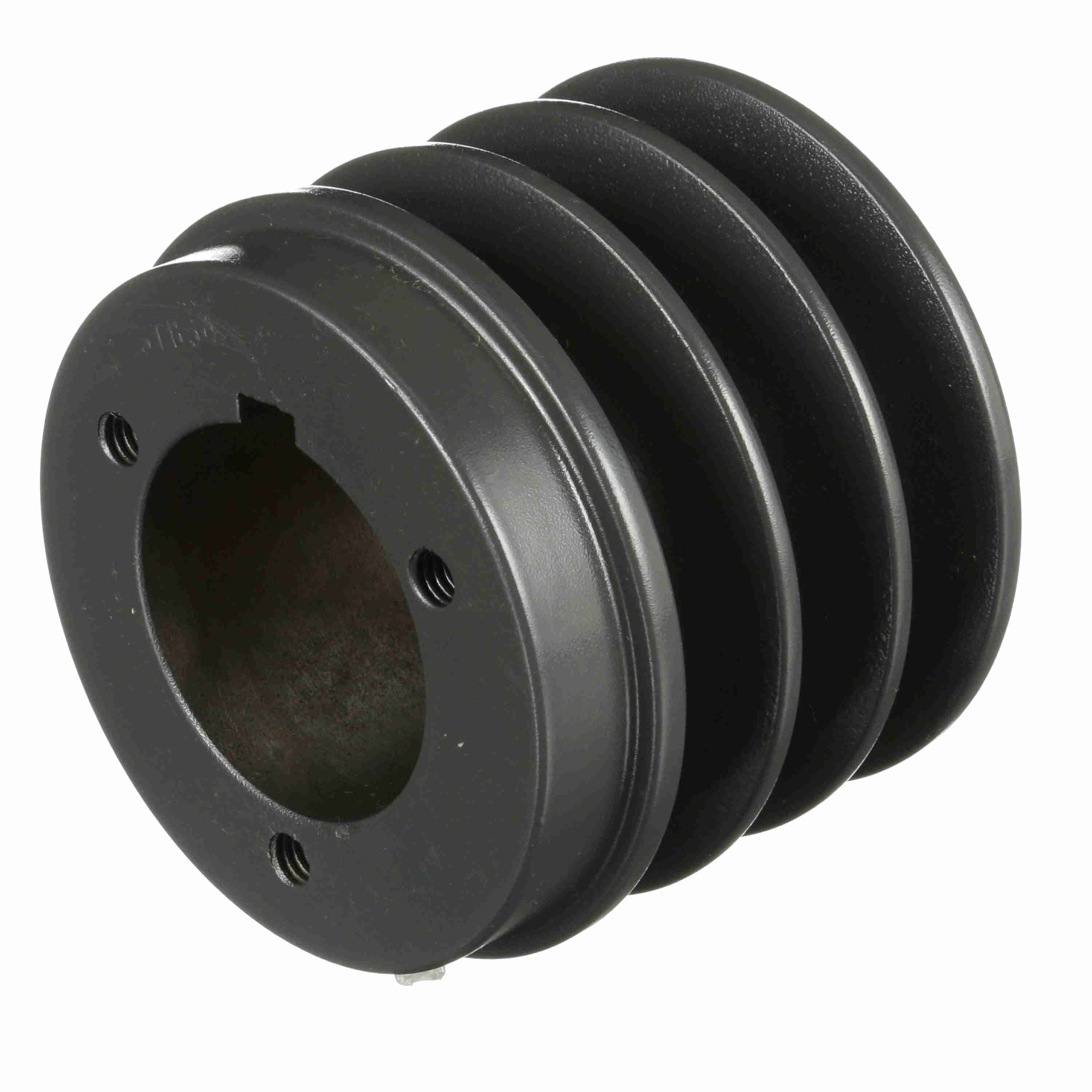

SPLIT TAPER B SHEAVES-600
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1001205 |
| Product Name | 3TB34 |
| Brand | Browning |
| Material | Cast Iron |
| Weight | 3.365 lb |
| Package Length | 4.5 in |
| Package Width | 4.9 in |
| Package Height | 3.5 in |
| Bushing Used | P2 |
| Model Name | 3TB-L_Sheave_Master |
| Overall Length (in) | 3.890625 in |
| Number of Grooves | 3 |
| Outside Diameter (in) |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 4 | $151.03 | — |
| 5 – 9 | $141.20 | 7% off |
| 10+ | $137.71 | 9% off |
| 3.75 in |
| Pulley Material | Cast Iron |
| Pitch Diameter (B) | 3.7 |
| Pitch Diameter (A) | 3.2 |
| Datum Diameter (B) | 3.4 |
| Datum Diameter (A) | 3 |
| Belt Section | A, B |
| Product Type | Multiple Sheaves |
| Bore (Min) (in) | 0.75 in |
| Bore Type | Split Taper Bushed |
| Face Width (in) | 2.5 |
| Overall Width (in) | 3.8125 |
| Keyway Size | .375 |
| Bushing Bore Range | 0.750 - 1.750 |
| Pulley Construction | Plain |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-100763 |
| Part NumberiManufacturer catalog number | 1001205 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289301003 |
| CategoryiCatalog classification | Power Transmission > V-Belt Sheaves |
