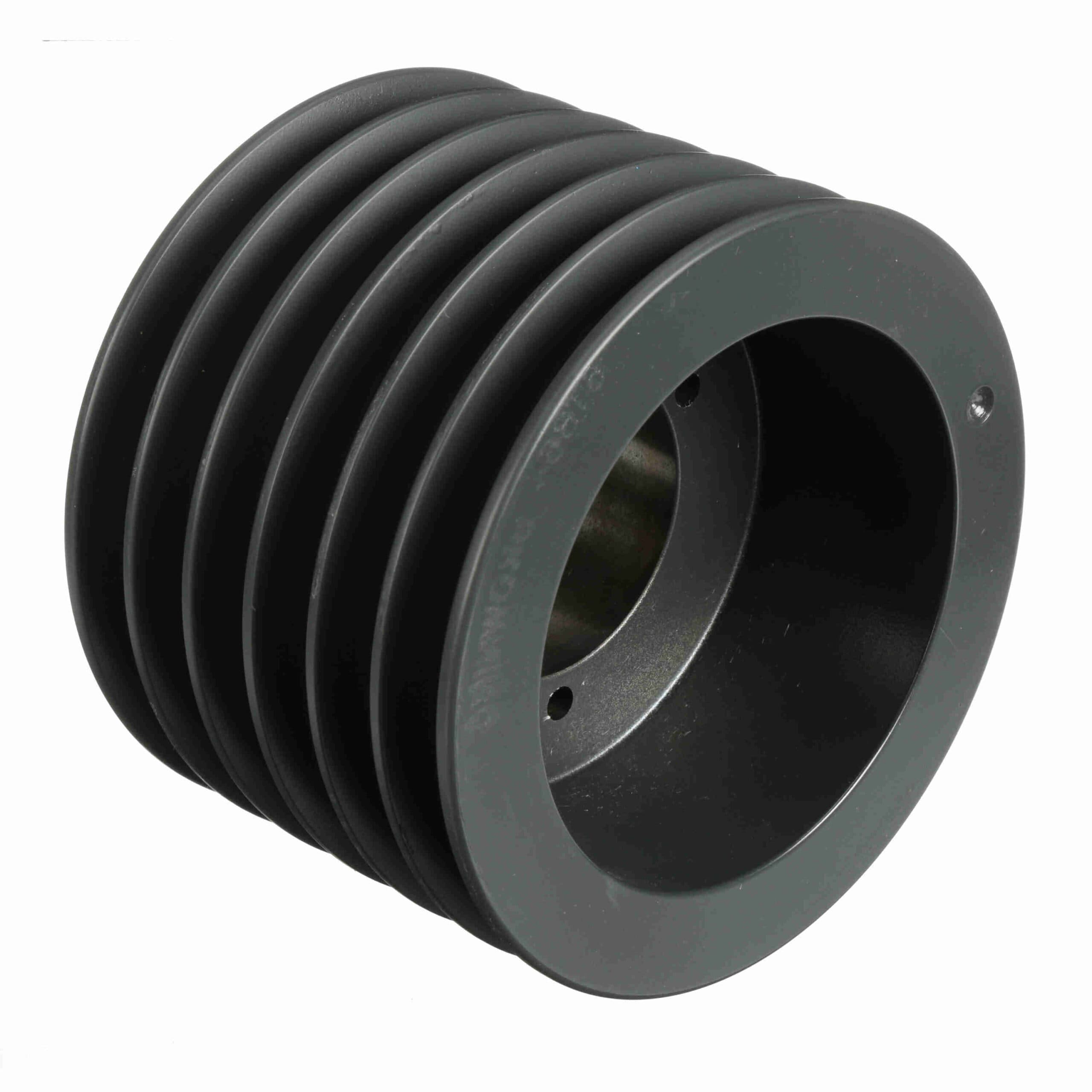

Browning 6 Groove Cast Iron Bushed Bore Multiple Sheave - 6TB36
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1001296 |
| Product Name | 6TB36 |
| Brand | Browning |
| Material | Cast Iron |
| Weight | 7.5 lb |
| Package Length | 5.19 in |
| Package Width | 5.19 in |
| Package Height | 4.25 in |
| Datum Diameter (A) | 3.2 |
| Number of Grooves | 6 |
| Pulley Material | Cast Iron |
| Overall Length (in) | 6.015625 in |
| Outside Diameter (in) |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| 3.95 in |
| Pitch Diameter (A) | 3.4 |
| Datum Diameter (B) | 3.6 |
| Pitch Diameter (B) | 3.9 |
| Bushing Used | P2 |
| Belt Section | A, B |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-100771 |
| Part NumberiManufacturer catalog number | 1001296 |
| BrandiManufacturer or product brand | Browning |
| CategoryiCatalog classification | Power Transmission > V-Belt Sheaves |
