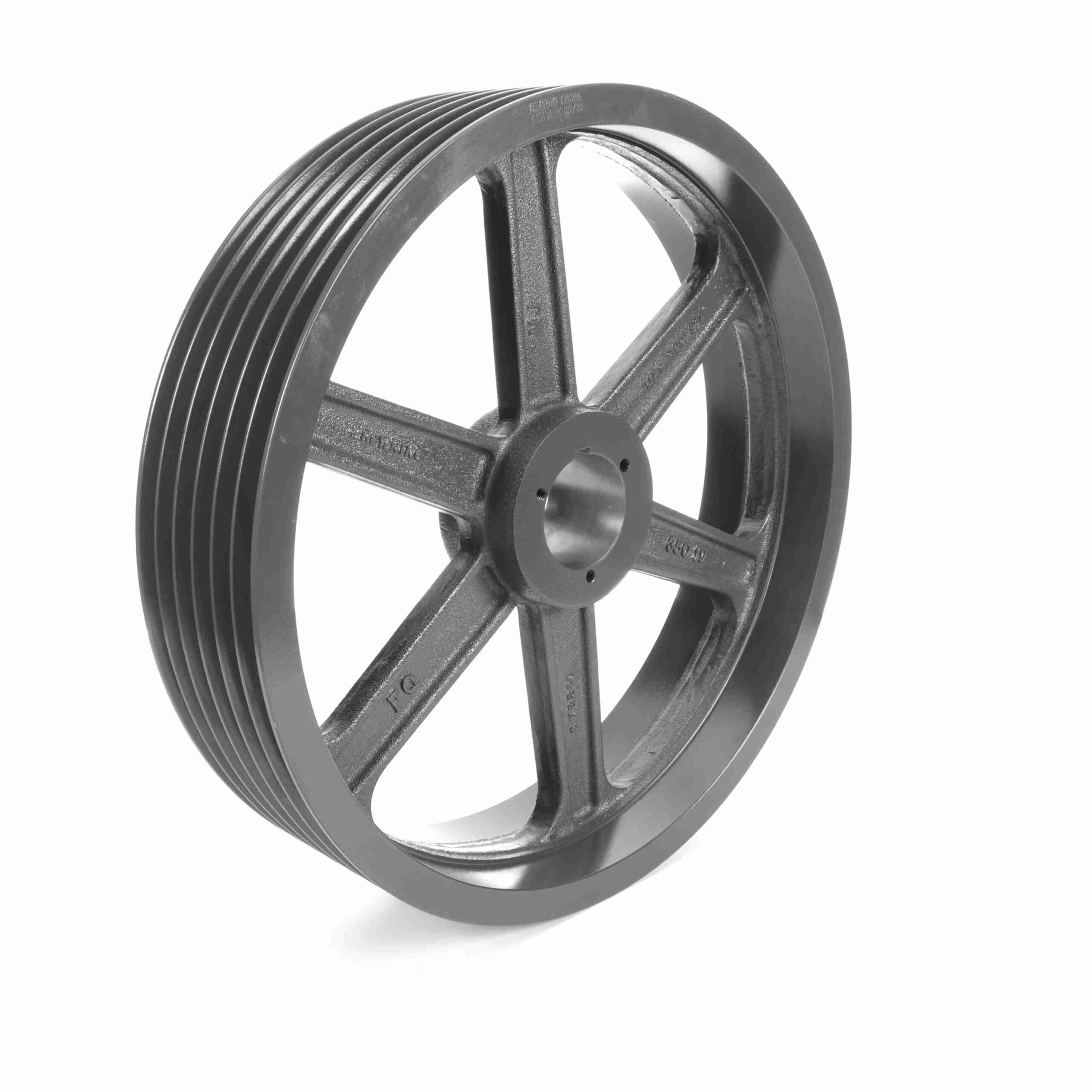

Browning 6 Groove Cast Iron Bushed Bore Multiple Sheave - 6TB200
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1003037 |
| Product Name | 6TB200 |
| Brand | Browning |
| Material | Cast Iron |
| Weight | 74 lb |
| Package Length | 20.35 in |
| Package Width | 20.35 in |
| Package Height | 4.75 in |
| Bushing Used | Q2 |
| Datum Diameter (A) | 19.6 |
| Pitch Diameter (A) | 19.8 |
| Outside Diameter (in) | 20.35 in |
| Pulley Material |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| Cast Iron |
| Pitch Diameter (B) | 20.3 |
| Datum Diameter (B) | 20 |
| Number of Grooves | 6 |
| Overall Length (in) | 4.828125 in |
| Bore (Min) (in) | 1 in |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-100940 |
| Part NumberiManufacturer catalog number | 1003037 |
| BrandiManufacturer or product brand | Browning |
| CategoryiCatalog classification | Power Transmission > V-Belt Sheaves |
