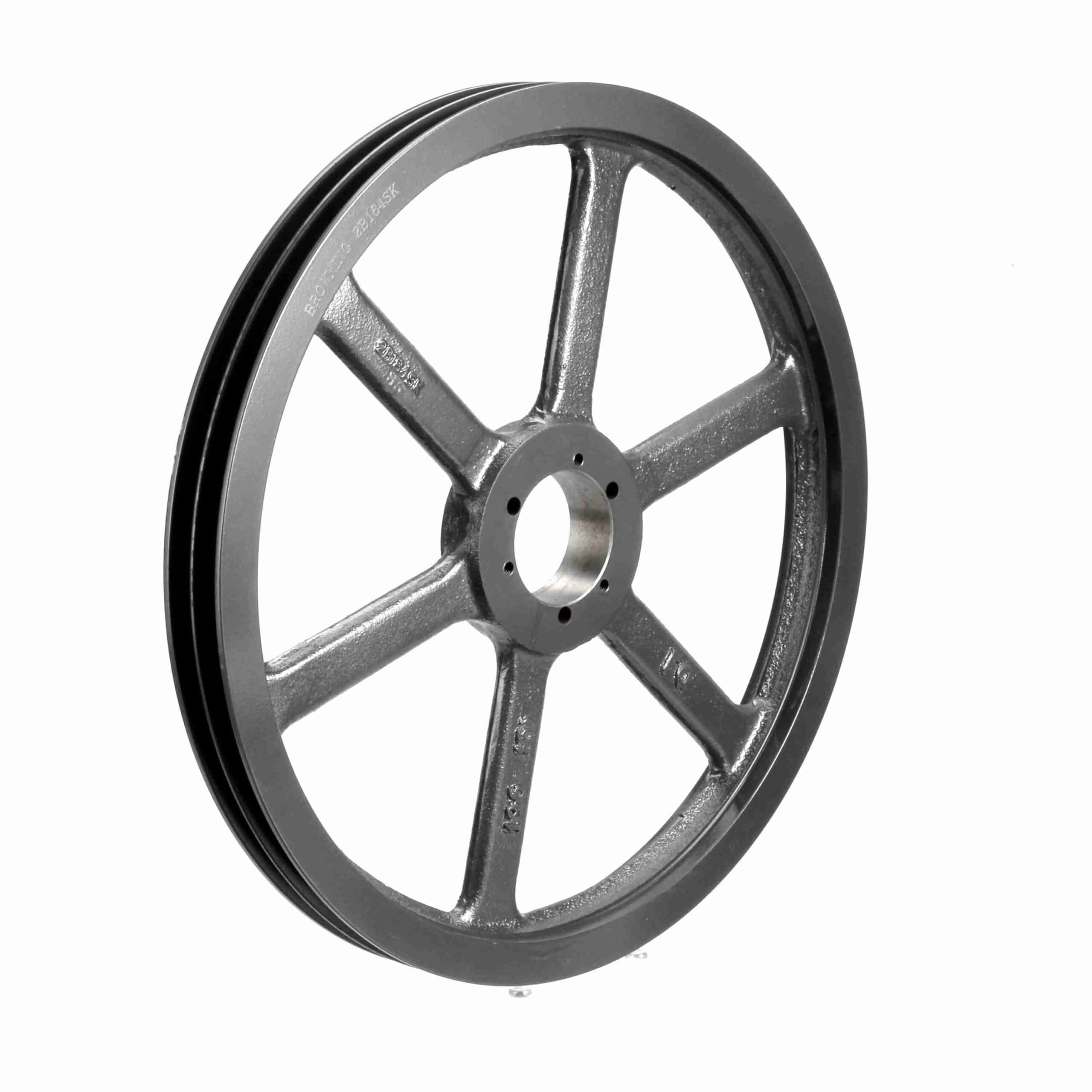

Browning 2 Groove Cast Iron Bushed Bore Multiple Sheave - 2B380SF
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1004456 |
| Product Name | 2B380SF |
| Brand | Browning |
| Material | Cast Iron |
| Weight | 64 lb |
| Package Length | 38.35 in |
| Package Width | 38.35 in |
| Package Height | 1.75 in |
| Outside Diameter (in) | 38.35 in |
| Pulley Material | Cast Iron |
| Datum Diameter (A) | 37.6 |
| Bushing Used | SF |
| Number of Grooves |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| 2 |
| Pitch Diameter (A) | 37.8 |
| Datum Diameter (B) | 38 |
| Pitch Diameter (B) | 38.3 |
| Belt Section | A, B |
| Bore (Min) (in) | 0.5 in |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-101010 |
| Part NumberiManufacturer catalog number | 1004456 |
| BrandiManufacturer or product brand | Browning |
| CategoryiCatalog classification | Power Transmission > V-Belt Sheaves |
