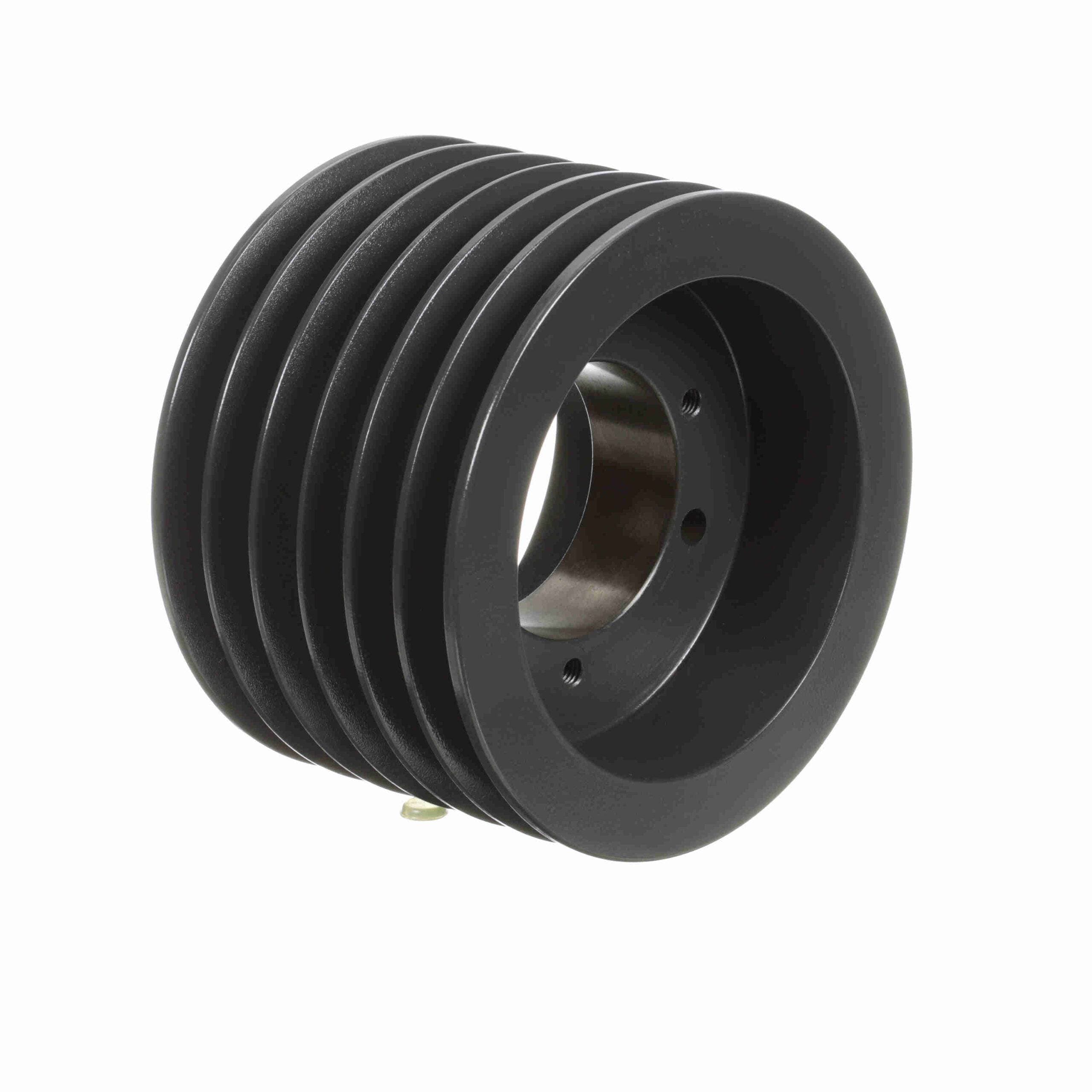

Browning 6 Groove Cast Iron Bushed Bore Multiple Sheave - 6B70SF
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1005636 |
| Product Name | 6B70SF |
| Brand | Browning |
| Material | Cast Iron |
| Weight | 19.24 lb |
| Package Length | 7.88 in |
| Package Width | 7.88 in |
| Package Height | 4.75 in |
| Pitch Diameter (A) | 6.8 |
| Bushing Used | SF |
| Number of Grooves | 6 |
| Datum Diameter (B) | 7 |
| Datum Diameter (A) |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| 6.6 |
| Pitch Diameter (B) | 7.3 |
| Pulley Material | Cast Iron |
| Outside Diameter (in) | 7.35 in |
| Product Type | Multiple Sheaves |
| Belt Section | A, B |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-101124 |
| Part NumberiManufacturer catalog number | 1005636 |
| BrandiManufacturer or product brand | Browning |
| CategoryiCatalog classification | Power Transmission > V-Belt Sheaves |
