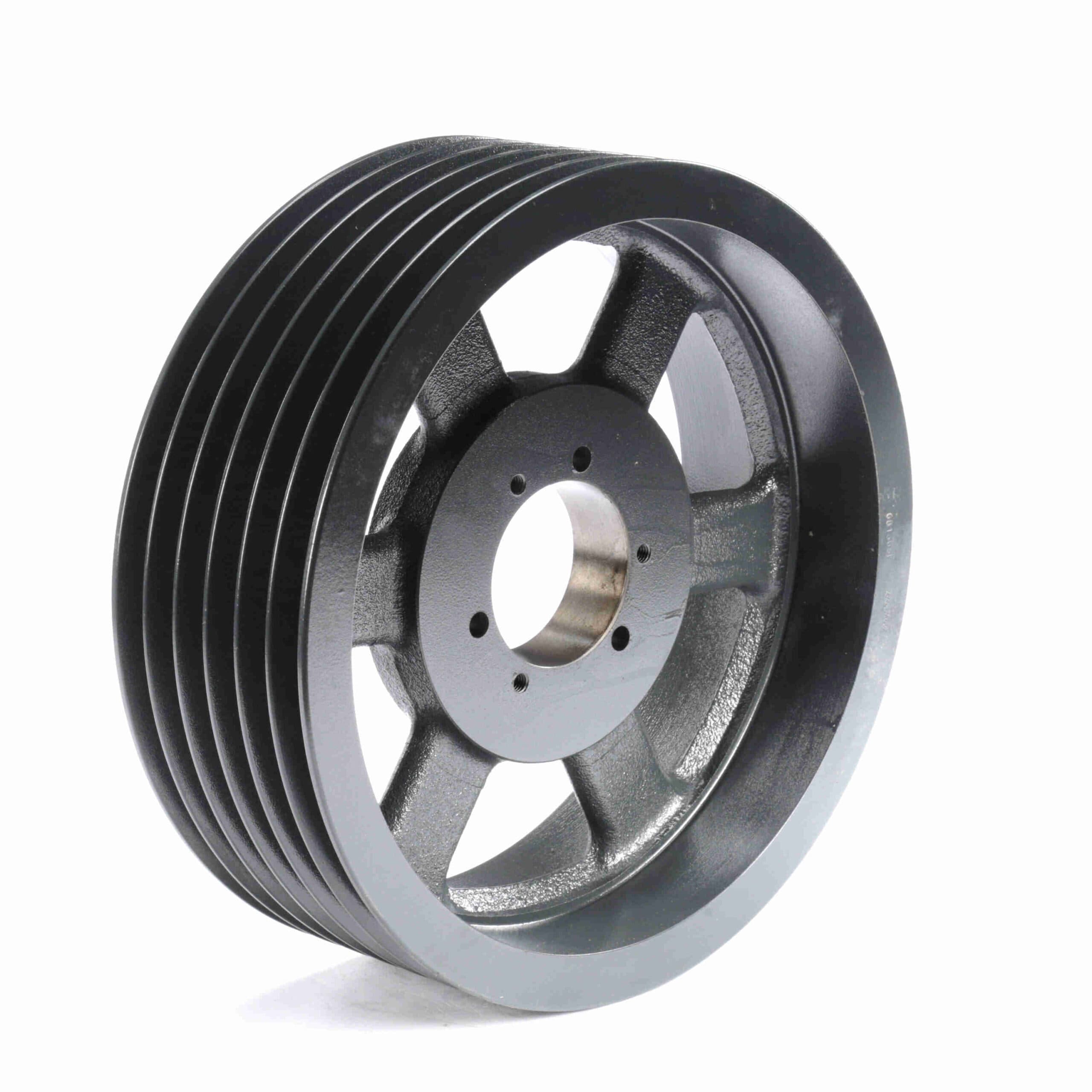

Browning 6 Groove Cast Iron Bushed Bore Multiple Sheave - 6B250E
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1005750 |
| Product Name | 6B250E |
| Brand | Browning |
| Material | Cast Iron |
| Weight | 96 lb |
| Package Length | 25.35 in |
| Package Width | 25.35 in |
| Package Height | 4.75 in |
| Number of Grooves | 6 |
| Pitch Diameter (A) | 24.8 |
| Bushing Used | E |
| Outside Diameter (in) | 25.35 in |
| Datum Diameter (B) |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| 25 |
| Pitch Diameter (B) | 25.3 |
| Datum Diameter (A) | 24.6 |
| Pulley Material | Cast Iron |
| Belt Section | A, B |
| Product Type | Multiple Sheaves |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-101135 |
| Part NumberiManufacturer catalog number | 1005750 |
| BrandiManufacturer or product brand | Browning |
| CategoryiCatalog classification | Power Transmission > V-Belt Sheaves |
