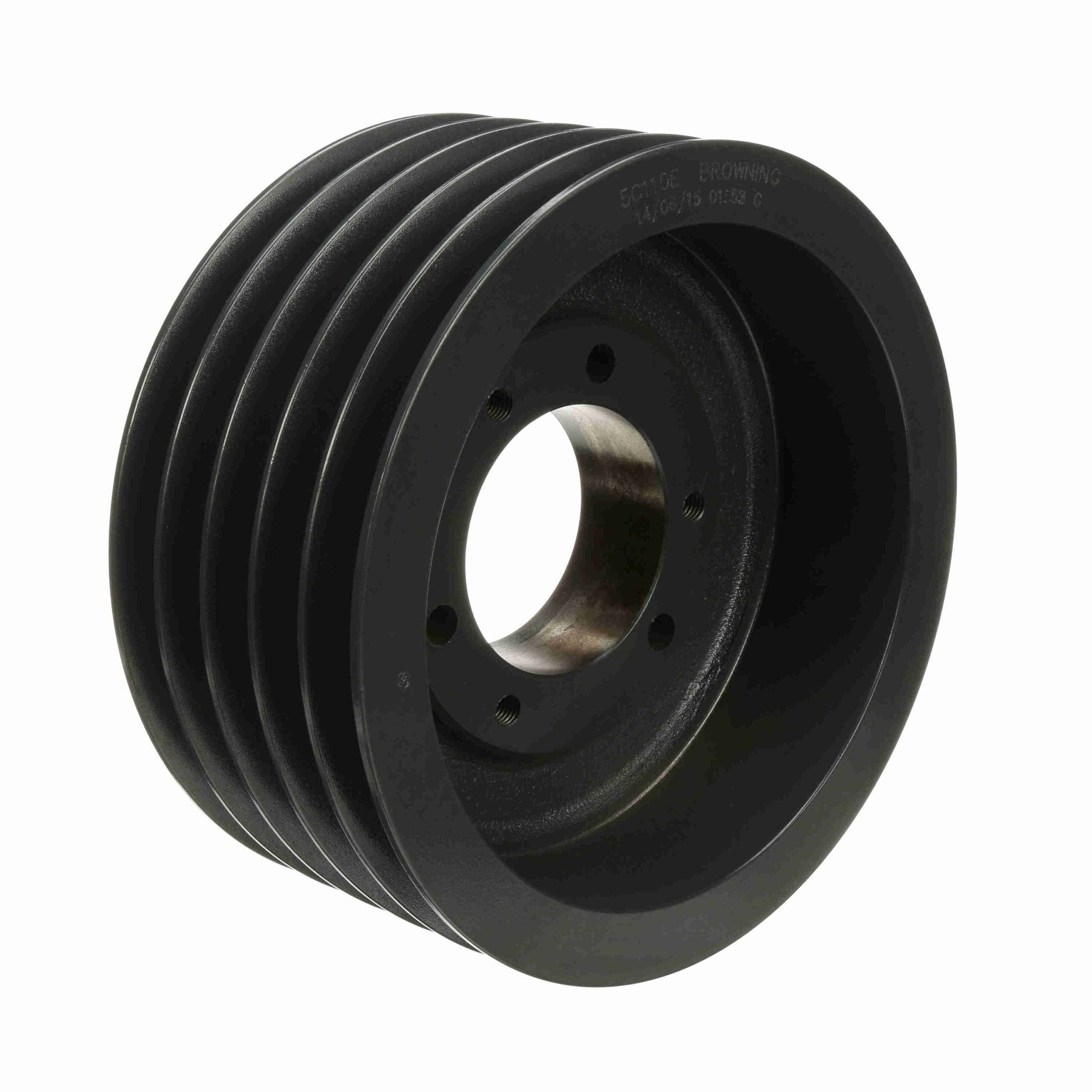

Browning 5 Groove Cast Iron Bushed Bore Multiple Sheave - 5C110E
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1006642 |
| Product Name | 5C110E |
| Brand | Browning |
| Material | Cast Iron |
| Weight | 42.68 lb |
| Package Length | 12.5 in |
| Package Width | 12.4 in |
| Package Height | 5.4 in |
| Number of Grooves | 5 |
| Outside Diameter (in) | 11.4 in |
| Bushing Used | E |
| Datum Diameter (C) | 11 |
| Pitch Diameter (C) |
Datasheets, CAD drawings, and installation instructions are available on request.
Request DocumentationThis product is a direct replacement for the following discontinued part numbers. Customers searching for these legacy SKUs will find this page.
| 11.4 |
| Pulley Material | Cast Iron |
| Bore (Min) (in) | 0.875 in |
| Belt Section | C |
| Product Type | Multiple Sheaves |
| Bore Type | QD Bushed |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-101192 |
| Part NumberiManufacturer catalog number | 1006642 |
| BrandiManufacturer or product brand | Browning |
| CategoryiCatalog classification | Power Transmission > V-Belt Sheaves |
