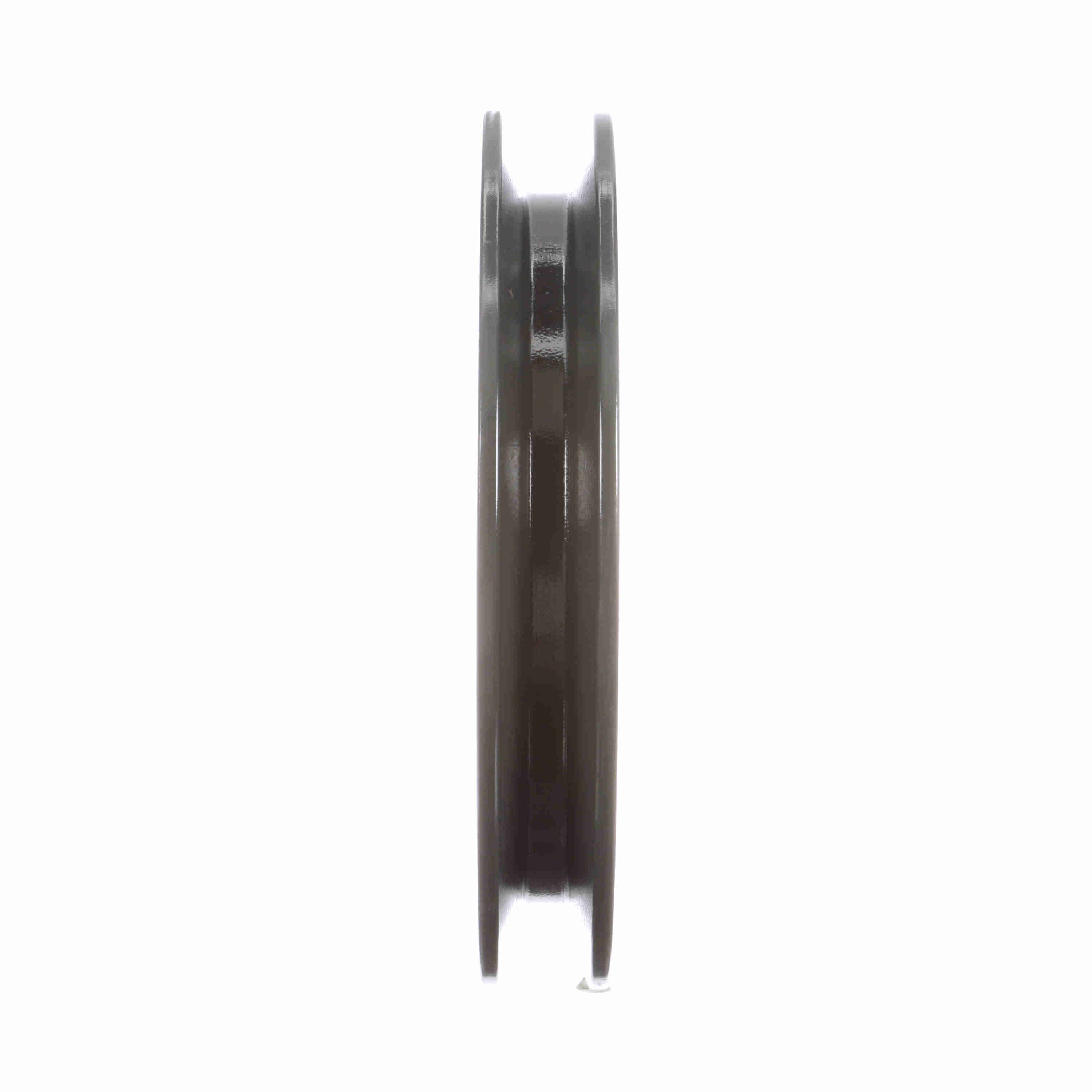

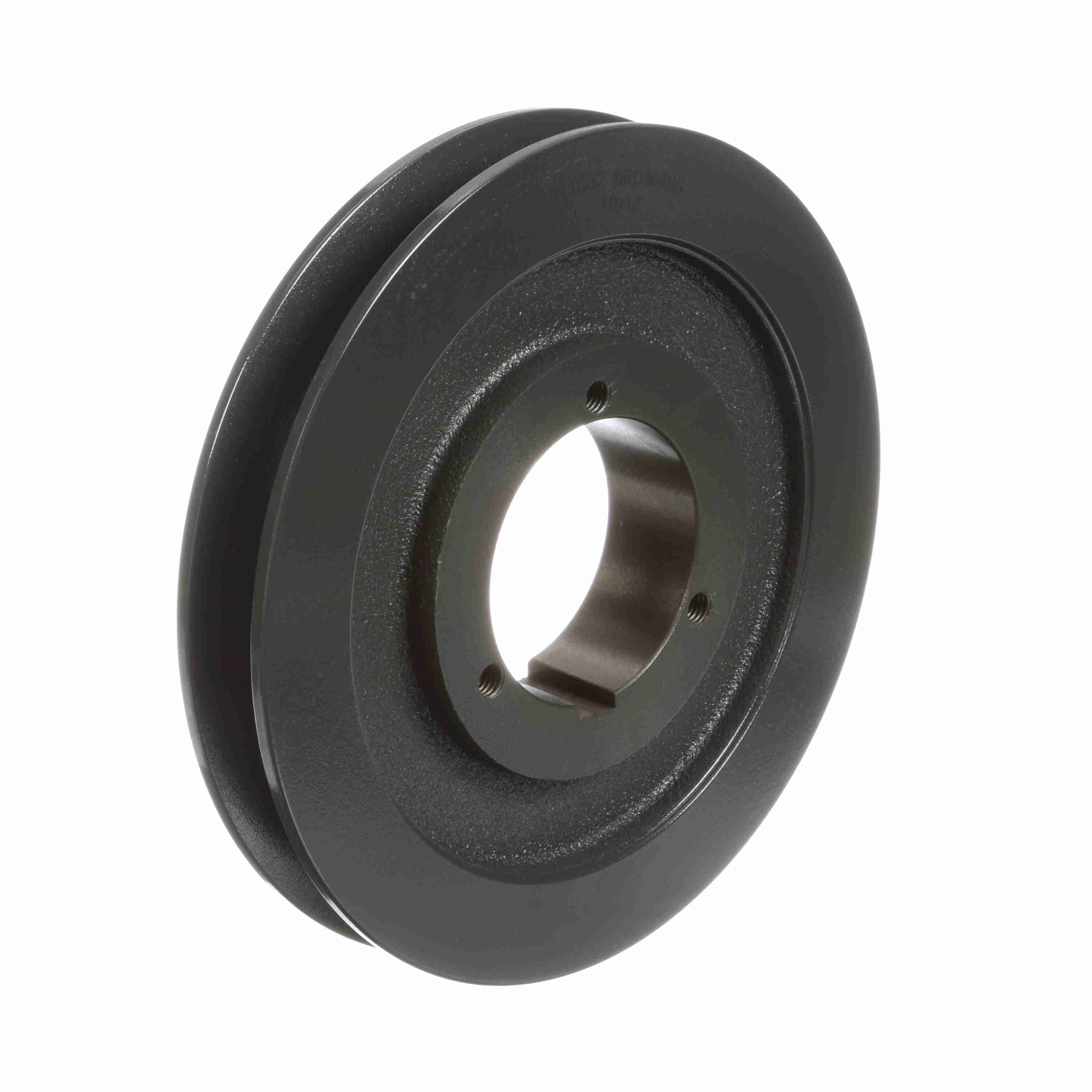

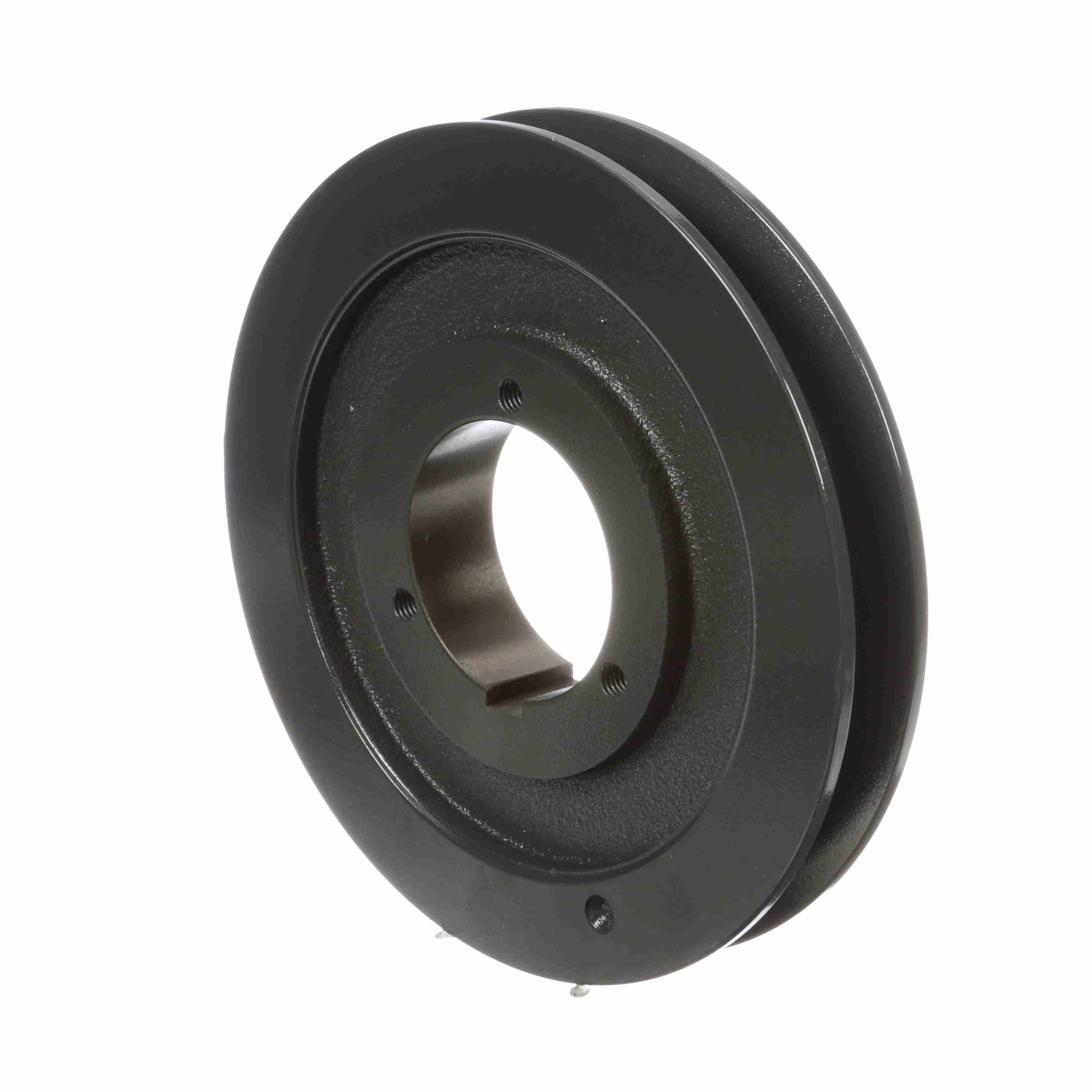

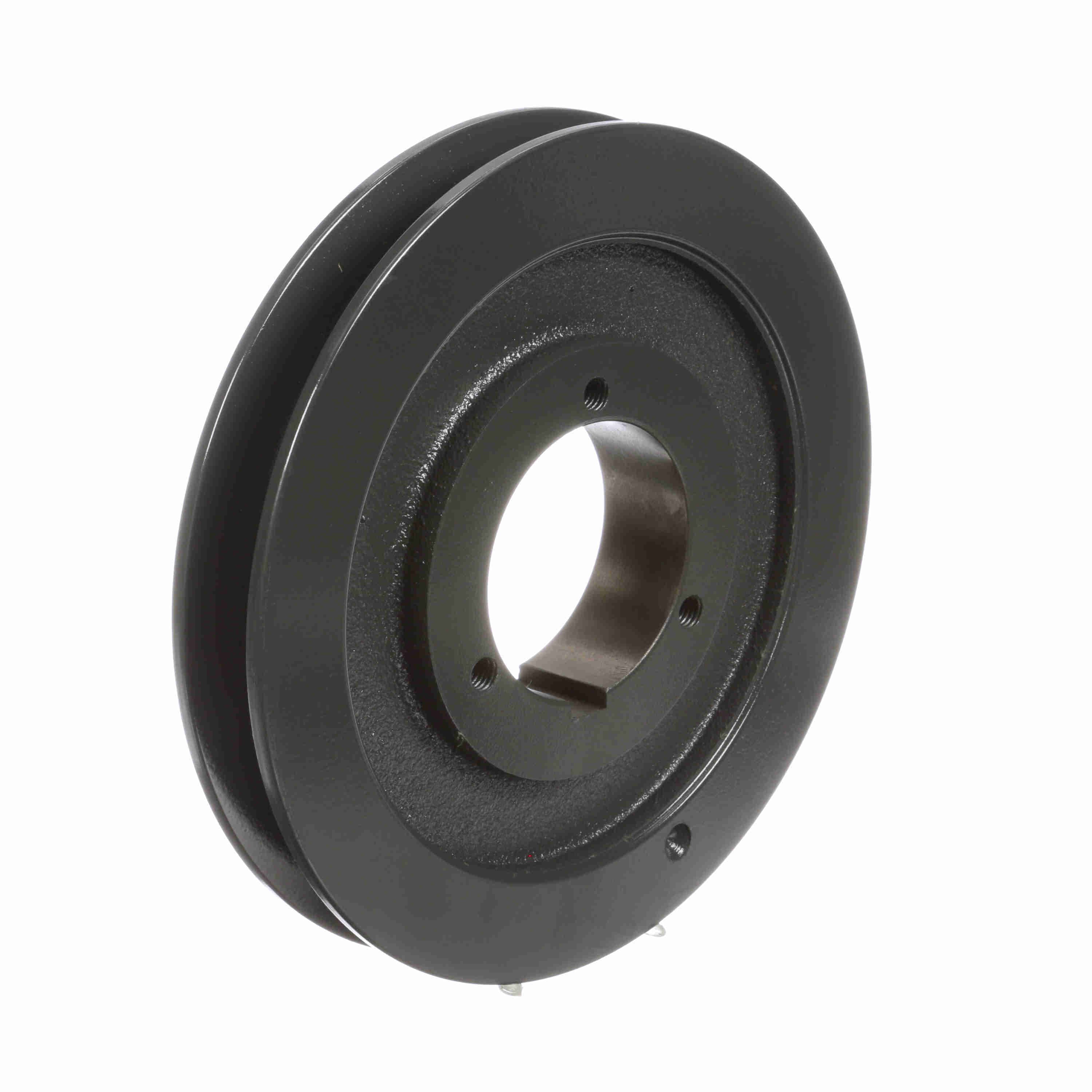

SPLIT TAPER C&D SHEAVES-600
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1009315 |
| Product Name | 1TC82 |
| Brand | Browning |
| Material | Cast Iron |
| Weight | 10.3 lb |
| Package Length | 9.1 in |
| Package Width | 9.2 in |
| Package Height | 1.2 in |
| Bushing Used | Q1 |
| Model Name | 1TC-L_Sheave_Master |
| Number of Grooves | 1 |
| Outside Diameter (in) | 8.6 in |
| Pitch Diameter (C) |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 4 | $1052.99 | — |
| 5 – 9 | $984.45 | 7% off |
| 10+ | $960.09 | 9% off |
| 8.6 |
| Overall Length (in) | 2.734375 in |
| Pulley Material | Cast Iron |
| Datum Diameter (C) | 8.2 |
| Belt Section | C |
| Bore (Min) (in) | 0.75 in |
| Product Type | Multiple Sheaves |
| Bore Type | Split Taper Bushed |
| Bushing Bore Range | 2.6875 - 2.6875 |
| Keyway Size | .500 |
| HTC | 8483.50.9040 |
| Country of Origin | Mexico |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-101273 |
| Part NumberiManufacturer catalog number | 1009315 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289310562 |
| CategoryiCatalog classification | Power Transmission > V-Belt Sheaves |
