SPLIT TAPER C&D SHEAVES-600
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1010024 |

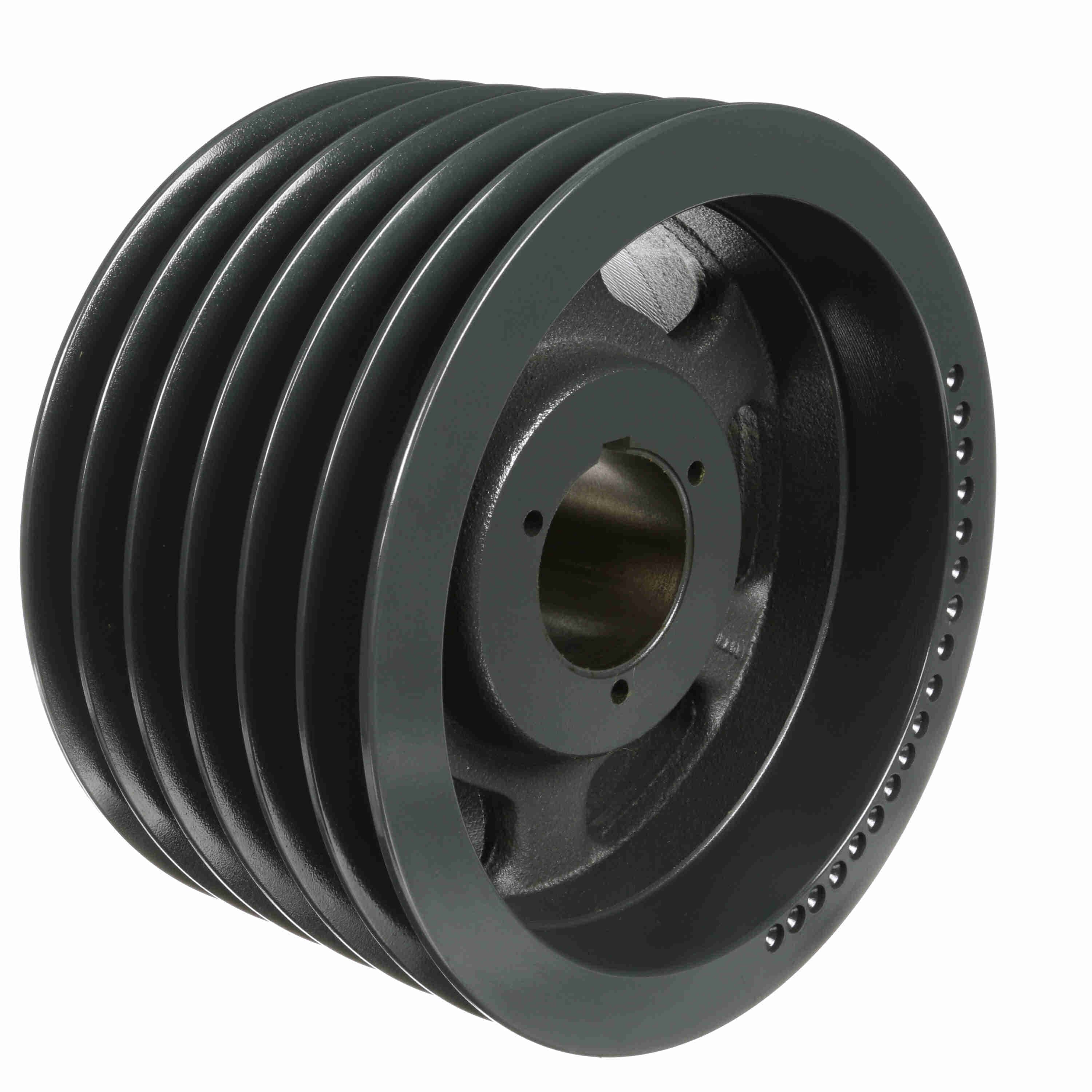

| Product Name | 6TC110 |
| Brand | Browning |
| Material | Cast Iron |
| Weight | 46.825 lb |
| Package Length | 14.5 in |
| Package Width | 14.6 in |
| Package Height | 7.8 in |
| Pitch Diameter (C) | 11.4 |
| Number of Grooves | 6 |
| Pulley Material | Cast Iron |
| Model Name | 6TC-L_Sheave_Master |
| Outside Diameter (in) |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 4 | $3681.99 | — |
| 5 – 9 | $3442.33 | 7% off |
| 10+ | $3357.14 | 9% off |
| 11.4 in |
| Datum Diameter (C) | 11 |
| Overall Length (in) | 6.25 in |
| Bushing Used | Q2 |
| Bore (Min) (in) | 1 in |
| Belt Section | C |
| Product Type | Multiple Sheaves |
| Bore Type | Split Taper Bushed |
| Bushing Bore Range | 1.000 - 2.625 |
| Keyway Size | .500 |
| HTC | 8483.50.9040 |
| Country of Origin | Mexico |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-101335 |
| Part NumberiManufacturer catalog number | 1010024 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289293681 |
| CategoryiCatalog classification | Power Transmission > V-Belt Sheaves |
