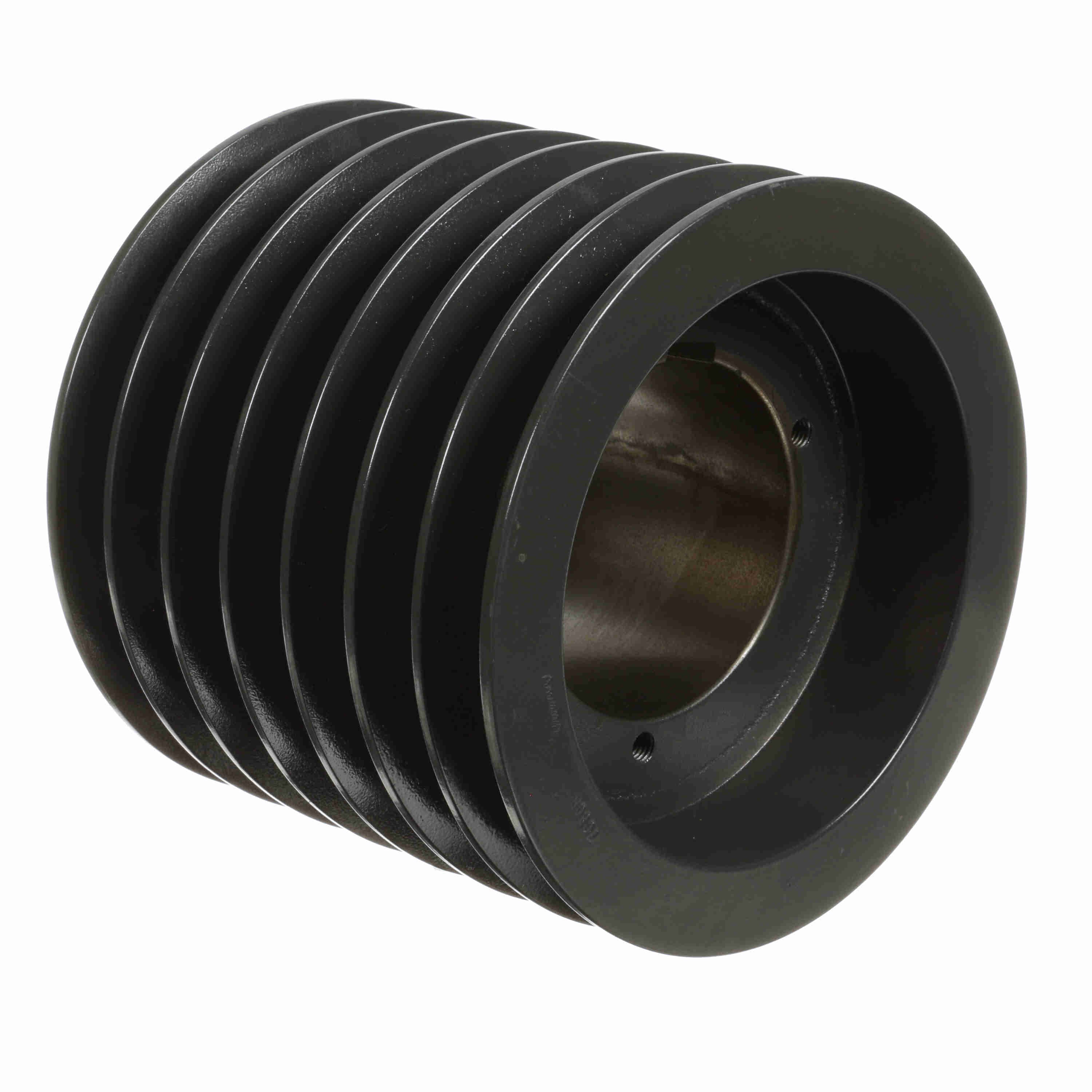

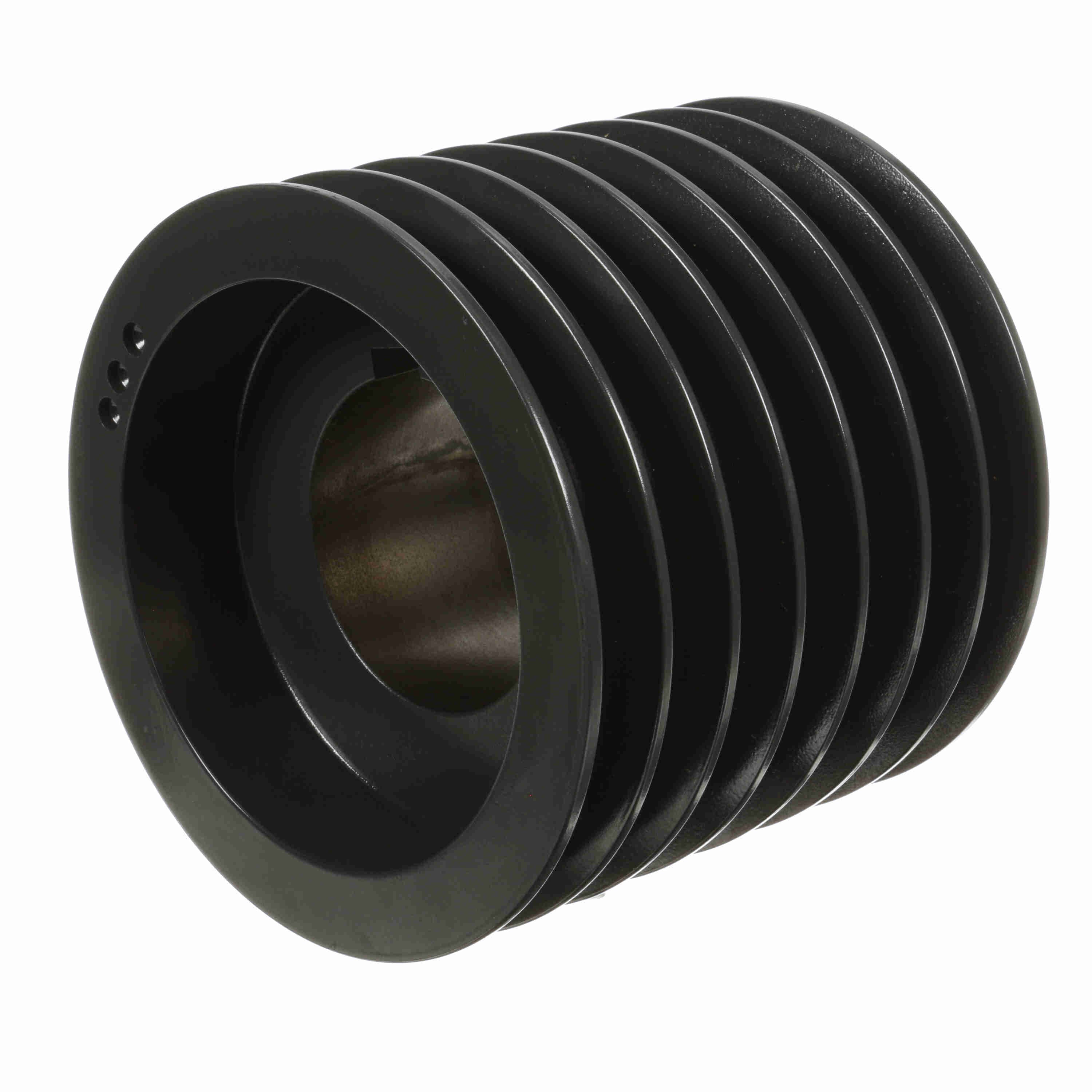

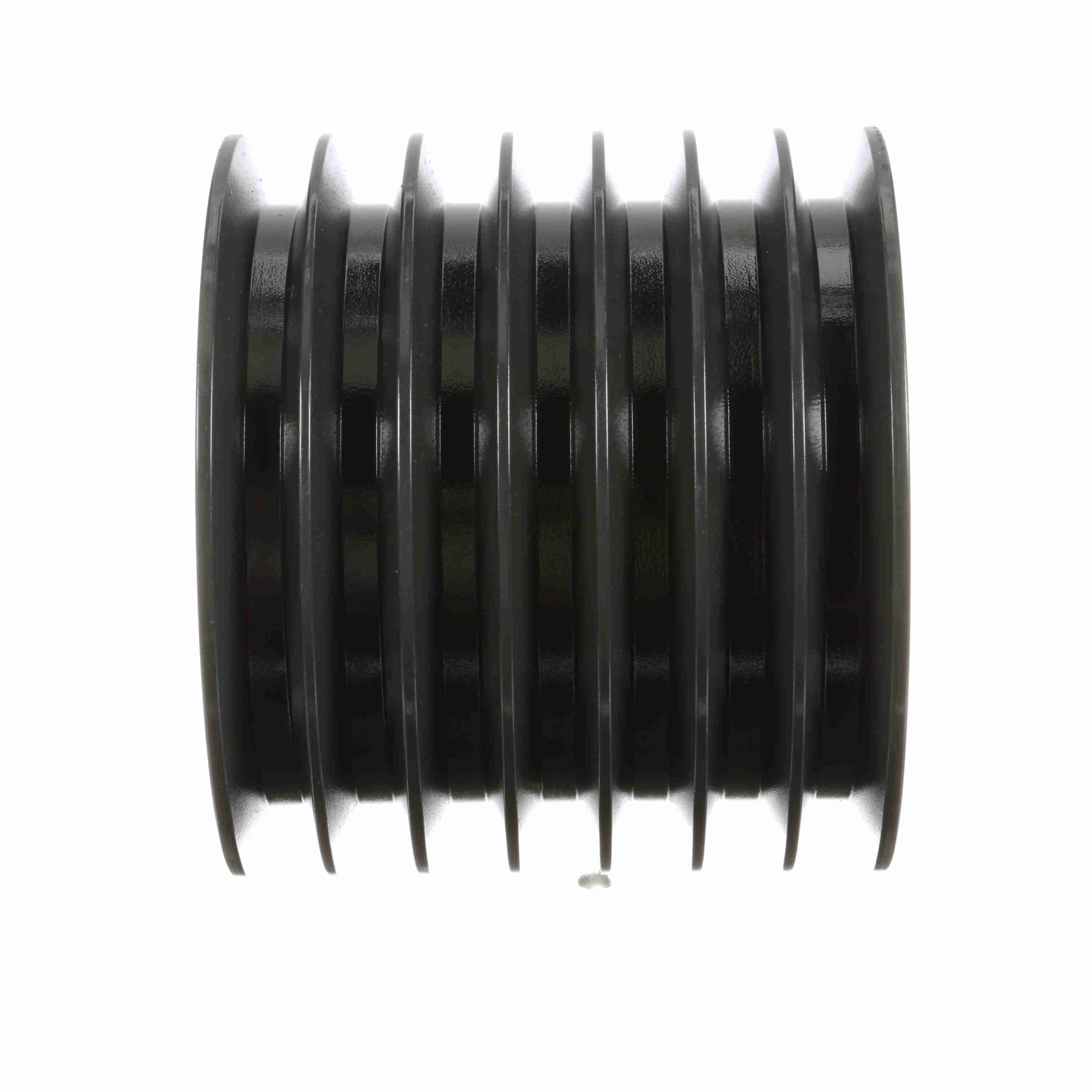

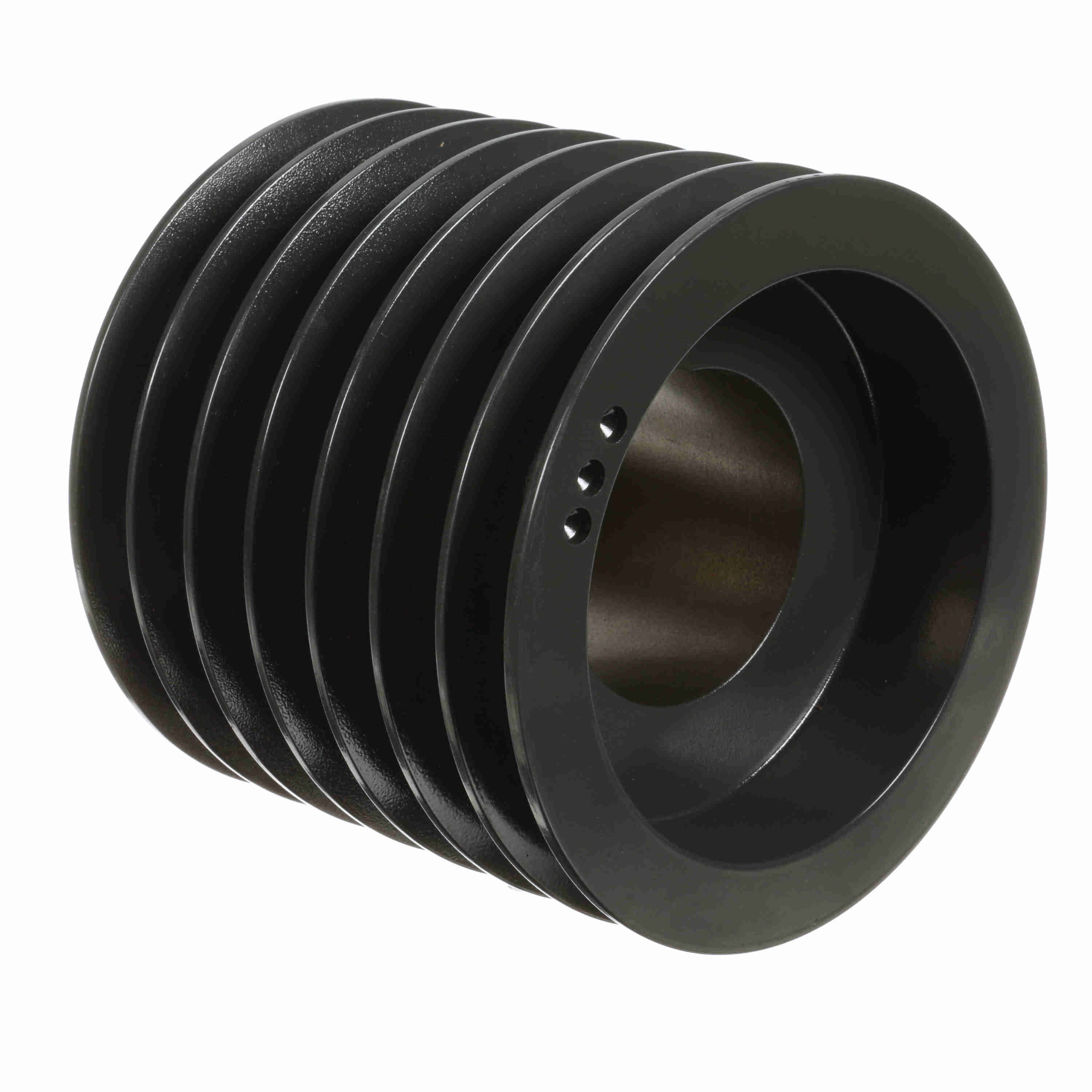

SPLIT TAPER C&D SHEAVES-600
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1012038 |
| Product Name | 7C80R |
| Brand | Browning |
| Material | Cast Iron |
| Weight | 43.825 lb |
| Package Length | 9.2 in |
| Package Width | 9.3 in |
| Package Height | 7.9 in |
| Datum Diameter (C) | 8 |
| Number of Grooves | 7 |
| Bushing Used | R2 |
| Overall Length (in) | 7.25 in |
| Pitch Diameter (C) |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 4 | $1776.24 | — |
| 5 – 9 | $1660.63 | 7% off |
| 10+ | $1619.53 | 9% off |
| 8.4 |
| Outside Diameter (in) | 8.4 in |
| Pulley Material | Cast Iron |
| Product Type | Multiple Sheaves |
| Belt Section | C |
| Bore (Min) (in) | 1.375 in |
| Bore Type | Split Taper Bushed |
| Keyway Size | .750 |
| Bushing Bore Range | 1.375 - 3.625 |
| HTC | 8483.50.9040 |
| Country of Origin | Mexico |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-101458 |
| Part NumberiManufacturer catalog number | 1012038 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289105793 |
| CategoryiCatalog classification | Power Transmission > V-Belt Sheaves |
