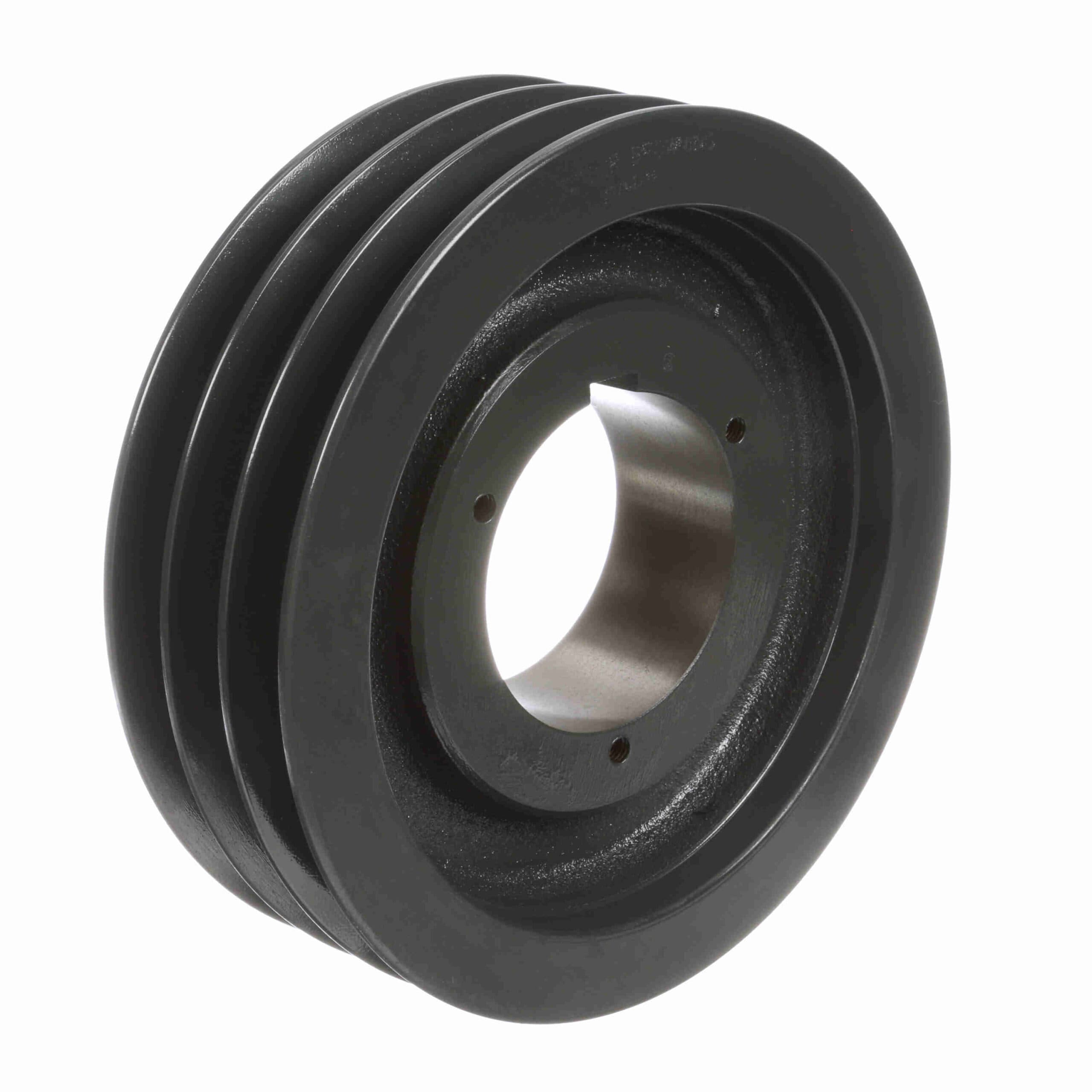

Browning 3 Groove Cast Iron Bushed Bore Multiple Sheave - 3C102R
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1012566 |
| Product Name | 3C102R |
| Brand | Browning |
| Material | Cast Iron |
| Weight | 29.82 lb |
| Package Length | 11.06 in |
| Package Width | 11.06 in |
| Package Height | 3.25 in |
| Number of Grooves | 3 |
| Bushing Used | R1 |
| Outside Diameter (in) | 10.6 in |
| Overall Length (in) | 3.796875 in |
| Pulley Material |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| Cast Iron |
| Pitch Diameter (C) | 10.6 |
| Datum Diameter (C) | 10.2 |
| Product Type | Multiple Sheaves |
| Bore (Min) (in) | 1.125 in |
| Belt Section | C |
| Bore Type | Split Taper Bushed |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-101490 |
| Part NumberiManufacturer catalog number | 1012566 |
| BrandiManufacturer or product brand | Browning |
| CategoryiCatalog classification | Power Transmission > V-Belt Sheaves |
