V-Belt Sheaves

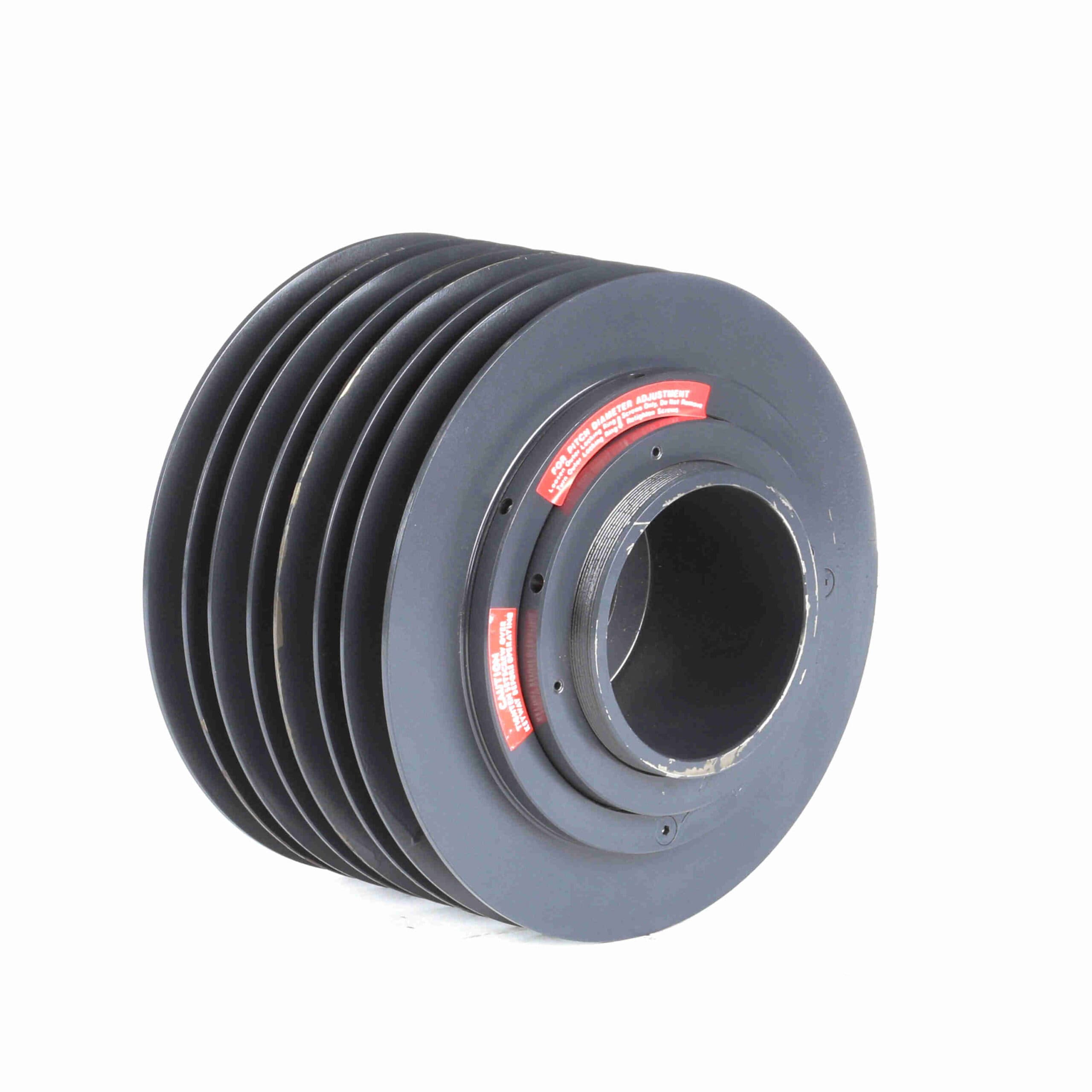

4MVP85C107Q

Name: 4MVP85C107Q
Brand: Browning
SKU: 1020890
Price: 4666.47 USD
Availability: OutOfStock

MVP SHEAVES

Part Number1020890

GDS #GDS-101674

Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.

Product Overview

Large Selection - MVP companion sheaves are offered in A/B, C, 5V & 8V belt sections and from 3-10 grooves giving Browning the largest selection of MVP Companion Sheaves in the industry.
Statically Balanced - All MVP companion sheaves are statically balanced to assure smooth, vibration free performance.
VP sheaves consist of a male with a threaded barrel, and a female with a threaded bore.
The male section with threaded barrel has flat surfaces at 180 degree increments that allow a flat surface for the setscrew to mate with.
When discs are moved toward each other, the belt rides higher in the groove and the pitch diameter of the sheave is larger which increases the driven speed.
When discs are moved away from each other, the belt rides lower and the pitch diameter is smaller decreasing the driven speed.

Always verify dimensions, load ratings, material, and seal type before ordering.

GDS #iGDS internal part number	GDS-101674
Part Numberi

Datasheets, CAD drawings, and installation instructions are available on request.
