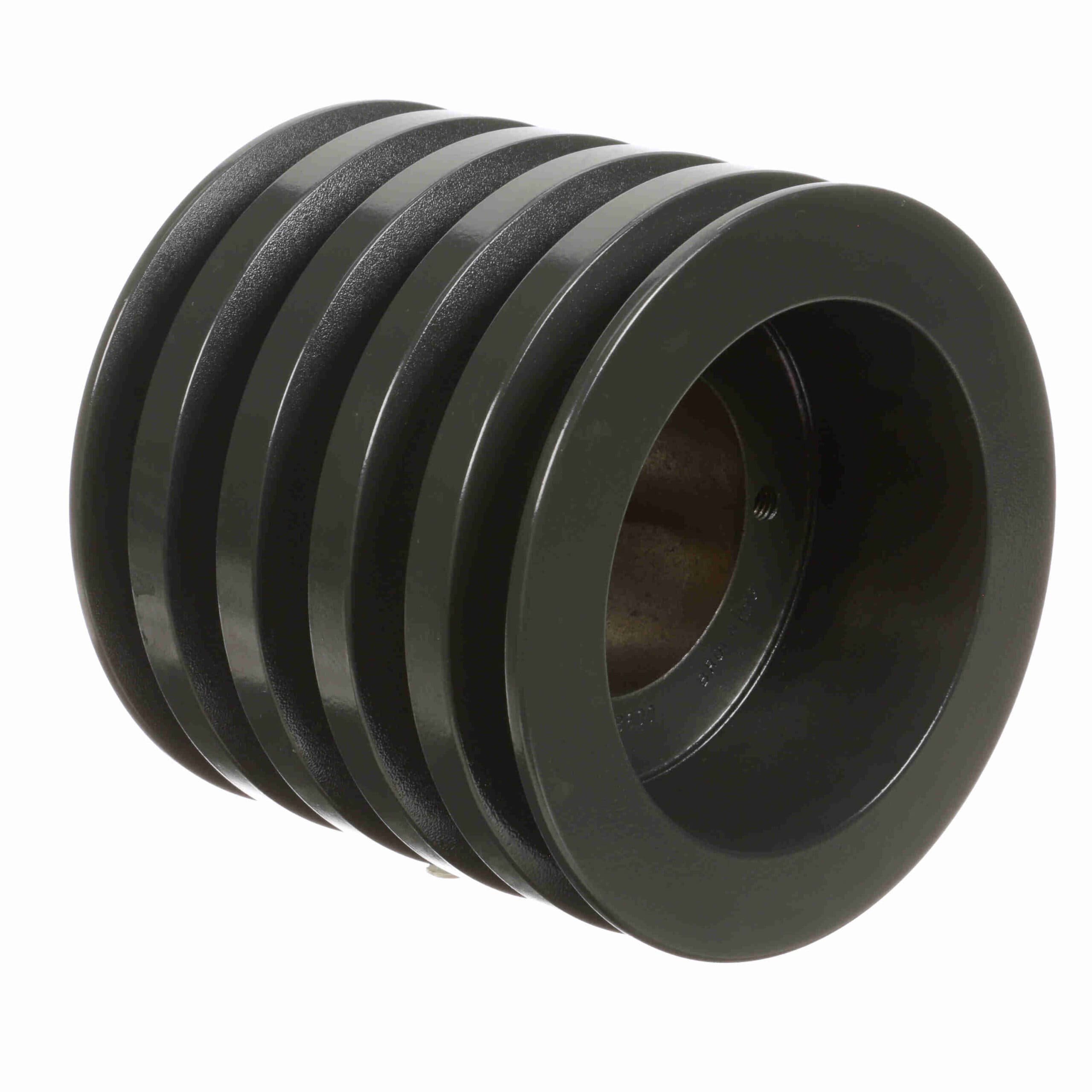

Browning 5 Groove Cast Iron Bushed Bore Multiple Variable Pitch Sheave - 5MVB60Q
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1021419 |
| Product Name | 5MVB60Q |
| Brand | Browning |
| Material | Cast Iron |
| Weight | 23 lb |
| Package Length | 9.1 in |
| Package Width | 9.2 in |
| Package Height | 5.7 in |
| Outside Diameter (in) | 6.35 in |
| Bore (Min) (in) | 1 in |
| Pitch Diameter Range (A) | 5.8 |
| Product Type | MVP Sheaves |
| Number of Grooves |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| 5 |
| Pitch Diameter Range (B) | 6.3 |
| Type of Bore | Bushed |
| Outside Length (in) | 5.5 in |
| Bore (Max) (in) | 2.625 in |
| Number of Hubs | 1 |
| Pulley Construction | Web |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-101698 |
| Part NumberiManufacturer catalog number | 1021419 |
| BrandiManufacturer or product brand | Browning |
| CategoryiCatalog classification | Power Transmission > V-Belt Sheaves |
