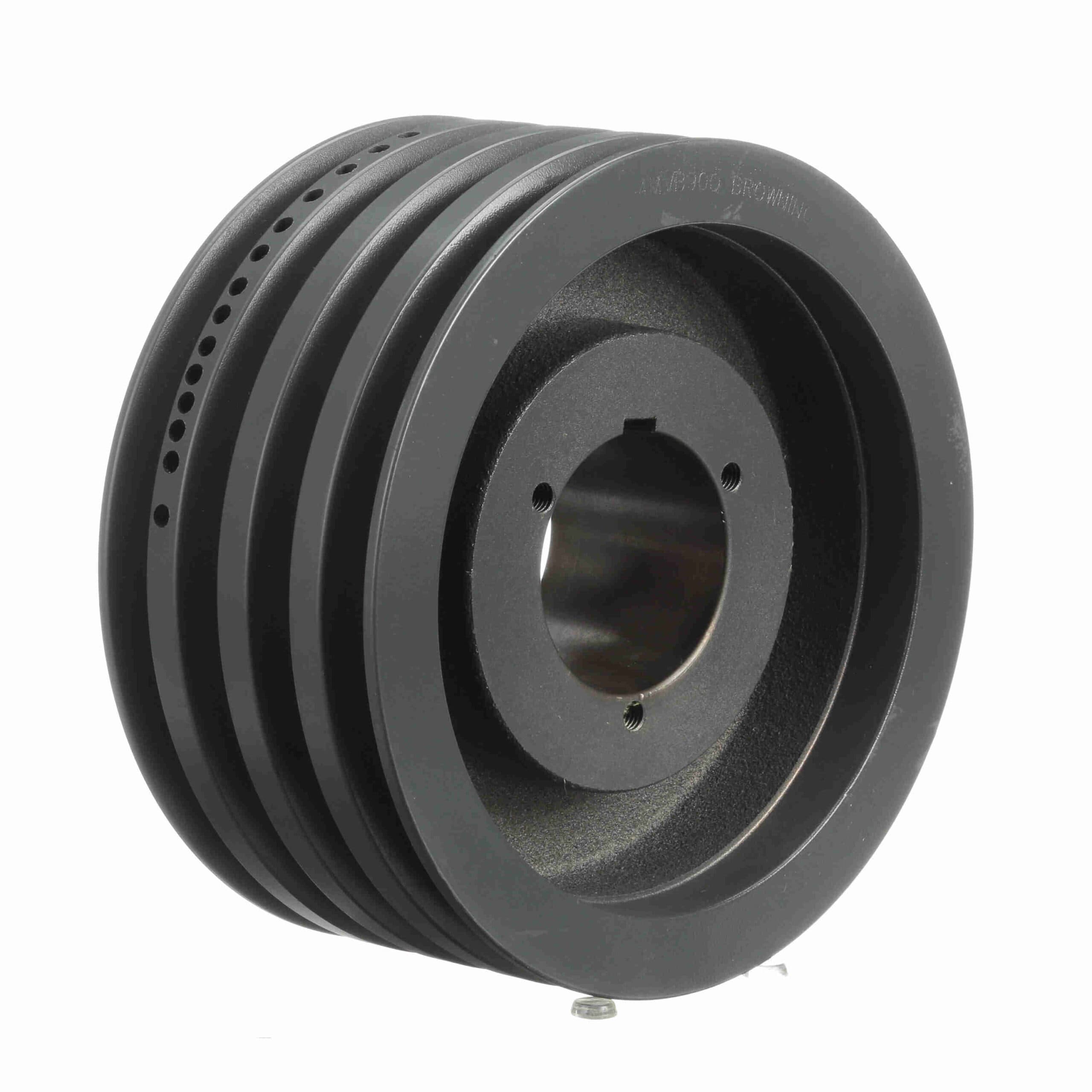

Browning 5 Groove Cast Iron Bushed Bore Multiple Variable Pitch Sheave - 5MV5V132S
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1023258 |
| Product Name | 5MV5V132S |
| Brand | Browning |
| Material | Cast Iron |
| Weight | 82 lb |
| Package Length | 13.2 in |
| Package Width | 13.2 in |
| Package Height | 5.5 in |
| Pitch Diameter Range (5V) | 13.1 |
| Type of Bore | Bushed |
| Product Type | MVP Sheaves |
| Number of Grooves | 5 |
| Outside Length (in) |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| 5.84375 in |
| Outside Diameter (in) | 13.2 in |
| Bore (Max) (in) | 4.25 in |
| Bore (Min) (in) | 1.6875 in |
| Pulley Construction | Web |
| Length Through Bore (in) | 4.375 in |
| Number of Hubs | 1 |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-101797 |
| Part NumberiManufacturer catalog number | 1023258 |
| BrandiManufacturer or product brand | Browning |
| CategoryiCatalog classification | Power Transmission > V-Belt Sheaves |
