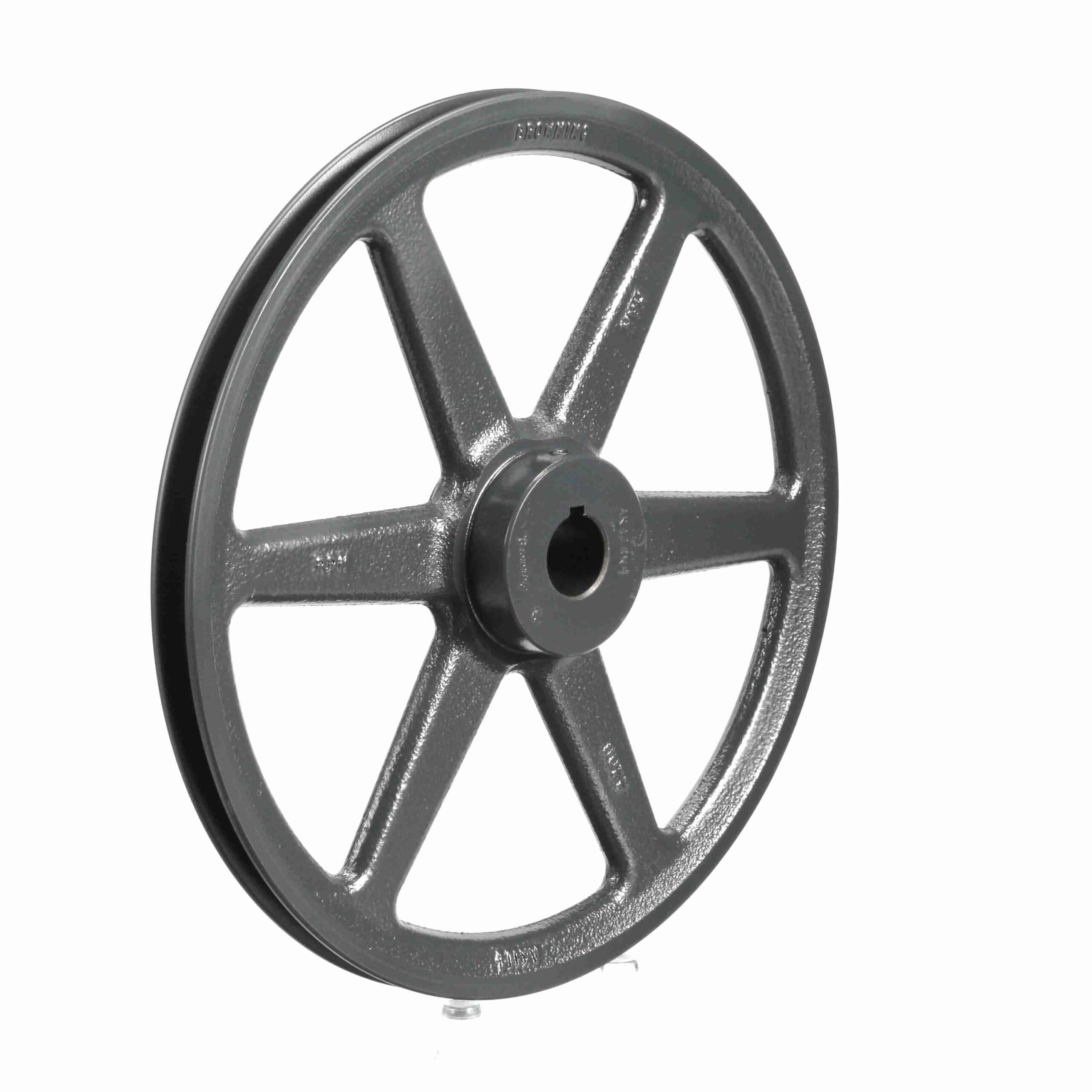

Browning 1 Groove Cast Iron FHP - Finished Bore Sheave - AK104X 1 7/16
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1027481 |
| Product Name | AK104X 1 7/16 |
| Brand | Browning |
| Material | Cast Iron |
| Weight | 6.17 lb |
| Package Length | 10.4 in |
| Package Width | 10.4 in |
| Package Height | 1.7 in |
| Datum (3L) | 9.66 |
| Pitch Diameter (A) | 10.2 |
| Outside Diameter (in) | 10.25 in |
| Number of Grooves | 1 |
| Bore (in) |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| 1.4375 in |
| Product Type | FHP - Finished Bore |
| Belt Section | 3L, A |
| Bore Type | Finished with Keyway and SS |
| Keyway Size | 0.375 |
| Set Screw Thread | 5/16-18UNC-3AX3/8 |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-101959 |
| Part NumberiManufacturer catalog number | 1027481 |
| BrandiManufacturer or product brand | Browning |
| CategoryiCatalog classification | Power Transmission > V-Belt Sheaves |
