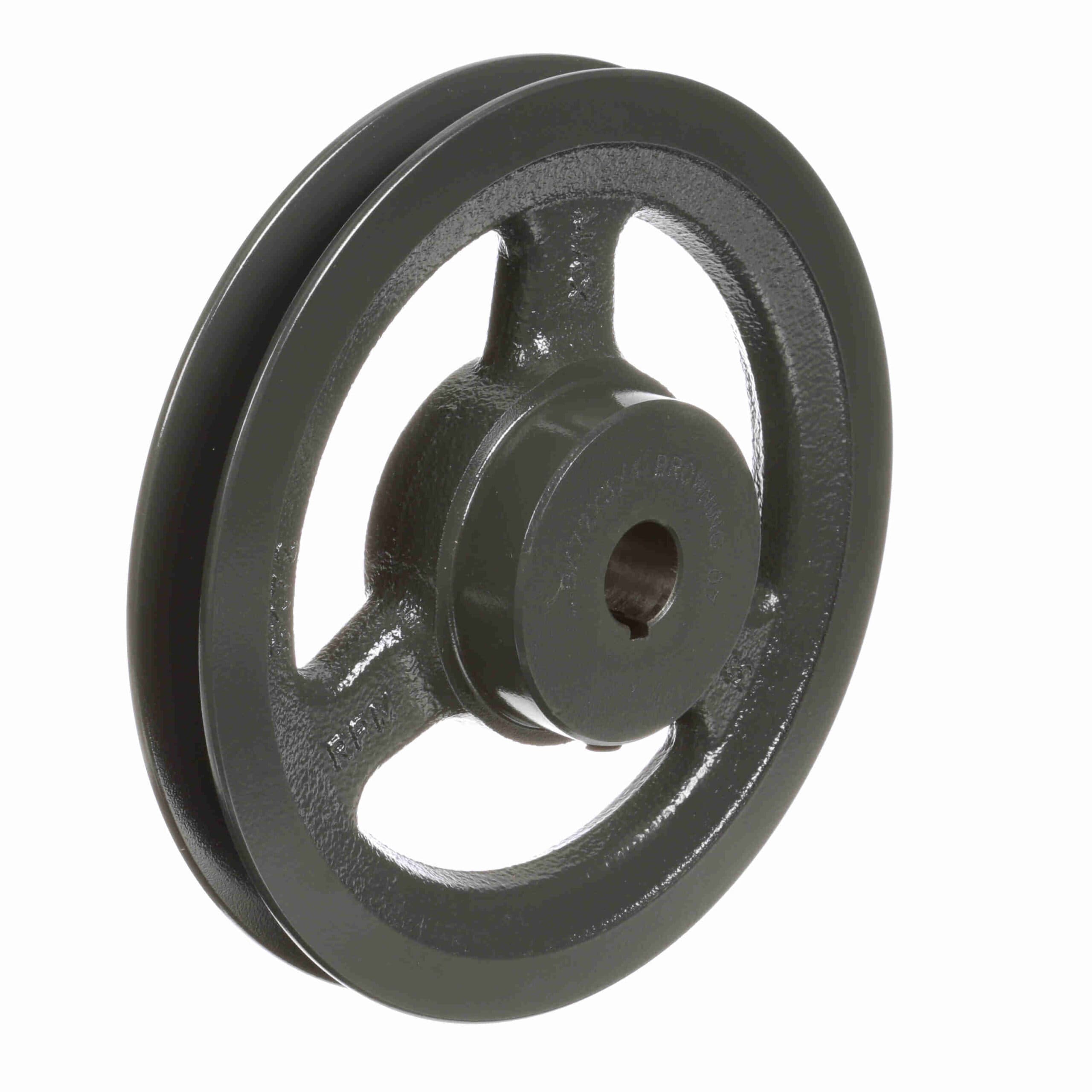

Browning 1 Groove Cast Iron FHP - Finished Bore Sheave - BK72X3/4
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1028968 |
| Product Name | BK72X3/4 |
| Brand | Browning |
| Material | Cast Iron |
| Weight | 4.74 lb |
| Package Length | 7 in |
| Package Width | 7.2 in |
| Package Height | 2.3 in |
| Outside Diameter (in) | 6.95 in |
| Pitch Diameter (A) | 6.4 |
| Number of Grooves | 1 |
| Pitch Diameter (B) | 6.9 |
| Bore (in) |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| 0.75 in |
| Belt Section | 4L or A, 5L or B |
| Product Type | FHP - Finished Bore |
| Bore Type | Finished with Keyway and SS |
| Overall Width (in) | 1.53125 |
| Keyway Size | 0.1875 |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-102092 |
| Part NumberiManufacturer catalog number | 1028968 |
| BrandiManufacturer or product brand | Browning |
| CategoryiCatalog classification | Power Transmission > V-Belt Sheaves |
