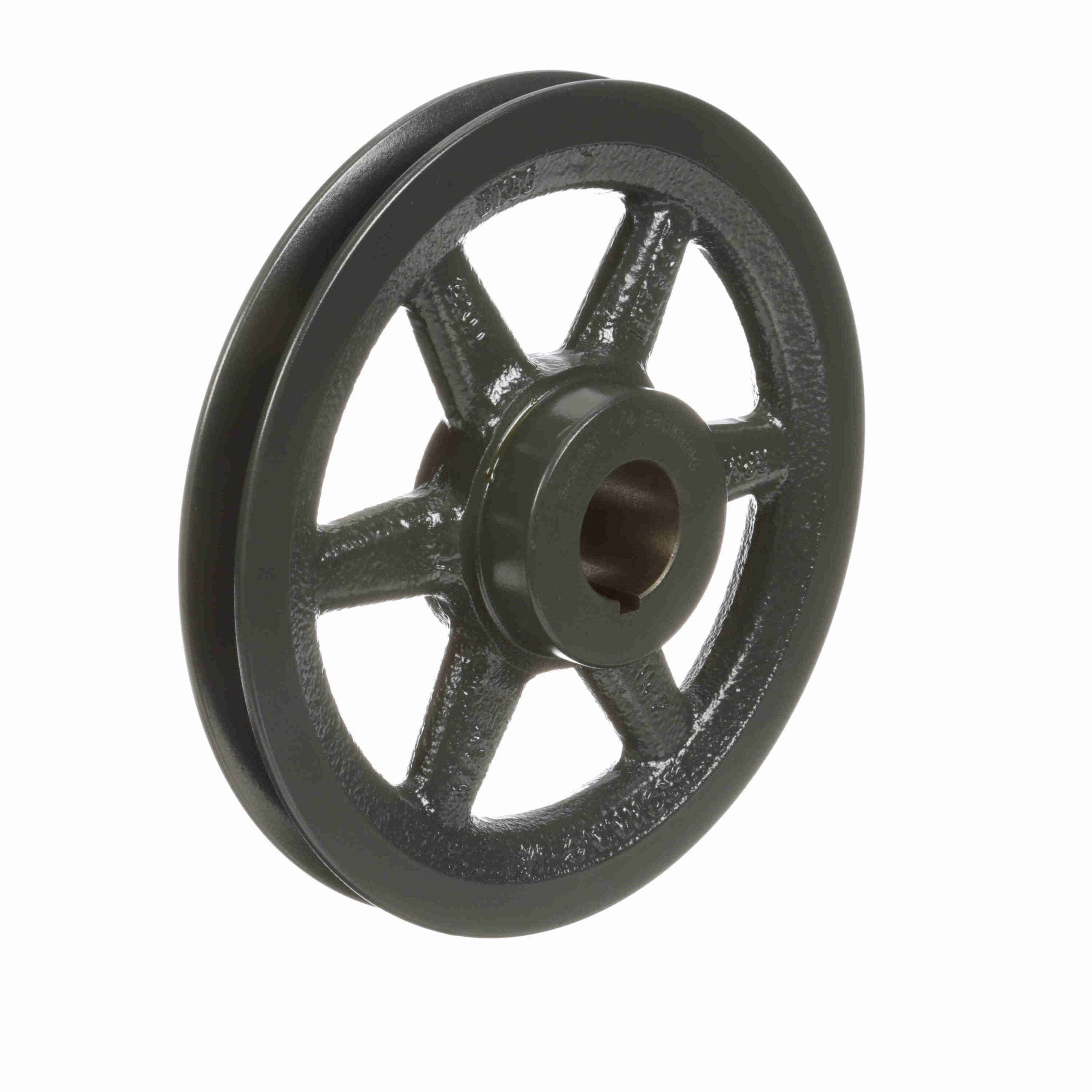

Browning 1 Groove Cast Iron FHP - Finished Bore Sheave - BK80X 1 1/4
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1029081 |
| Product Name | BK80X 1 1/4 |
| Brand | Browning |
| Material | Cast Iron |
| Weight | 4.99 lb |
| Package Length | 8.31 in |
| Package Width | 8.31 in |
| Package Height | 1.56 in |
| Outside Diameter (in) | 7.75 in |
| Pitch Diameter (B) | 7.7 |
| Number of Grooves | 1 |
| Pitch Diameter (A) | 7.2 |
| Bore (in) |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| 1.25 in |
| Belt Section | A, B |
| Product Type | FHP - Finished Bore |
| Bore Type | Finished with Keyway and SS |
| Keyway Size | 0.250 |
| Set Screw Thread | 5/16-18UNC-3AX3/8 |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-102103 |
| Part NumberiManufacturer catalog number | 1029081 |
| BrandiManufacturer or product brand | Browning |
| CategoryiCatalog classification | Power Transmission > V-Belt Sheaves |
