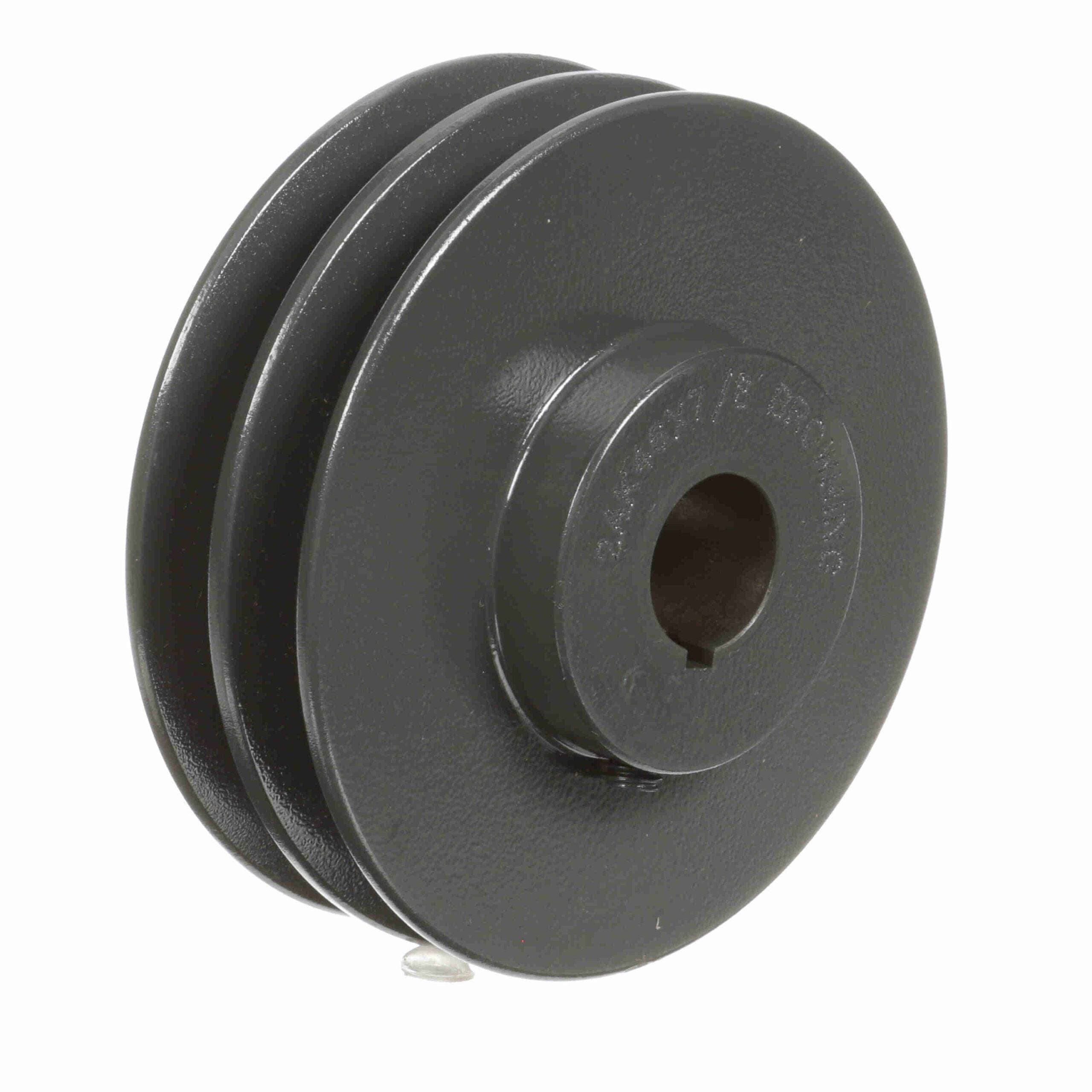

Browning 2 Groove Cast Iron FHP - Finished Bore Sheave - 2AK46X7/8
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1032341 |
| Product Name | 2AK46X7/8 |
| Brand | Browning |
| Material | Cast Iron |
| Weight | 3.68 lb |
| Package Length | 5.4 in |
| Package Width | 5.1 in |
| Package Height | 1.9 in |
| Number of Grooves | 2 |
| Outside Diameter (in) | 4.45 in |
| Pitch Diameter (A) | 4.4 |
| Datum (3L) | 3.86 |
| Bore (in) |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| 0.875 in |
| Belt Section | 4L or A, 3L |
| Product Type | FHP - Finished Bore |
| Bore Type | Finished with Keyway and SS |
| Face Width (in) | 1.375 |
| Pulley Construction | Webbed |
| Keyway Size | 0.1875 |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-102210 |
| Part NumberiManufacturer catalog number | 1032341 |
| BrandiManufacturer or product brand | Browning |
| CategoryiCatalog classification | Power Transmission > V-Belt Sheaves |
