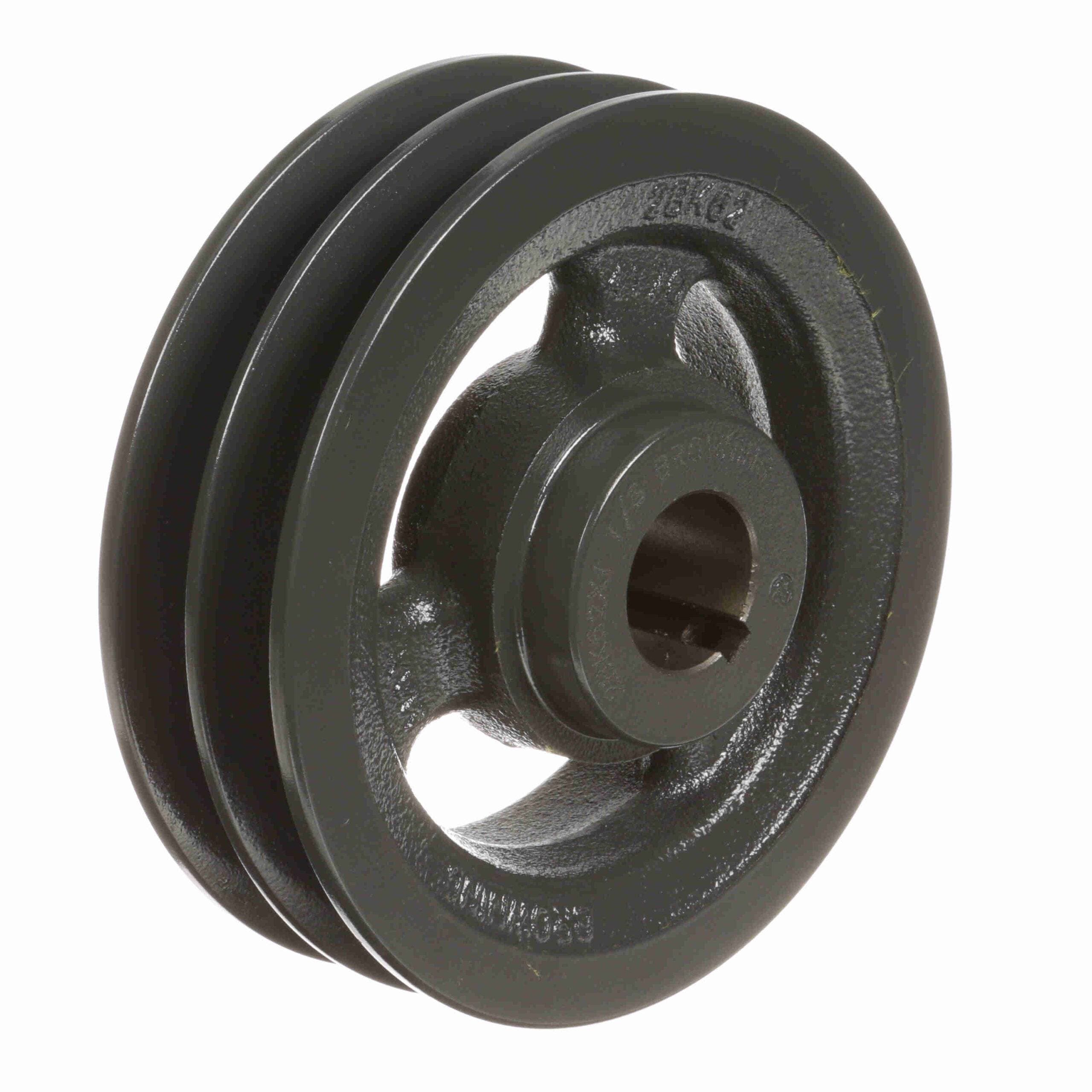

Browning 2 Groove Cast Iron FHP - Finished Bore Sheave - 2BK62X 1 1/8
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1033794 |
| Product Name | 2BK62X 1 1/8 |
| Brand | Browning |
| Material | Cast Iron |
| Weight | 5.78 lb |
| Package Length | 6.2 in |
| Package Width | 6.4 in |
| Package Height | 2.6 in |
| Outside Diameter (in) | 5.95 in |
| Number of Grooves | 2 |
| Pitch Diameter (A) | 5.4 |
| Pitch Diameter (B) | 5.9 |
| Bore (in) |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| 1.125 in |
| Belt Section | A, B |
| Product Type | FHP - Finished Bore |
| Bore Type | Finished with Keyway and SS |
| Overall Width (in) | 2.21875 |
| Keyway Size | 0.250 |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-102321 |
| Part NumberiManufacturer catalog number | 1033794 |
| BrandiManufacturer or product brand | Browning |
| CategoryiCatalog classification | Power Transmission > V-Belt Sheaves |
