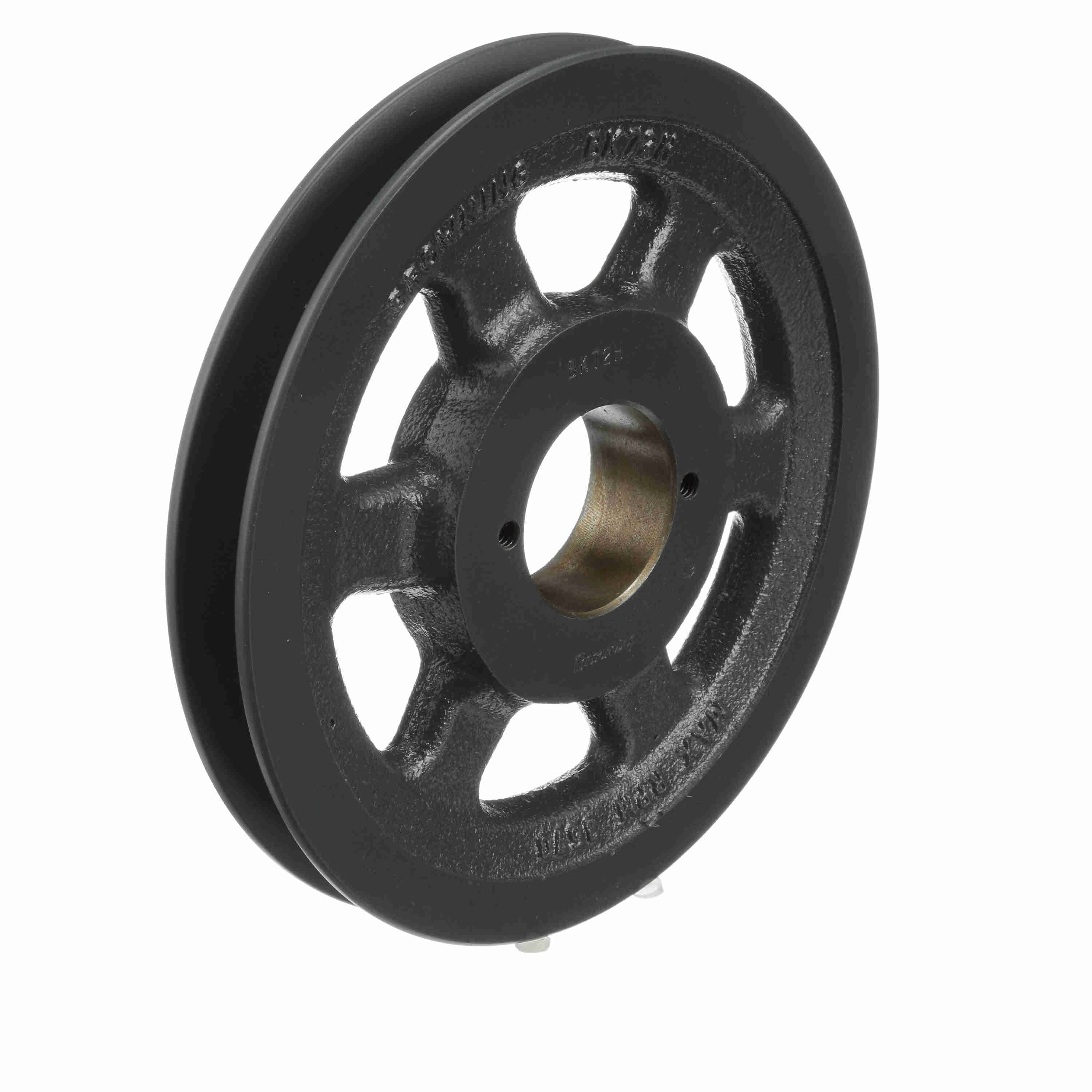

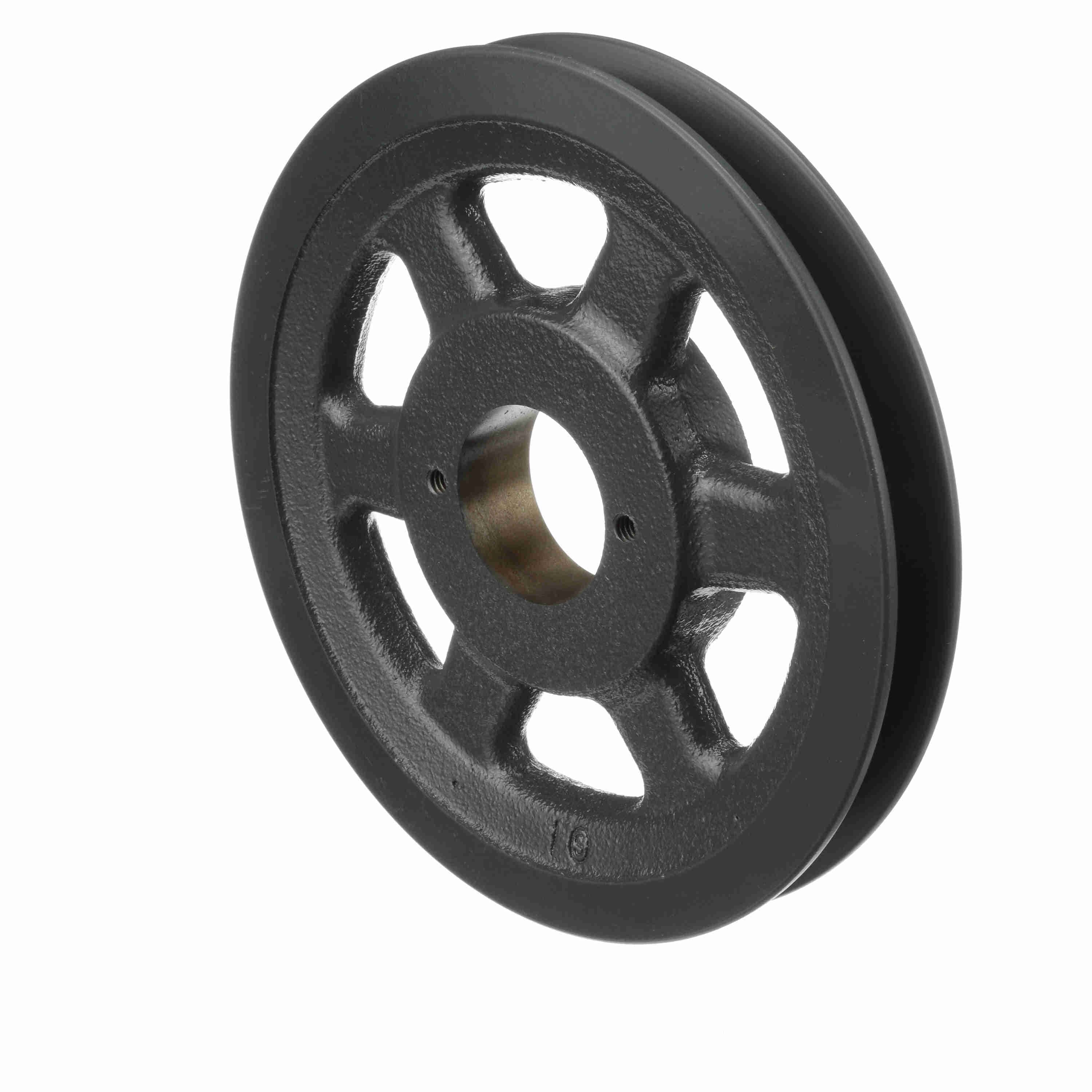

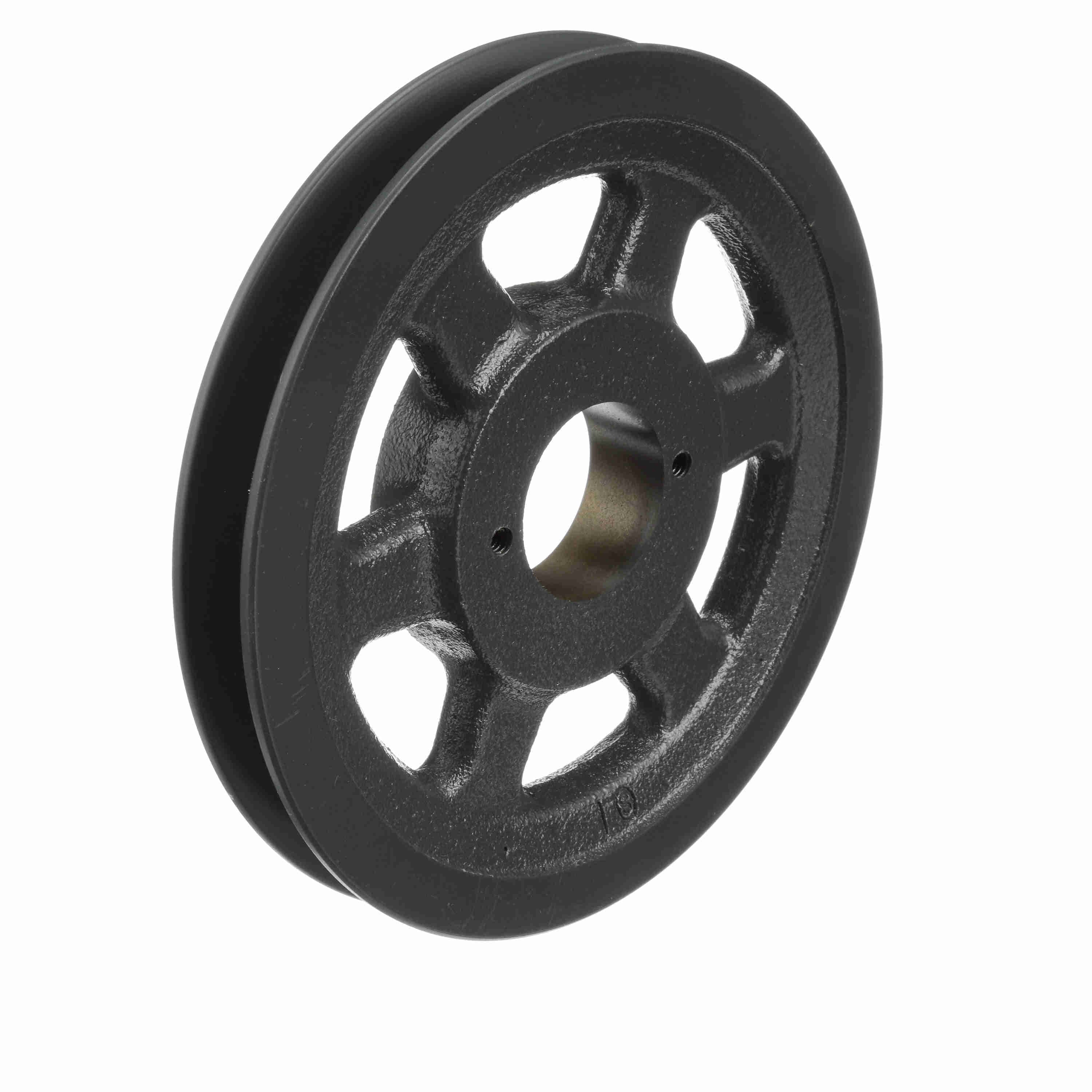

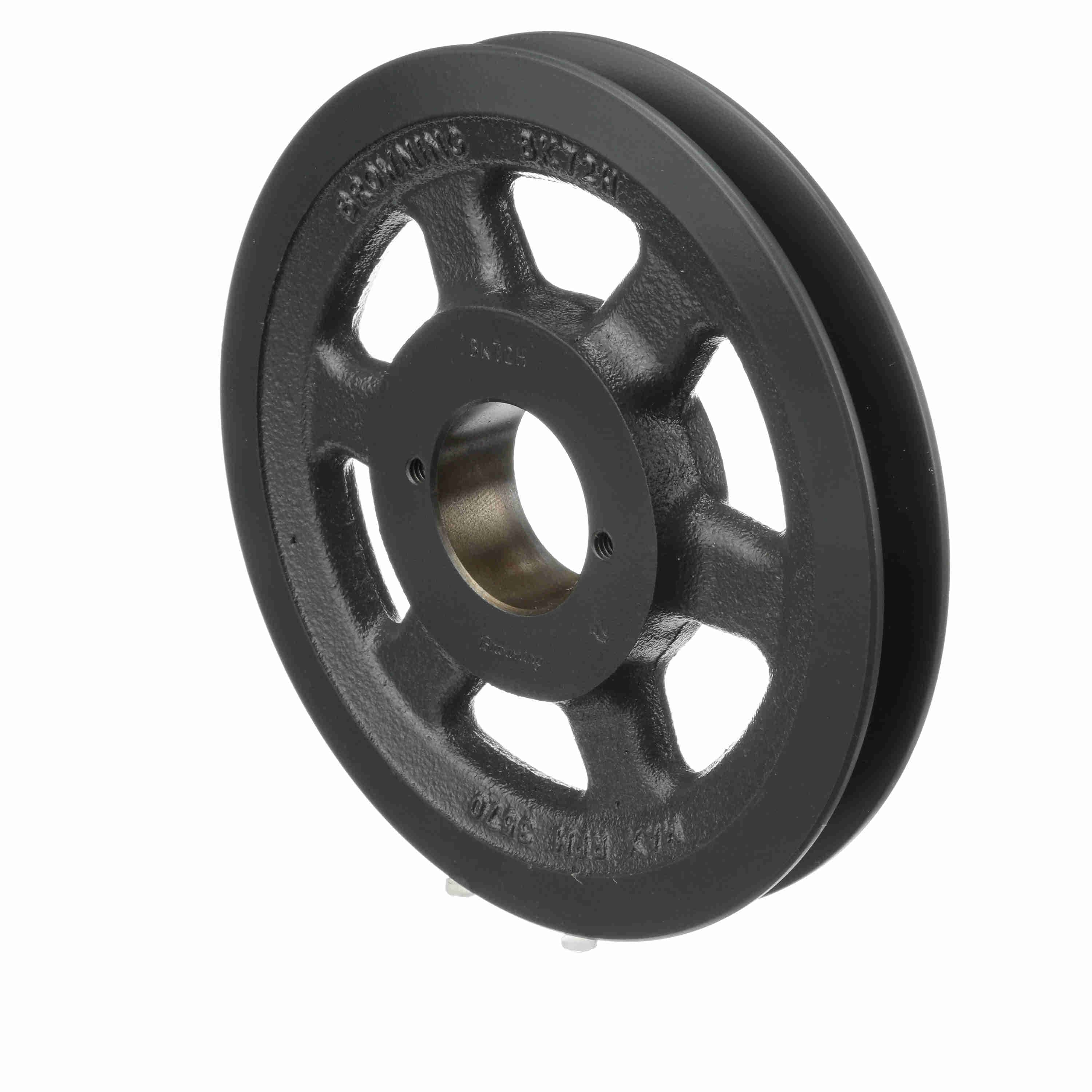

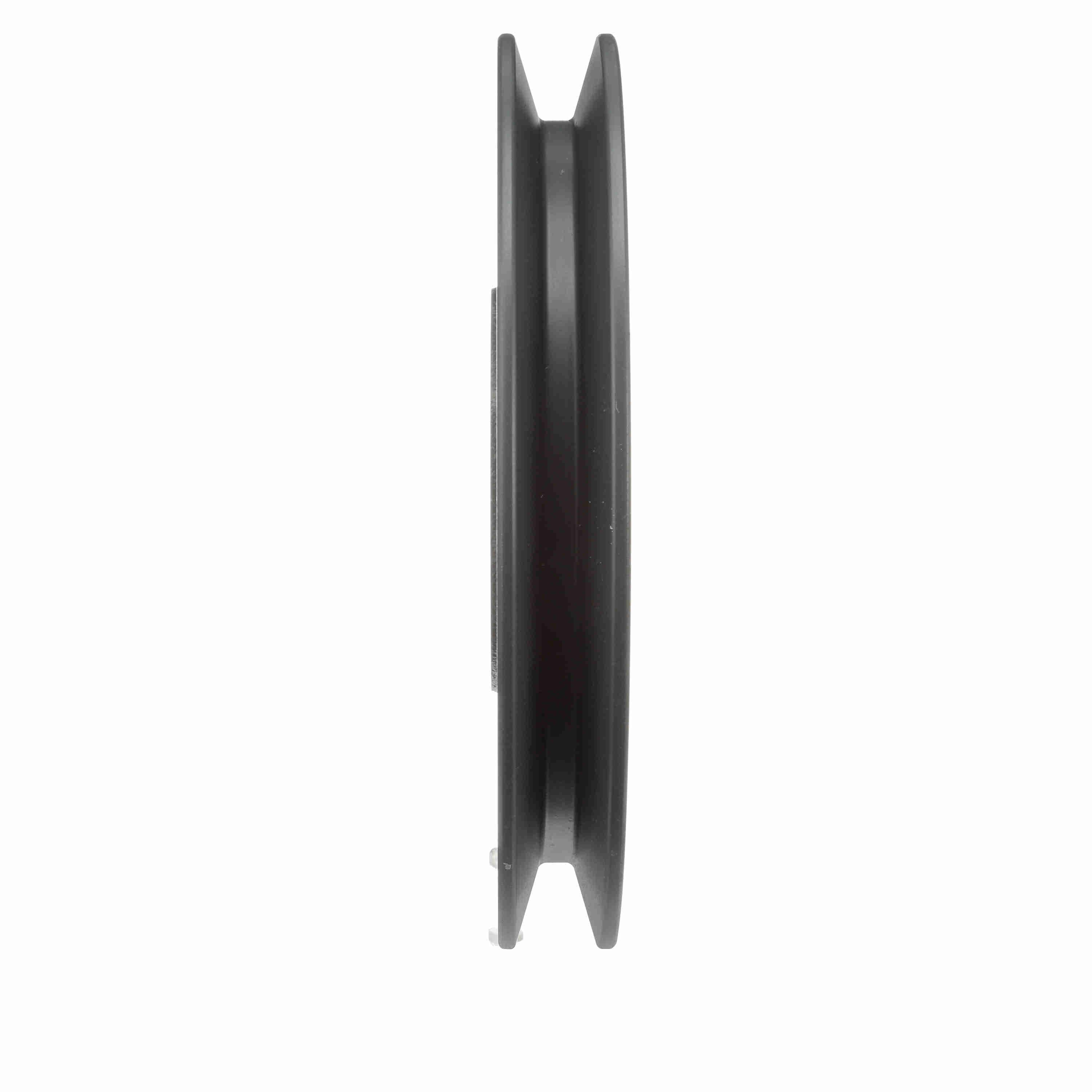

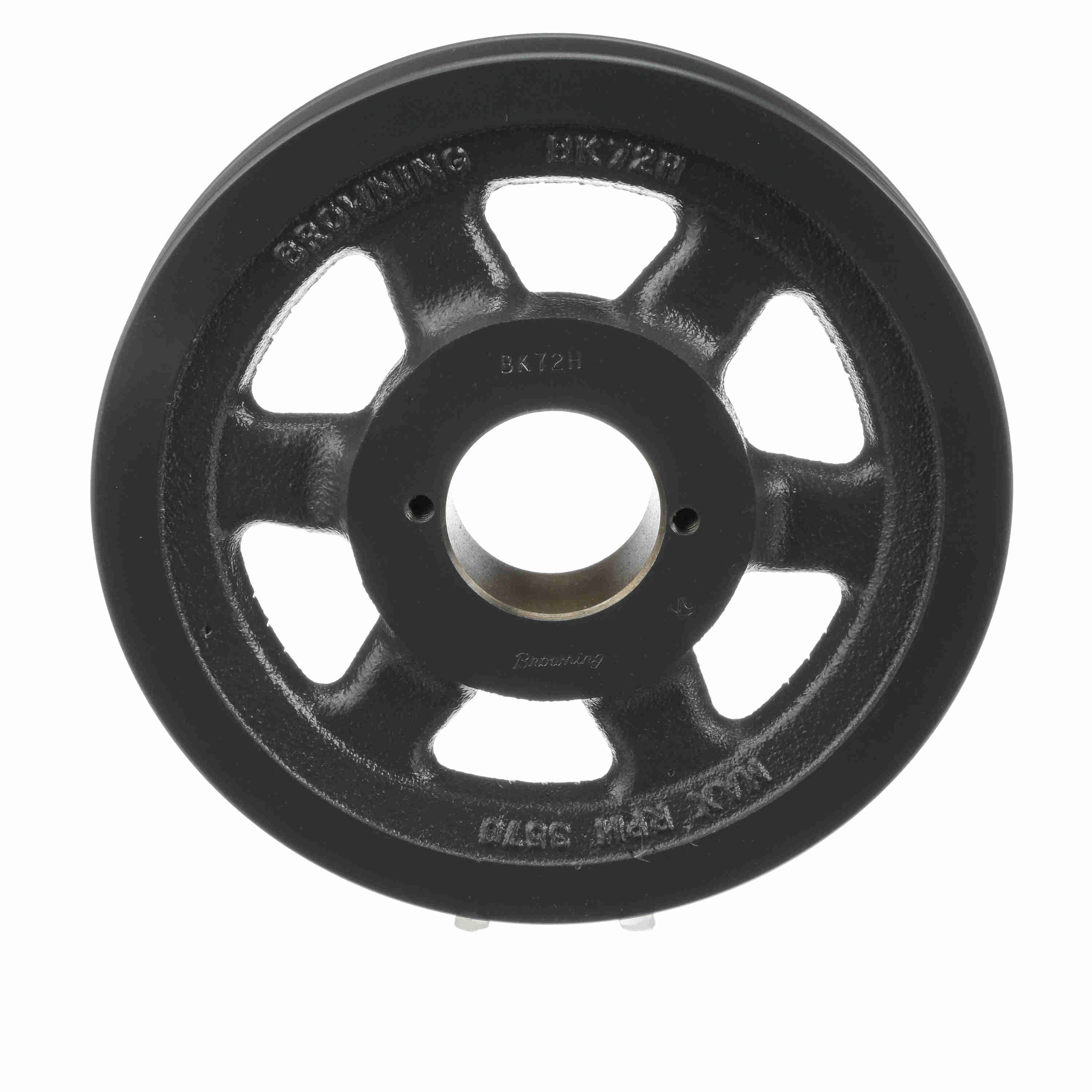

FHP CI H BORE SHEAVES
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1042548 |
| Product Name | BK72H |
| Brand | Browning |
| Material | Cast Iron |
| Weight | 4.175 lb |
| Package Length | 7.4 in |
| Package Width | 7.8 in |
| Package Height | 1.2 in |
| Datum Diameter (B) | 6.6 |
| Number of Grooves | 1 |
| Datum Diameter (A) | 6.2 |
| Type of Bore | Bushed |
| Model Name |
| Quantity | Price Each | Save |
|---|---|---|
| 1+ | $93.47 | — |
Datasheets, CAD drawings, and installation instructions are available on request.
Request DocumentationThis product is a direct replacement for the following discontinued part numbers. Customers searching for these legacy SKUs will find this page.
| BKH_Sheave_Master |
| Pitch Diameter (A) | 6.4 |
| Pitch Diameter (B) | 6.9 |
| Product Type | FHP - Bushed |
| Outside Diameter (in) | 6.95 in |
| Outside Length (in) | 1.5625 in |
| Belt Section | 4L or A, 5L or B |
| Bore (Min) (in) | 0.375 in |
| Bore Type | Split Taper Bushed |
| Bushing Bore Range | 0.375 - 1.500 |
| Face Width (in) | 0.875 |
| Overall Width (in) | 1.5625 |
| Pulley Construction | Plain |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-102404 |
| Part NumberiManufacturer catalog number | 1042548 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289316144 |
| CategoryiCatalog classification | FHP Sheaves |
