GEARBELT PULLEYS-500
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1054469 |

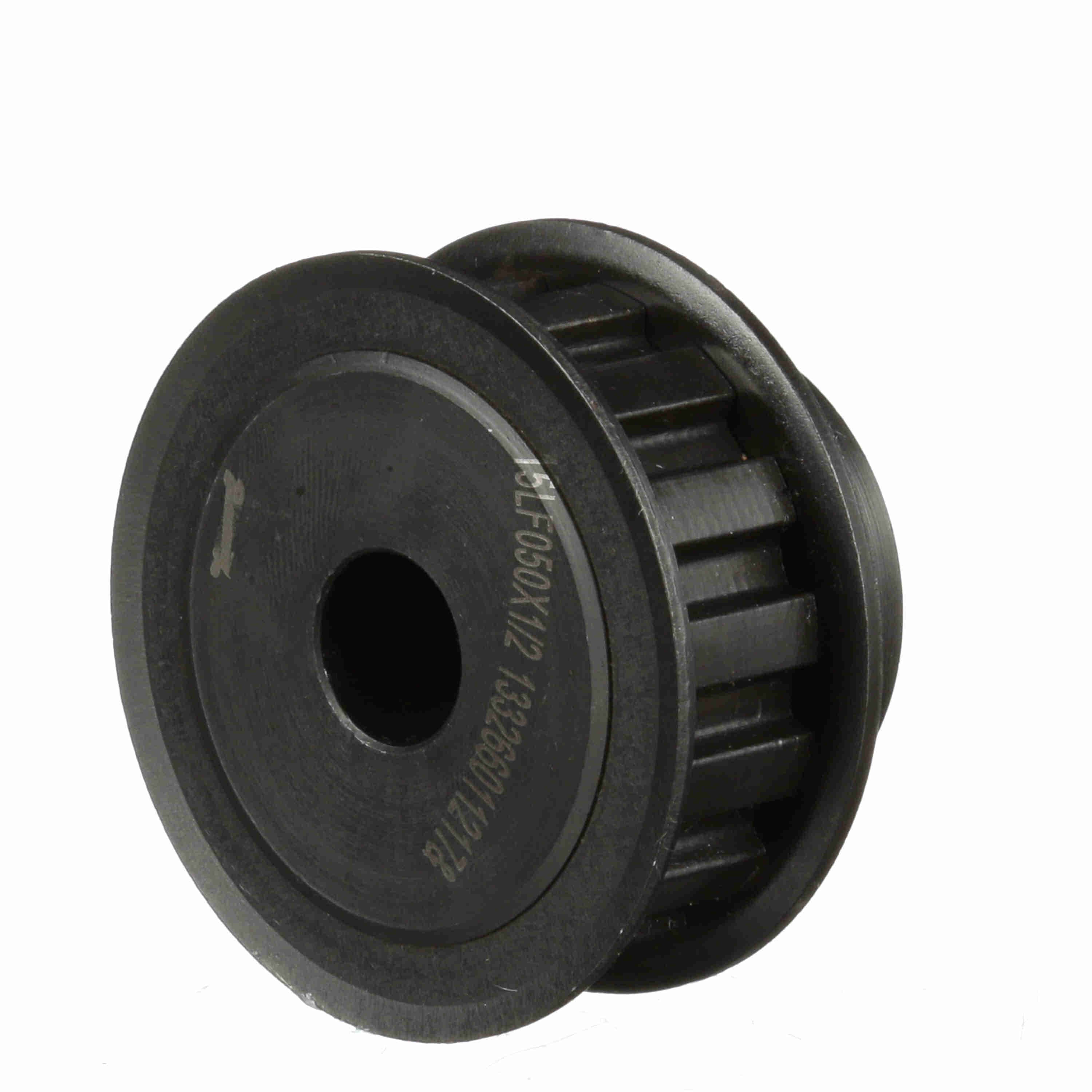

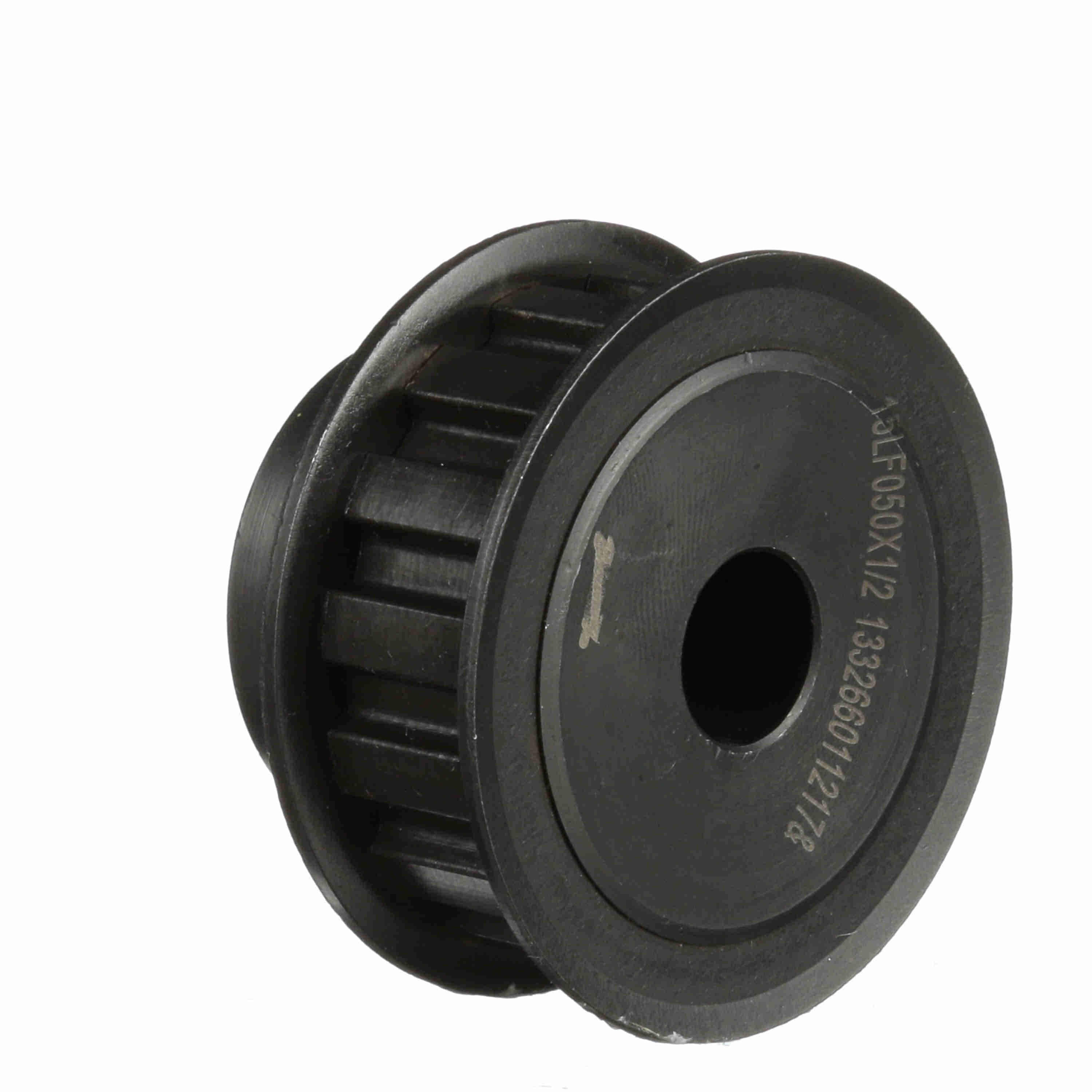

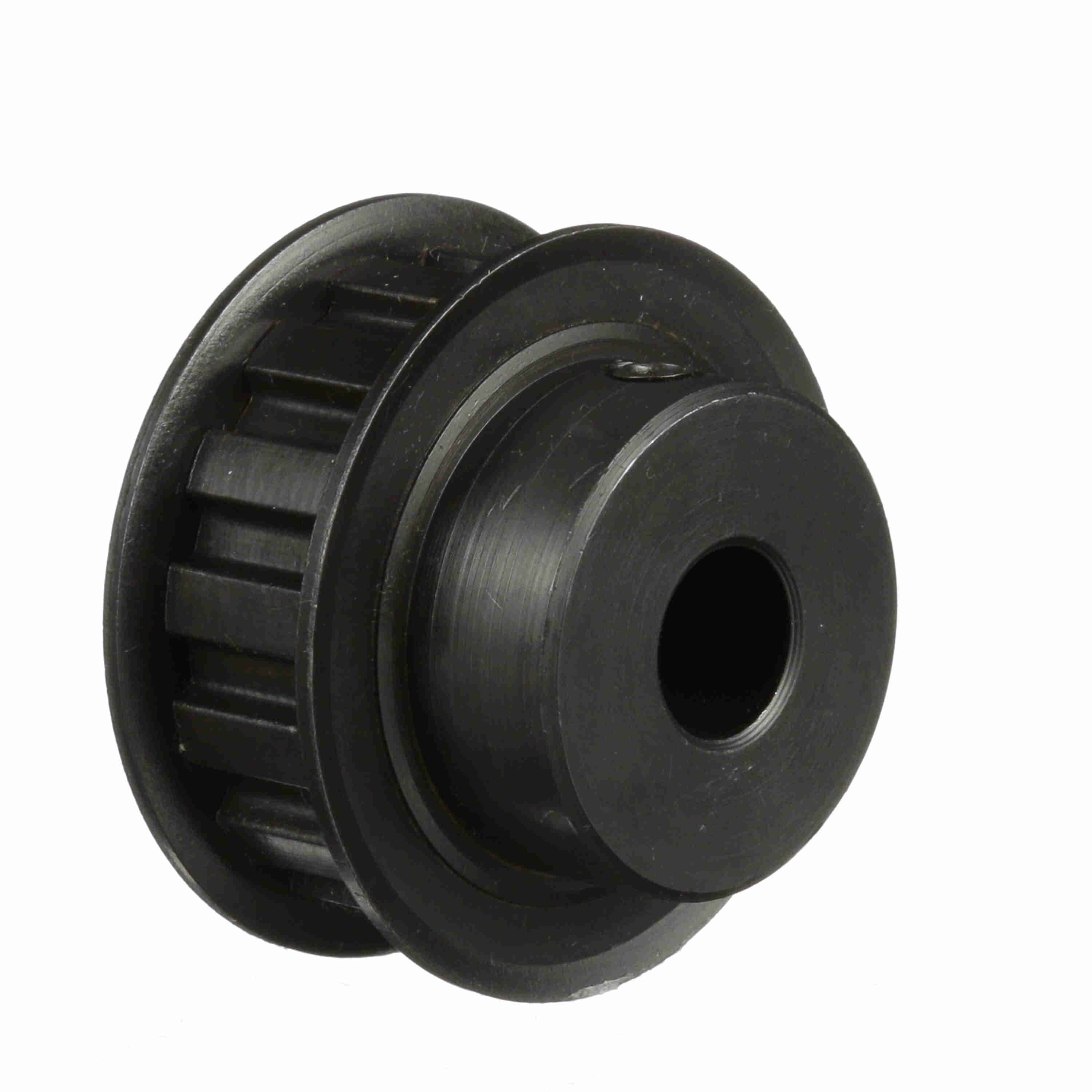

| Product Name | 15LF050X1/2 |
| Brand | Browning |
| Material | Steel |
| Weight | 0.65 lb |
| Package Length | 2.56 in |
| Package Width | 2.56 in |
| Package Height | 1.38 in |
| Width (mm) | 12.7 mm |
| Number of teeth | 15 |
| Product Type | Gearbelt Pulley |
| Model Name | GBPulley_Master3 |
| Bore Range |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 4 | $81.21 | — |
| 5 – 9 | $75.33 | 7% off |
| 10+ | $72.11 | 11% off |
| 0.5 |
| Bore Type | Finish Bore |
| Flange (in) | 2.03125 in |
| Width (in) | 0.5 in |
| Outside Diameter (mm) | 44.704 mm |
| Outside Diameter (in) | 1.76 in |
| Belt Section | L |
| Pitch Diameter (in) | 1.79 in |
| Face Width | 0.75 |
| Bore Diameter (in) | 0.5 in |
| Pulley Construction | Solid |
| With Flanges | With Flanges |
| Hub Diameter (in) | 1.34375 in |
| Overall Length (in) | 1.25 in |
| Hub Projection | 0.5 |
| Length Through Bore | 1.25 |
| Number of Hubs | 1 |
| HTC | 8483.50.9080 |
| Country of Origin | United States of America |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-102594 |
| Part NumberiManufacturer catalog number | 1054469 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289141708 |
| CategoryiCatalog classification | Power Transmission > V-Belt Sheaves |
