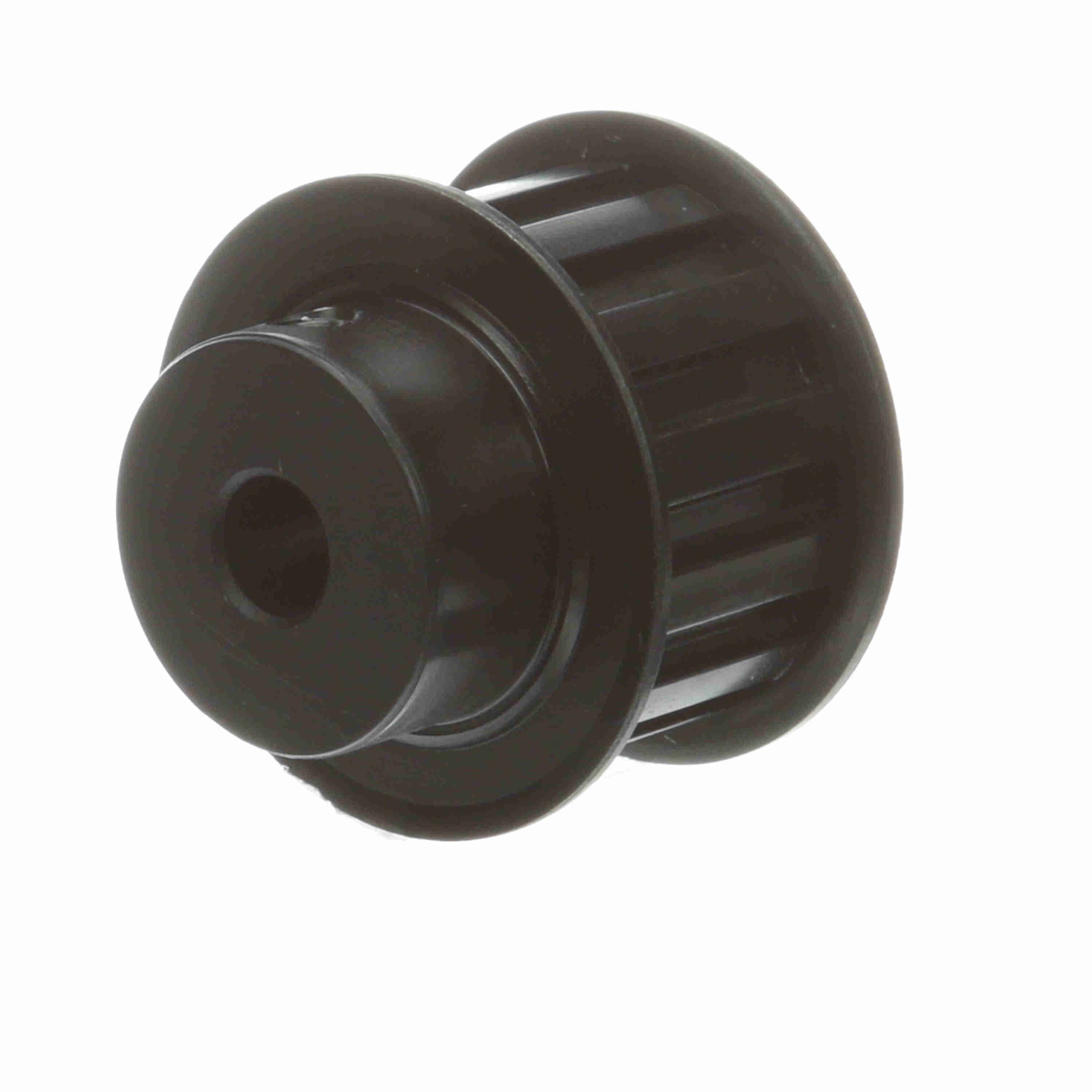

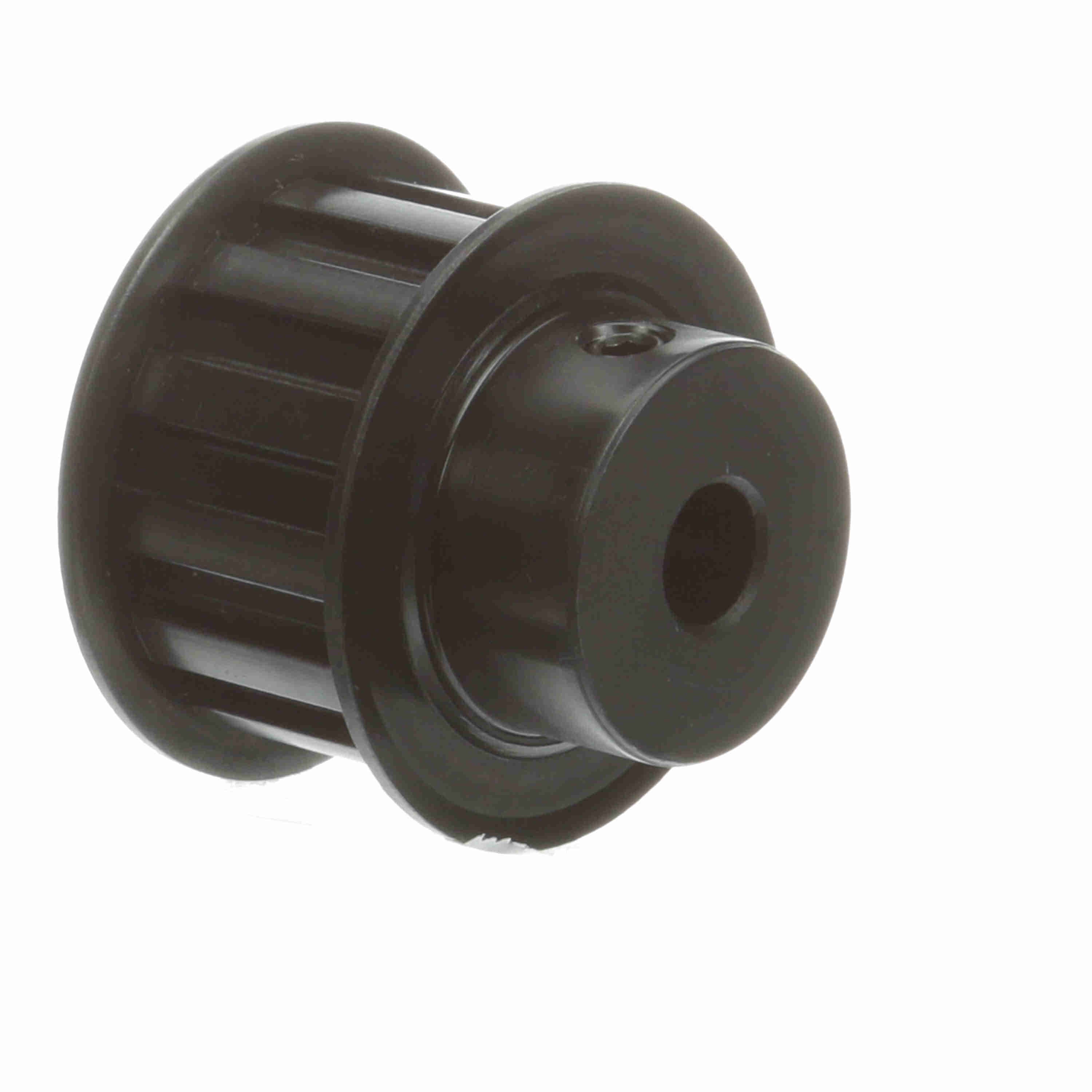

GEARBELT PULLEYS-500
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1054576 |
| Product Name | 13LF075X3/8 |
| Brand | Browning |
| Material | Steel |
| Weight | 0.62 lb |
| Package Length | 2.2 in |
| Package Width | 3.1 in |
| Package Height | 2.2 in |
| Number of teeth | 13 |
| Bore Range | 0.375 |
| Product Type | Gearbelt Pulley |
| Width (mm) | 19.05 mm |
| Bore Type |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 4 | $142.14 | — |
| 5 – 9 | $131.85 | 7% off |
| 10+ | $126.22 | 11% off |
| Finish Bore |
| Outside Diameter (mm) | 38.6588 mm |
| Outside Diameter (in) | 1.522 in |
| Width (in) | 0.75 in |
| Flange (in) | 1.781 in |
| Belt Section | L |
| Pitch Diameter (in) | 1.552 in |
| Face Width | 1 |
| Length Through Bore | 1.5 |
| Number of Hubs | 1 |
| Hub Projection | 0.5 |
| Overall Length (in) | 1.5 in |
| With Flanges | With Flanges |
| Pulley Construction | Solid |
| Bore Diameter (in) | 0.375 in |
| Hub Diameter (in) | 1.125 in |
| HTC | 8483.50.9080 |
| Country of Origin | United States of America |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-102605 |
| Part NumberiManufacturer catalog number | 1054576 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289301874 |
| CategoryiCatalog classification | Power Transmission > V-Belt Sheaves |
