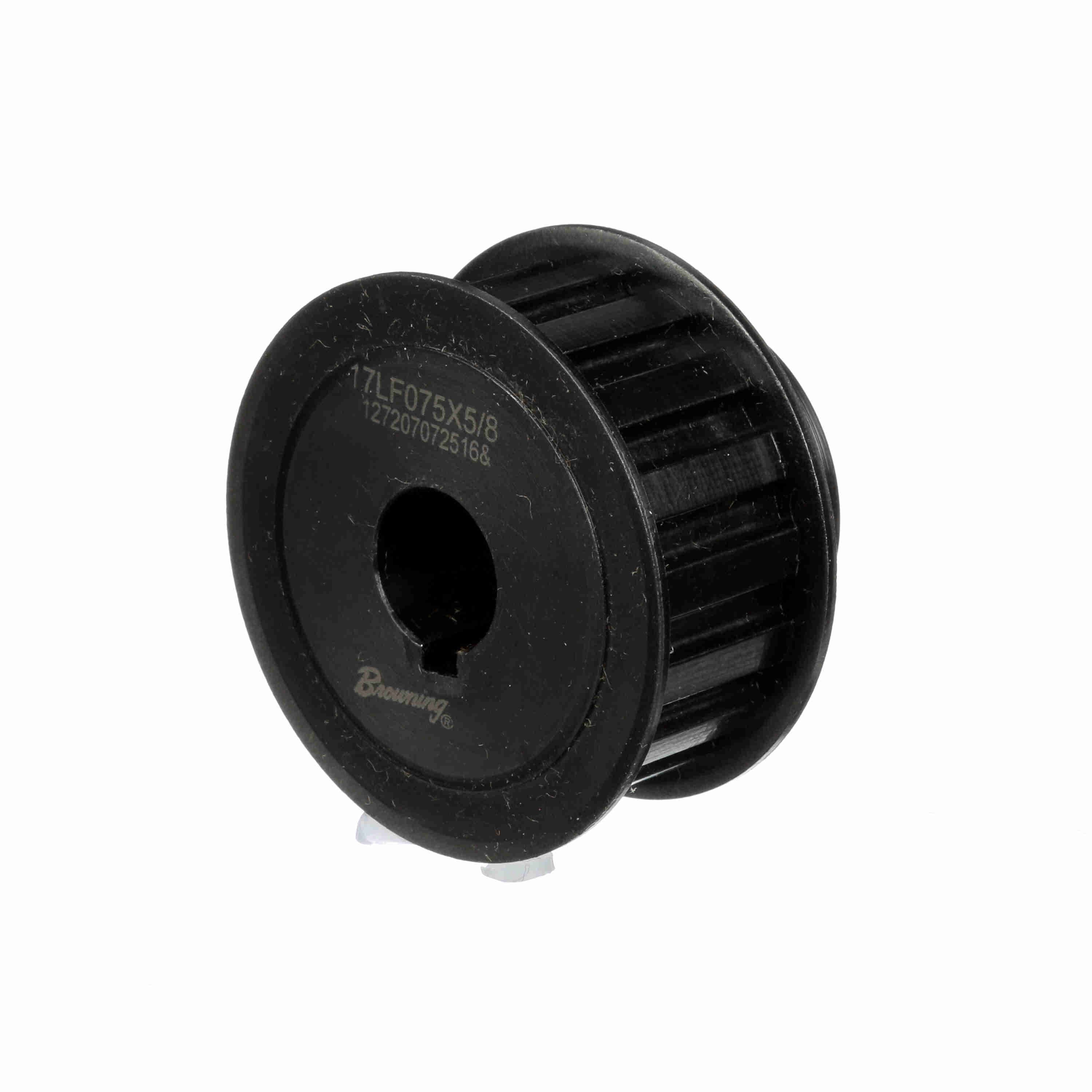

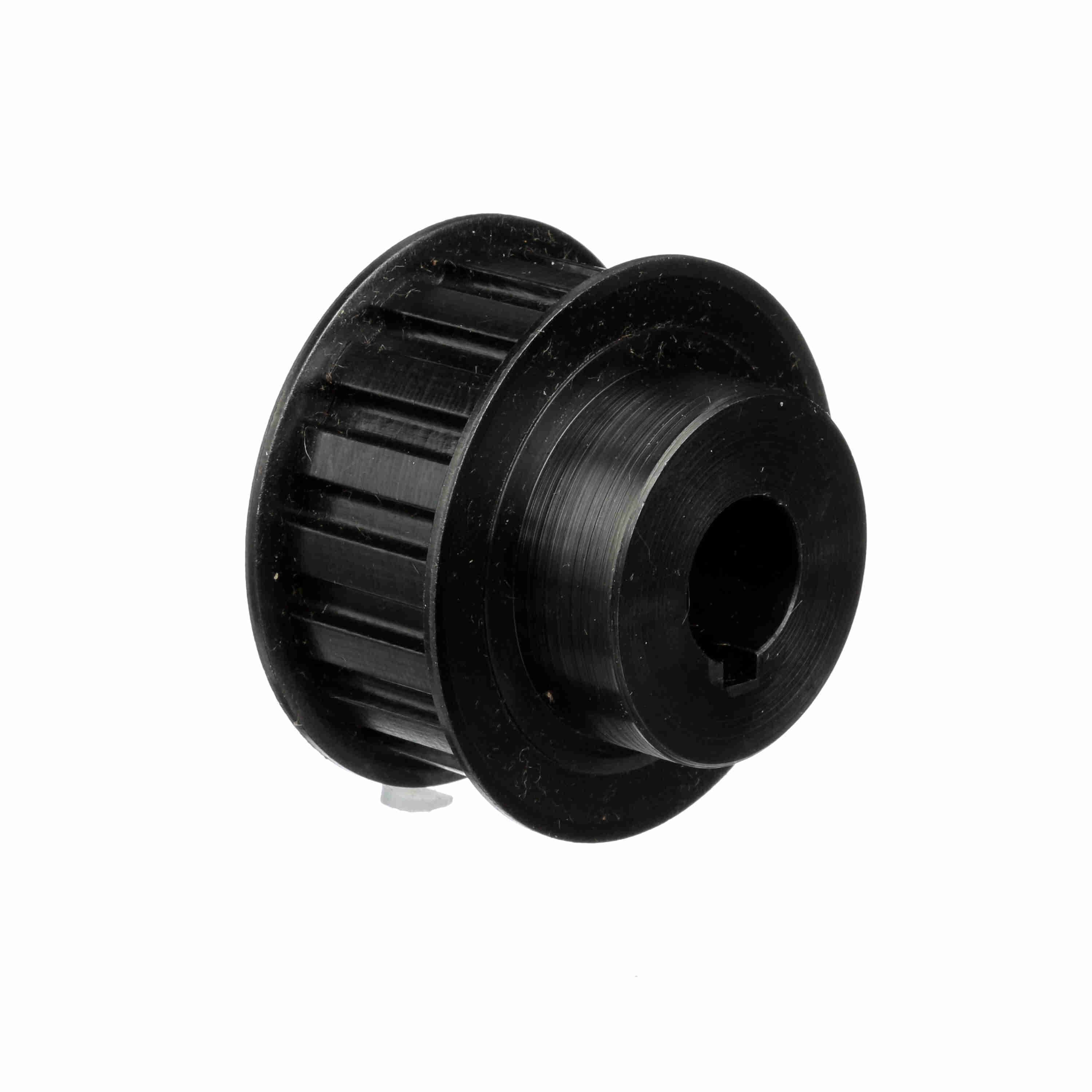

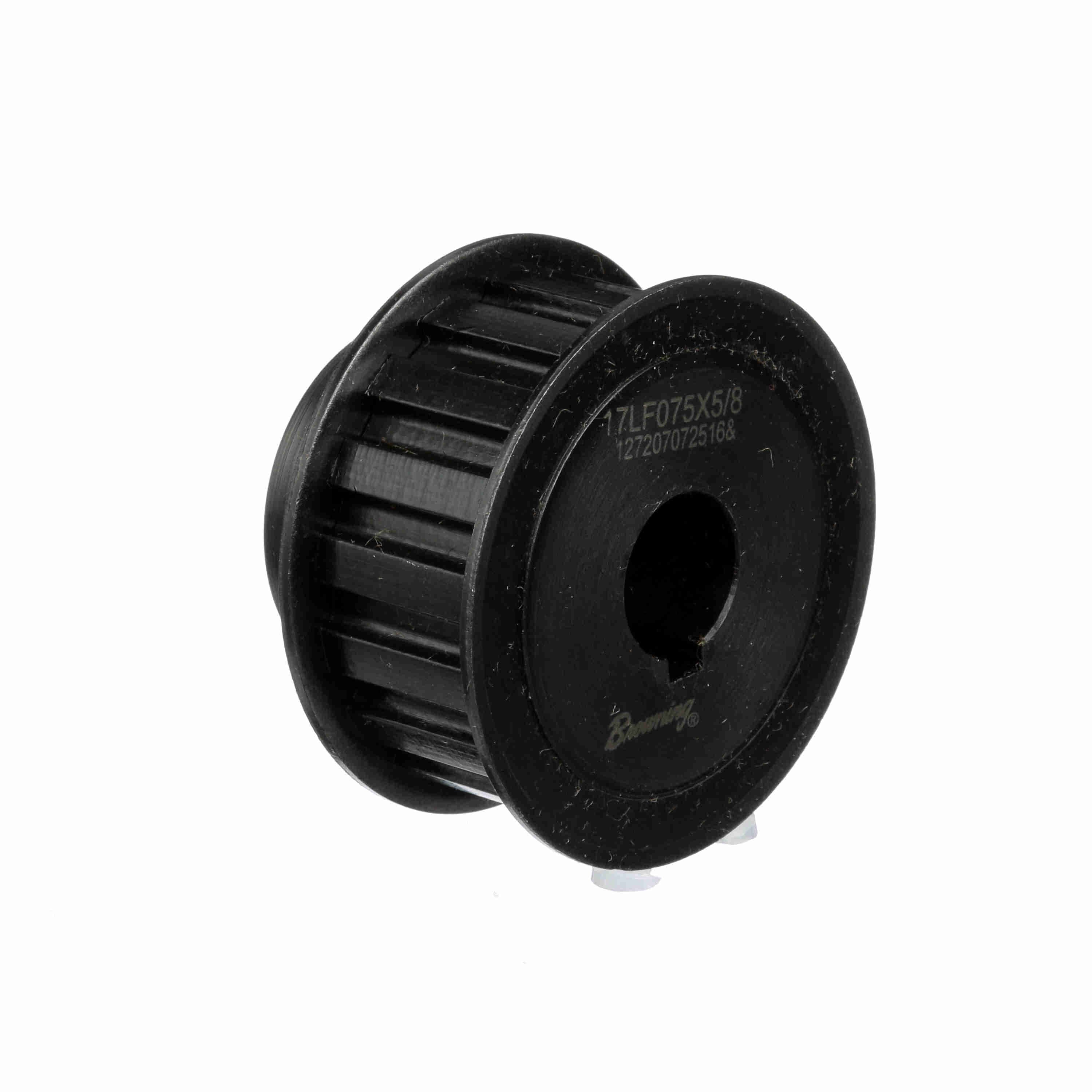

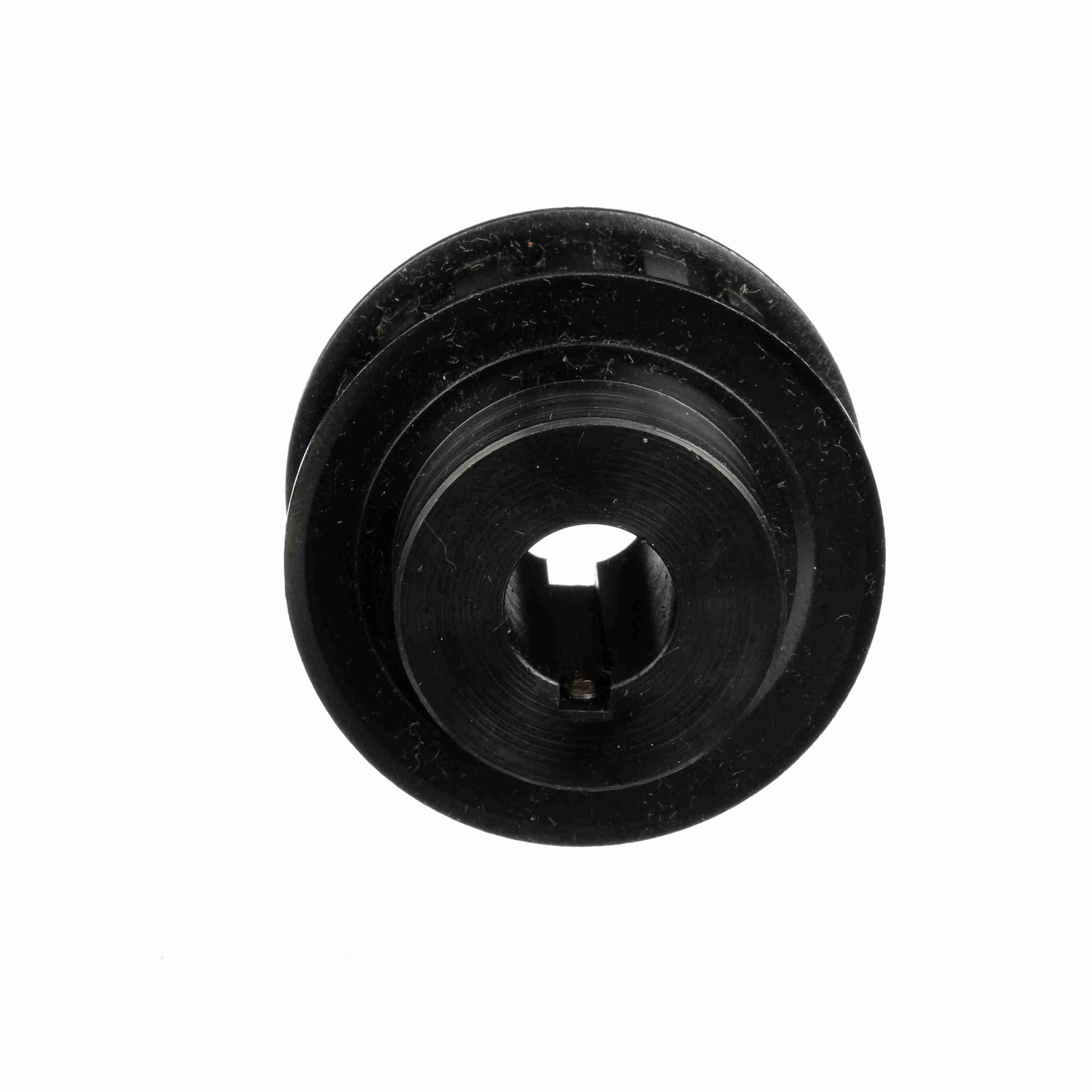

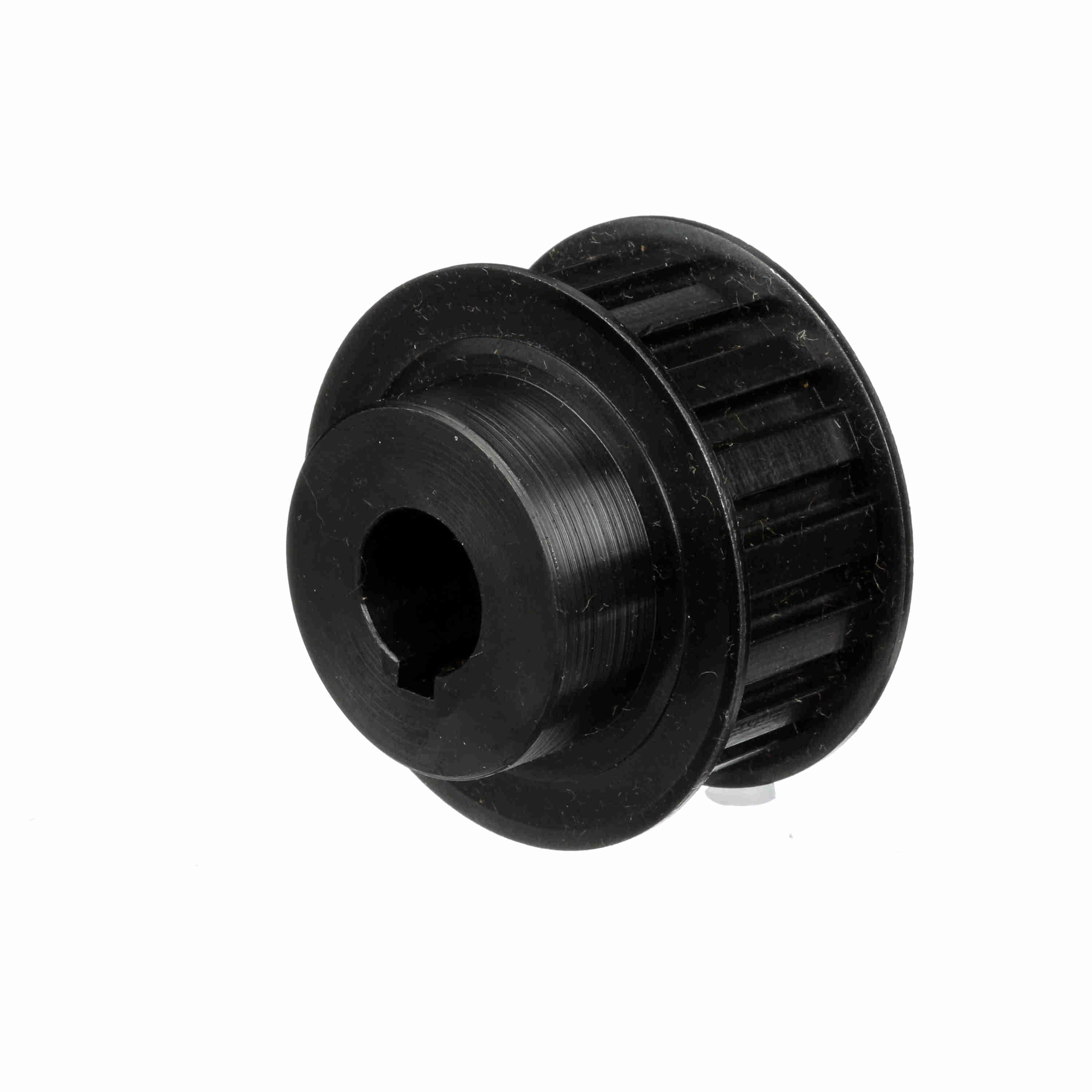

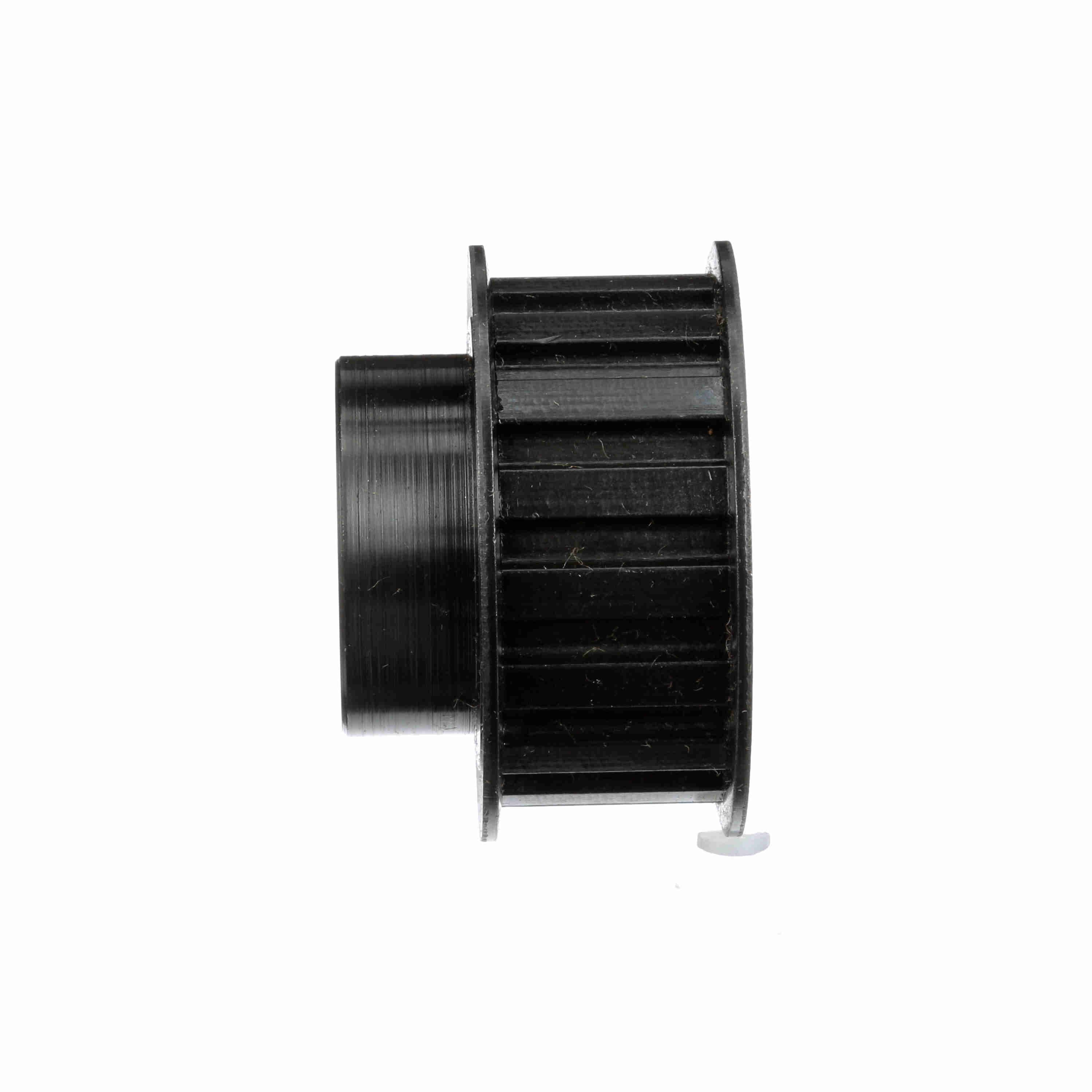

GEARBELT PULLEYS-500
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1054683 |
| Product Name | 17LF075X5/8 |
| Brand | Browning |
| Material | Steel |
| Weight | 0.93 lb |
| Package Length | 3.3 in |
| Package Width | 2.9 in |
| Package Height | 2 in |
| Number of teeth | 17 |
| Width (mm) | 19.05 mm |
| Bore Range | 0.625 |
| Product Type | Gearbelt Pulley |
| Bore Type |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 4 | $168.46 | — |
| 5 – 9 | $156.26 | 7% off |
| 10+ | $149.59 | 11% off |
| Finish Bore |
| Outside Diameter (mm) | 50.7746 mm |
| Belt Section | L |
| Flange (in) | 2.25 in |
| Outside Diameter (in) | 1.999 in |
| Width (in) | 0.75 in |
| Pitch Diameter (in) | 2.029 in |
| Face Width | 1 |
| Overall Length (in) | 1.5 in |
| Length Through Bore | 1.5 |
| Number of Hubs | 1 |
| Pulley Construction | Solid |
| Hub Projection | 0.5 |
| Hub Diameter (in) | 1.4375 in |
| Bore Diameter (in) | 0.625 in |
| With Flanges | With Flanges |
| HTC | 8483.50.9080 |
| Country of Origin | United States of America |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-102615 |
| Part NumberiManufacturer catalog number | 1054683 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289181919 |
| CategoryiCatalog classification | Power Transmission > V-Belt Sheaves |
