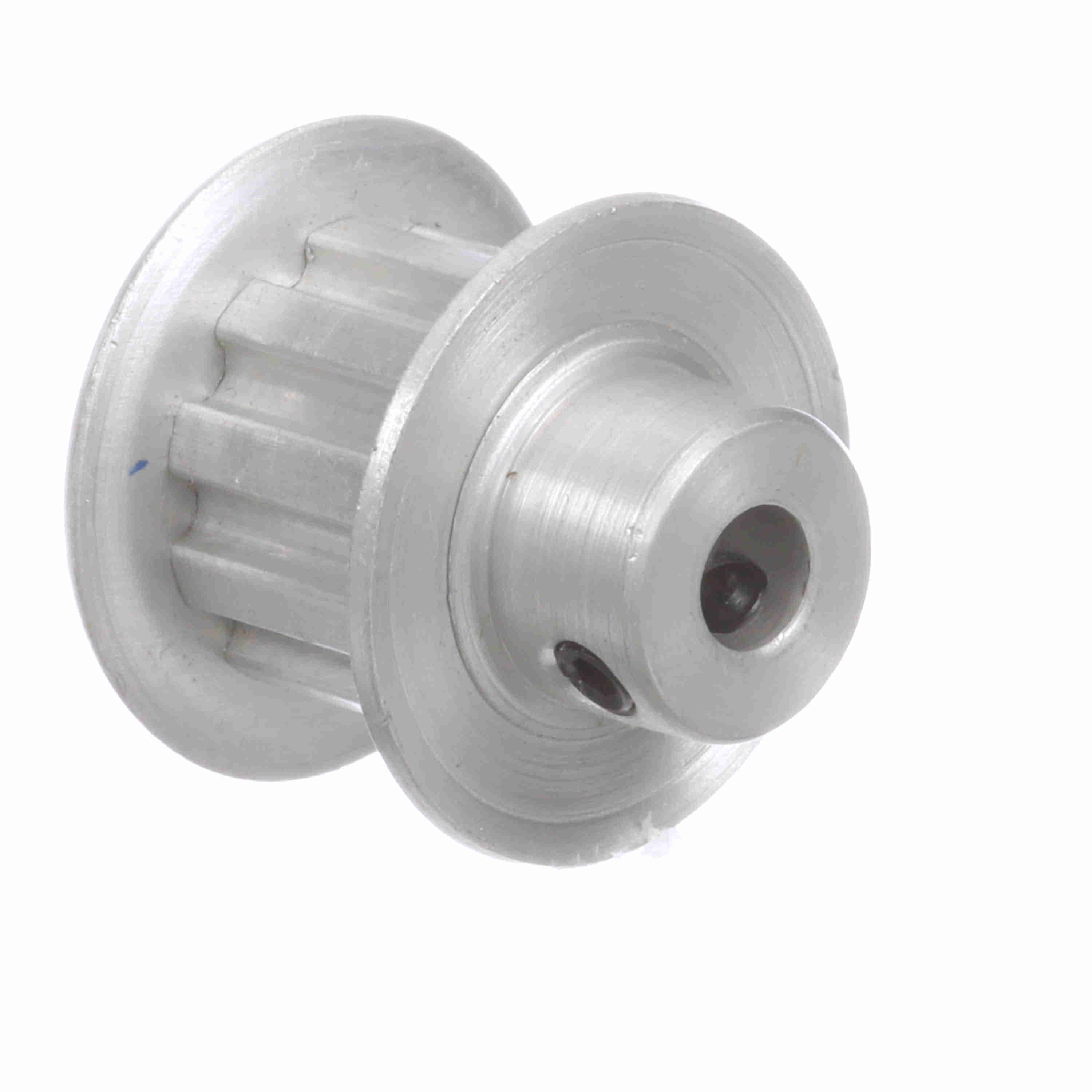

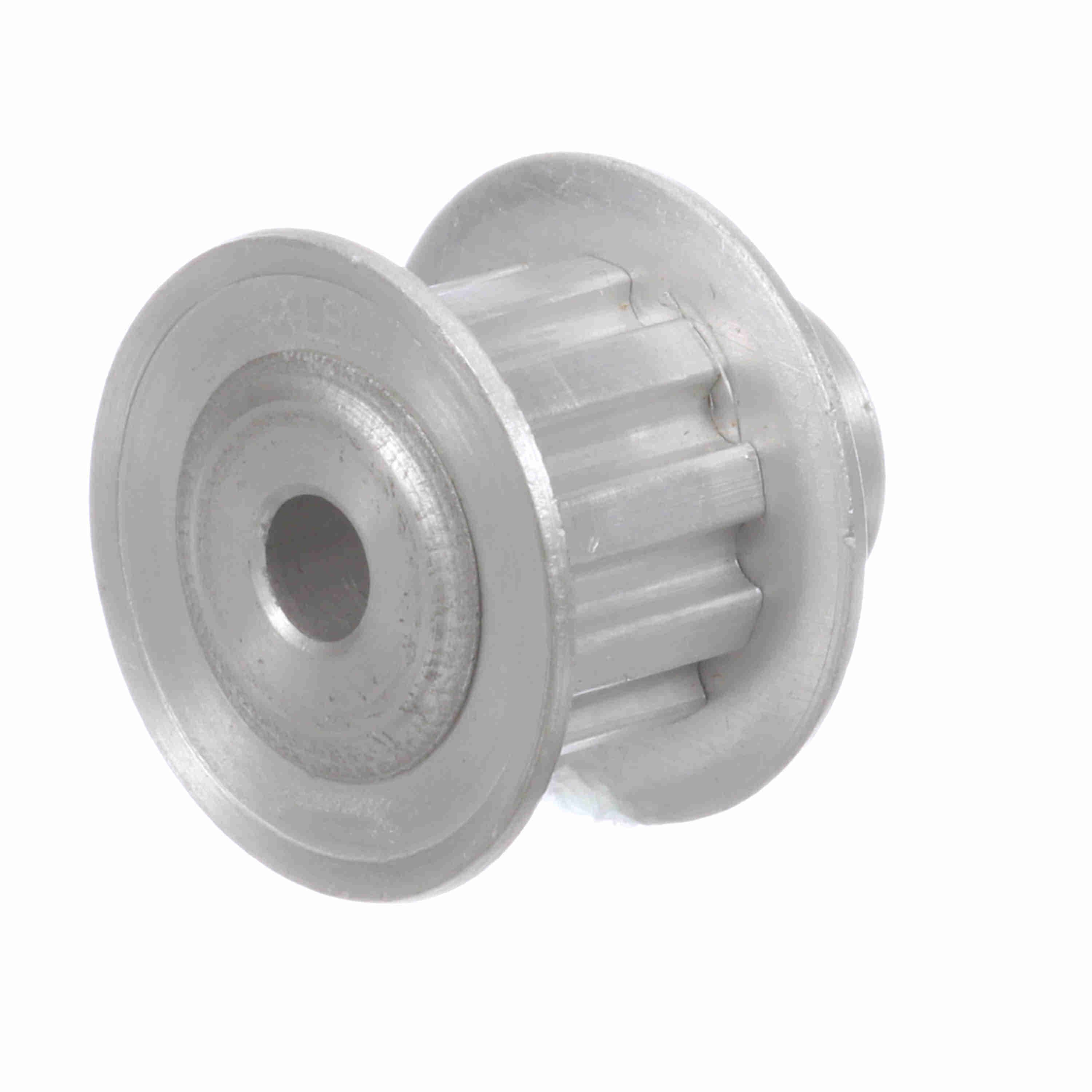

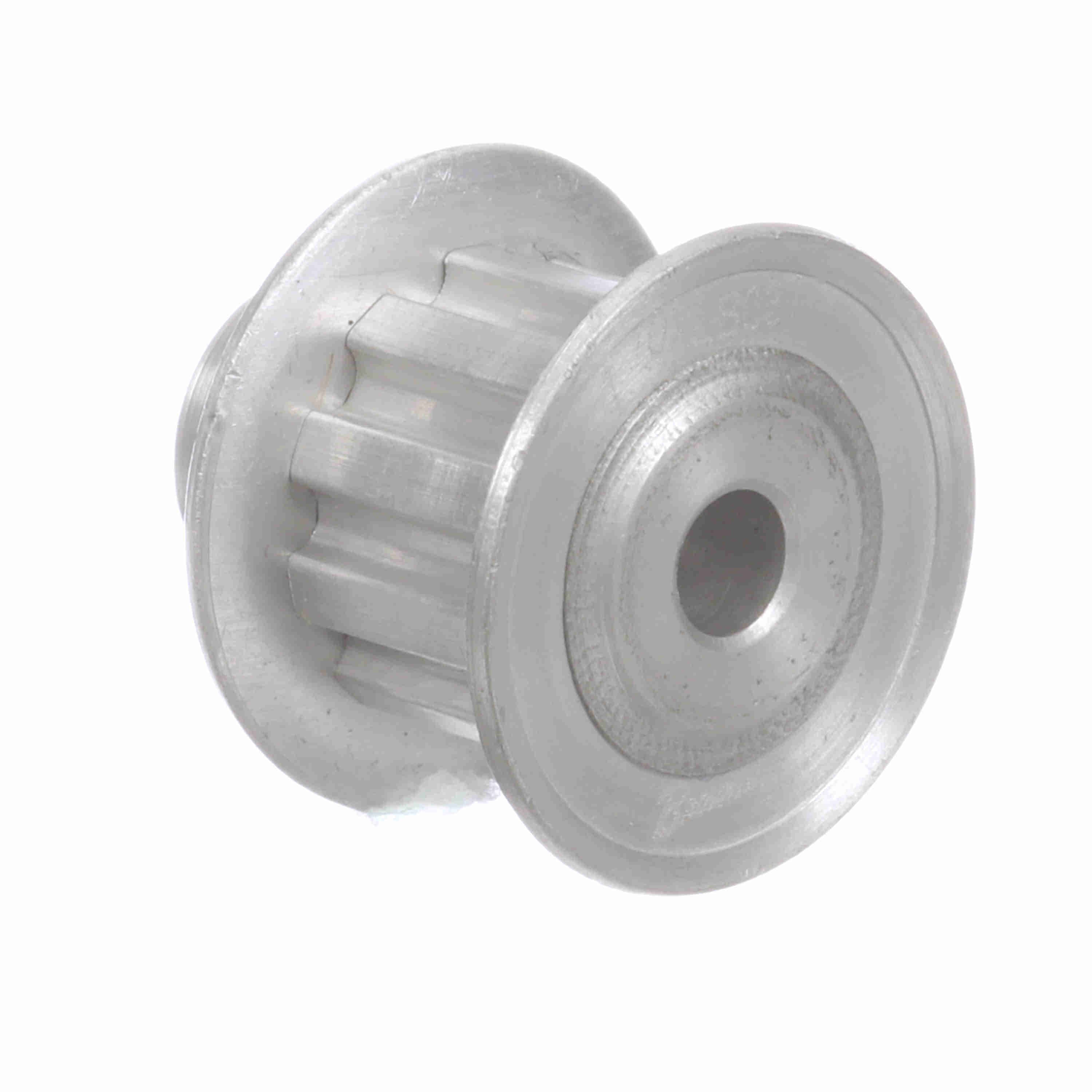

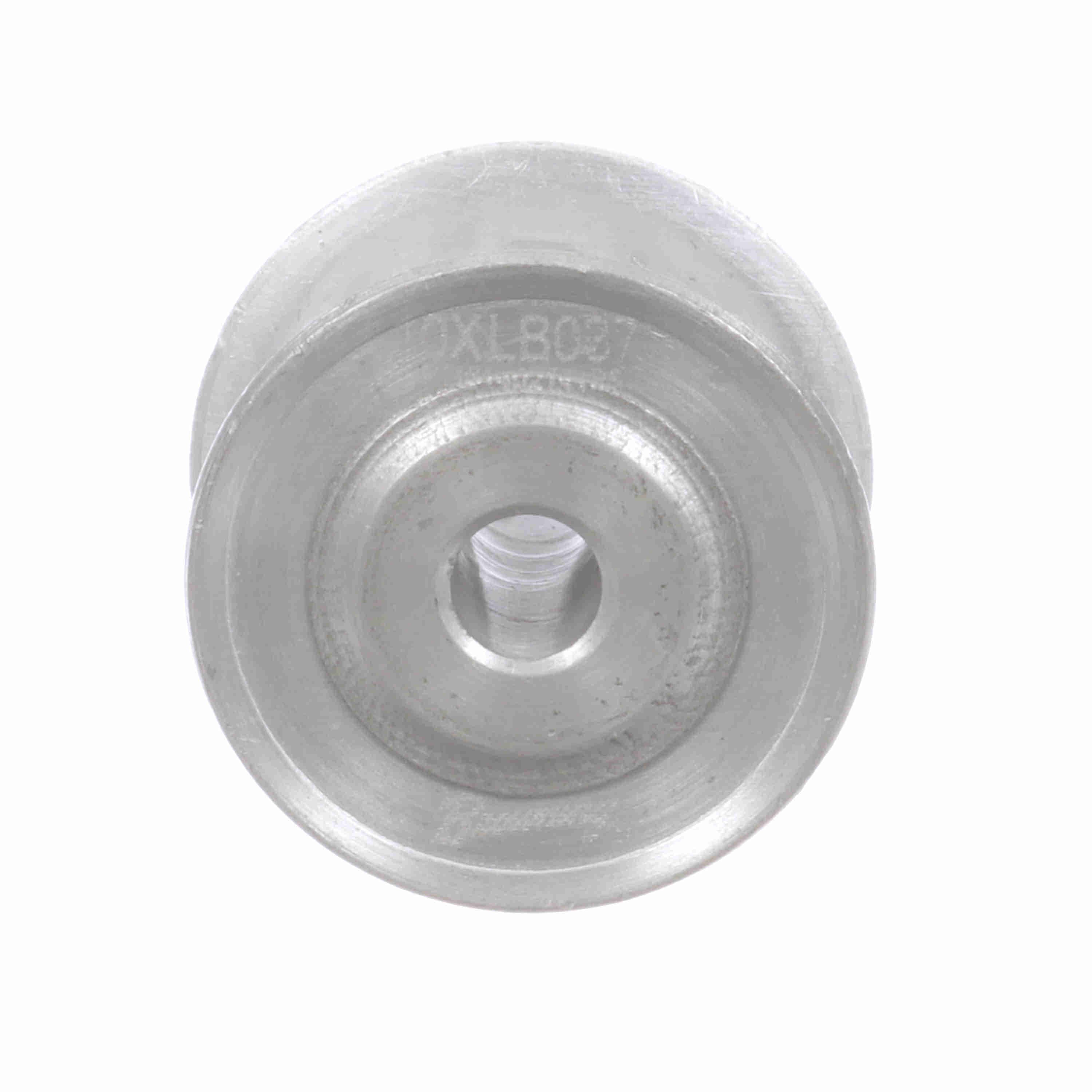

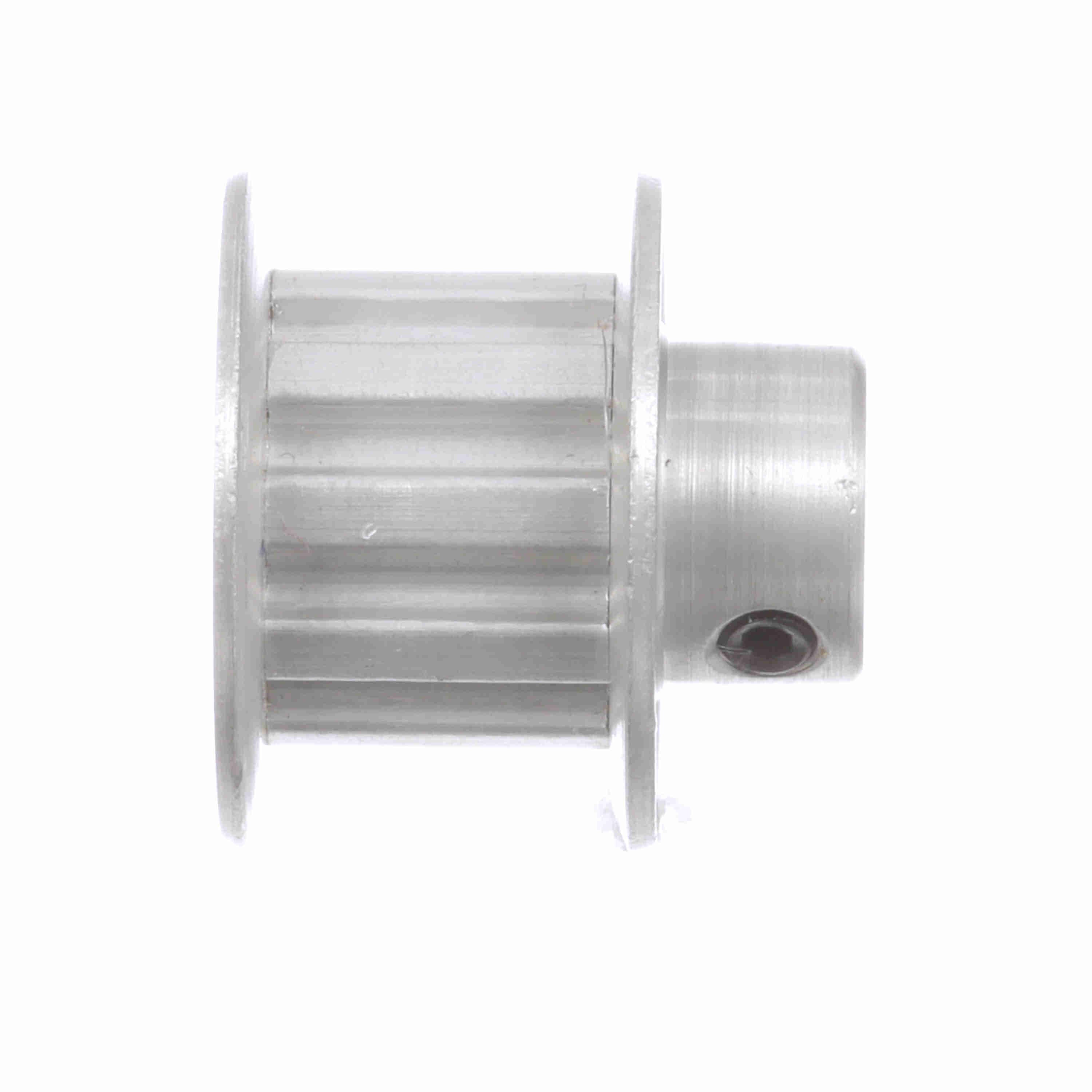

GEARBELT PULLEYS-500
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1054832 |
| Product Name | 10XLB037 |
| Brand | Browning |
| Material | Aluminium |
| Weight | 0.02 lb |
| Package Length | 2.4 in |
| Package Width | 1.95 in |
| Package Height | 1.25 in |
| Model Name | GBPulley_Master1 |
| Product Type | Gearbelt Pulley |
| Number of teeth | 10 |
| Bore Range | 3/16 to 3/16 |
| Width (mm) |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 4 | $133.02 | — |
| 5 – 9 | $122.78 | 8% off |
| 10+ | $118.32 | 11% off |
| 9.525 mm |
| Bore Type | Rough Bore |
| Belt Section | XL |
| Outside Diameter (in) | 0.617 in |
| Outside Diameter (mm) | 15.6718 mm |
| Flange (in) | .875 in |
| Width (in) | 0.375 in |
| Pitch Diameter (in) | 0.637 in |
| Face Width | 0.5625 |
| With Flanges | With Flanges |
| Overall Length (in) | 0.8125 in |
| Hub Diameter (in) | 0.4375 in |
| Bore Diameter (in) | 0.1875 in |
| Hub Projection | 0.25 |
| Pulley Construction | Solid |
| Number of Hubs | 1 |
| Length Through Bore | 0.8125 |
| HTC | 8483.50.9080 |
| Country of Origin | United States of America |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-102629 |
| Part NumberiManufacturer catalog number | 1054832 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289192076 |
| CategoryiCatalog classification | Power Transmission > V-Belt Sheaves |
