GEARBELT PULLEYS-500
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1055284 |

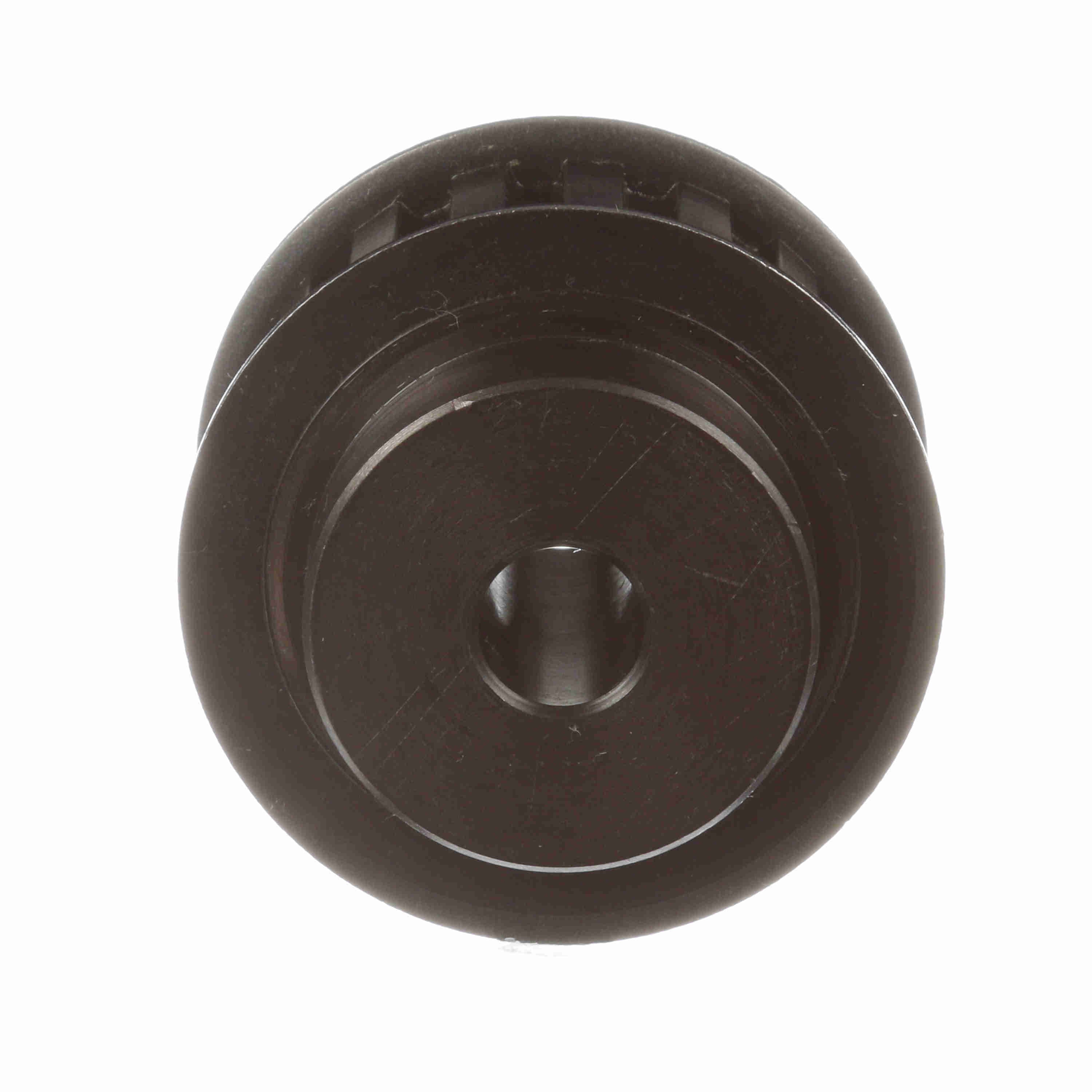

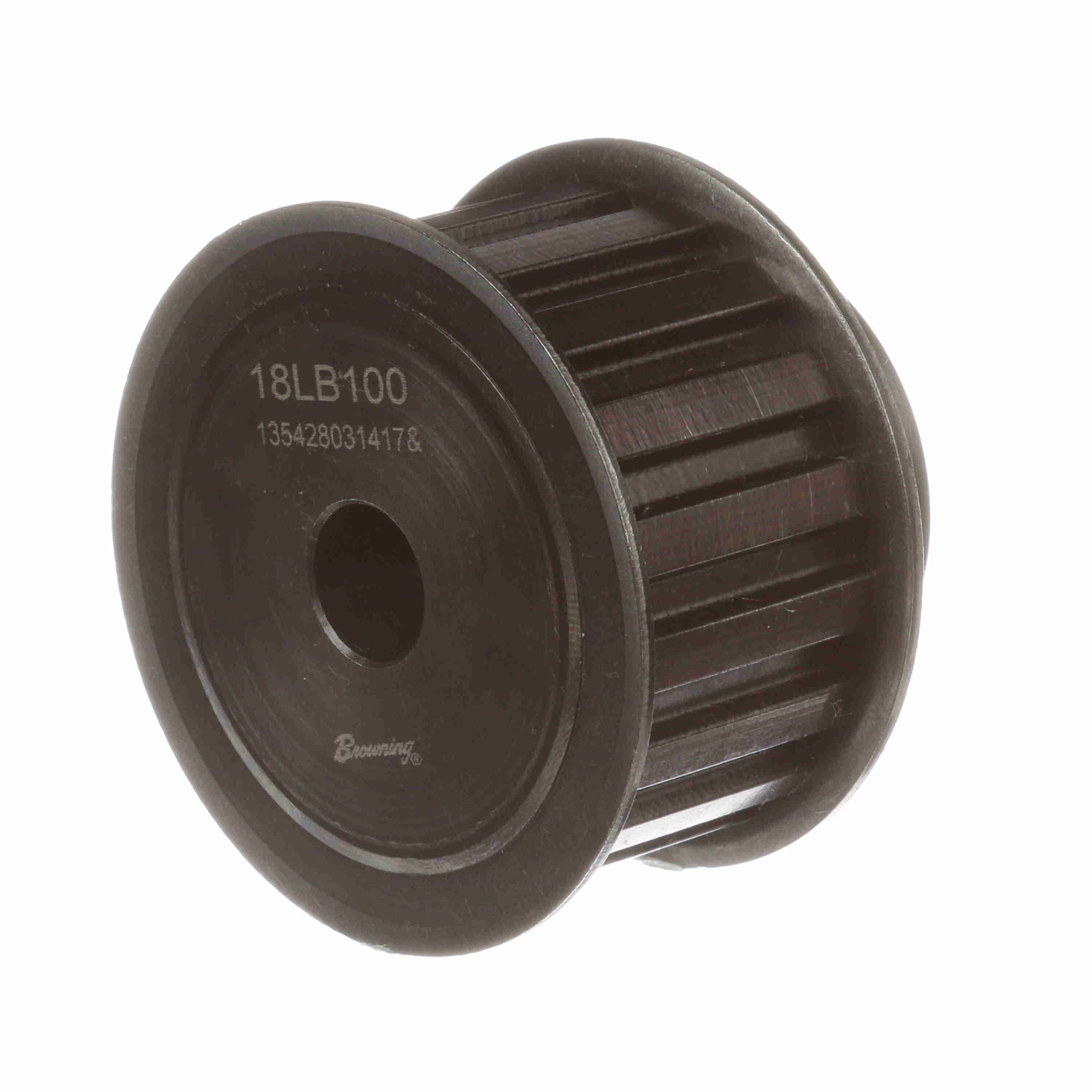

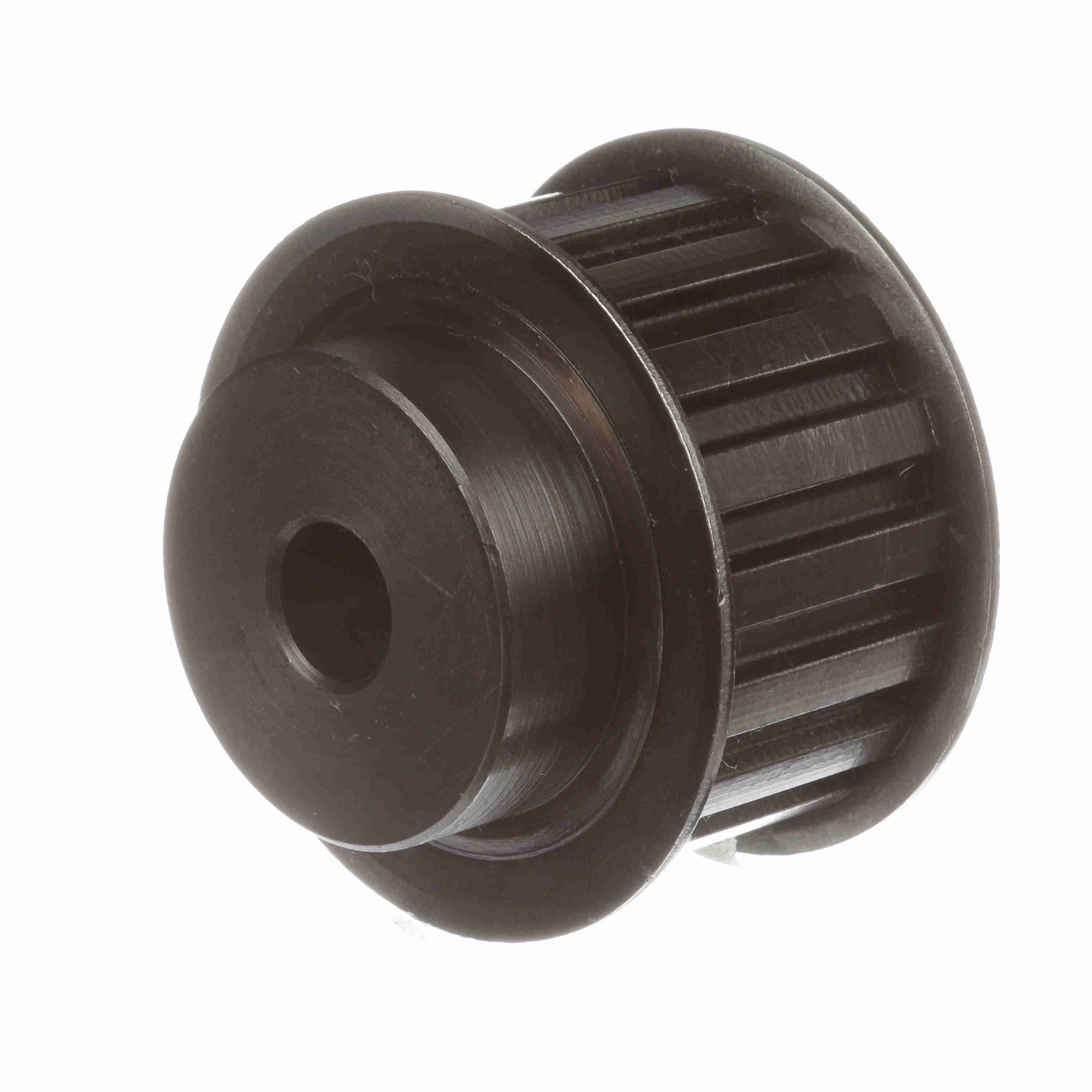

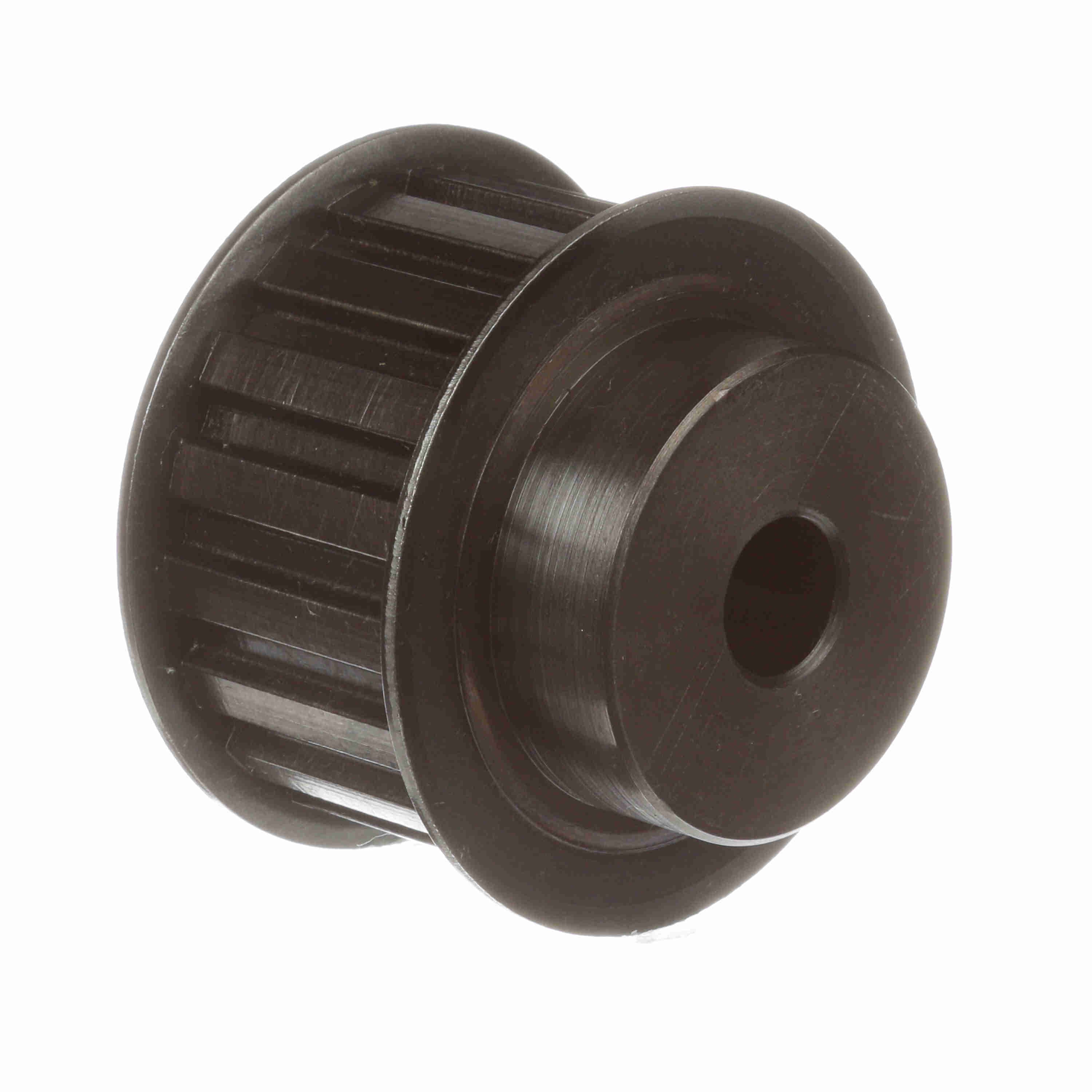

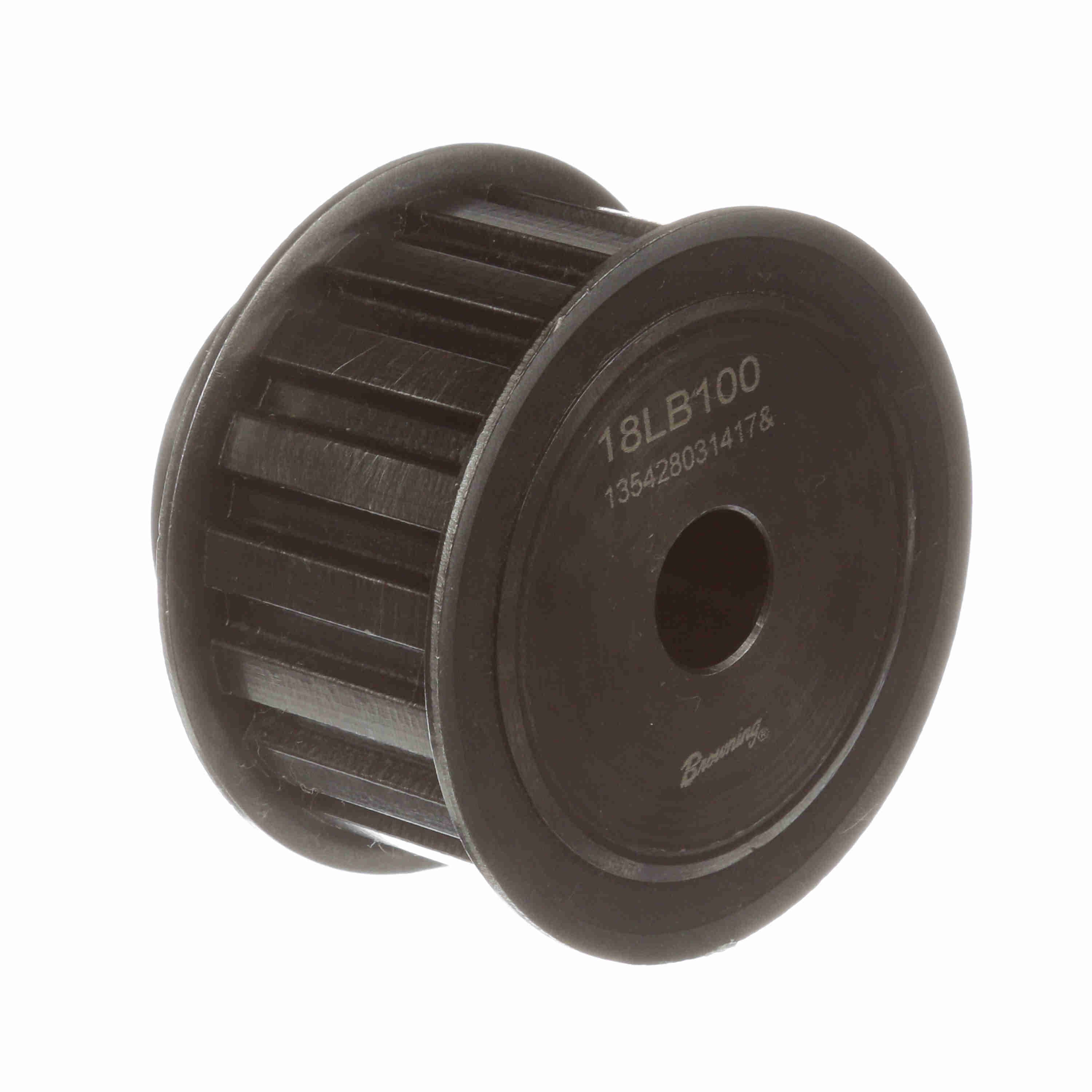

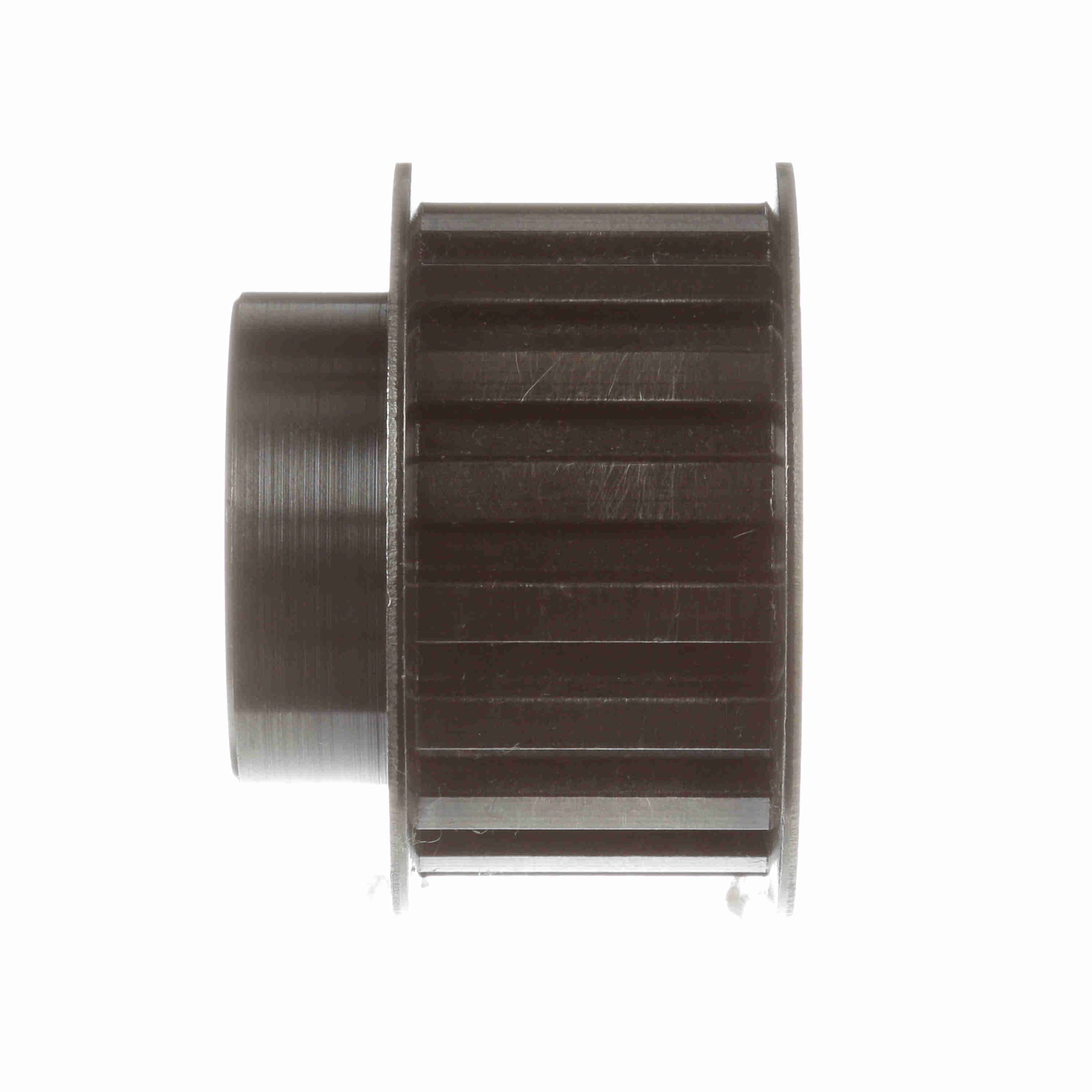

| Product Name | 18LB100 |
| Brand | Browning |
| Material | Steel |
| Weight | 1.41 lb |
| Package Length | 3.3 in |
| Package Width | 3 in |
| Package Height | 1.9 in |
| Number of teeth | 18 |
| Bore Range | 1/2 to 7/8 |
| Model Name | GBPulley_Master2 |
| Product Type | Gearbelt Pulley |
| Width (mm) |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 4 | $123.38 | — |
| 5 – 9 | $114.45 | 7% off |
| 10+ | $109.56 | 11% off |
| 25.4 mm |
| Bore Type | Rough Bore |
| Outside Diameter (in) | 2.119 in |
| Flange (in) | 2.375 in |
| Outside Diameter (mm) | 53.8226 mm |
| Width (in) | 1 in |
| Belt Section | L |
| Pitch Diameter (in) | 2.149 in |
| Face Width | 1.25 |
| Hub Projection | 0.5 |
| Pulley Construction | Solid |
| Number of Hubs | 1 |
| Overall Length (in) | 1.75 in |
| With Flanges | With Flanges |
| Hub Diameter (in) | 1.5625 in |
| Length Through Bore | 1.75 |
| Bore Diameter (in) | 0.5 in |
| HTC | 8483.50.9080 |
| Country of Origin | United States of America |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-102674 |
| Part NumberiManufacturer catalog number | 1055284 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289102365 |
| CategoryiCatalog classification | Power Transmission > V-Belt Sheaves |
