GEARBELT PULLEYS-500
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1055649 |

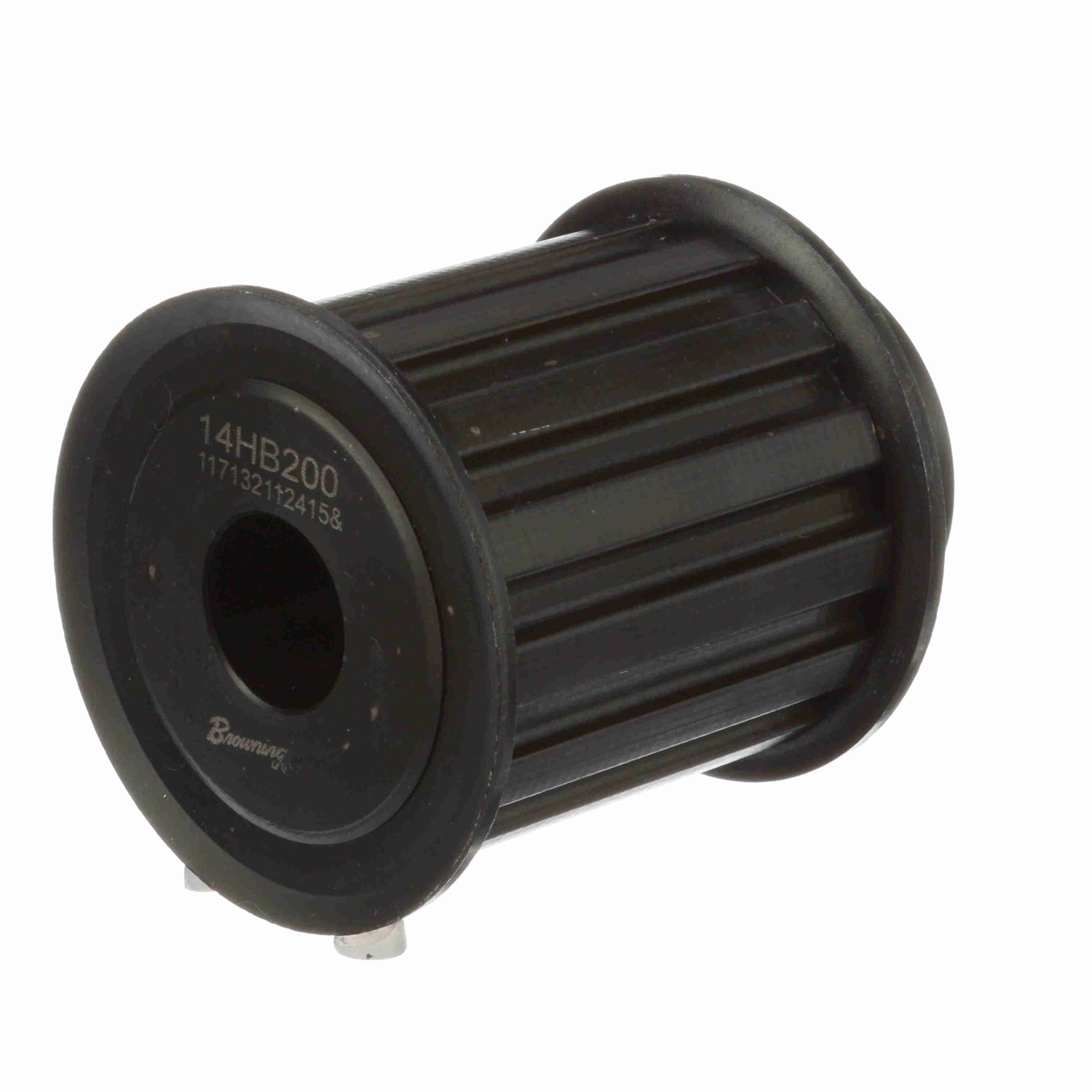

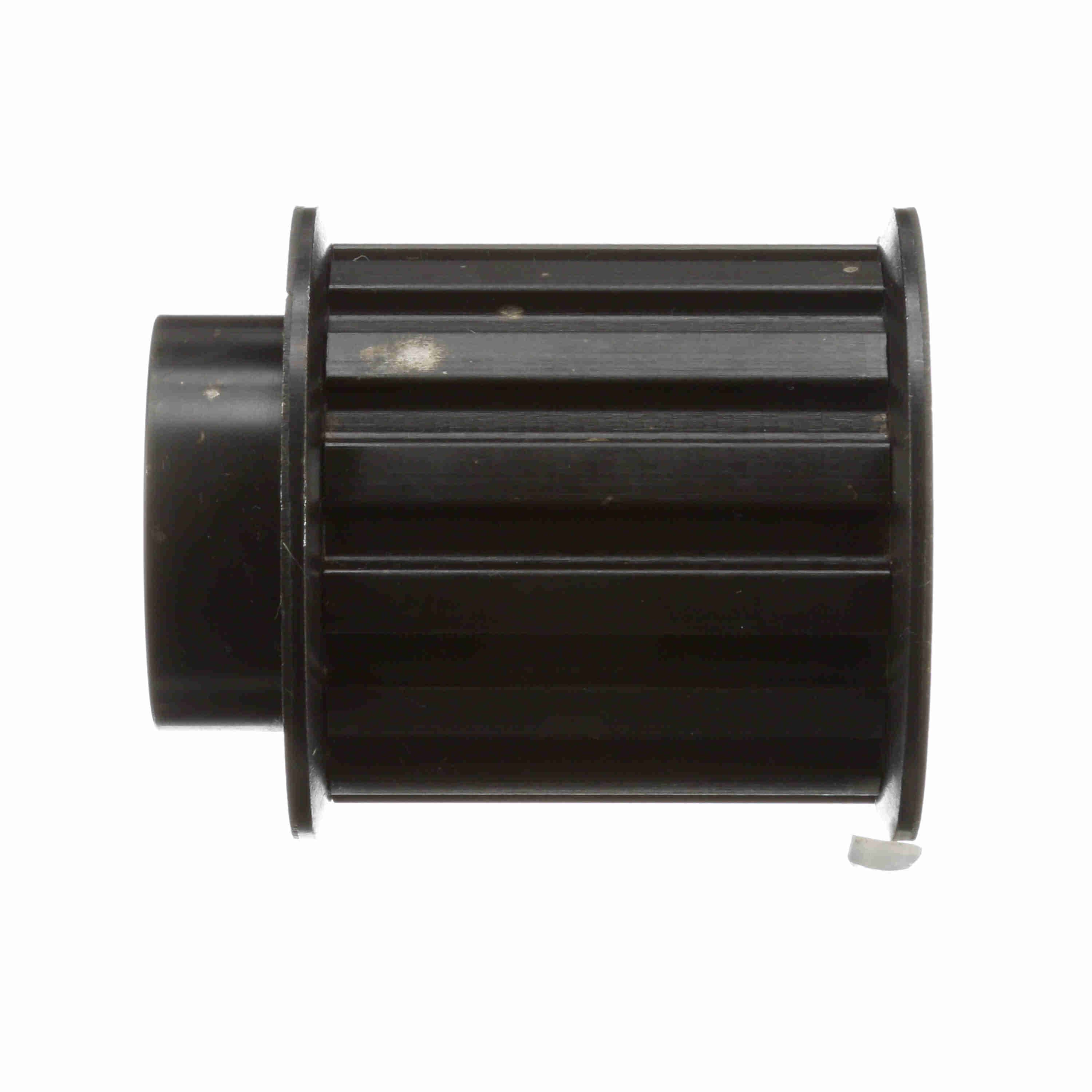

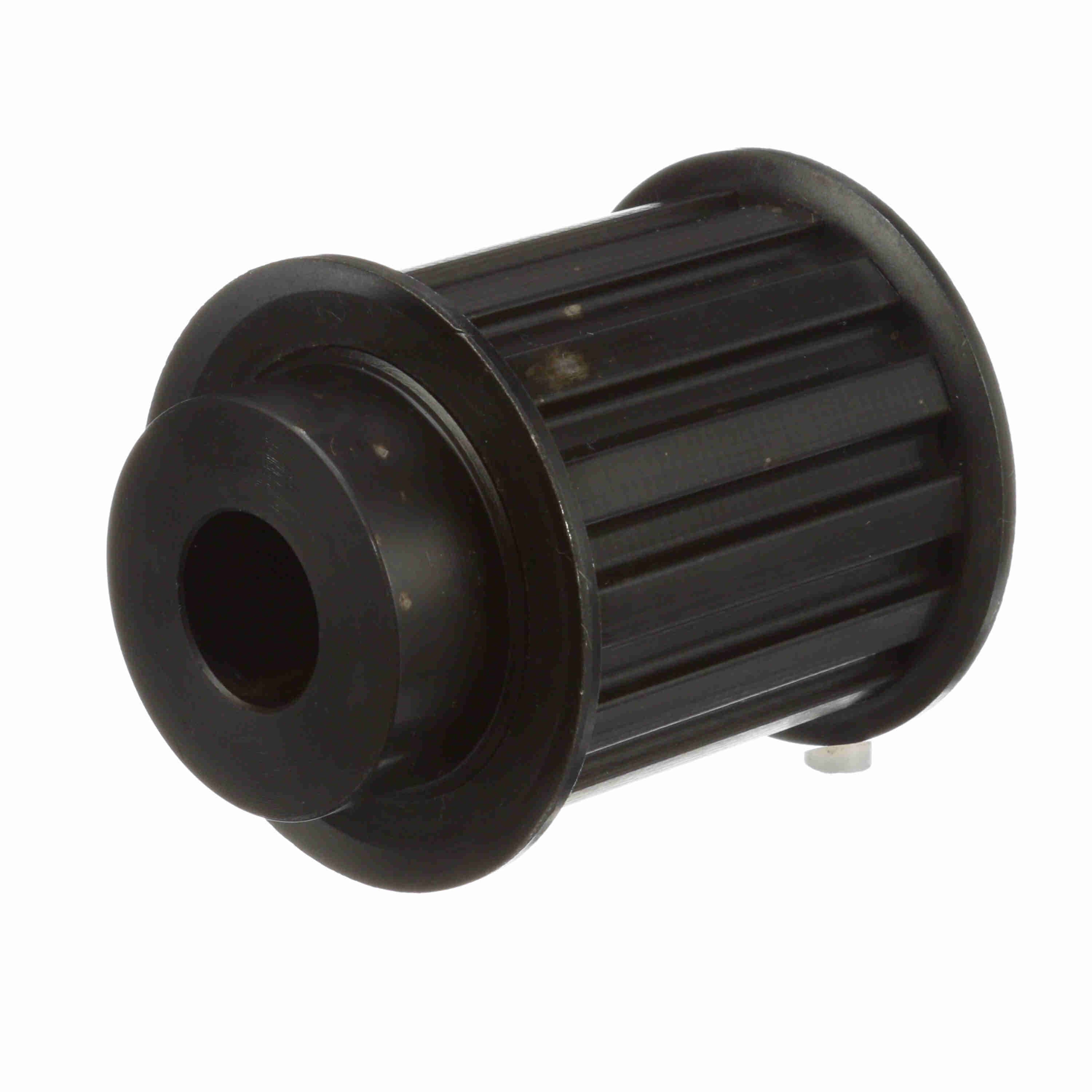

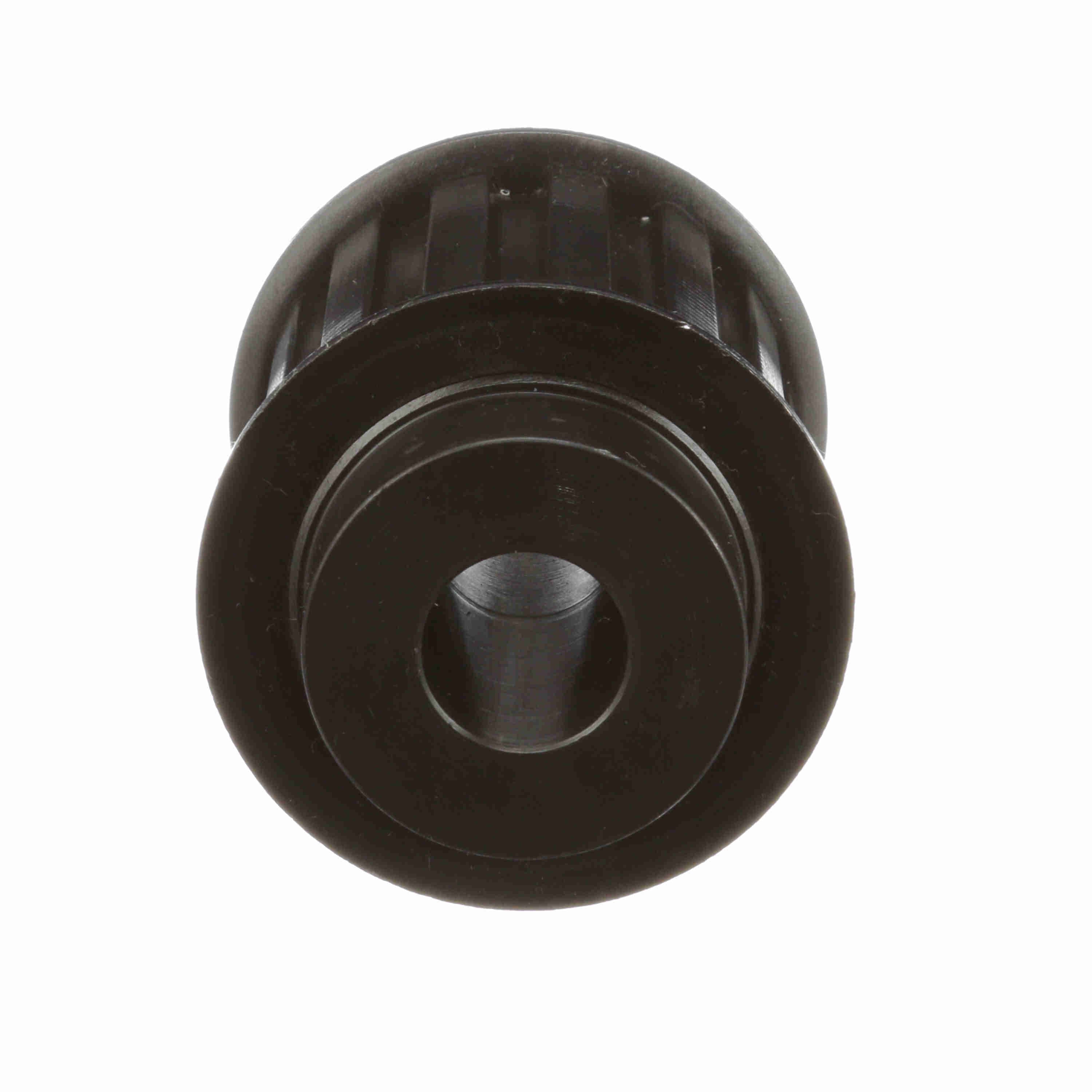

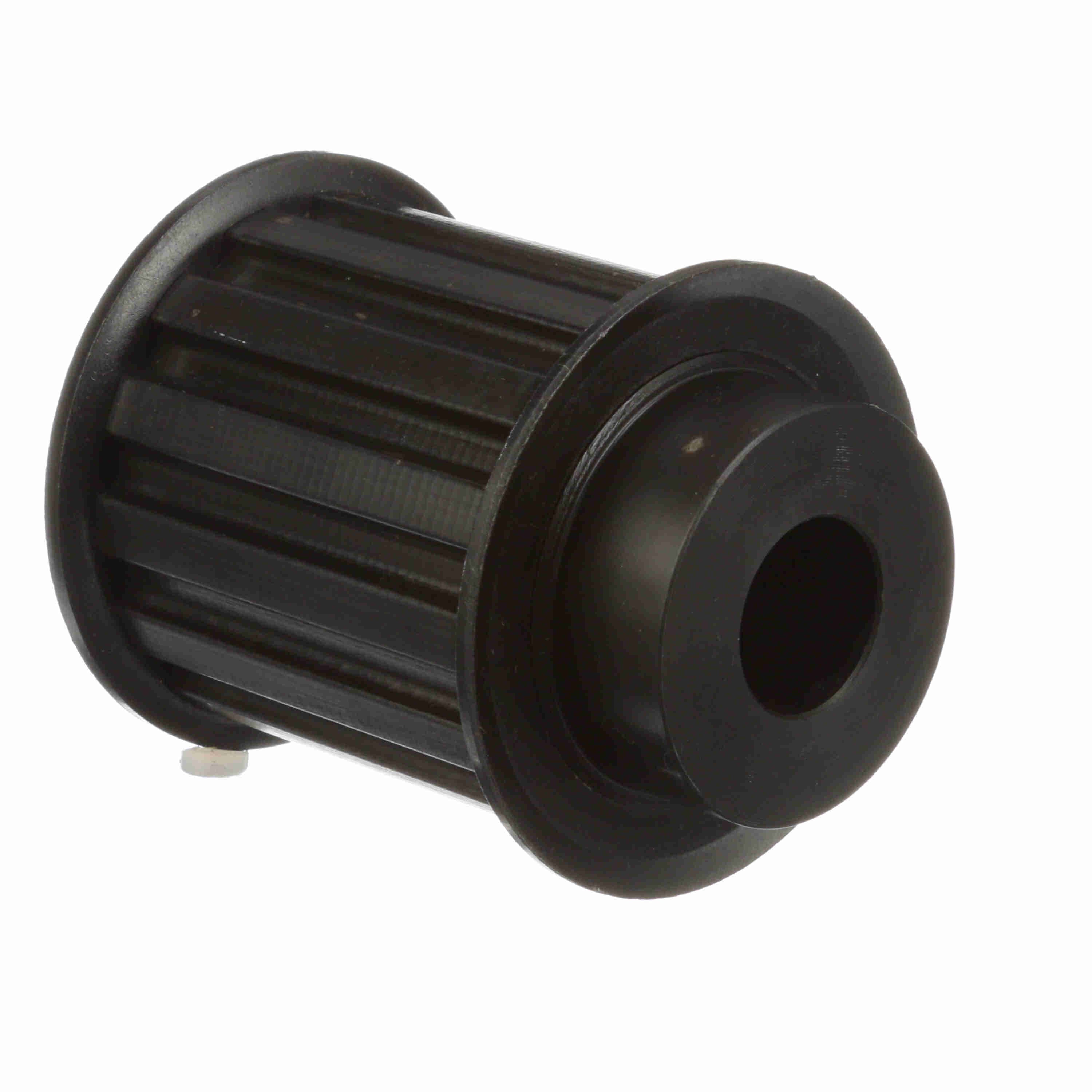

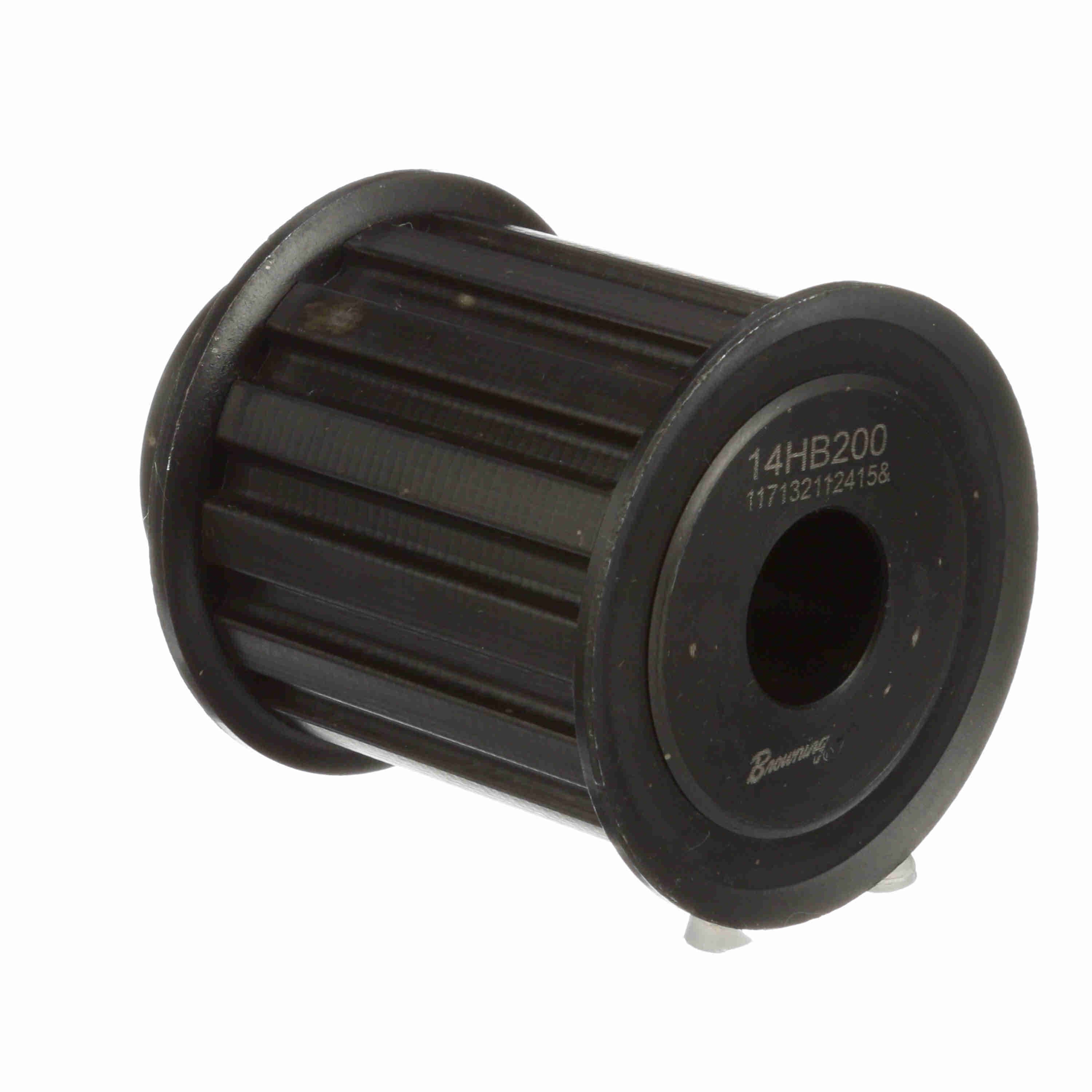

| Product Name | 14HB200 |
| Brand | Browning |
| Material | Steel |
| Weight | 2.34 lb |
| Package Length | 3.1 in |
| Package Width | 3.3 in |
| Package Height | 3.2 in |
| Bore Range | 3/4 to 7/8 |
| Product Type | Gearbelt Pulley |
| Width (mm) | 50.8 mm |
| Number of teeth | 14 |
| Bore Type |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 4 | $343.12 | — |
| 5 – 9 | $318.28 | 7% off |
| 10+ | $304.70 | 11% off |
| Rough Bore |
| Outside Diameter (mm) | 55.2196 mm |
| Outside Diameter (in) | 2.174 in |
| Belt Section | H |
| Flange (in) | 2.461 in |
| Pitch Diameter (in) | 2.228 in |
| Width (in) | 2 in |
| Face Width | 2.34375 |
| Hub Projection | 0.5625 |
| Hub Diameter (in) | 1.625 in |
| Length Through Bore | 2.90625 |
| Bore Diameter (in) | 0.75 in |
| With Flanges | With Flanges |
| Pulley Construction | Solid |
| Number of Hubs | 1 |
| Overall Length (in) | 2.90625 in |
| HTC | 8483.50.9080 |
| Country of Origin | United States of America |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-102707 |
| Part NumberiManufacturer catalog number | 1055649 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289112661 |
| CategoryiCatalog classification | Power Transmission > V-Belt Sheaves |
