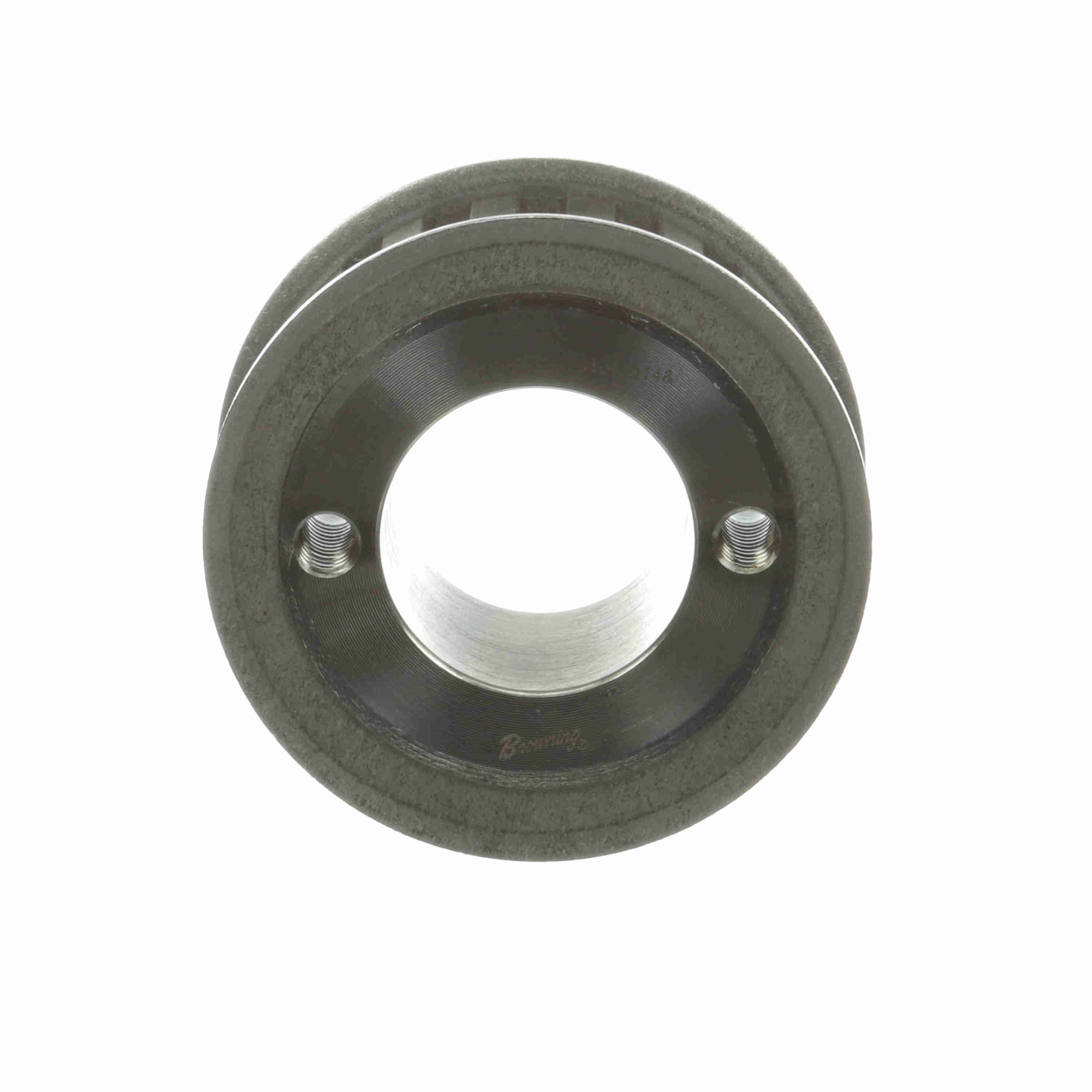

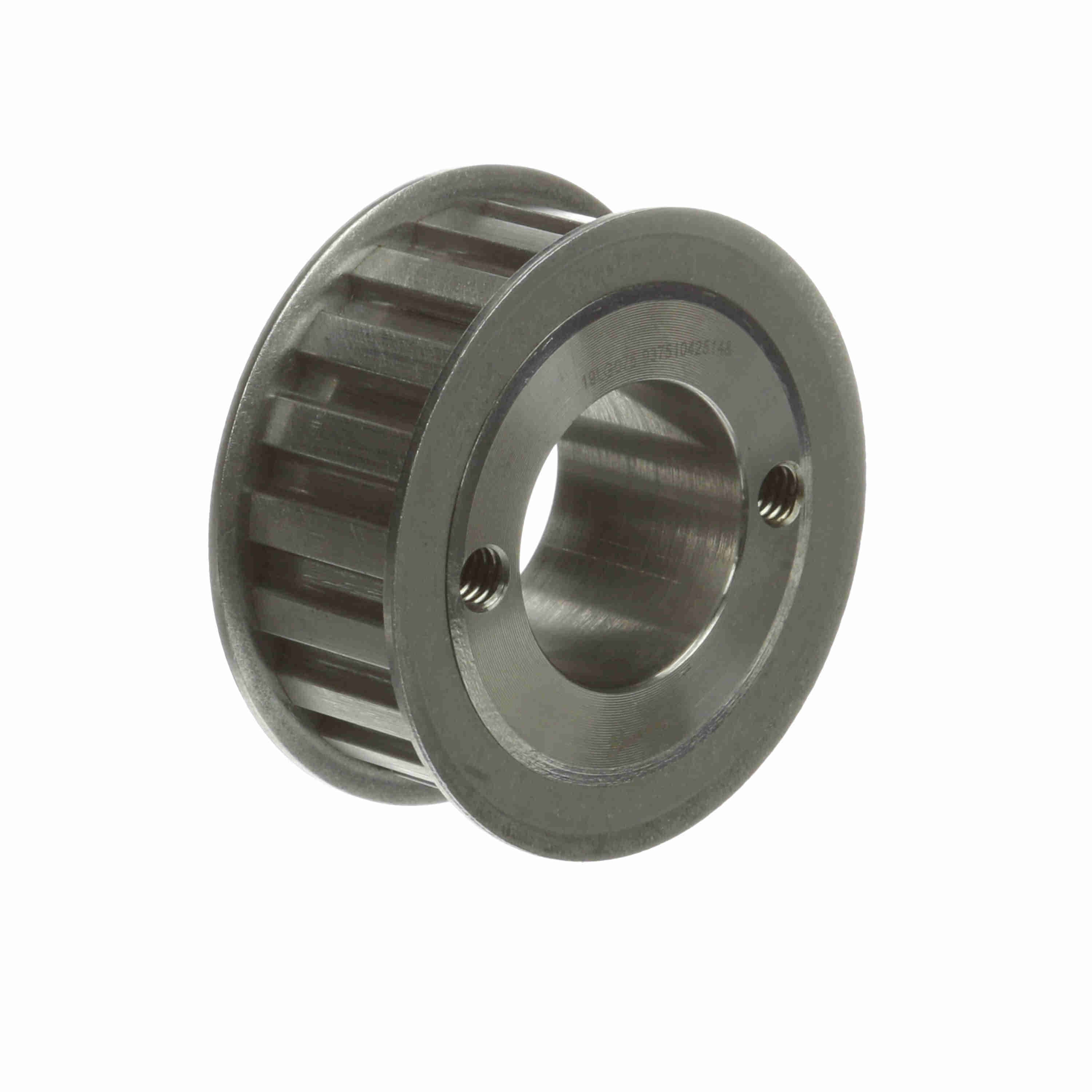

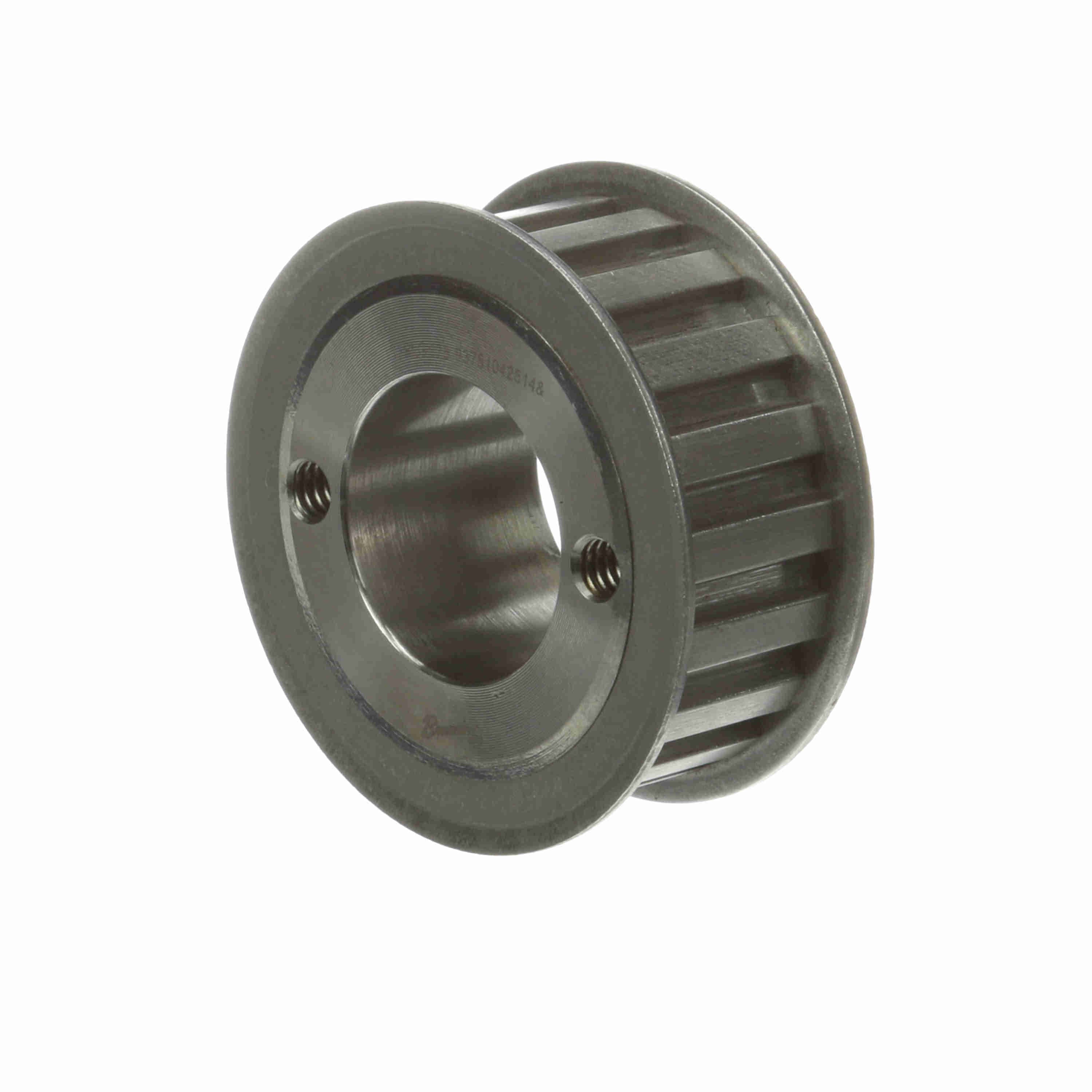

GEARBELT PULLEYS-500
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1056258 |
| Product Name | 19LG075 |
| Brand | Browning |
| Material | Steel |
| Weight | 0.78 lb |
| Package Length | 2.6 in |
| Package Width | 2.6 in |
| Package Height | 1.3 in |
| Product Type | Gearbelt Pulley |
| Width (mm) | 19.05 mm |
| Number of teeth | 19 |
| Bore Range | 3/8 to 1 |
| Model Name |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 4 | $194.77 | — |
| 5 – 9 | $180.67 | 7% off |
| 10+ | $172.96 | 11% off |
| GBPulley_Master6 |
| Bore Type | Bushed Bore |
| Outside Diameter (mm) | 56.8452 mm |
| Outside Diameter (in) | 2.238 in |
| Belt Section | L |
| Flange (in) | 2.50 in |
| Pitch Diameter (in) | 2.268 in |
| Width (in) | 0.75 in |
| Face Width | 1 |
| Hub Diameter (in) | 2 in |
| Number of Hubs | 1 |
| Length Through Bore | 1.026 |
| Hub Projection | 0.74 |
| Pulley Construction | Solid |
| Overall Length (in) | 1.735 in |
| With Flanges | With Flanges |
| HTC | 8483.50.9080 |
| Country of Origin | United States of America |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-102748 |
| Part NumberiManufacturer catalog number | 1056258 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289143214 |
| CategoryiCatalog classification | Power Transmission > V-Belt Sheaves |
