GEARBELT PULLEYS-500
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1056290 |

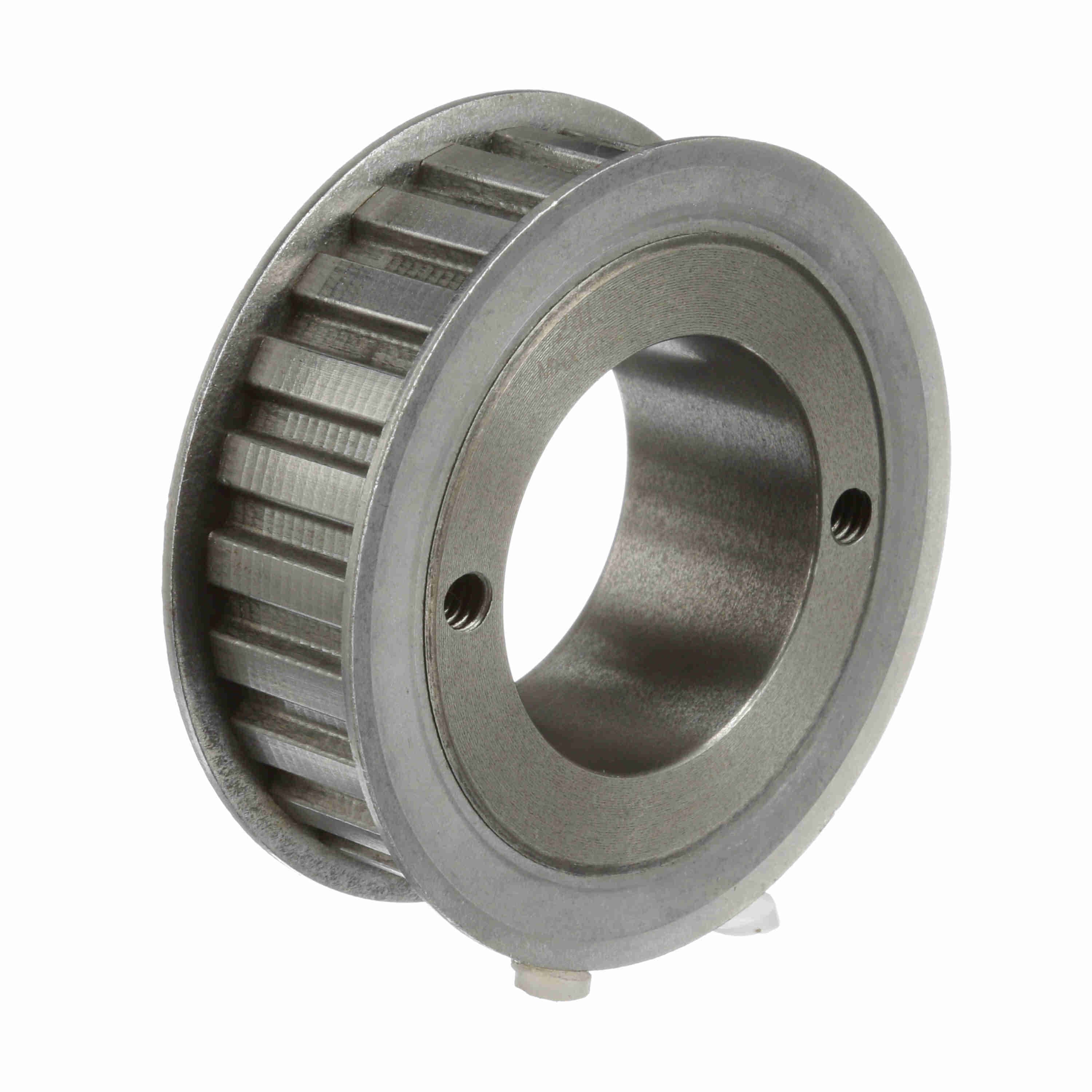

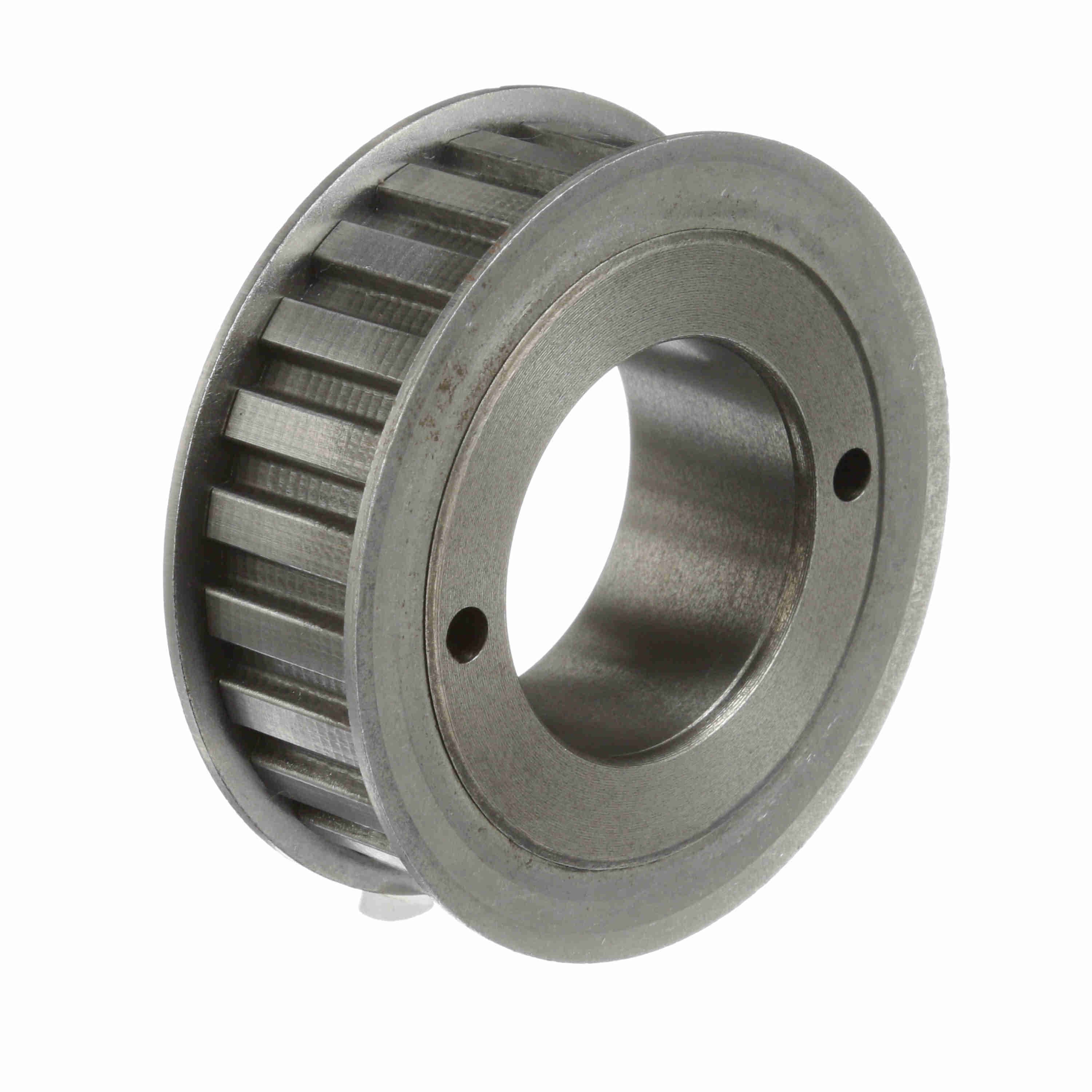

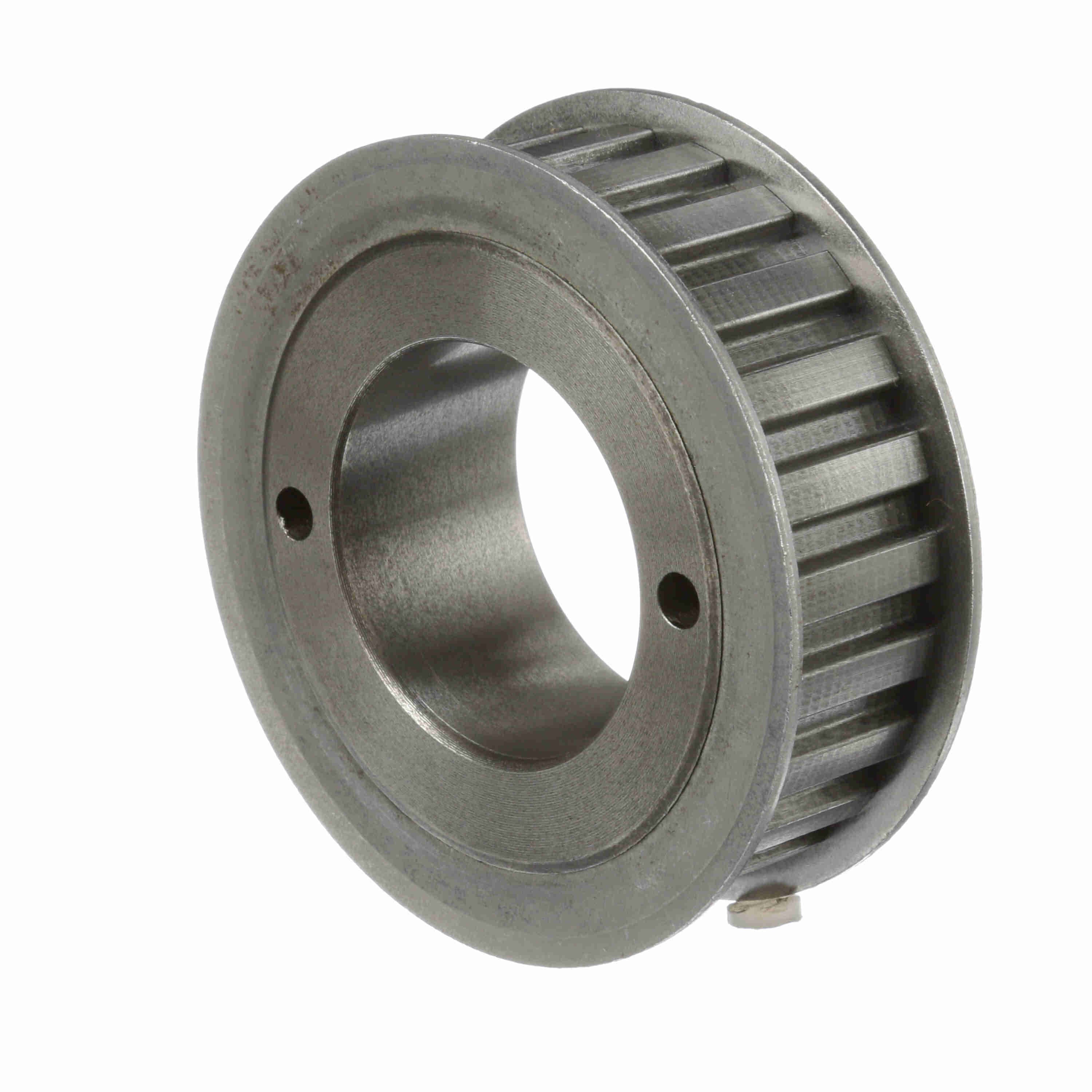

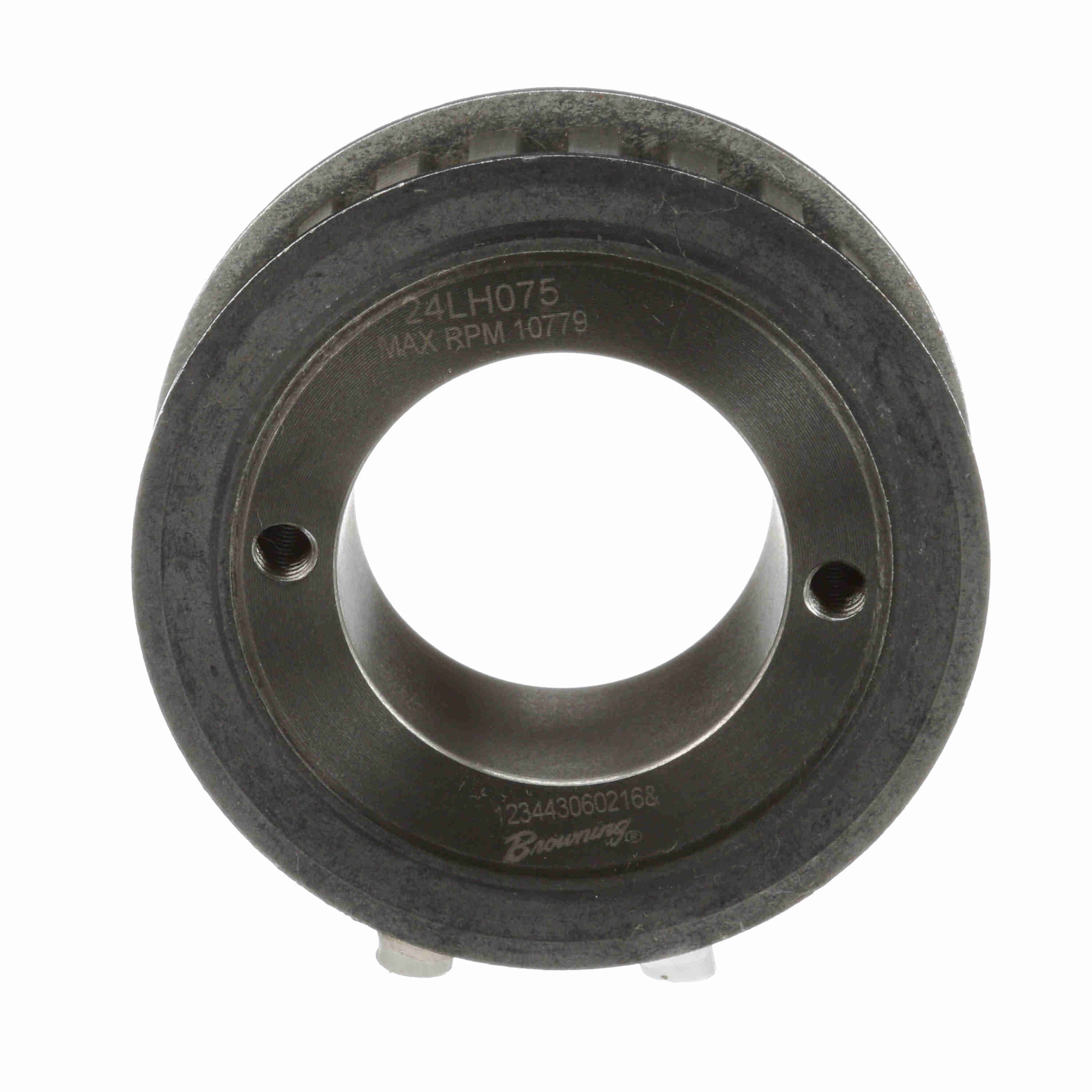

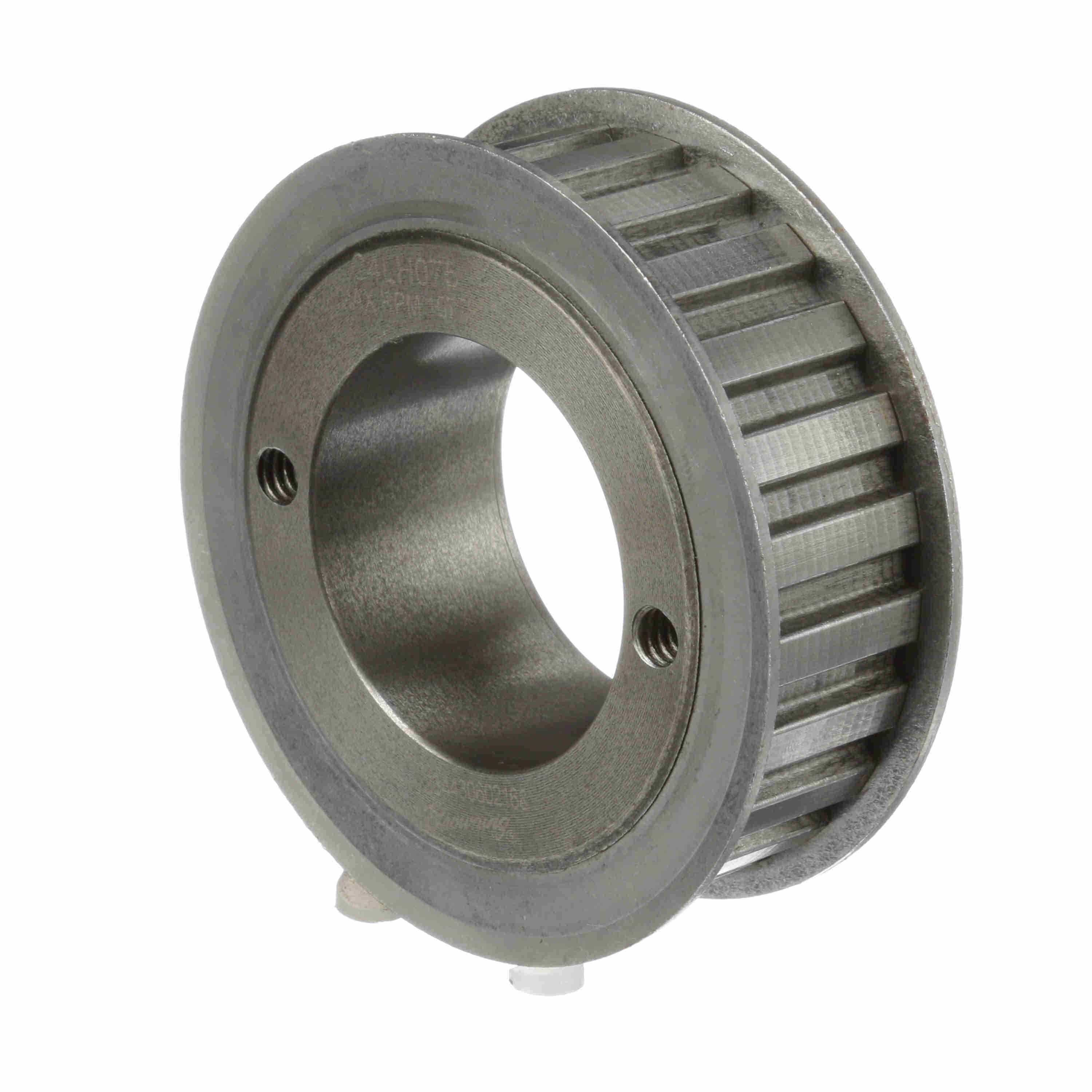

| Product Name | 24LH075 |
| Brand | Browning |
| Material | Steel |
| Weight | 1.09 lb |
| Package Length | 3.1 in |
| Package Width | 3.2 in |
| Package Height | 1.4 in |
| Number of teeth | 24 |
| Bore Range | 3/8 to 1 1/2 |
| Product Type | Gearbelt Pulley |
| Model Name | GBPulley_Master6 |
| Width (mm) |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 4 | $133.90 | — |
| 5 – 9 | $124.21 | 7% off |
| 10+ | $118.91 | 11% off |
| 19.05 mm |
| Bore Type | Bushed Bore |
| Width (in) | 0.75 in |
| Pitch Diameter (in) | 2.865 in |
| Belt Section | L |
| Outside Diameter (in) | 2.835 in |
| Outside Diameter (mm) | 72.009 mm |
| Flange (in) | 3.094 in |
| Face Width | 1 |
| Hub Diameter (in) | 2.25 in |
| Length Through Bore | 1.276 |
| With Flanges | With Flanges |
| Overall Length (in) | 1.735 in |
| Pulley Construction | Solid |
| Number of Hubs | 1 |
| Hub Projection | 0.74 |
| HTC | 8483.50.9080 |
| Country of Origin | United States of America |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-102752 |
| Part NumberiManufacturer catalog number | 1056290 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289314430 |
| CategoryiCatalog classification | Power Transmission > V-Belt Sheaves |
