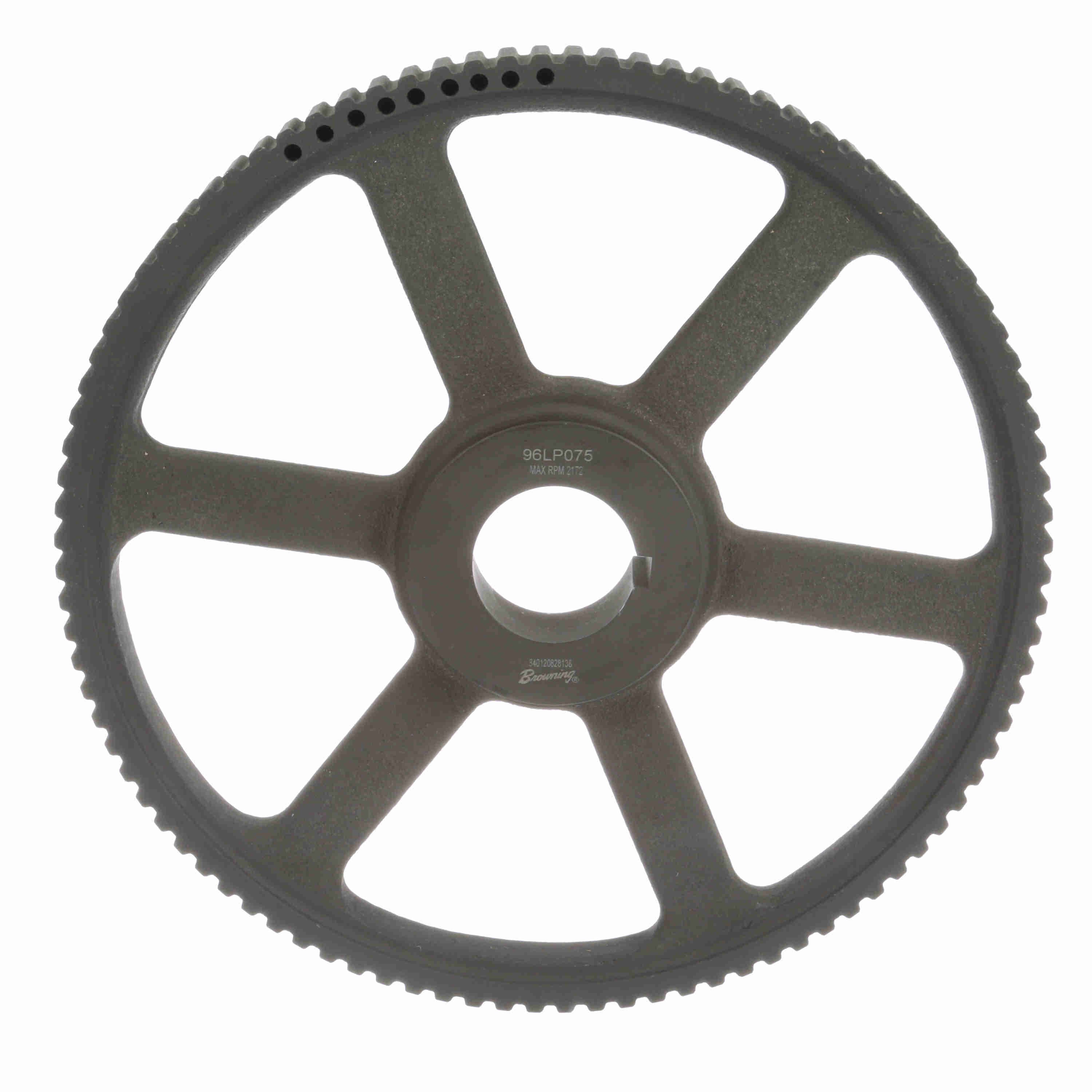

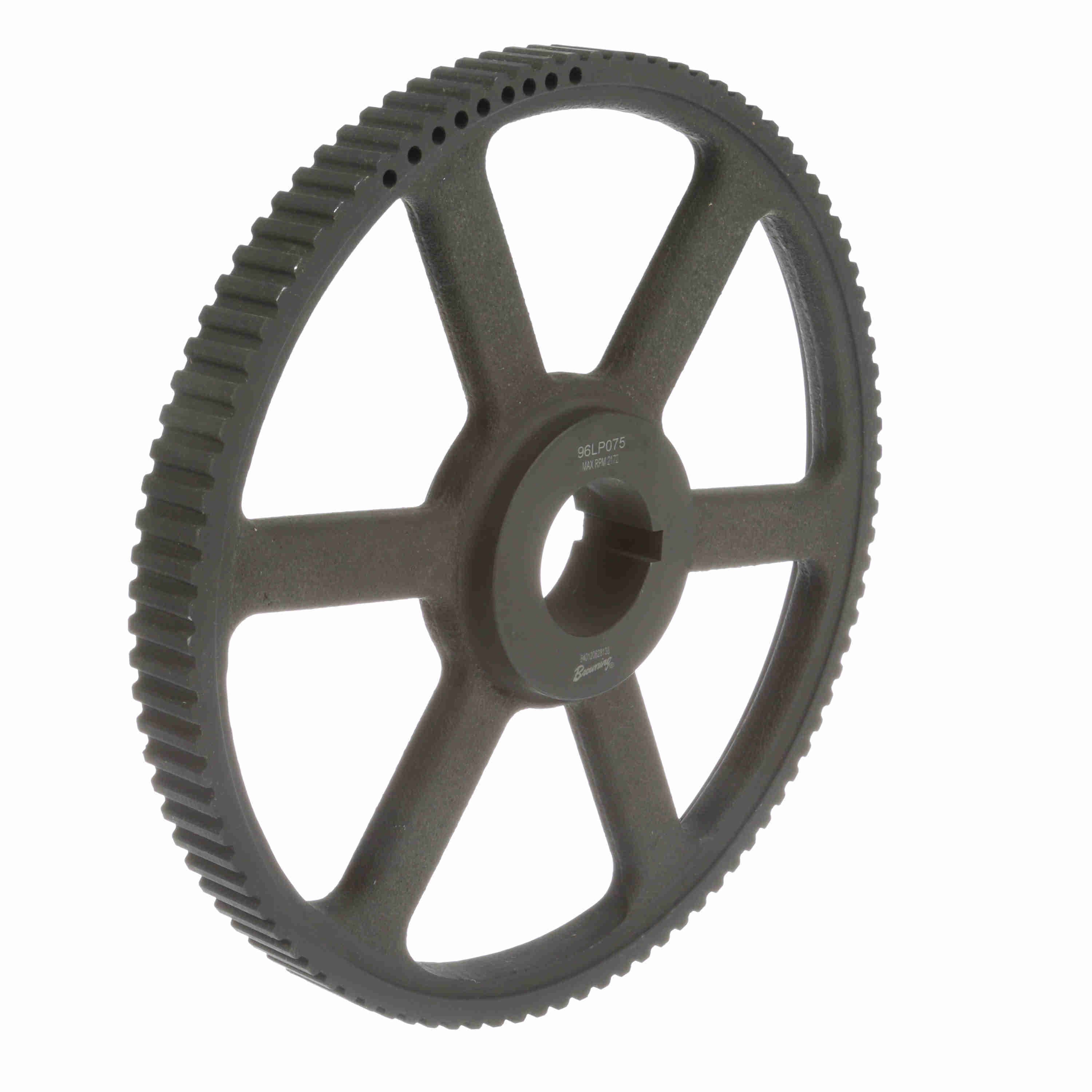

GEARBELT PULLEYS-500
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1056498 |
| Product Name | 96LP075 |
| Brand | Browning |
| Material | Cast Iron |
| Weight | 10.4 lb |
| Package Length | 12.2 in |
| Package Width | 12.3 in |
| Package Height | 2.6 in |
| Number of teeth | 96 |
| Bore Range | 1/2 to 1 3/4 |
| Width (mm) | 19.05 mm |
| Product Type | Gearbelt Pulley |
| Bore Type |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 4 | $530.78 | — |
| 5 – 9 | $492.34 | 7% off |
| 10+ | $471.33 | 11% off |
| Bushed Bore |
| Outside Diameter (in) | 11.429 in |
| Outside Diameter (mm) | 290.2966 mm |
| Inside Diameter (in) | 10.6875 in |
| Pitch Diameter (in) | 11.459 in |
| Belt Section | L |
| Width (in) | 0.75 in |
| Face Width | 1 |
| Overall Length (in) | 2.28125 in |
| With Flanges | No Flanges |
| Length Through Bore | 1.938 |
| Hub Diameter (in) | 3 in |
| Number of Hubs | 1 |
| Hub Projection | 0.96925 |
| Pulley Construction | Arm |
| HTC | 8483.50.9080 |
| Country of Origin | United States of America |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-102766 |
| Part NumberiManufacturer catalog number | 1056498 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289143443 |
| CategoryiCatalog classification | Power Transmission > V-Belt Sheaves |
