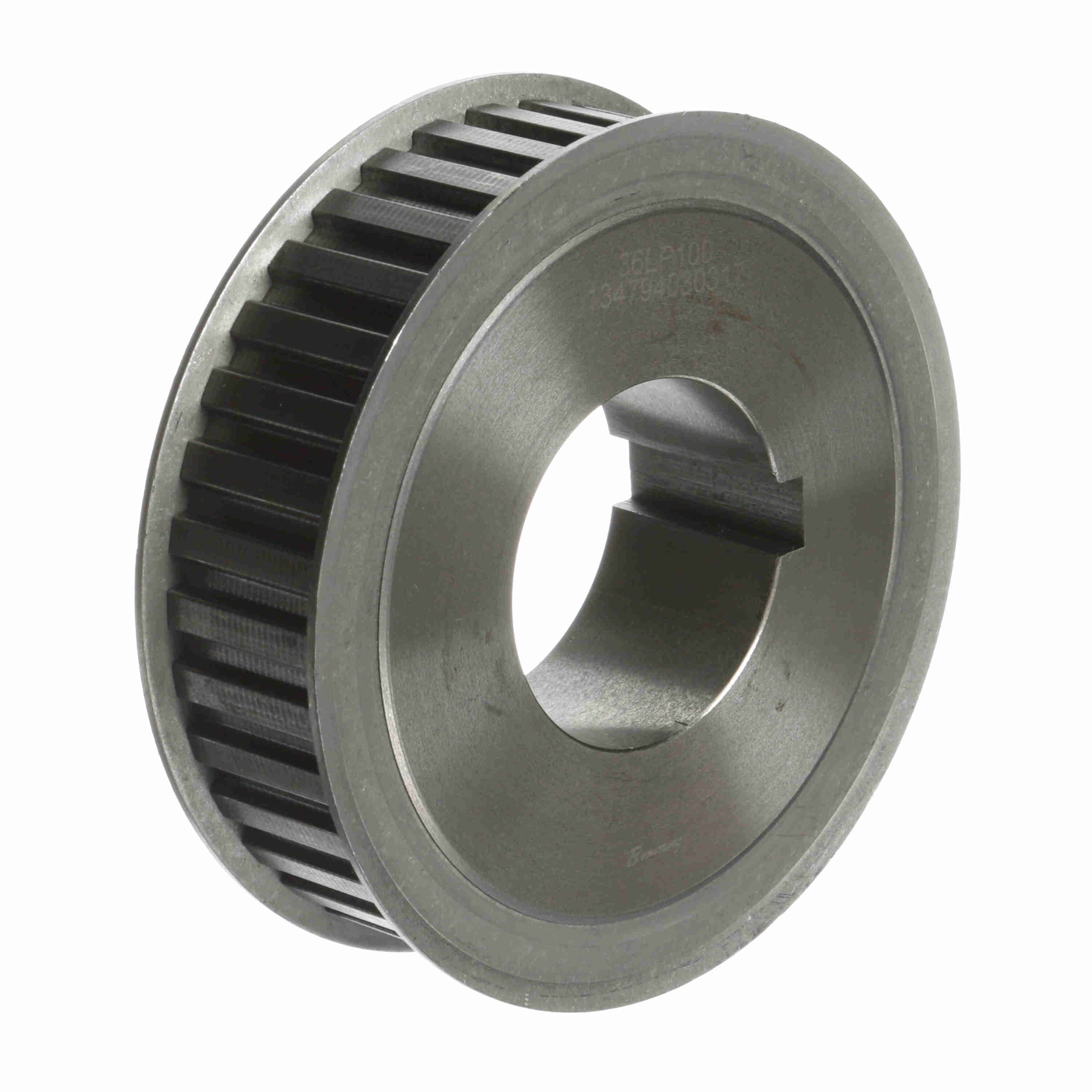

GEARBELT PULLEYS-500
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1056639 |
| Product Name | 36LP100 |
| Brand | Browning |
| Material | Ductile Iron |
| Weight | 3.215 lb |
| Package Length | 4.6 in |
| Package Width | 4.4 in |
| Package Height | 1.8 in |
| Product Type | Gearbelt Pulley |
| Model Name | GBPulley_Master5 |
| Number of teeth | 36 |
| Bore Range | 1/2 to 1 3/4 |
| Width (mm) |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 4 | $501.07 | — |
| 5 – 9 | $464.78 | 7% off |
| 10+ | $444.95 | 11% off |
| 25.4 mm |
| Bore Type | Bushed Bore |
| Outside Diameter (mm) | 108.3818 mm |
| Outside Diameter (in) | 4.267 in |
| Belt Section | L |
| Pitch Diameter (in) | 4.297 in |
| Flange (in) | 4.520 in |
| Width (in) | 1 in |
| Face Width | 1.25 |
| Pulley Construction | Solid |
| Number of Hubs | 1 |
| Overall Length (in) | 2.21925 in |
| Hub Diameter (in) | 3 in |
| Hub Projection | 0.875 |
| Length Through Bore | 1.938 |
| With Flanges | With Flanges |
| HTC | 8483.50.9080 |
| Country of Origin | United States of America |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-102779 |
| Part NumberiManufacturer catalog number | 1056639 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289243501 |
| CategoryiCatalog classification | Power Transmission > V-Belt Sheaves |
