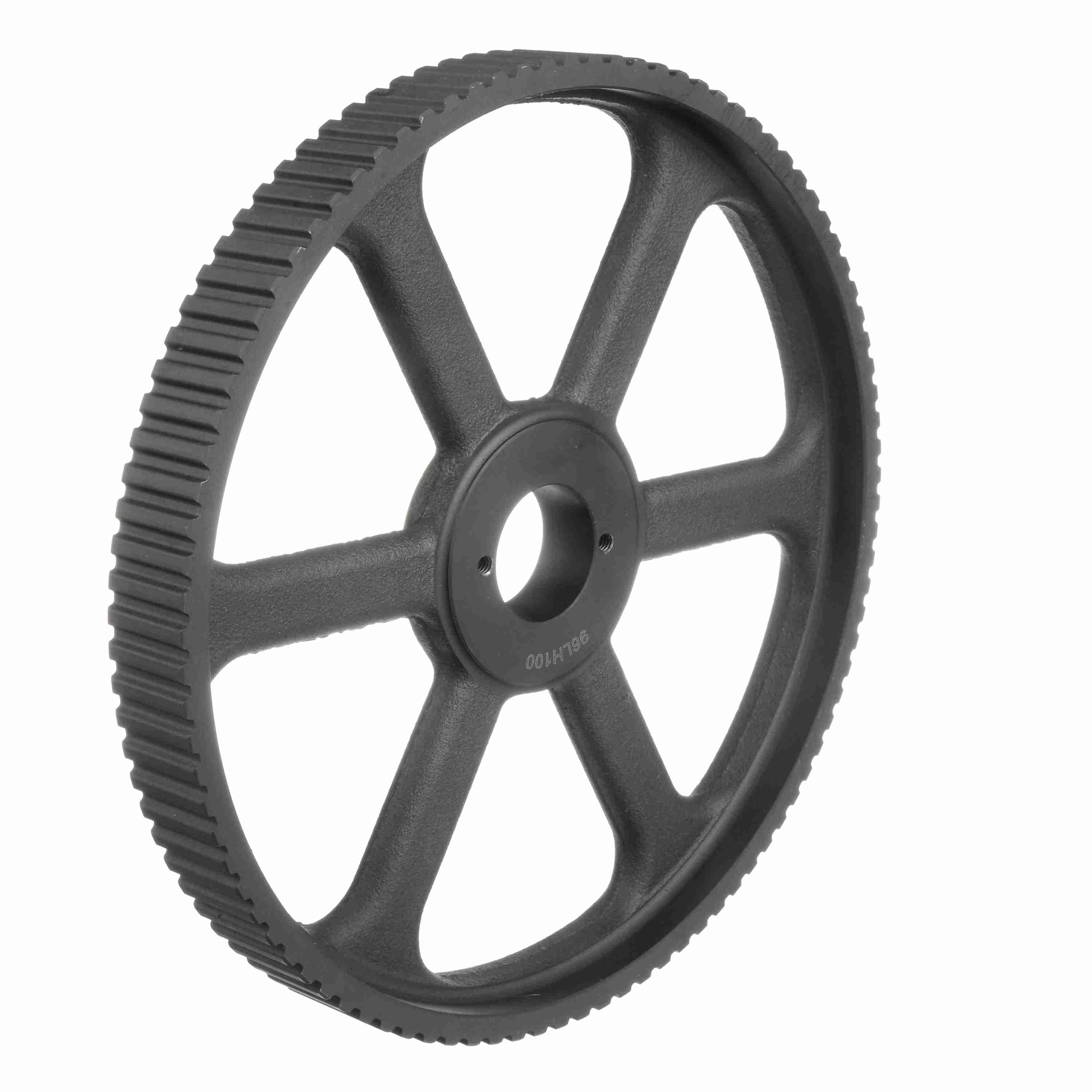

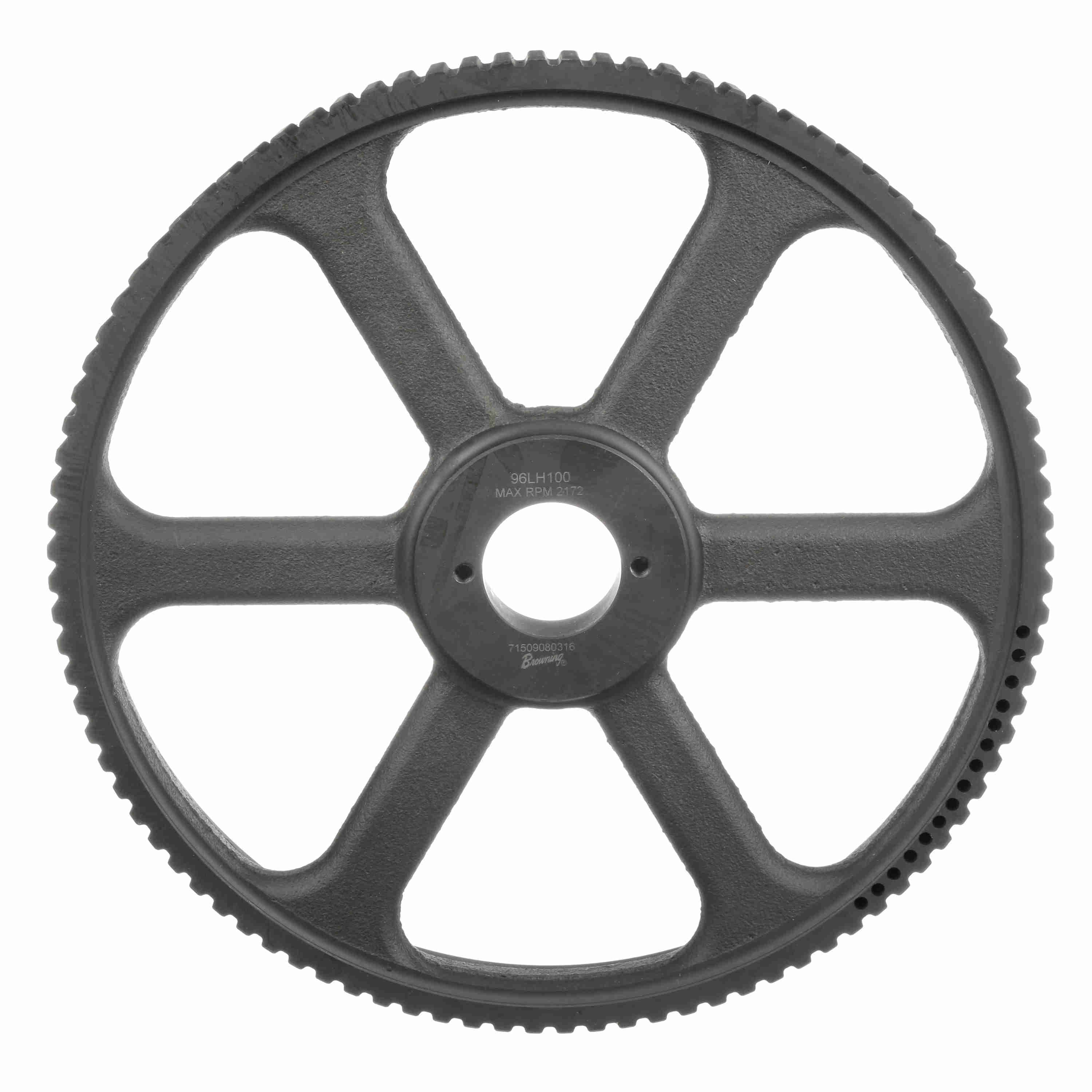

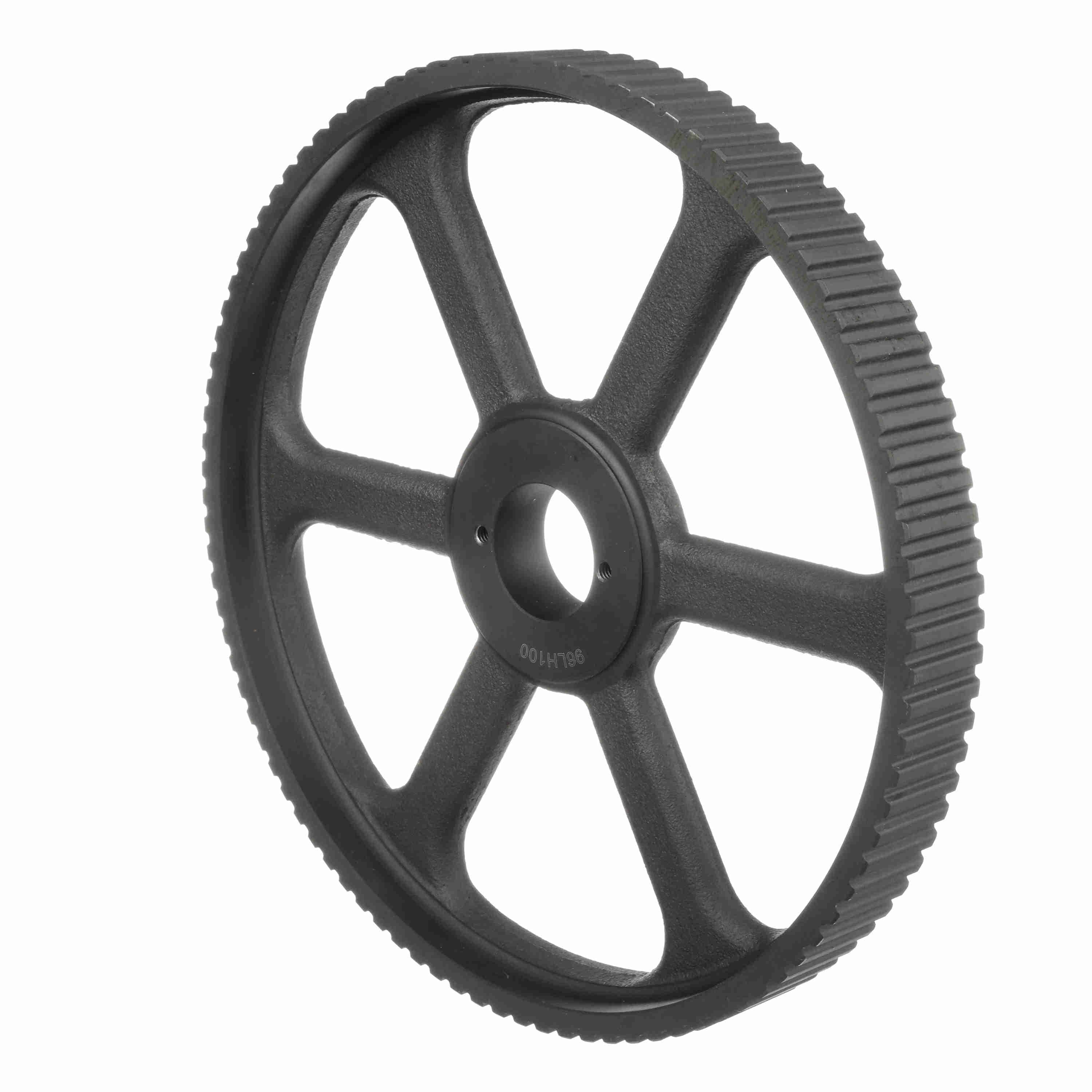

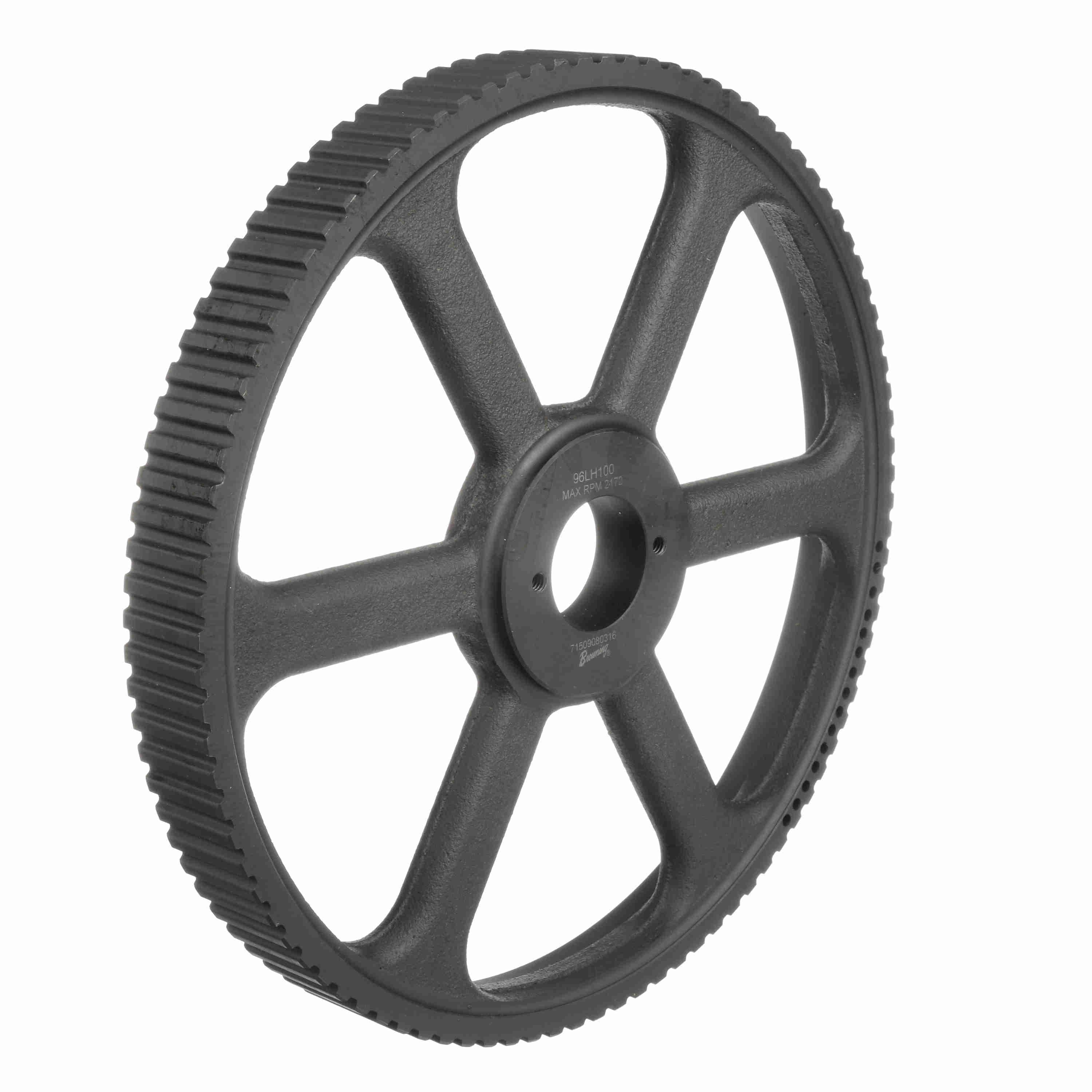

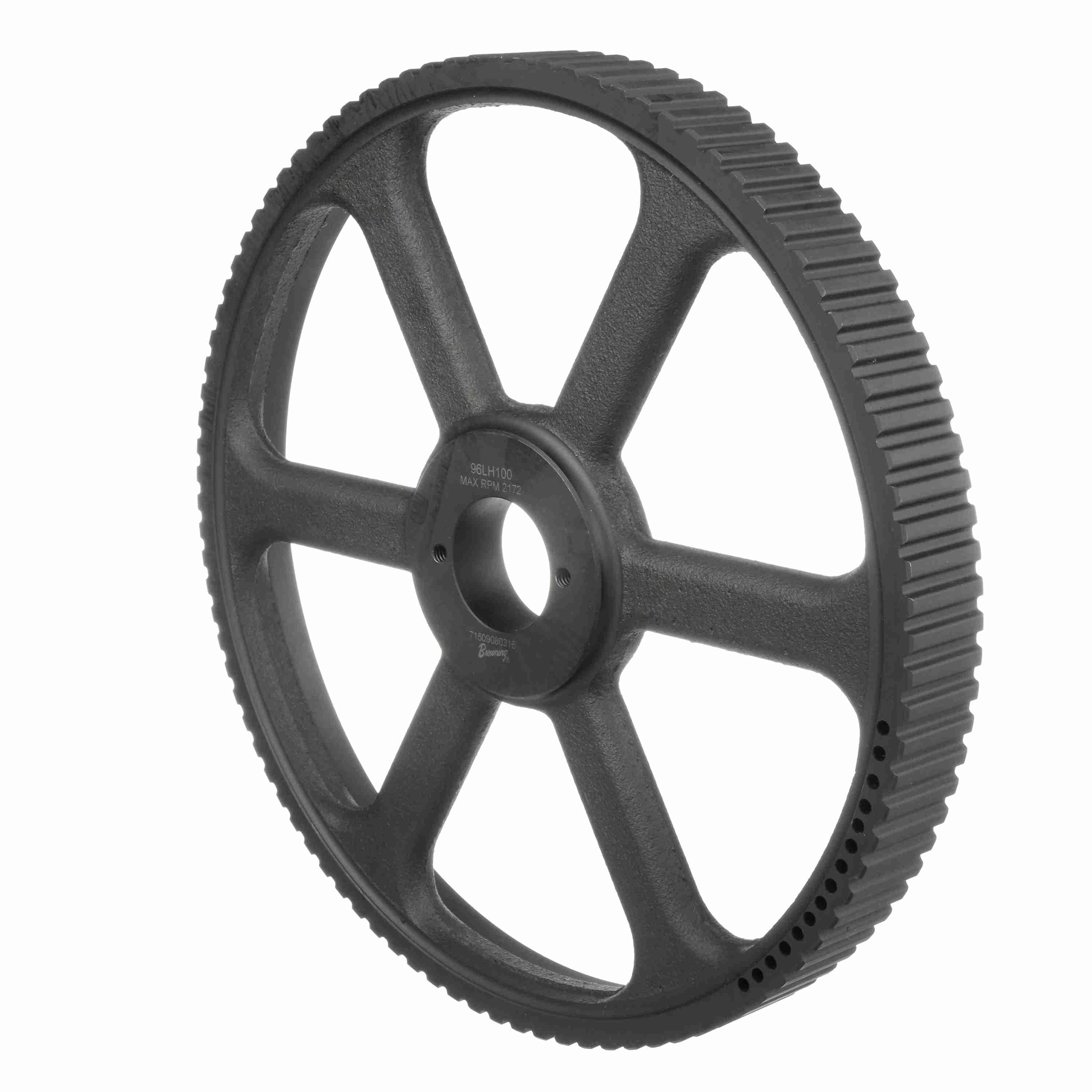

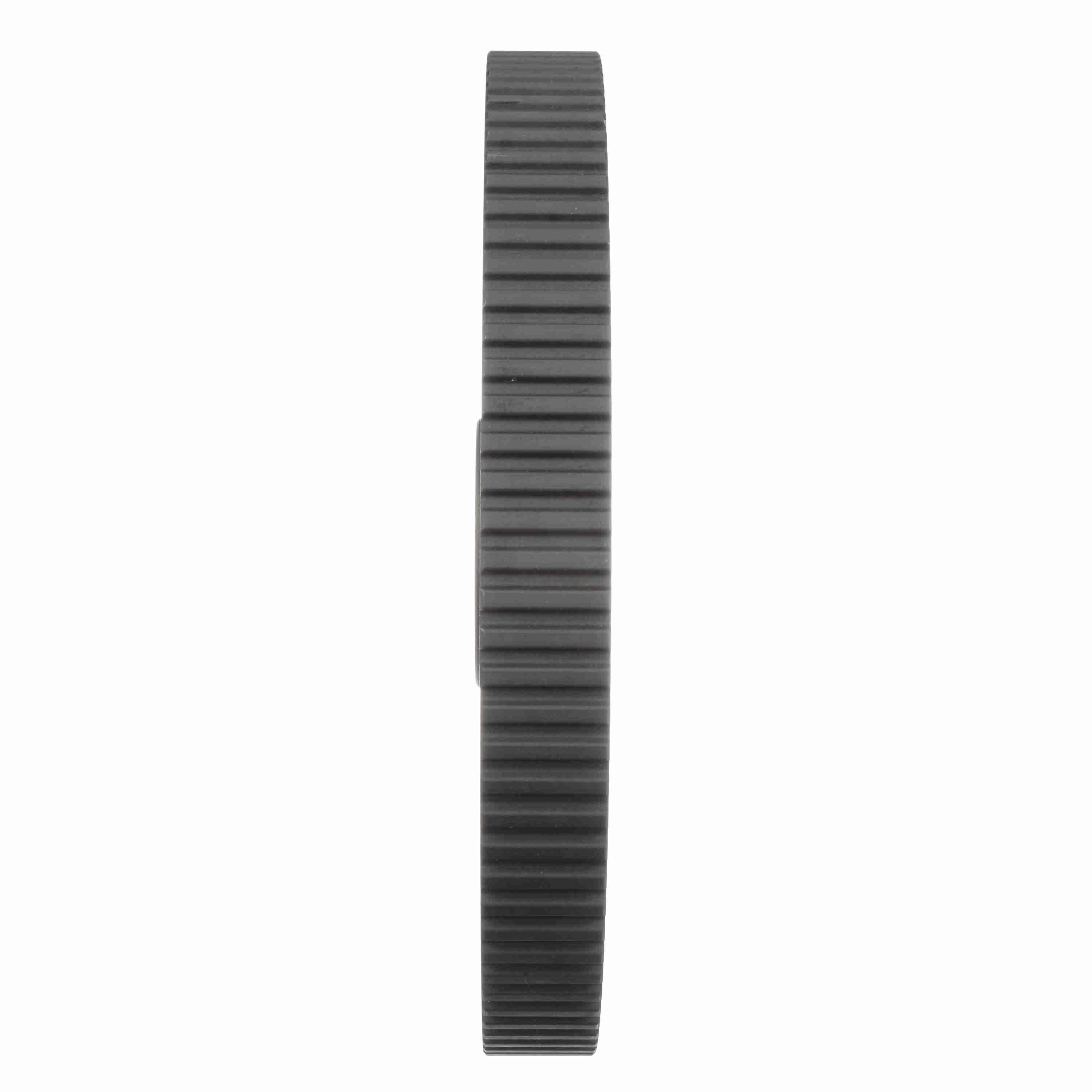

GEARBELT PULLEYS-500
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1056761 |
| Product Name | 96LH100 |
| Brand | Browning |
| Material | Cast Iron |
| Weight | 9.785 lb |
| Package Length | 12.3 in |
| Package Width | 12.1 in |
| Package Height | 2.6 in |
| Width (mm) | 25.4 mm |
| Bore Range | 3/8 to 1 1/2 |
| Number of teeth | 96 |
| Product Type | Gearbelt Pulley |
| Bore Type |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 4 | $652.97 | — |
| 5 – 9 | $605.68 | 7% off |
| 10+ | $579.84 | 11% off |
| Bushed Bore |
| Belt Section | L |
| Pitch Diameter (in) | 11.459 in |
| Inside Diameter (in) | 10.6875 in |
| Width (in) | 1 in |
| Outside Diameter (mm) | 290.2966 mm |
| Outside Diameter (in) | 15.225 in |
| Face Width | 1.25 |
| Length Through Bore | 1.276 |
| Overall Length (in) | 1.65625 in |
| With Flanges | No Flanges |
| Pulley Construction | Arm |
| HTC | 8483.50.9080 |
| Country of Origin | United States of America |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-102787 |
| Part NumberiManufacturer catalog number | 1056761 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289103621 |
| CategoryiCatalog classification | Power Transmission > V-Belt Sheaves |
