GEARBELT PULLEYS-500
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1056852 |

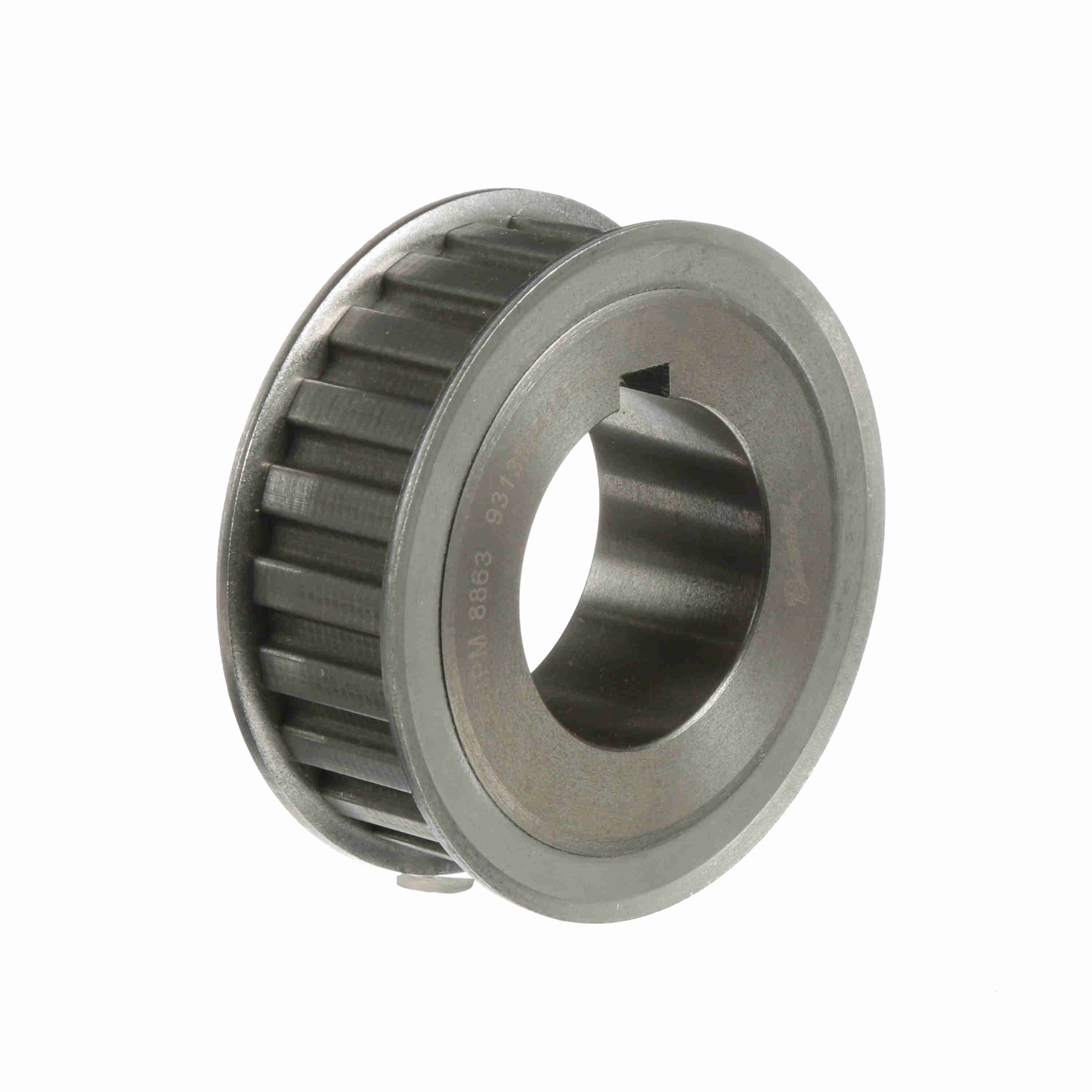

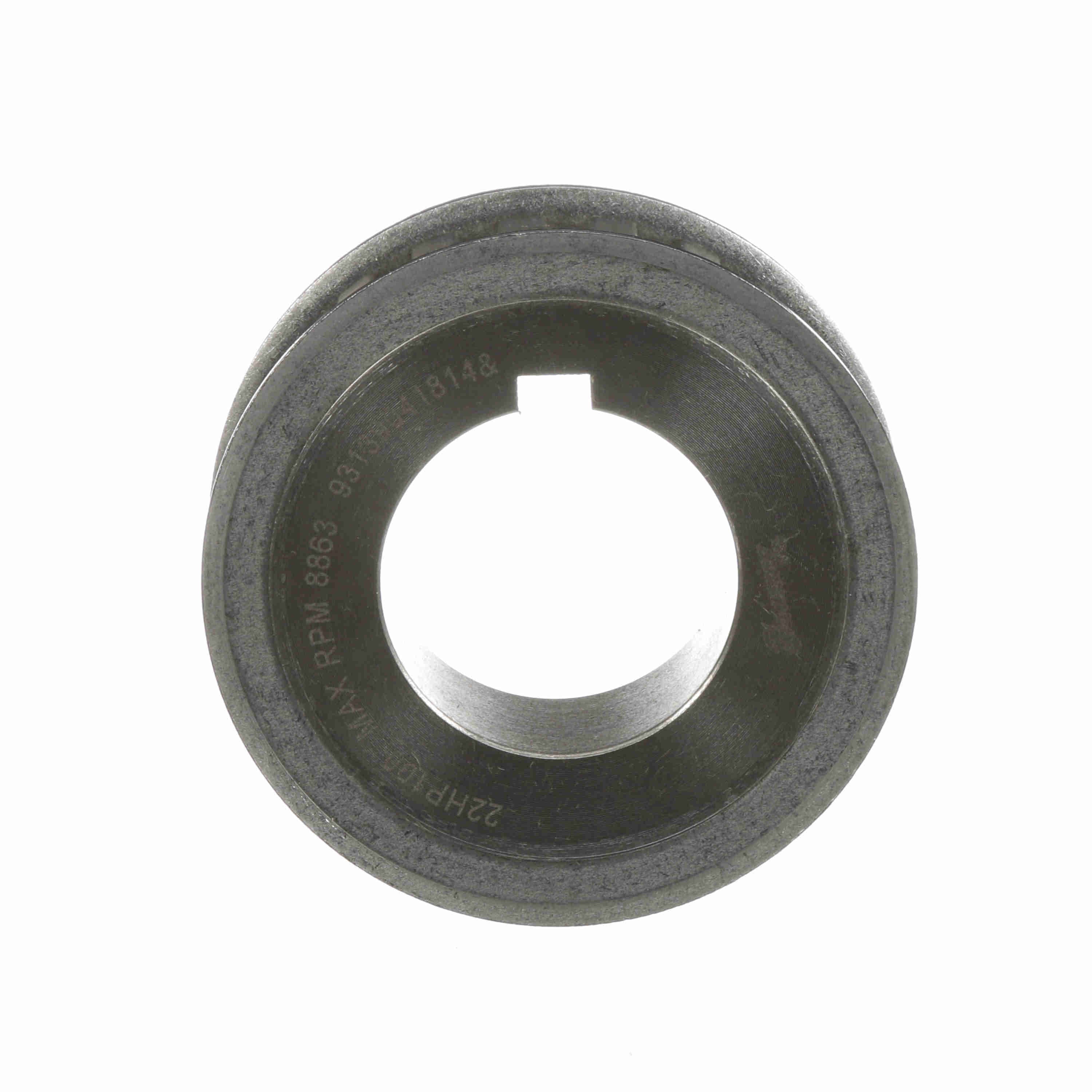

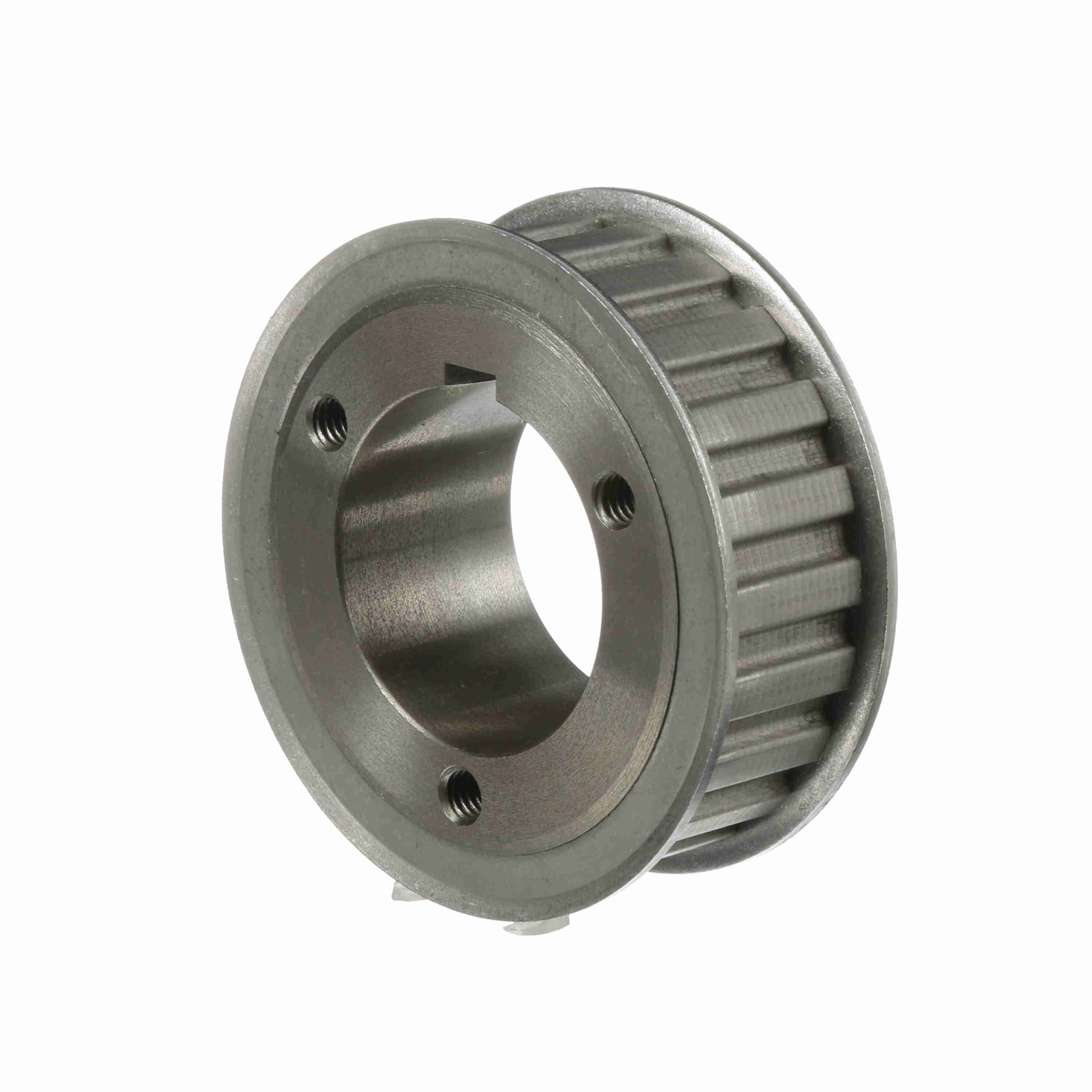

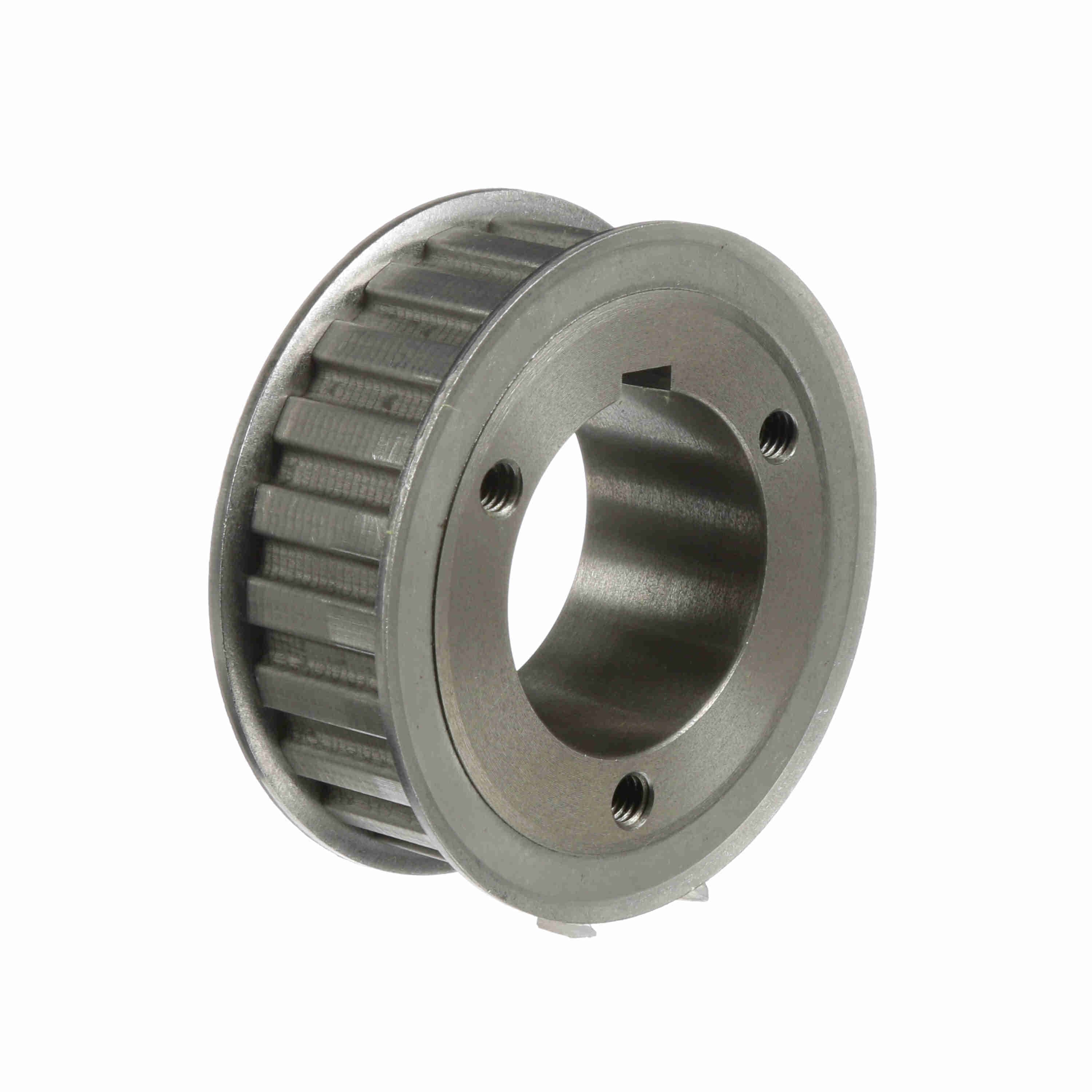

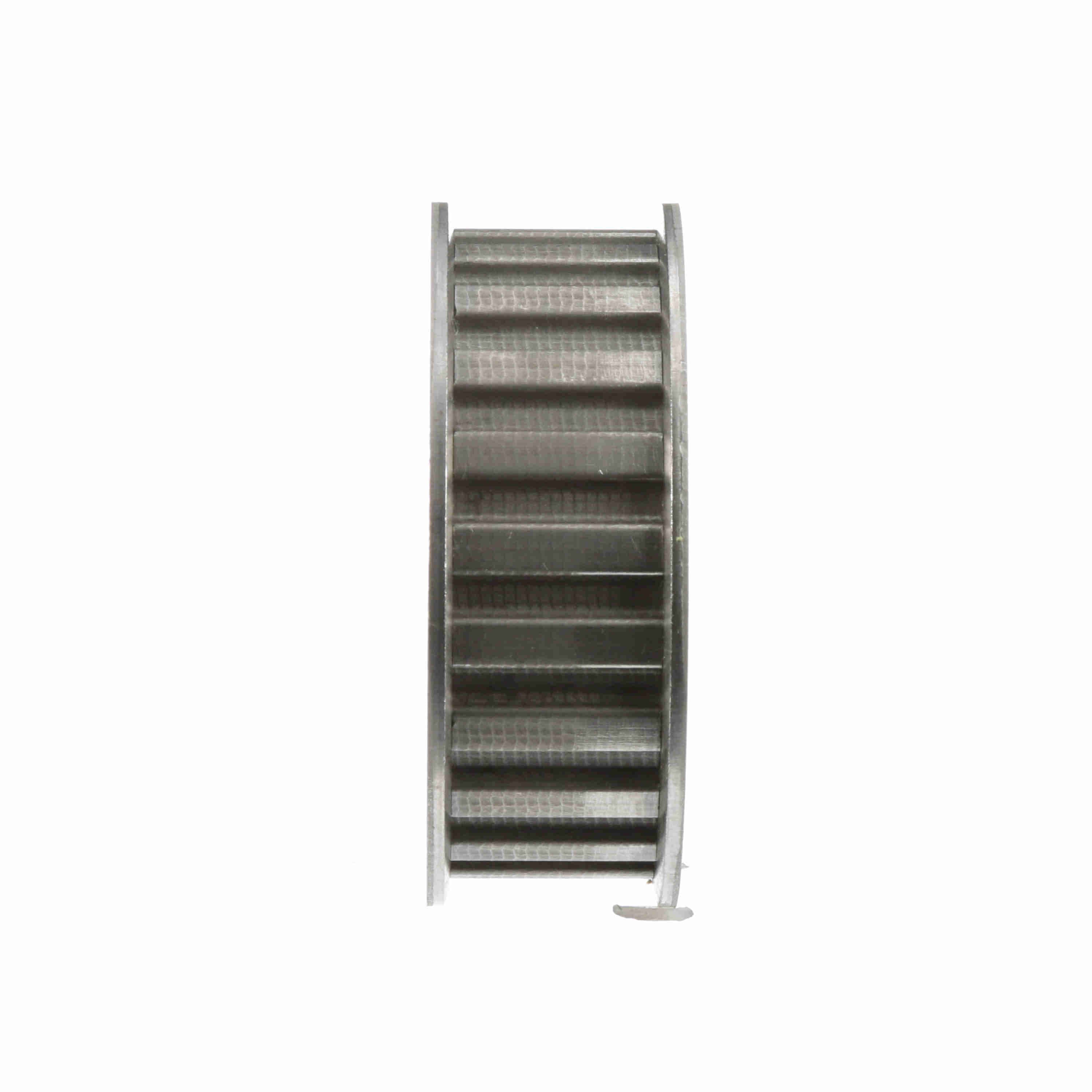

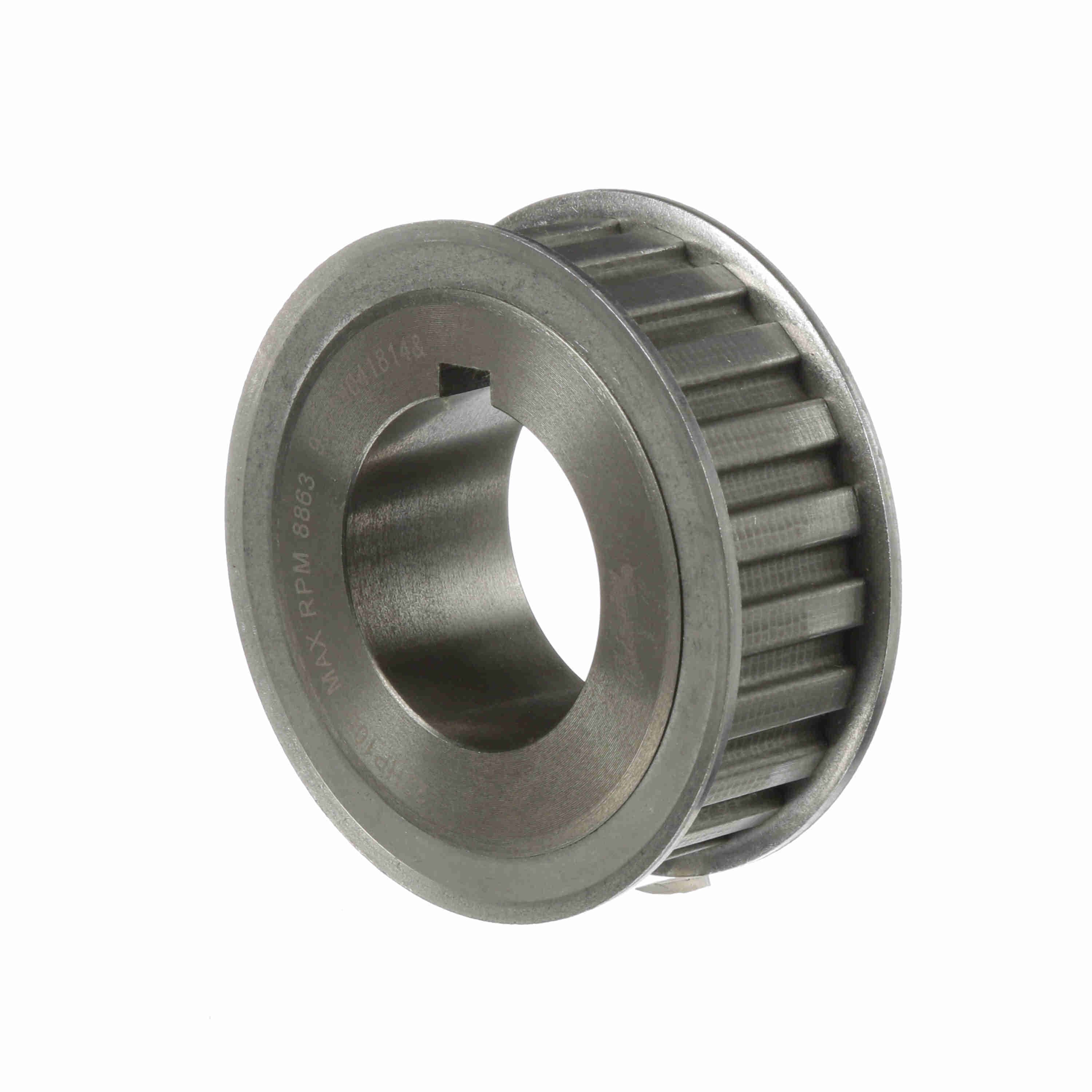

| Product Name | 22HP100 |
| Brand | Browning |
| Material | Ductile Iron |
| Weight | 2.085 lb |
| Package Length | 4.2 in |
| Package Width | 4 in |
| Package Height | 1.4 in |
| Product Type | Gearbelt Pulley |
| Bore Range | 1/2 to 1 3/4 |
| Model Name | GBPulley_Master5 |
| Width (mm) | 25.4 mm |
| Number of teeth |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 4 | $242.43 | — |
| 5 – 9 | $224.88 | 7% off |
| 10+ | $215.28 | 11% off |
| 22 |
| Bore Type | Bushed Bore |
| Belt Section | H |
| Outside Diameter (mm) | 87.5538 mm |
| Outside Diameter (in) | 3.447 in |
| Pitch Diameter (in) | 3.501 in |
| Width (in) | 1 in |
| Flange (in) | 3.735 in |
| Face Width | 1.938 |
| Overall Length (in) | 2.812 in |
| Hub Diameter (in) | 3 in |
| Length Through Bore | 1.938 |
| Pulley Construction | Solid |
| Hub Projection | 0.875 |
| Number of Hubs | 1 |
| With Flanges | With Flanges |
| HTC | 8483.50.9080 |
| Country of Origin | United States of America |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-102794 |
| Part NumberiManufacturer catalog number | 1056852 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289113705 |
| CategoryiCatalog classification | Power Transmission > V-Belt Sheaves |
