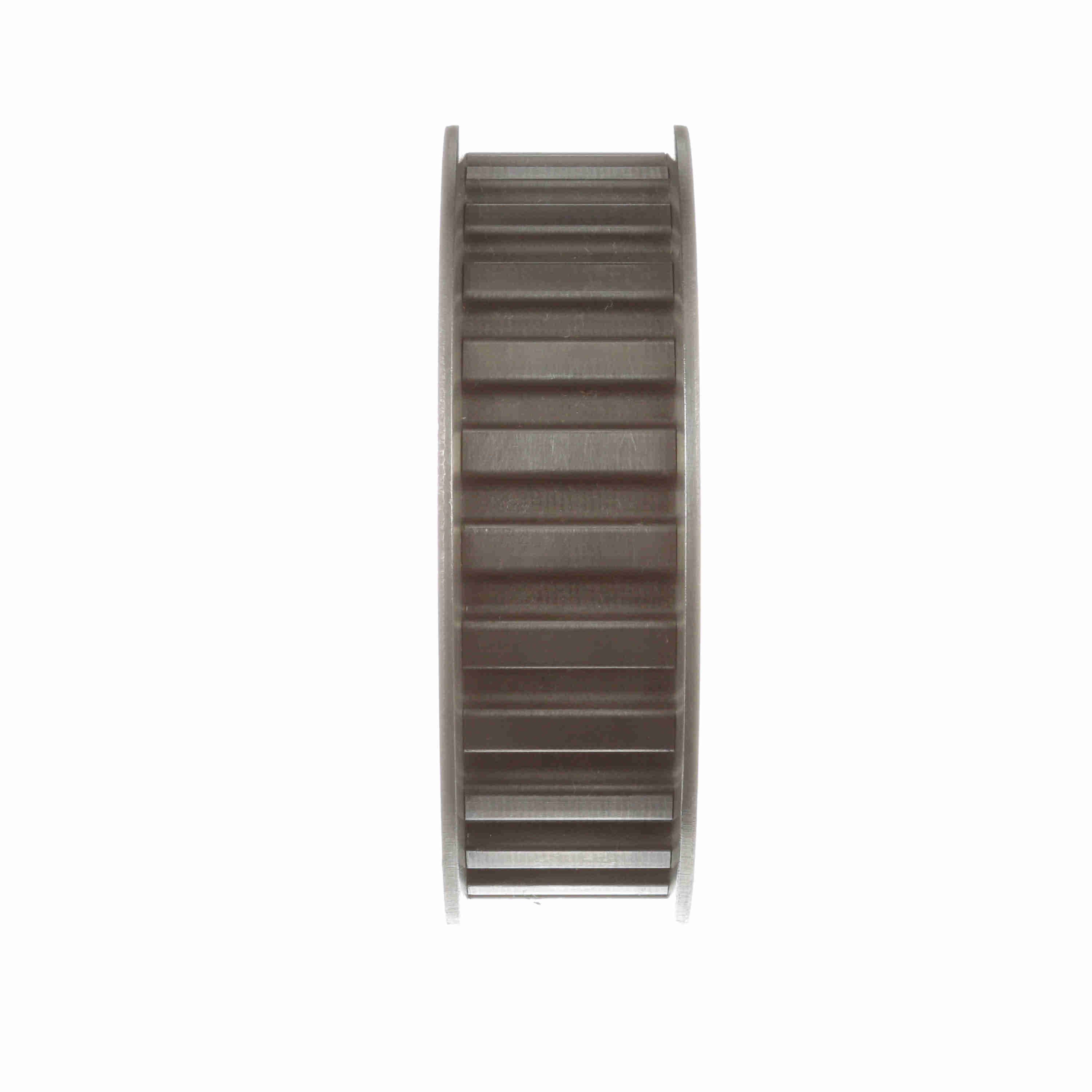

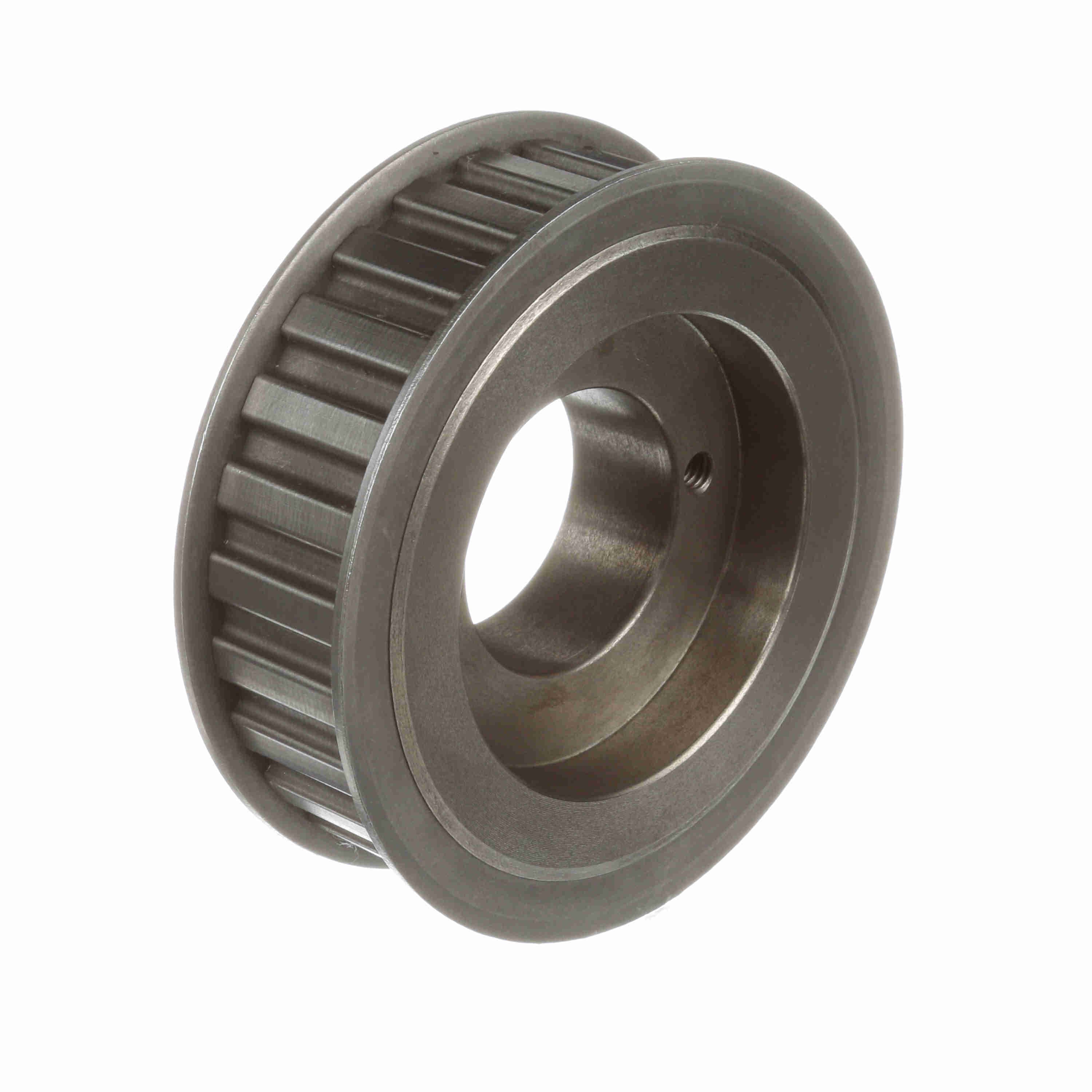

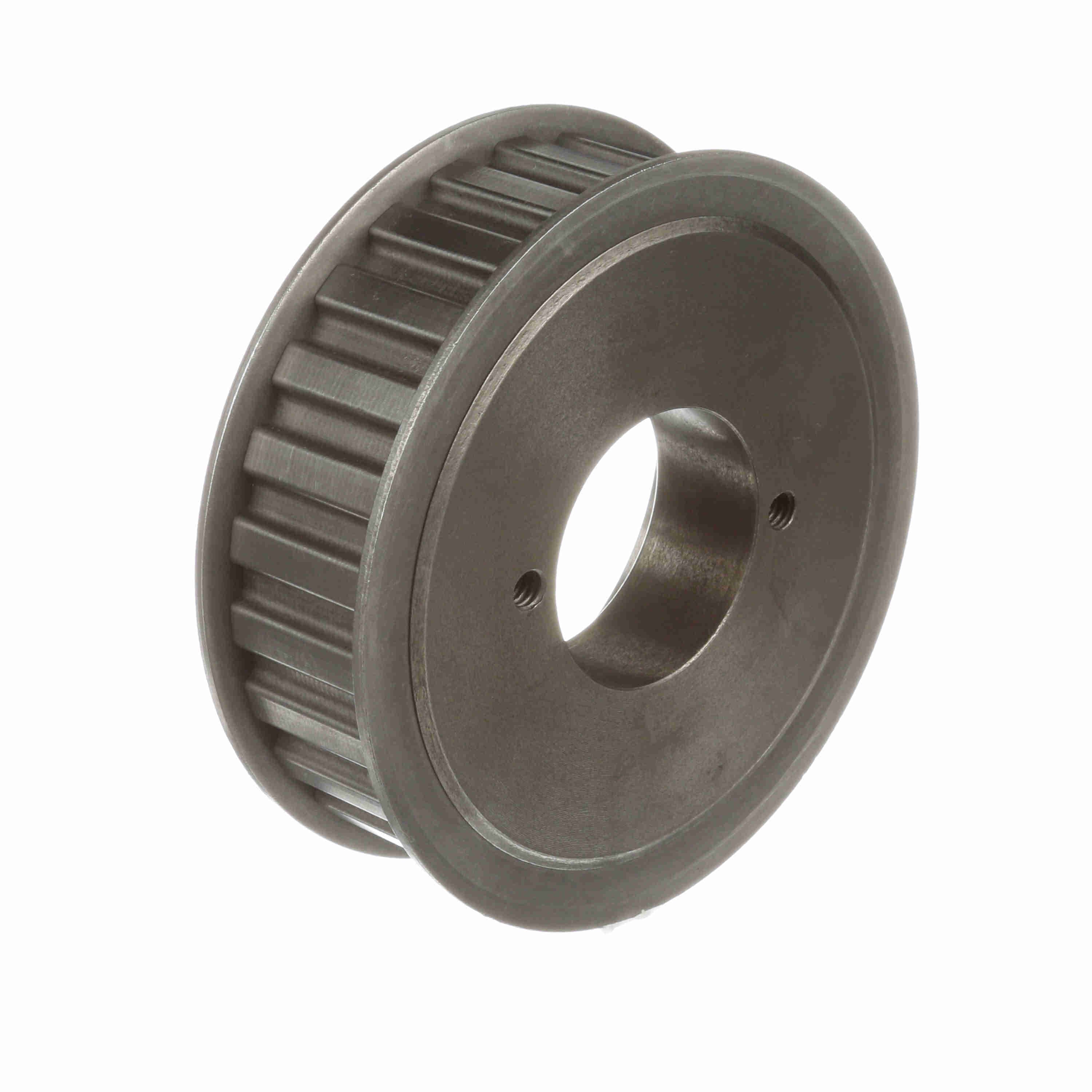

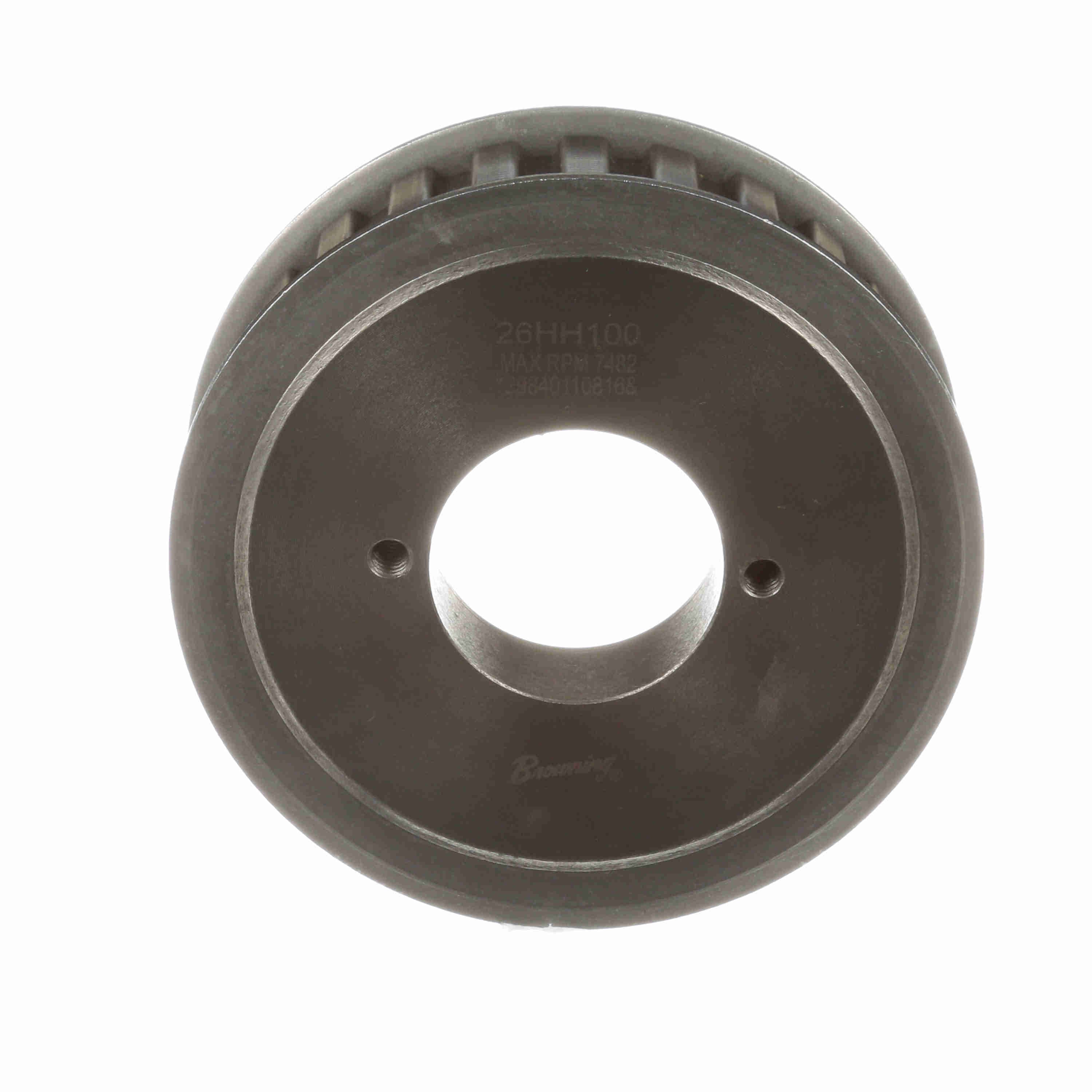

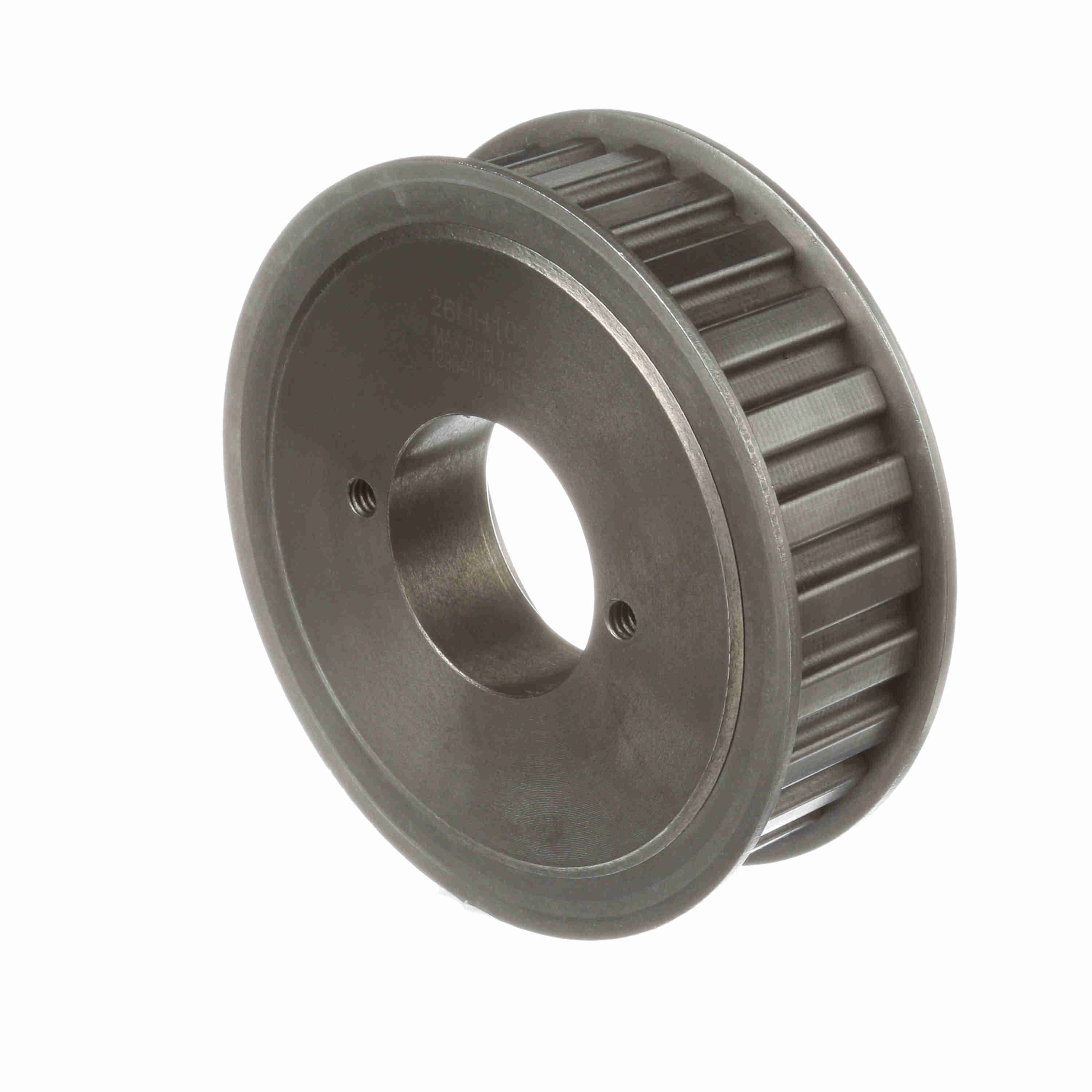

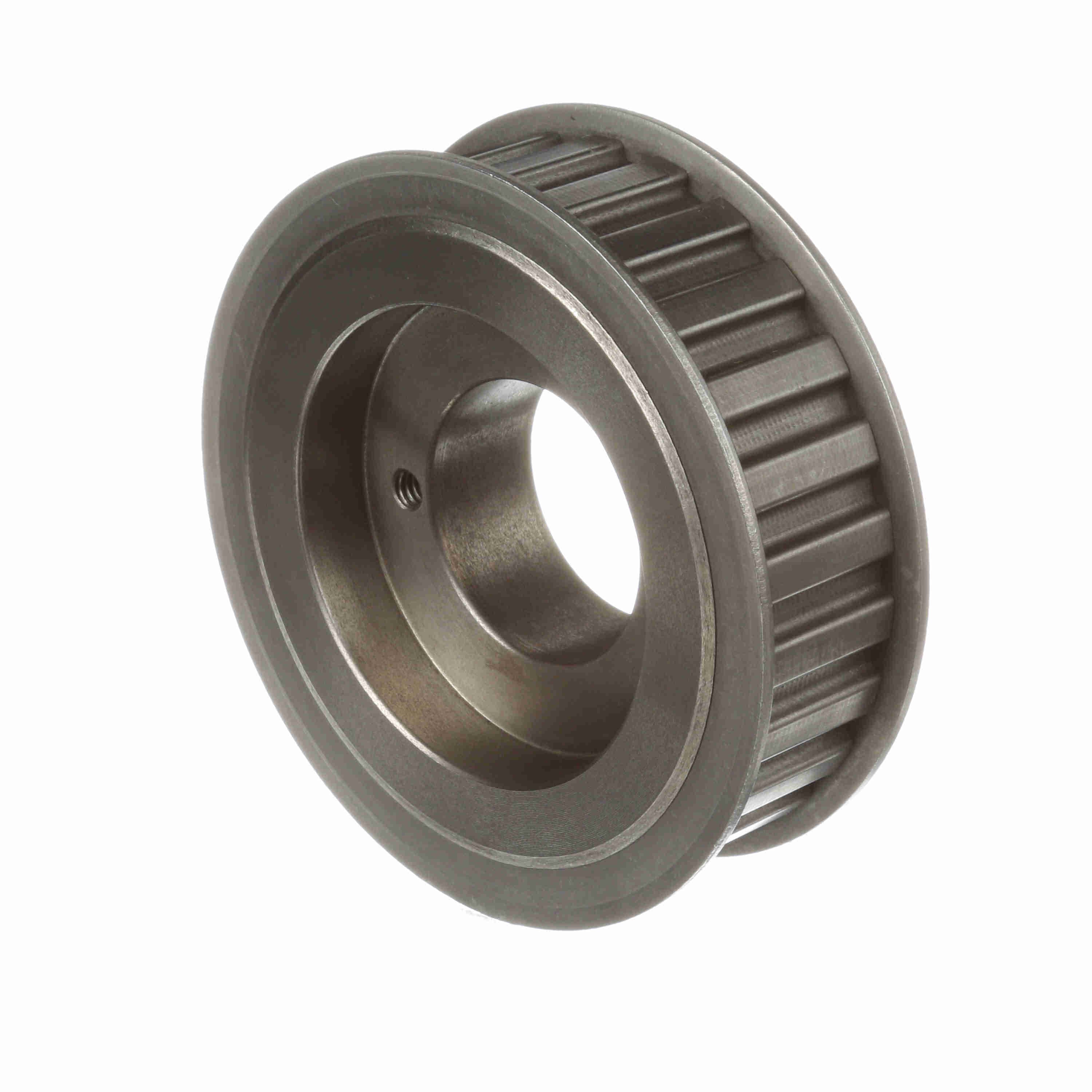

GEARBELT PULLEYS-500
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1056886 |
| Product Name | 26HH100 |
| Brand | Browning |
| Material | Ductile Iron |
| Weight | 3.23 lb |
| Package Length | 4.9 in |
| Package Width | 4.9 in |
| Package Height | 2 in |
| Bore Range | 3/8 to 1 1/2 |
| Model Name | GBPulley_Master6 |
| Number of teeth | 26 |
| Product Type | Gearbelt Pulley |
| Width (mm) |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 4 | $200.76 | — |
| 5 – 9 | $186.22 | 7% off |
| 10+ | $178.27 | 11% off |
| 25.4 mm |
| Bore Type | Bushed Bore |
| Pitch Diameter (in) | 4.138 in |
| Outside Diameter (in) | 4.084 in |
| Width (in) | 1 in |
| Outside Diameter (mm) | 103.7336 mm |
| Flange (in) | 4.369 in |
| Belt Section | H |
| Face Width | 1.312 |
| With Flanges | With Flanges |
| Length Through Bore | 1.276 |
| Overall Length (in) | 1.322 in |
| Pulley Construction | Solid |
| HTC | 8483.50.9080 |
| Country of Origin | United States of America |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-102797 |
| Part NumberiManufacturer catalog number | 1056886 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289203789 |
| CategoryiCatalog classification | Power Transmission > V-Belt Sheaves |
