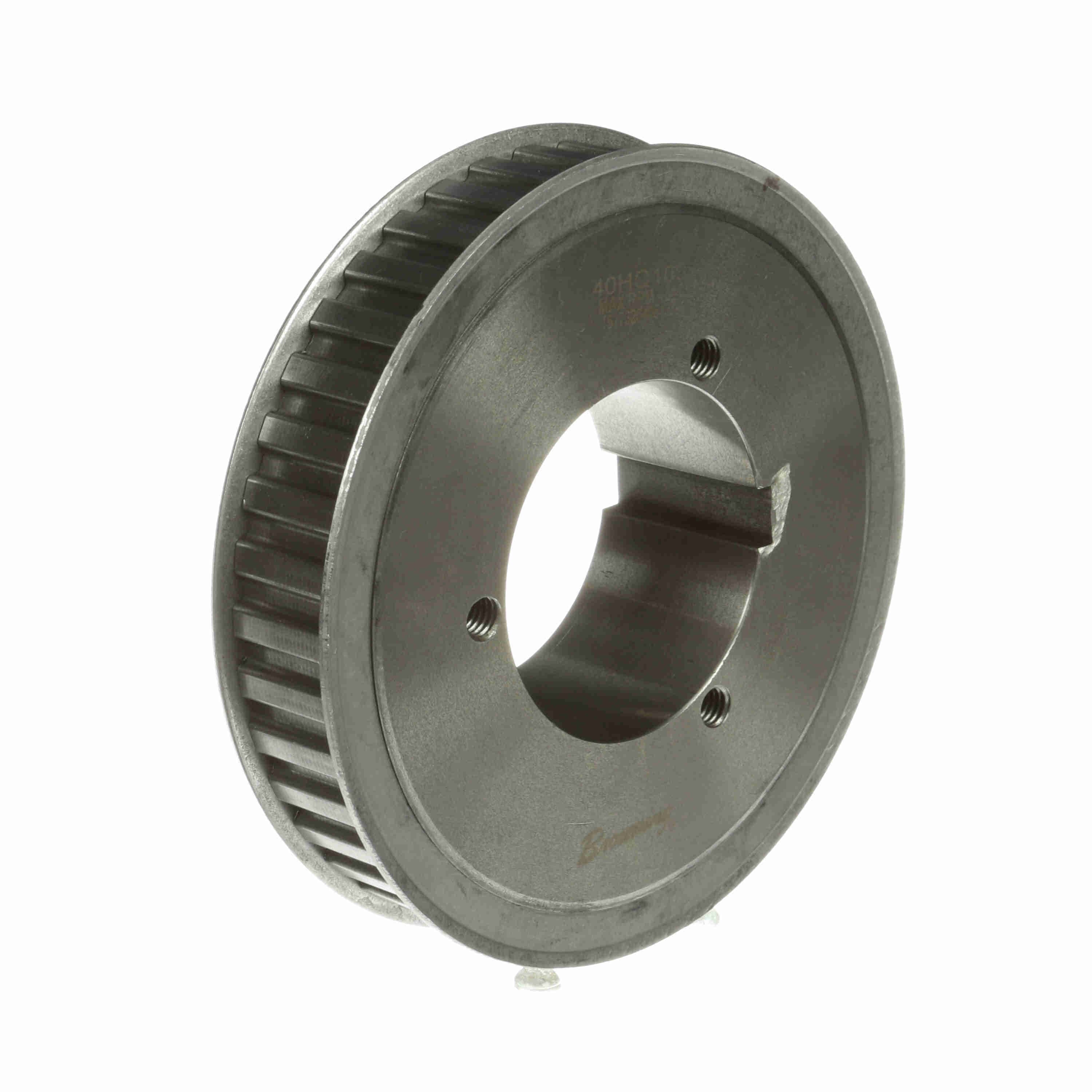

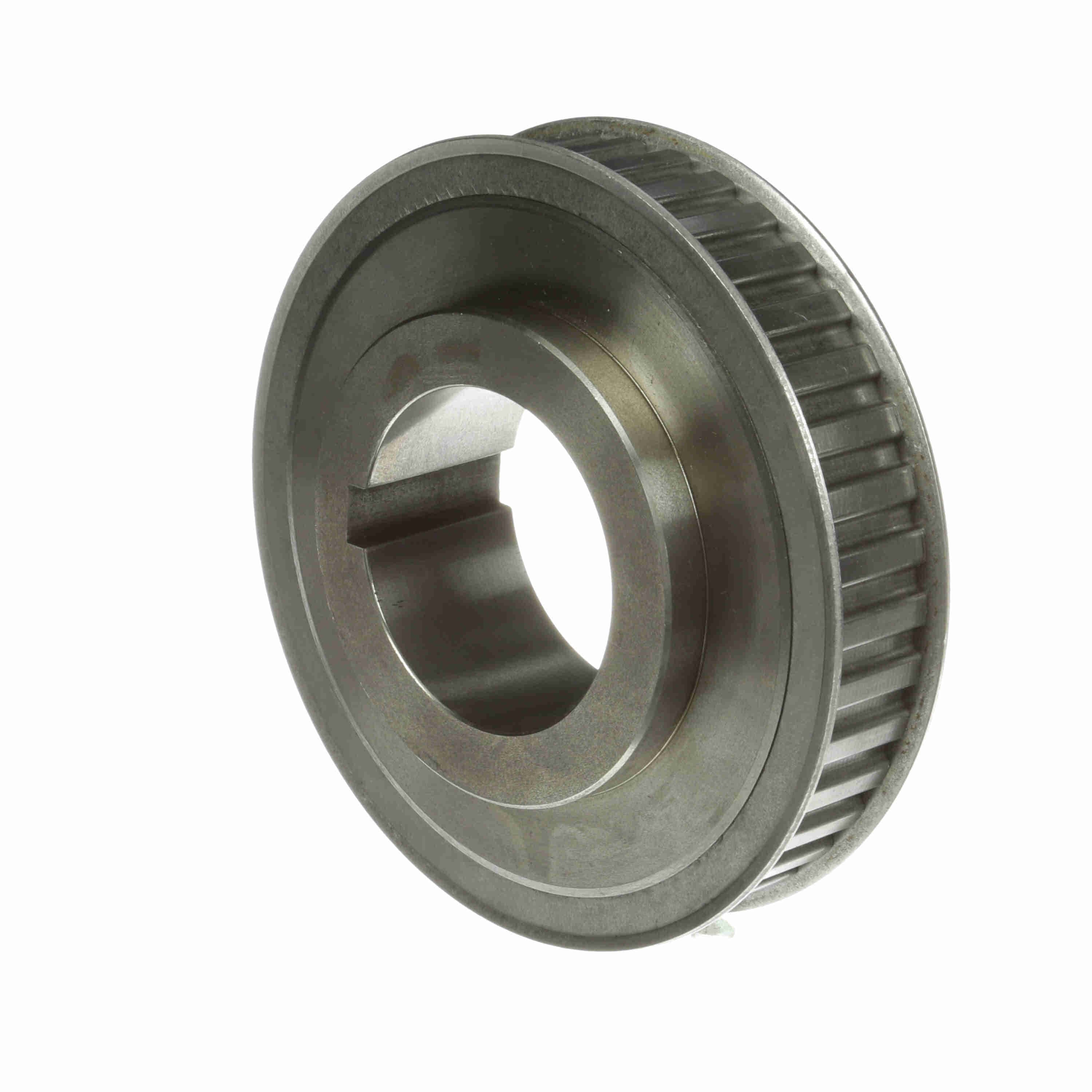

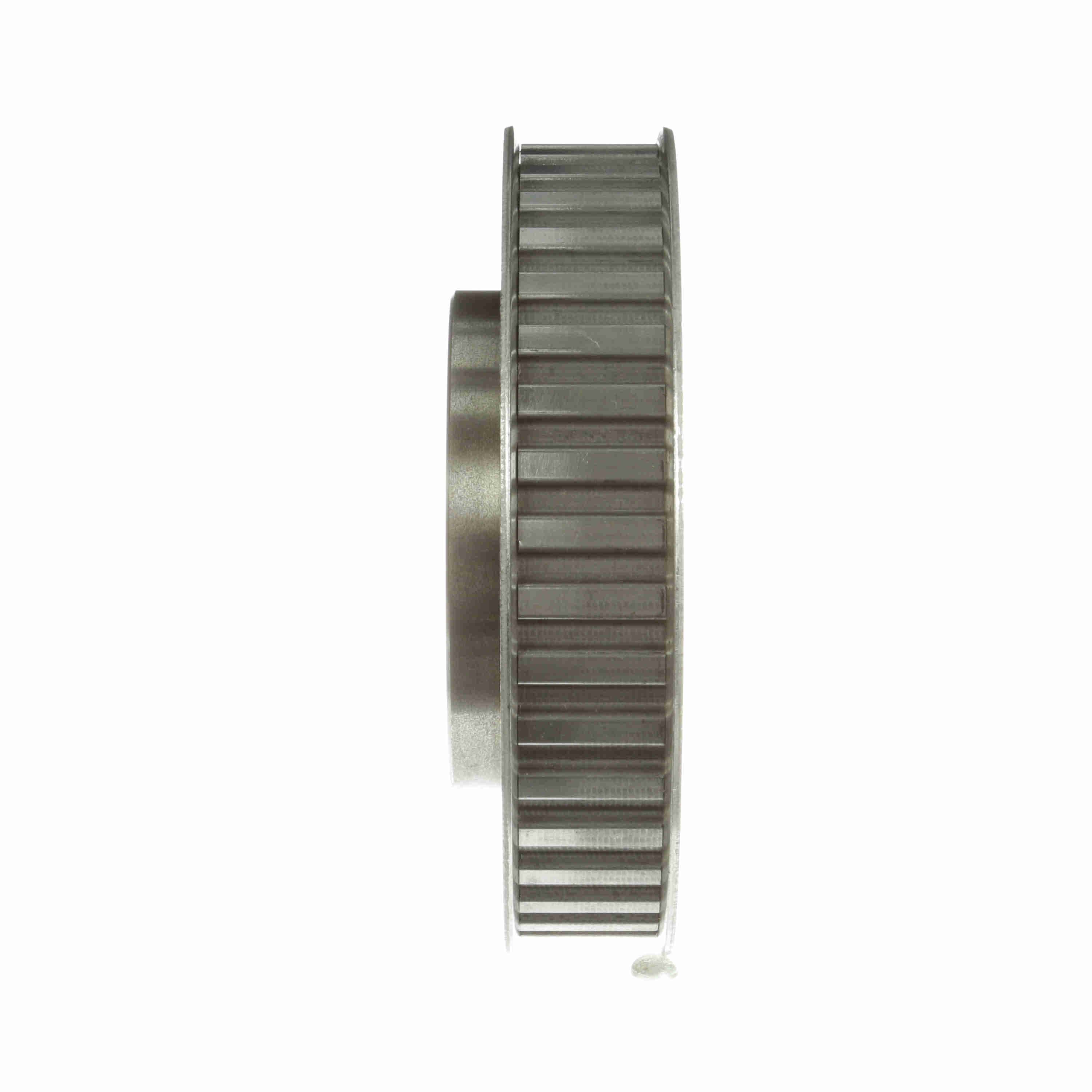

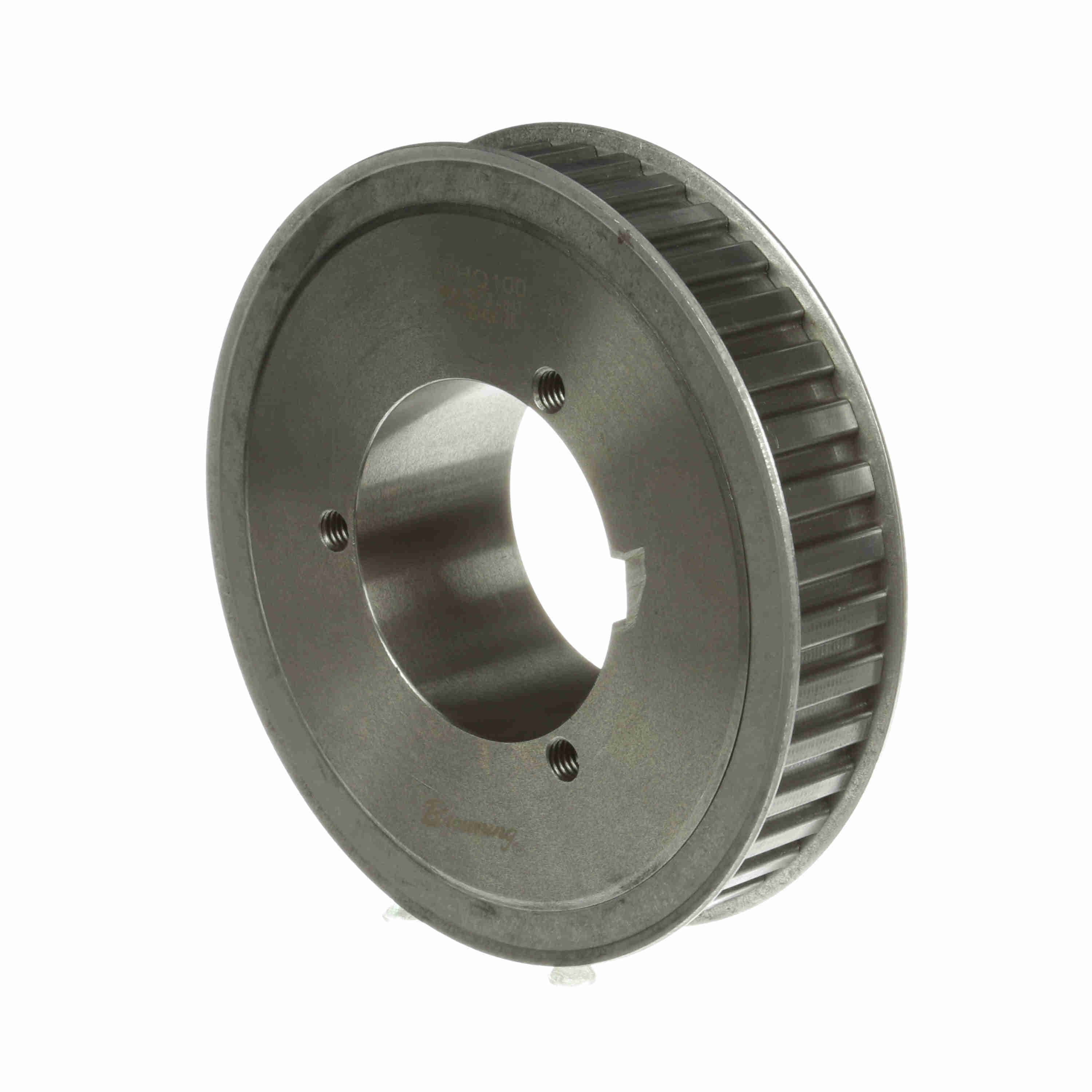

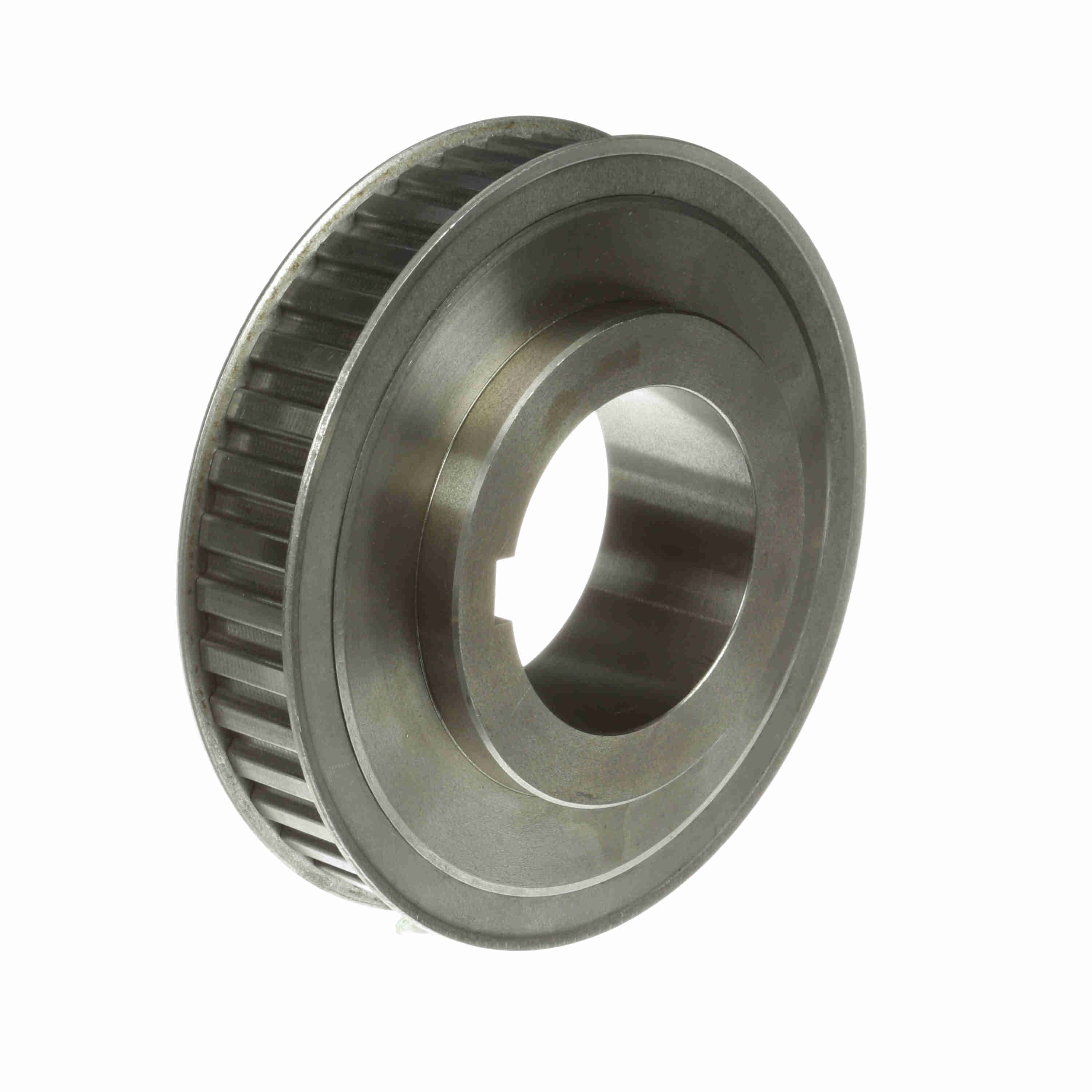

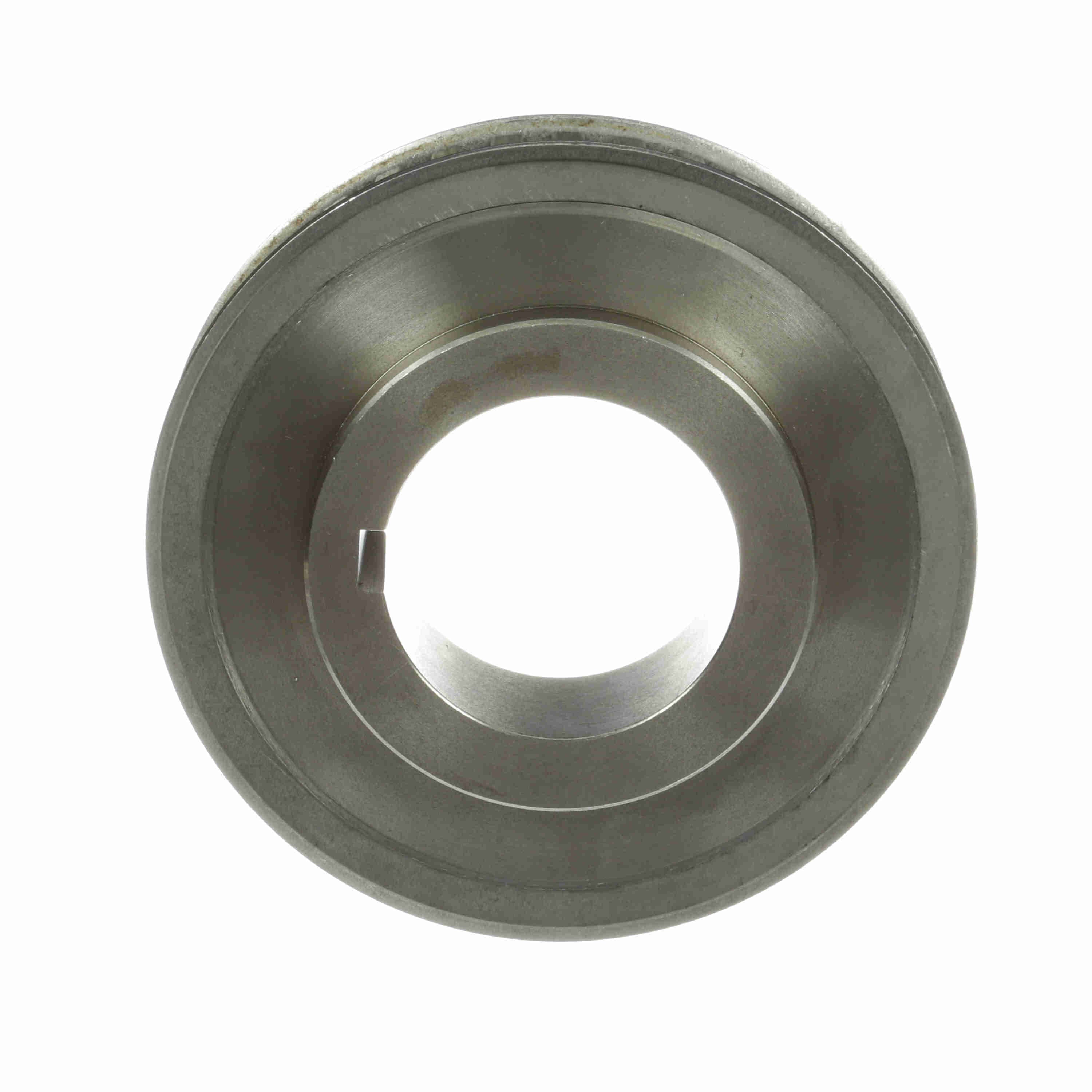

GEARBELT PULLEYS-500
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1056969 |
| Product Name | 40HQ100 |
| Brand | Browning |
| Material | Steel |
| Weight | 9.07 lb |
| Package Length | 7.8 in |
| Package Width | 7.3 in |
| Package Height | 2.1 in |
| Product Type | Gearbelt Pulley |
| Number of teeth | 40 |
| Bore Range | 3/4 to 2 11/16 |
| Width (mm) | 25.4 mm |
| Bore Type |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 4 | $461.96 | — |
| 5 – 9 | $428.50 | 7% off |
| 10+ | $410.22 | 11% off |
| Bushed Bore |
| Pitch Diameter (in) | 6.366 in |
| Belt Section | H |
| Flange (in) | 6.5625 in |
| Width (in) | 1 in |
| Outside Diameter (in) | 6.312 in |
| Outside Diameter (mm) | 160.3248 mm |
| Face Width | 1.25 |
| Overall Length (in) | 2.78125 in |
| Hub Diameter (in) | 4.125 in |
| Hub Projection | 1.03125 |
| With Flanges | With Flanges |
| Length Through Bore | 2.5 |
| Pulley Construction | Solid |
| Number of Hubs | 1 |
| HTC | 8483.50.9080 |
| Country of Origin | United States of America |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-102805 |
| Part NumberiManufacturer catalog number | 1056969 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289143801 |
| CategoryiCatalog classification | Power Transmission > V-Belt Sheaves |
