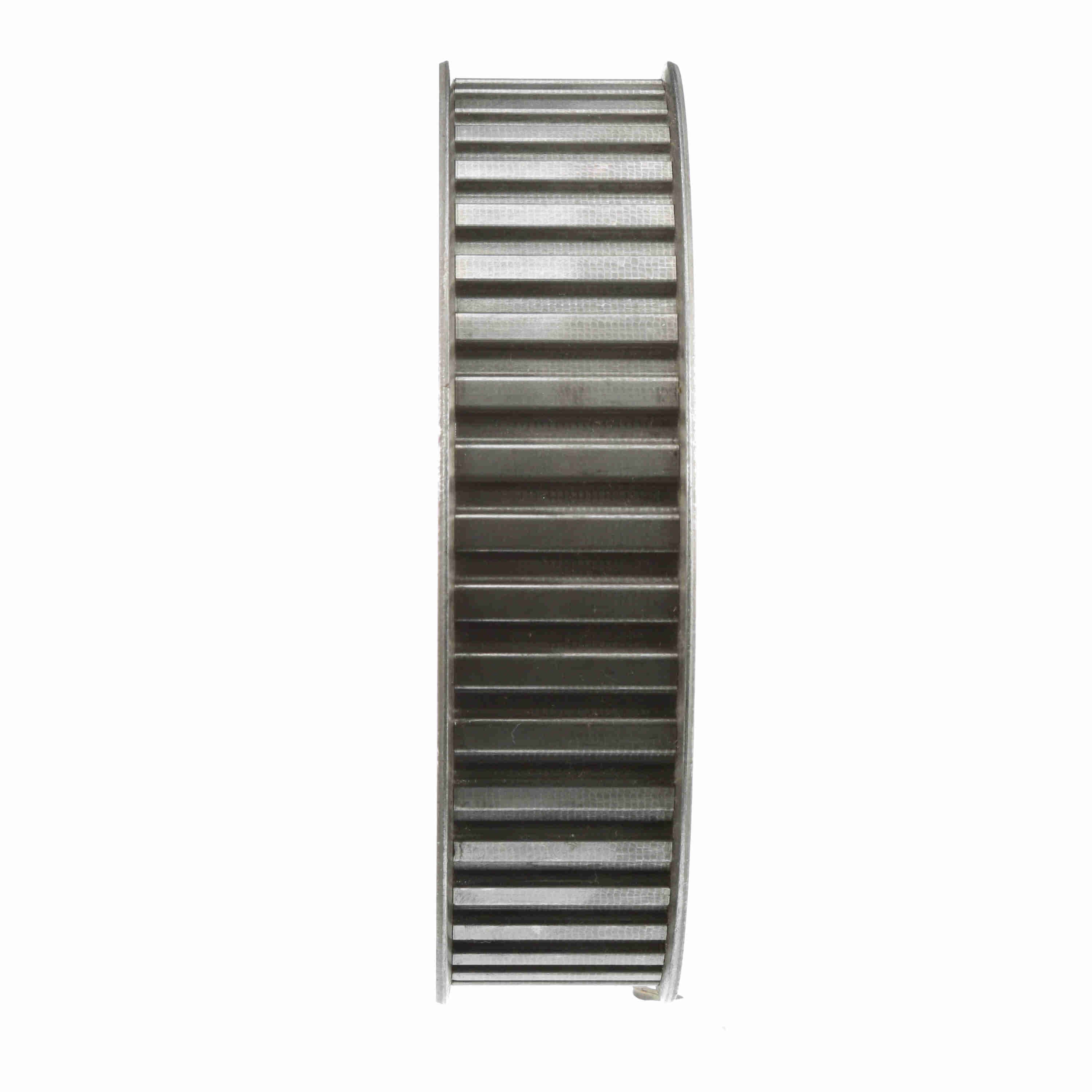

GEARBELT PULLEYS-500
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1057223 |
| Product Name | 44HQ150 |
| Brand | Browning |
| Material | Ductile Iron |
| Weight | 14.43 lb |
| Package Length | 8.3 in |
| Package Width | 8.3 in |
| Package Height | 2.5 in |
| Number of teeth | 44 |
| Bore Range | 3/4 to 2 11/16 |
| Product Type | Gearbelt Pulley |
| Width (mm) | 38.1 mm |
| Bore Type |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 4 | $540.23 | — |
| 5 – 9 | $501.12 | 7% off |
| 10+ | $479.73 | 11% off |
| Bushed Bore |
| Flange (in) | 7.2310 in |
| Outside Diameter (in) | 6.949 in |
| Belt Section | H |
| Outside Diameter (mm) | 176.5046 mm |
| Width (in) | 1.5 in |
| Pitch Diameter (in) | 7.003 in |
| Face Width | 1.75 |
| Length Through Bore | 2.5 |
| Pulley Construction | Solid |
| Hub Diameter (in) | 4.125 in |
| With Flanges | With Flanges |
| Number of Hubs | 1 |
| Overall Length (in) | 2.81 in |
| Hub Projection | 1.00025 |
| HTC | 8483.50.9080 |
| Country of Origin | United States of America |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-102830 |
| Part NumberiManufacturer catalog number | 1057223 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289144020 |
| CategoryiCatalog classification | Power Transmission > V-Belt Sheaves |
