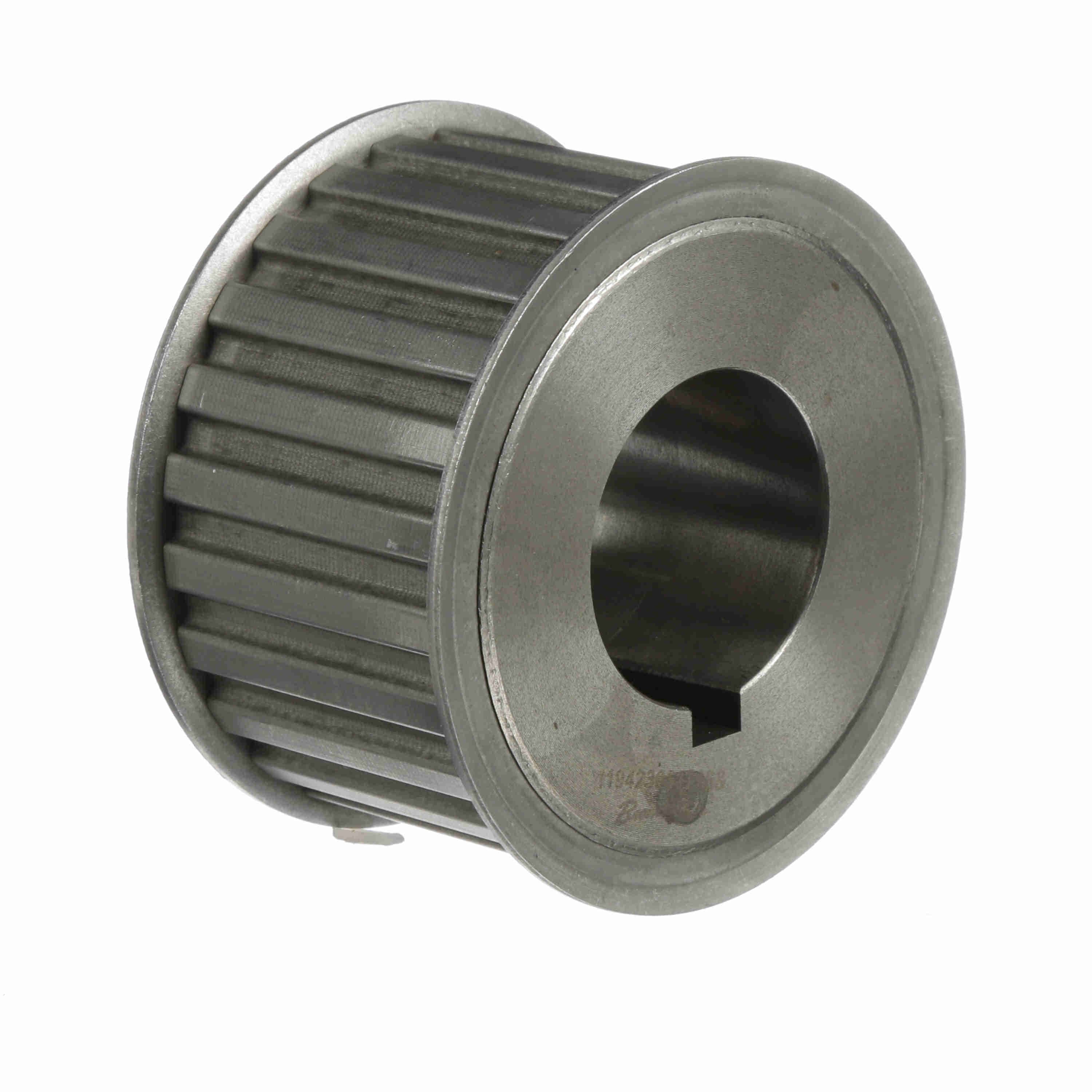

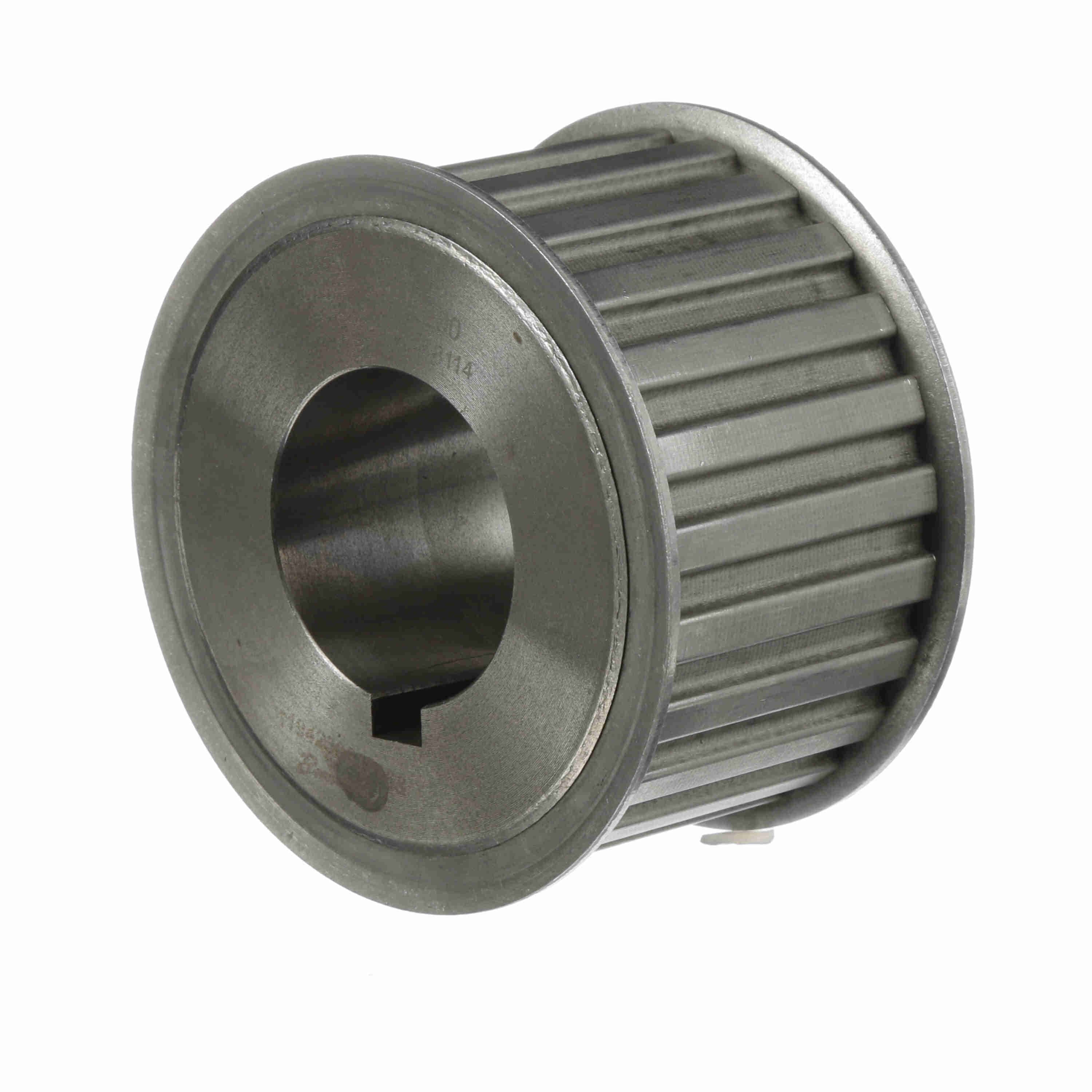

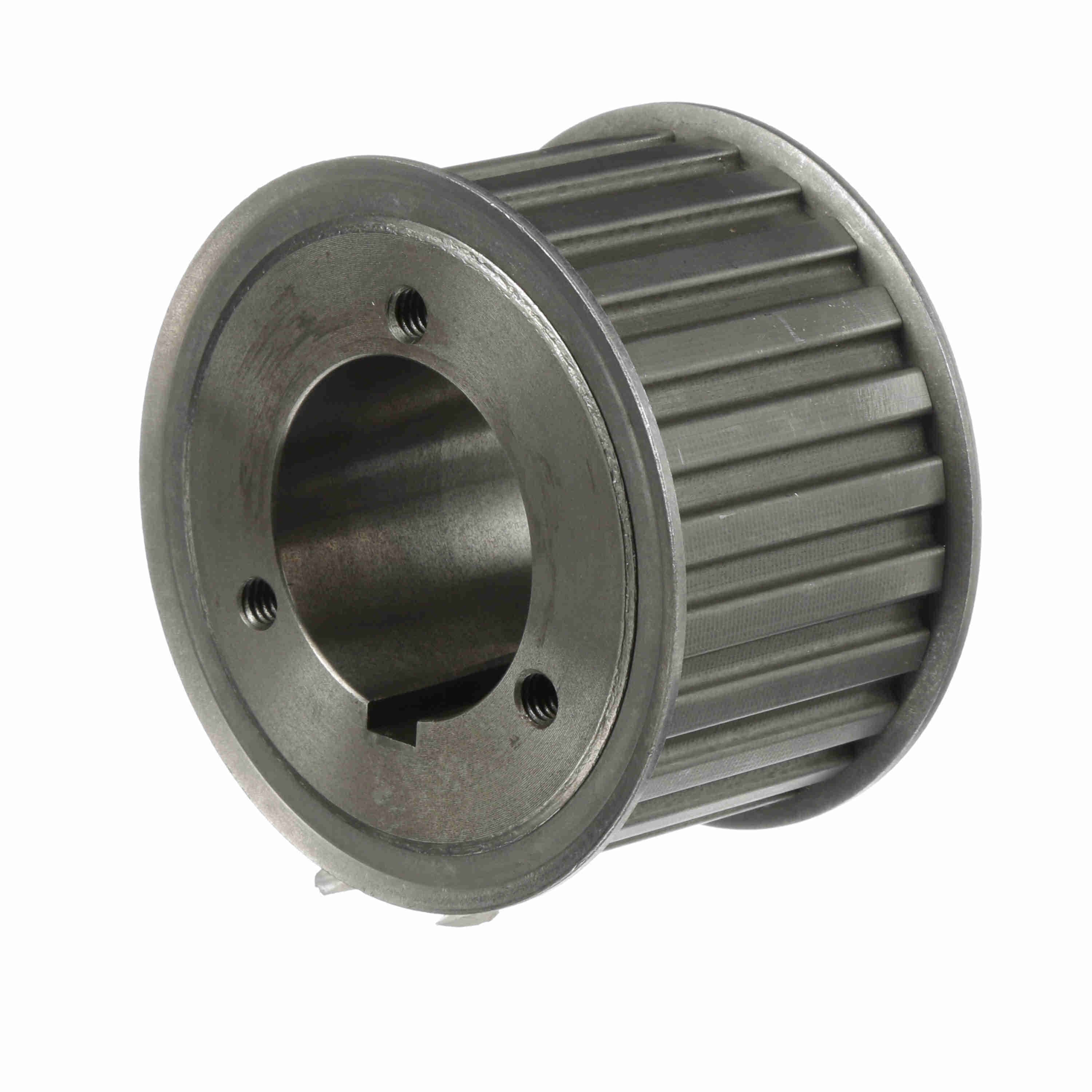

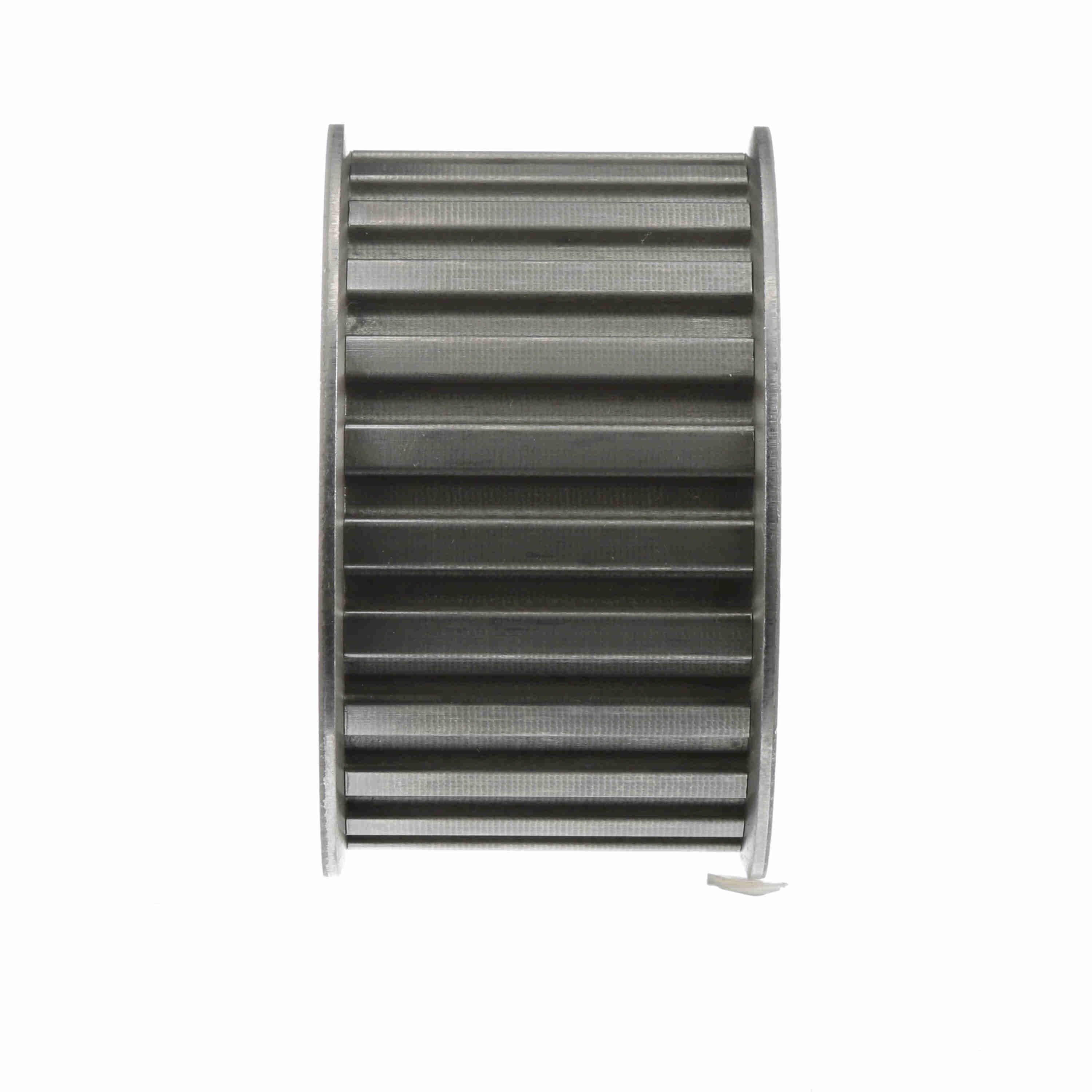

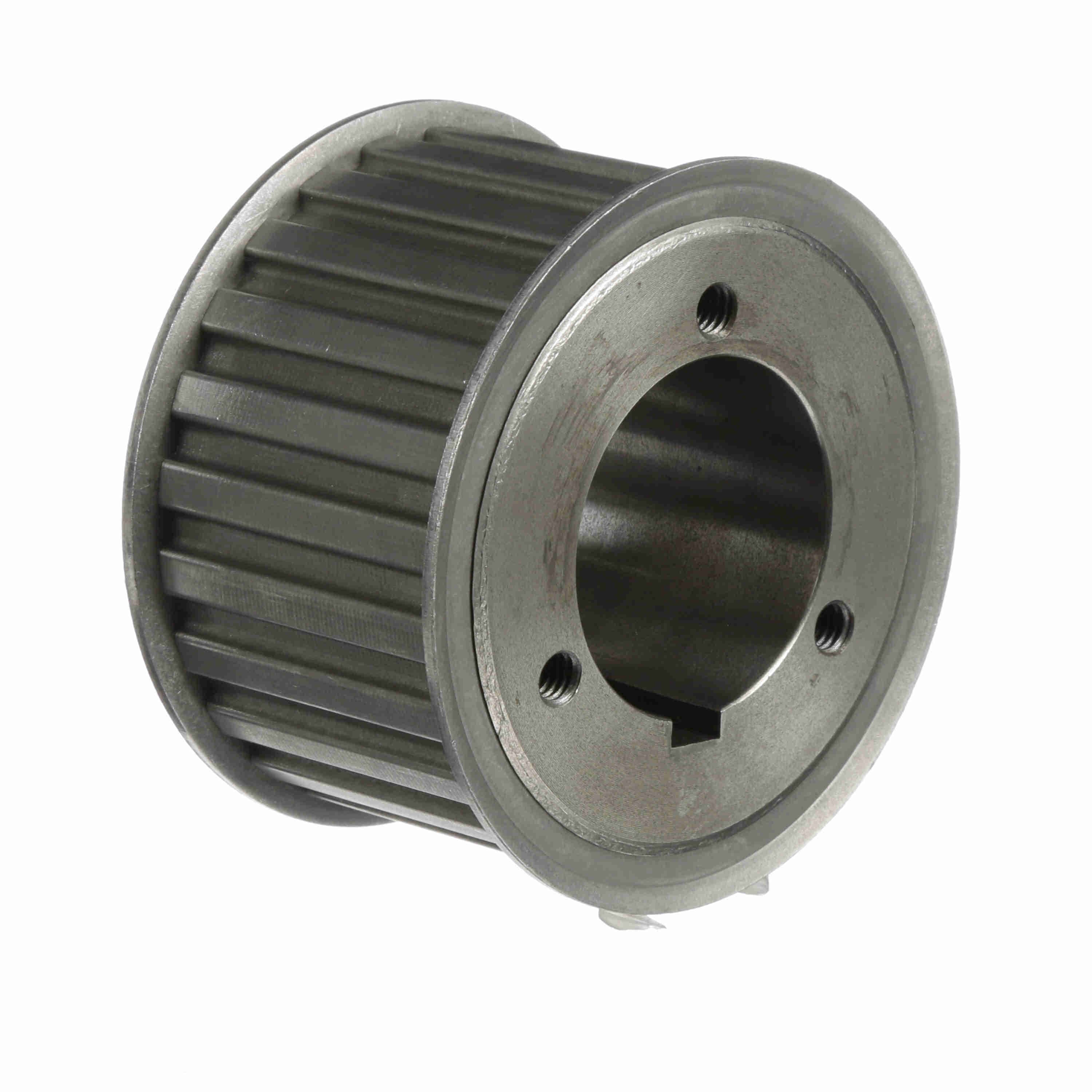

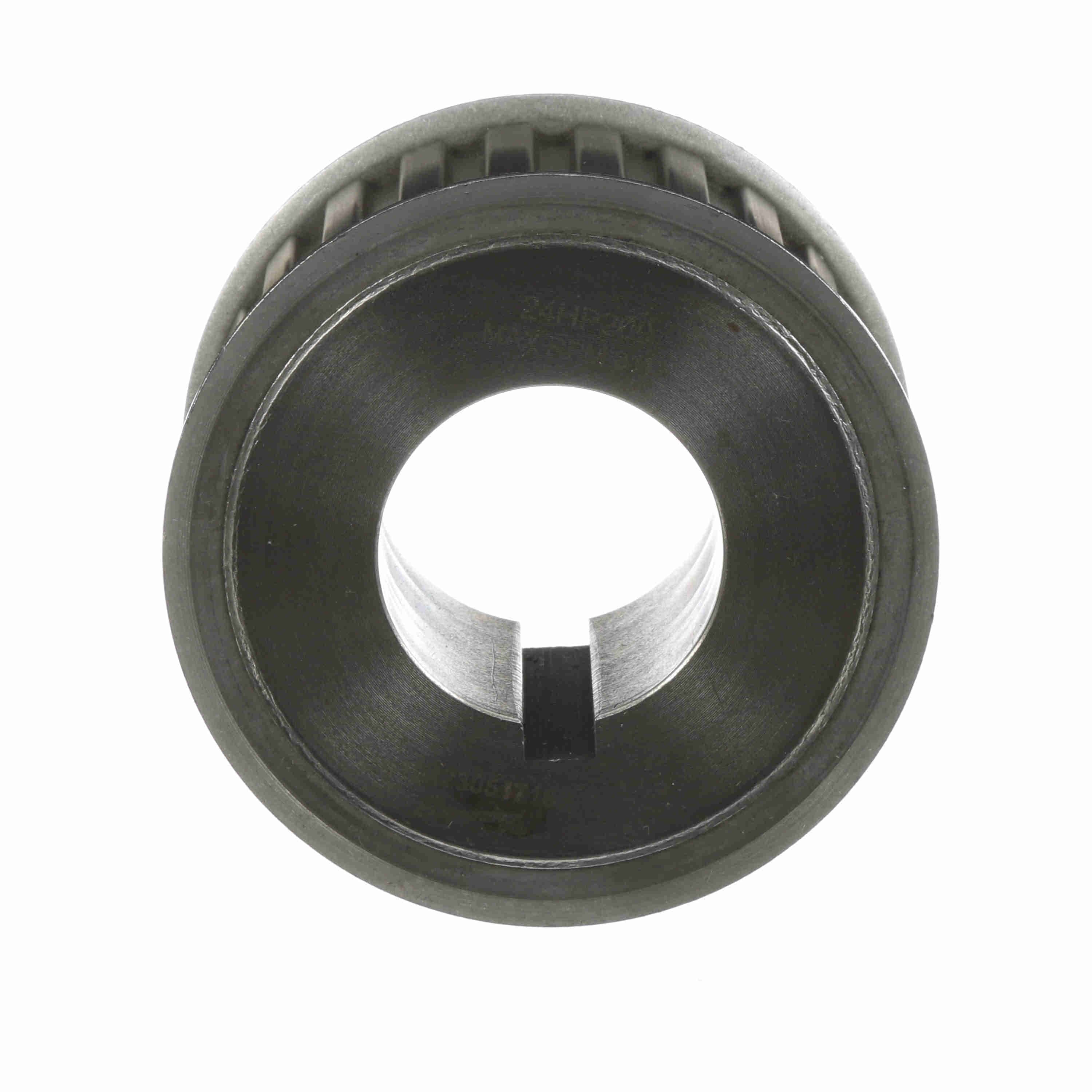

GEARBELT PULLEYS-500
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1057314 |
| Product Name | 24HP200 |
| Brand | Browning |
| Material | Ductile Iron |
| Weight | 4.85 lb |
| Package Length | 4.2 in |
| Package Width | 4.2 in |
| Package Height | 3.3 in |
| Product Type | Gearbelt Pulley |
| Number of teeth | 24 |
| Width (mm) | 50.8 mm |
| Bore Range | 3/4 to 1 3/4 |
| Bore Type |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 4 | $366.98 | — |
| 5 – 9 | $340.40 | 7% off |
| 10+ | $325.88 | 11% off |
| Bushed Bore |
| Width (in) | 2 in |
| Pitch Diameter (in) | 3.82 in |
| Belt Section | H |
| Outside Diameter (in) | 3.766 in |
| Outside Diameter (mm) | 95.6564 mm |
| Flange (in) | 4.050 in |
| Face Width | 2.2813 |
| Pulley Construction | Solid |
| Hub Diameter (in) | 3 in |
| With Flanges | With Flanges |
| Length Through Bore | 3.219 |
| Overall Length (in) | 3.219 in |
| Number of Hubs | 1 |
| Hub Projection | 0.875 |
| HTC | 8483.50.9080 |
| Country of Origin | United States of America |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-102836 |
| Part NumberiManufacturer catalog number | 1057314 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289314584 |
| CategoryiCatalog classification | Power Transmission > V-Belt Sheaves |
