GEARBELT PULLEYS-500
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1057405 |

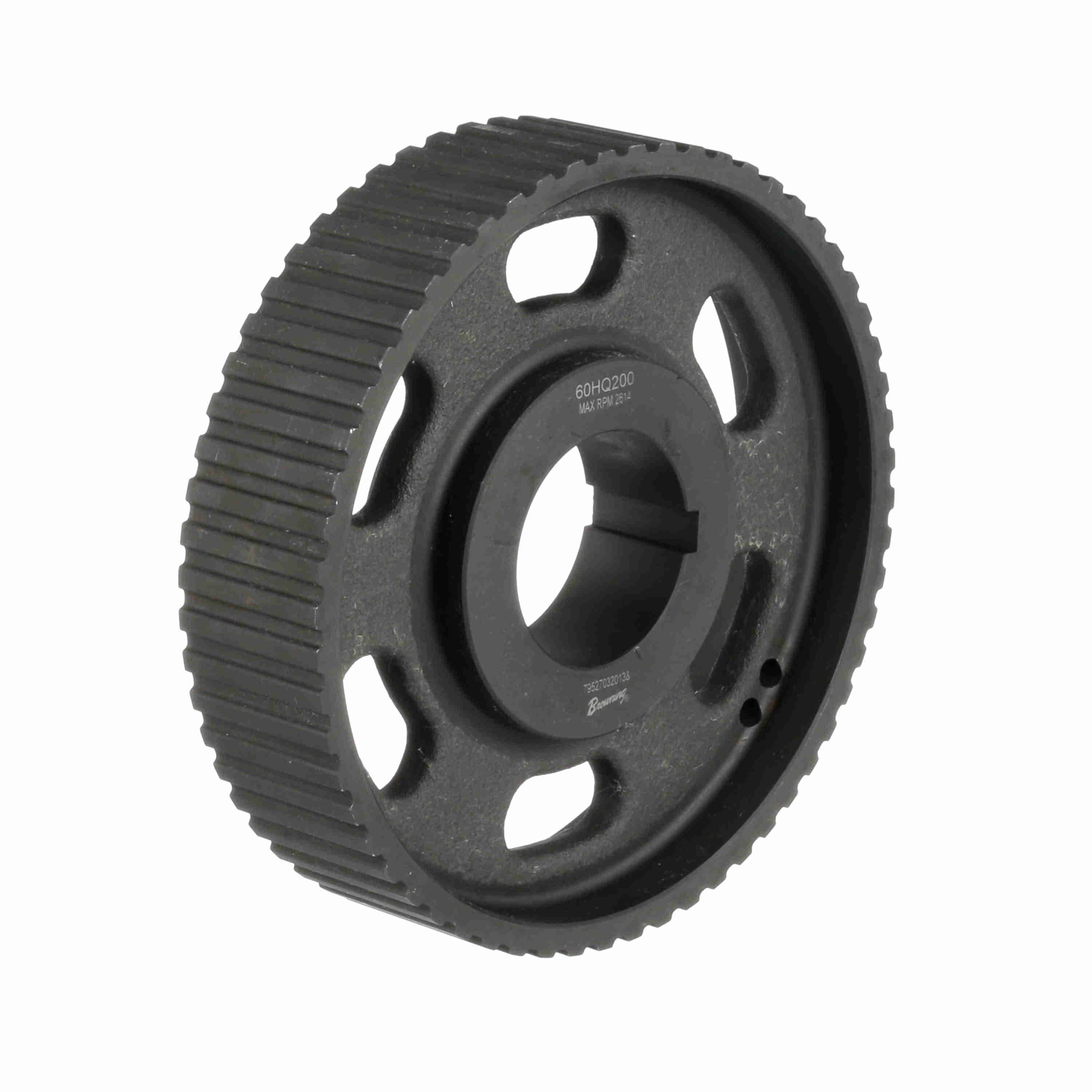

| Product Name | 60HQ200 |
| Brand | Browning |
| Material | Cast Iron |
| Weight | 16.385 lb |
| Package Length | 12.2 in |
| Package Width | 12.3 in |
| Package Height | 3.6 in |
| Width (mm) | 50.8 mm |
| Bore Range | 3/4 to 2 11/16 |
| Product Type | Gearbelt Pulley |
| Number of teeth | 60 |
| Bore Type |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 4 | $768.31 | — |
| 5 – 9 | $712.68 | 7% off |
| 10+ | $682.27 | 11% off |
| Bushed Bore |
| Belt Section | H |
| Pitch Diameter (in) | 9.549 in |
| Outside Diameter (in) | 9.495 in |
| Inside Diameter (in) | 8.6875 in |
| Outside Diameter (mm) | 241.173 mm |
| Width (in) | 2 in |
| Face Width | 2.2813 |
| Length Through Bore | 2.5 |
| Overall Length (in) | 3.01525 in |
| Hub Diameter (in) | 4.125 in |
| Pulley Construction | Arm |
| With Flanges | No Flanges |
| Number of Hubs | 1 |
| Hub Projection | 0.7342 |
| HTC | 8483.50.9080 |
| Country of Origin | United States of America |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-102845 |
| Part NumberiManufacturer catalog number | 1057405 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289204168 |
| CategoryiCatalog classification | Power Transmission > V-Belt Sheaves |
