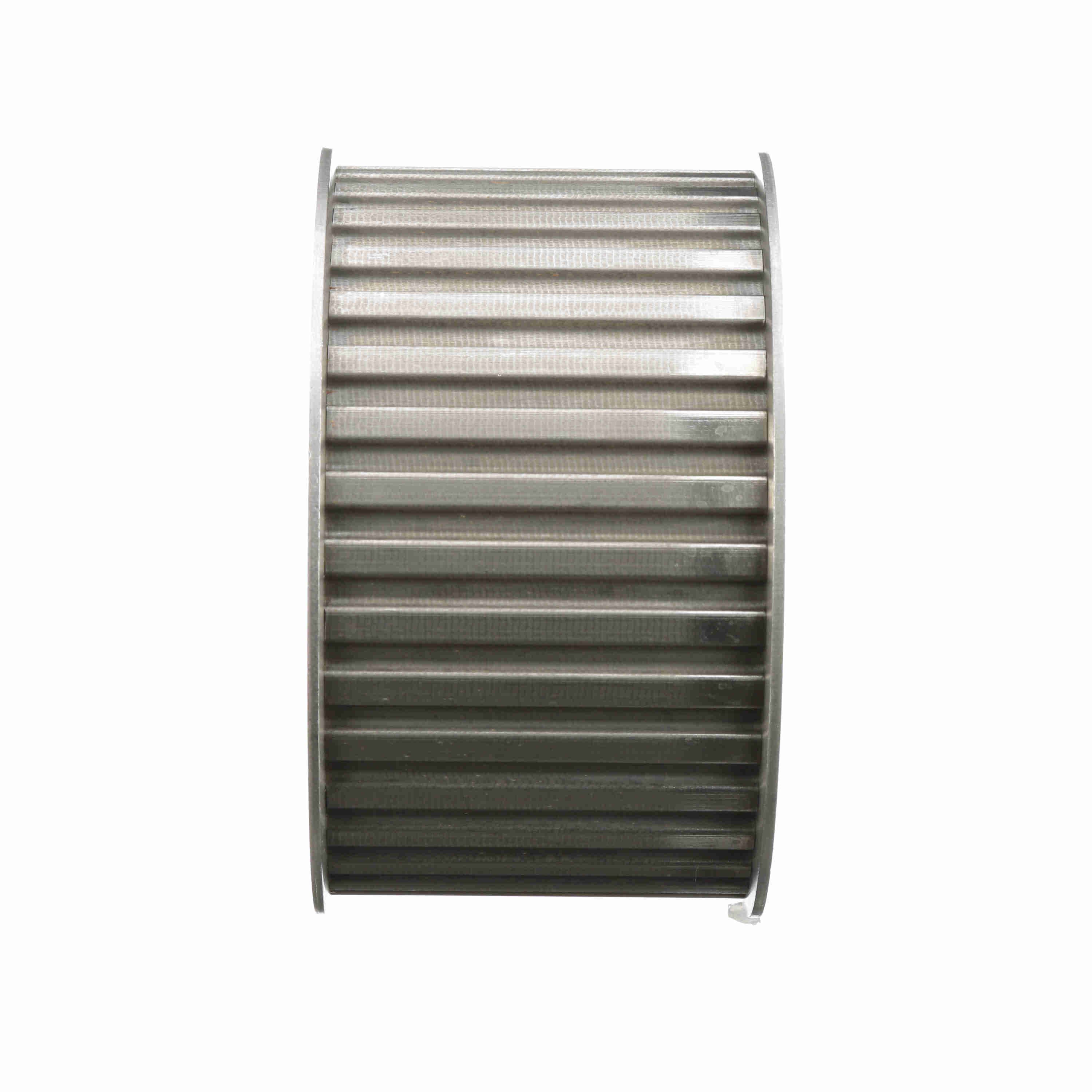

GEARBELT PULLEYS-500
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1057470 |
| Product Name | 36HQ300 |
| Brand | Browning |
| Material | Ductile Iron |
| Weight | 11.92 lb |
| Package Length | 6.06 in |
| Package Width | 6.06 in |
| Package Height | 4 in |
| Number of teeth | 36 |
| Product Type | Gearbelt Pulley |
| Width (mm) | 76.2 mm |
| Bore Range | 3/4 to 2 11/16 |
| Bore Type |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 4 | $626.22 | — |
| 5 – 9 | $580.87 | 7% off |
| 10+ | $556.09 | 11% off |
This product is a direct replacement for the following discontinued part numbers. Customers searching for these legacy SKUs will find this page.
| Bushed Bore |
| Width (in) | 3 in |
| Belt Section | H |
| Outside Diameter (mm) | 144.1704 mm |
| Pitch Diameter (in) | 5.73 in |
| Inside Diameter (in) | 4.5 in |
| Outside Diameter (in) | 5.676 in |
| Flange (in) | 5.9590 in |
| Face Width | 3.3125 |
| Length Through Bore | 2.5 |
| Pulley Construction | Solid |
| Overall Length (in) | 3.59375 in |
| With Flanges | With Flanges |
| HTC | 8483.50.9080 |
| Country of Origin | United States of America |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-102849 |
| Part NumberiManufacturer catalog number | 1057470 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289294220 |
| CategoryiCatalog classification | Power Transmission > V-Belt Sheaves |
