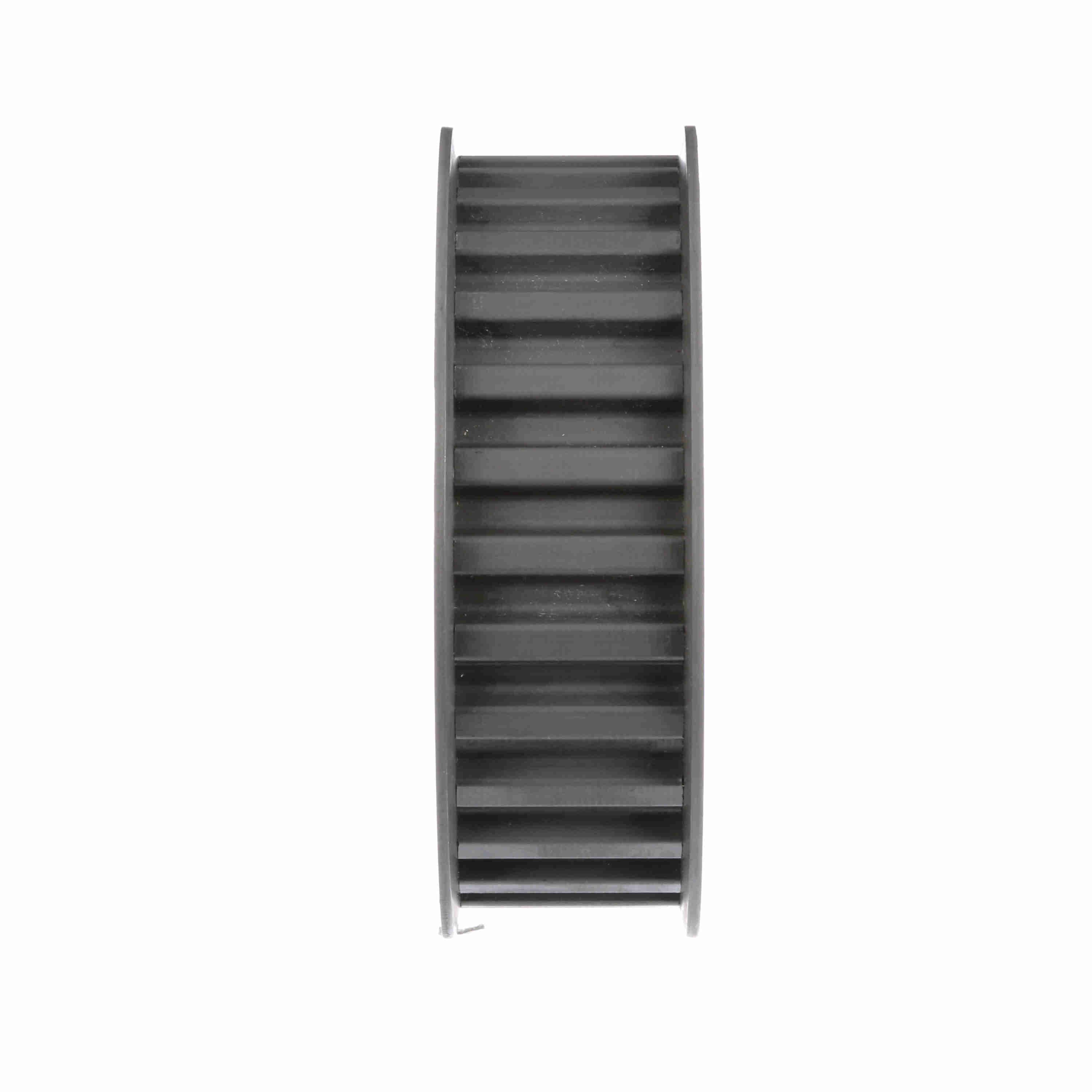

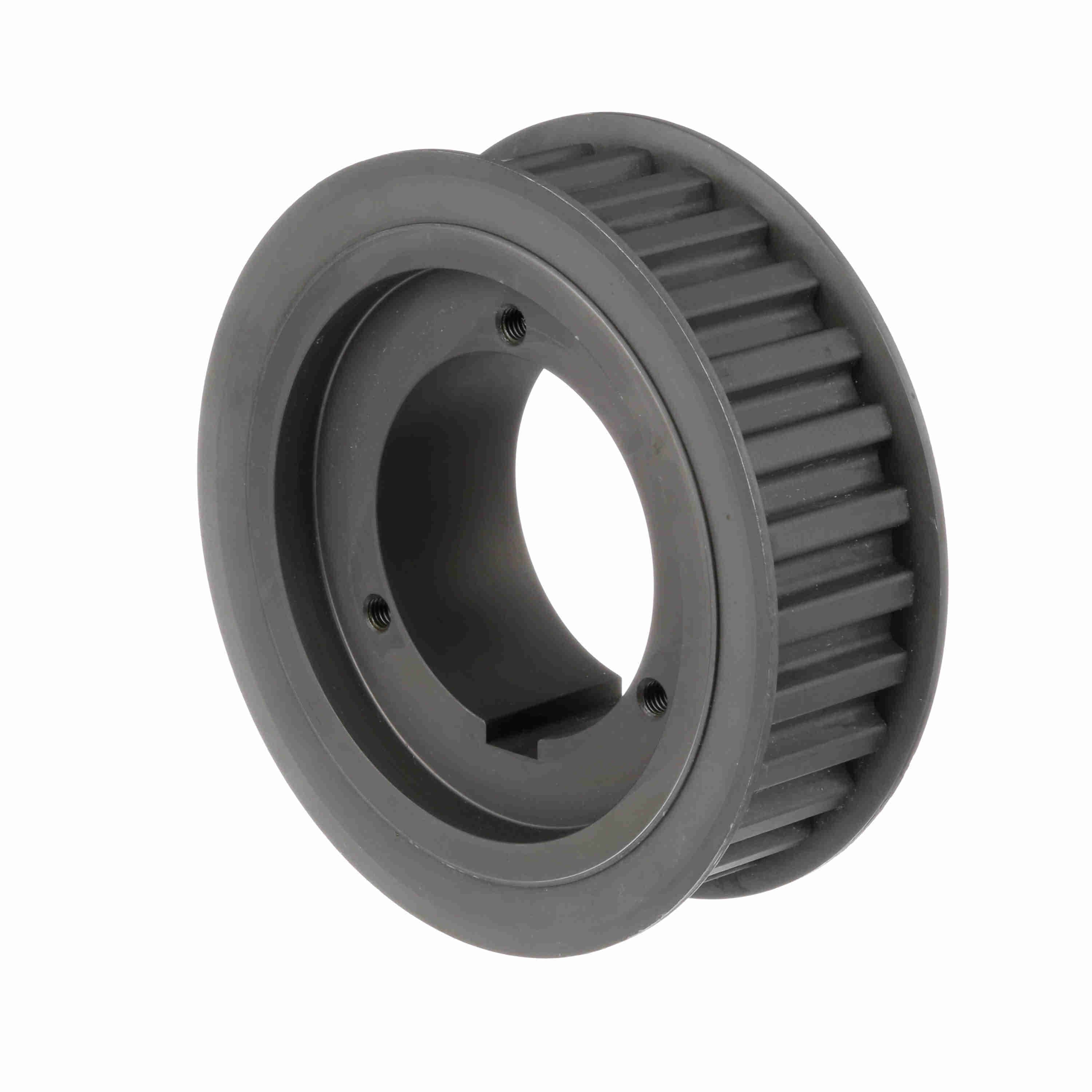

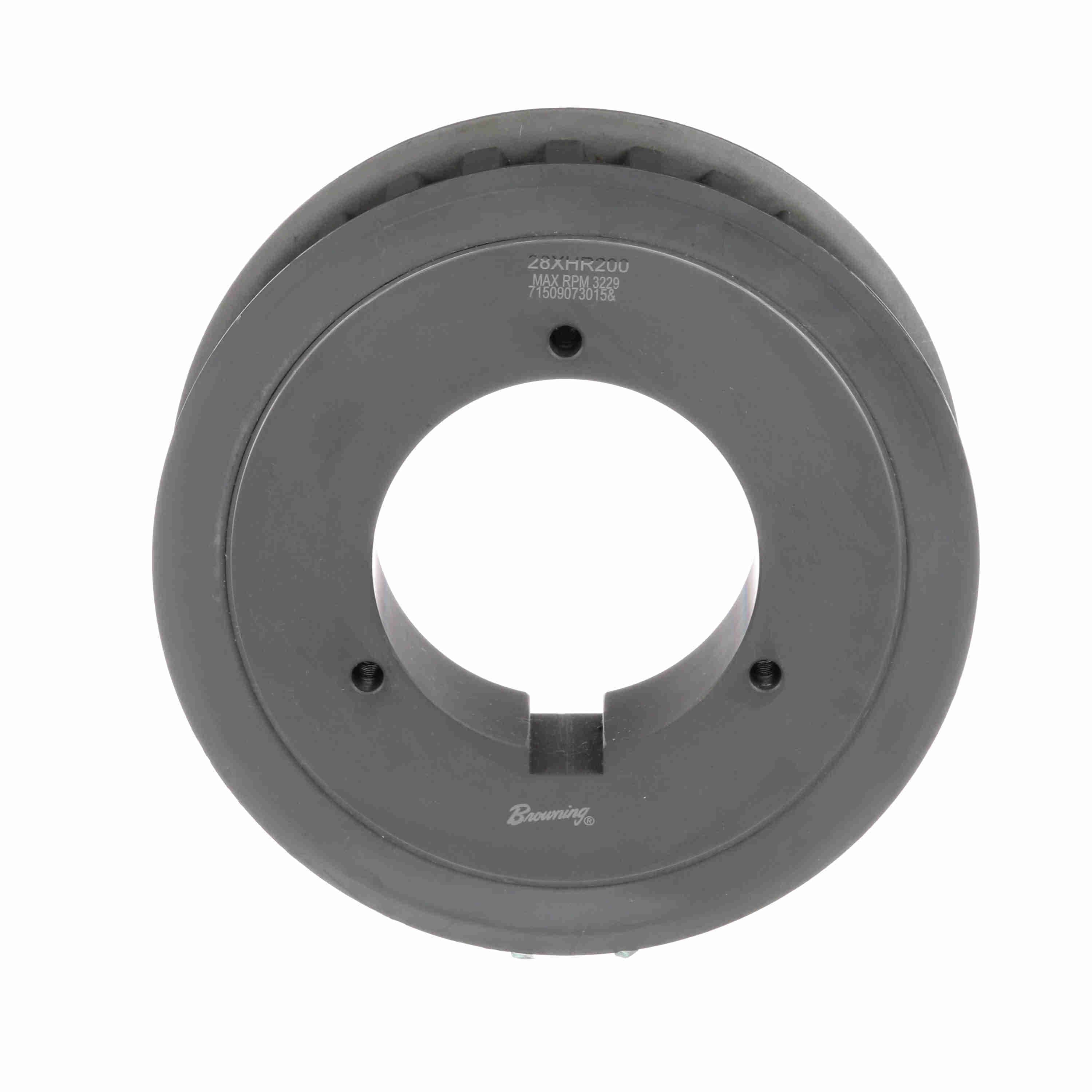

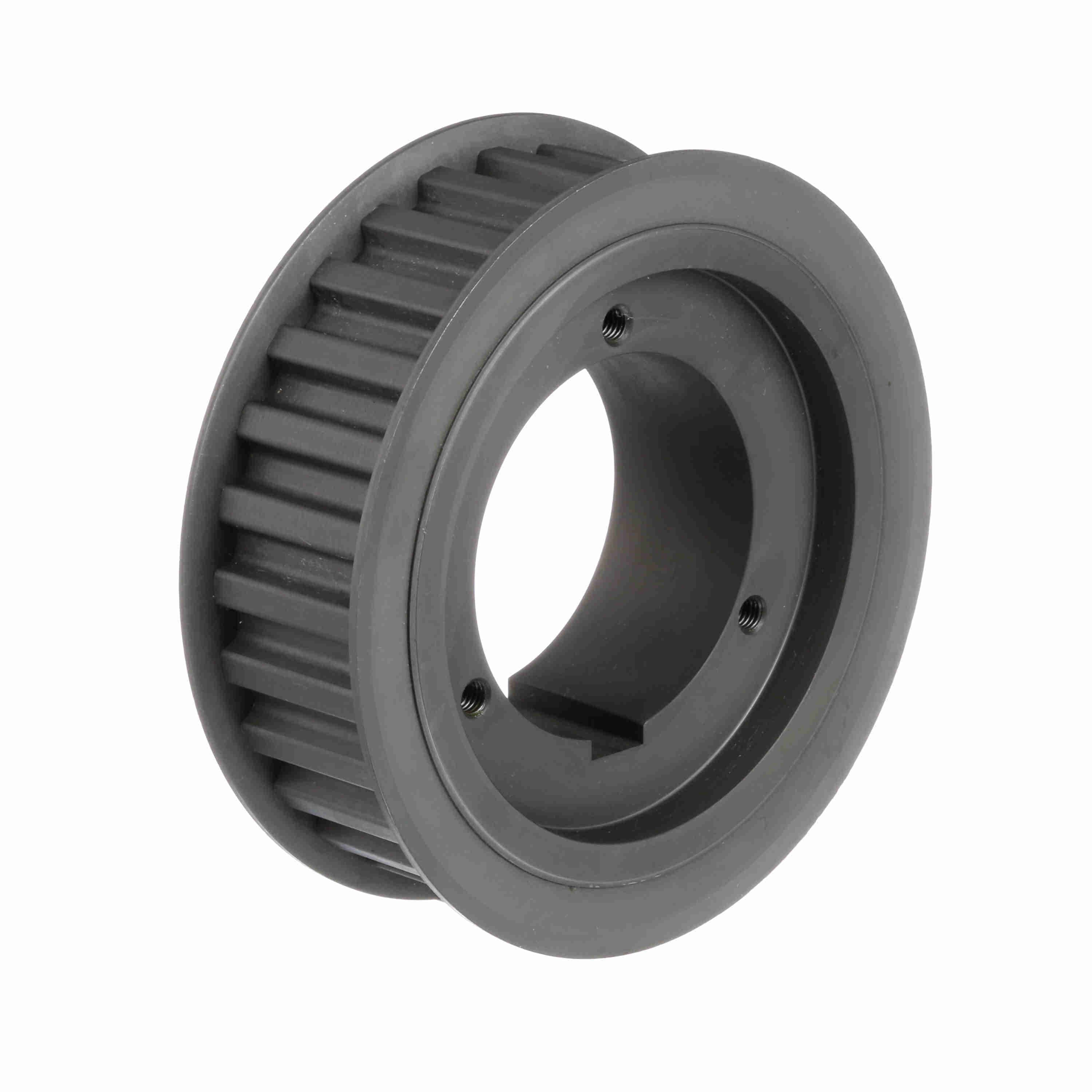

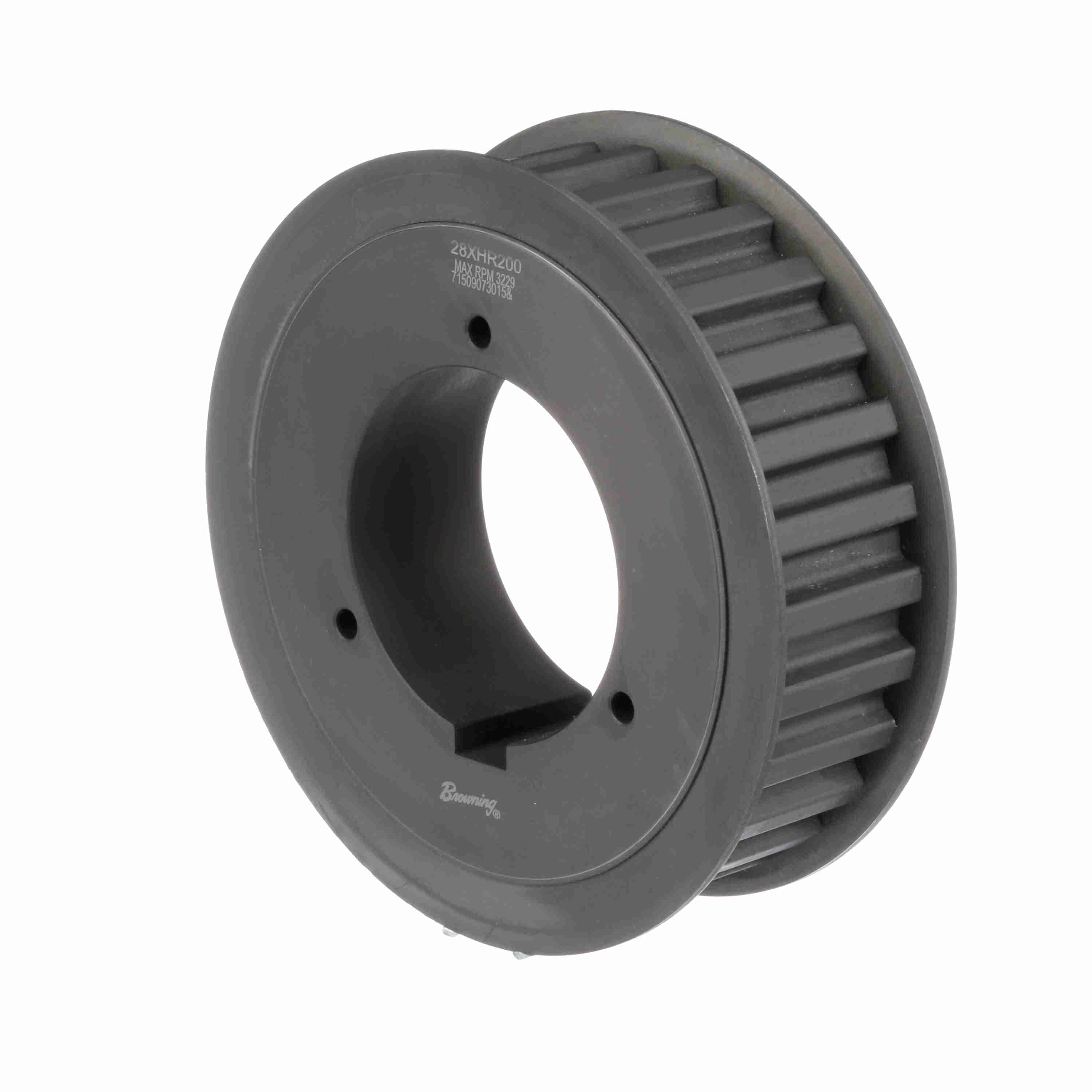

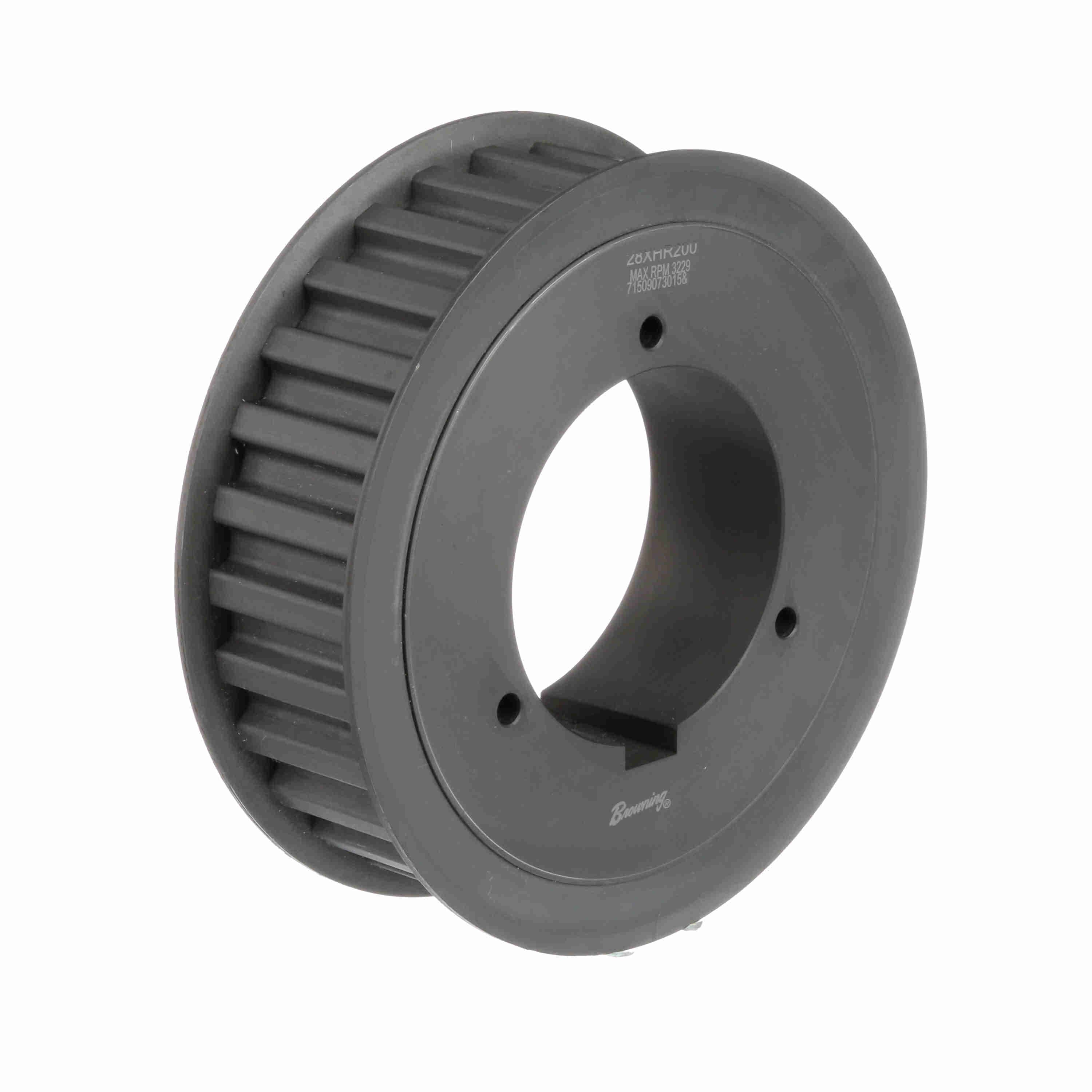

GEARBELT PULLEYS-500
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1057629 |
| Product Name | 28XHR200 |
| Brand | Browning |
| Material | Steel |
| Weight | 21.105 lb |
| Package Length | 9.2 in |
| Package Width | 9.2 in |
| Package Height | 4.6 in |
| Number of teeth | 28 |
| Product Type | Gearbelt Pulley |
| Width (mm) | 50.8 mm |
| Bore Range | 1 1/8 to 3 3/4 |
| Bore Type |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 4 | $968.08 | — |
| 5 – 9 | $897.98 | 7% off |
| 10+ | $859.66 | 11% off |
| Bushed Bore |
| Belt Section | XH |
| Flange (in) | 8.3750 in |
| Inside Diameter (in) | 5.9375 in |
| Outside Diameter (mm) | 195.3006 mm |
| Outside Diameter (in) | 7.689 in |
| Width (in) | 2 in |
| Pitch Diameter (in) | 7.799 in |
| Face Width | 2.5625 |
| Overall Length (in) | 3.15625 in |
| Pulley Construction | Solid |
| Length Through Bore | 2.875 |
| Hub Diameter (in) | 5.375 in |
| Hub Projection | 0.59375 |
| Number of Hubs | 1 |
| With Flanges | With Flanges |
| HTC | 8483.50.9080 |
| Country of Origin | United States of America |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-102860 |
| Part NumberiManufacturer catalog number | 1057629 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289114382 |
| CategoryiCatalog classification | Power Transmission > V-Belt Sheaves |
