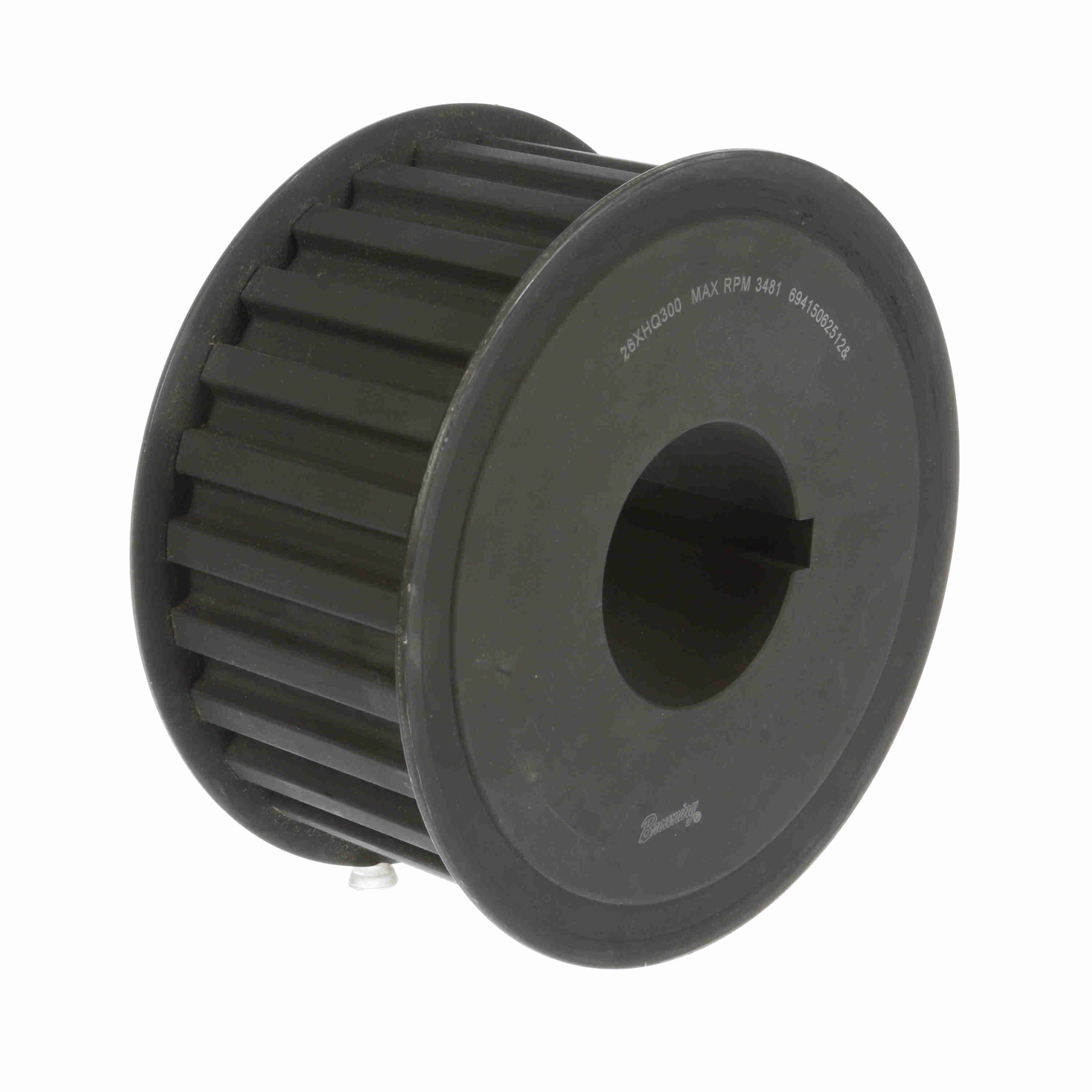

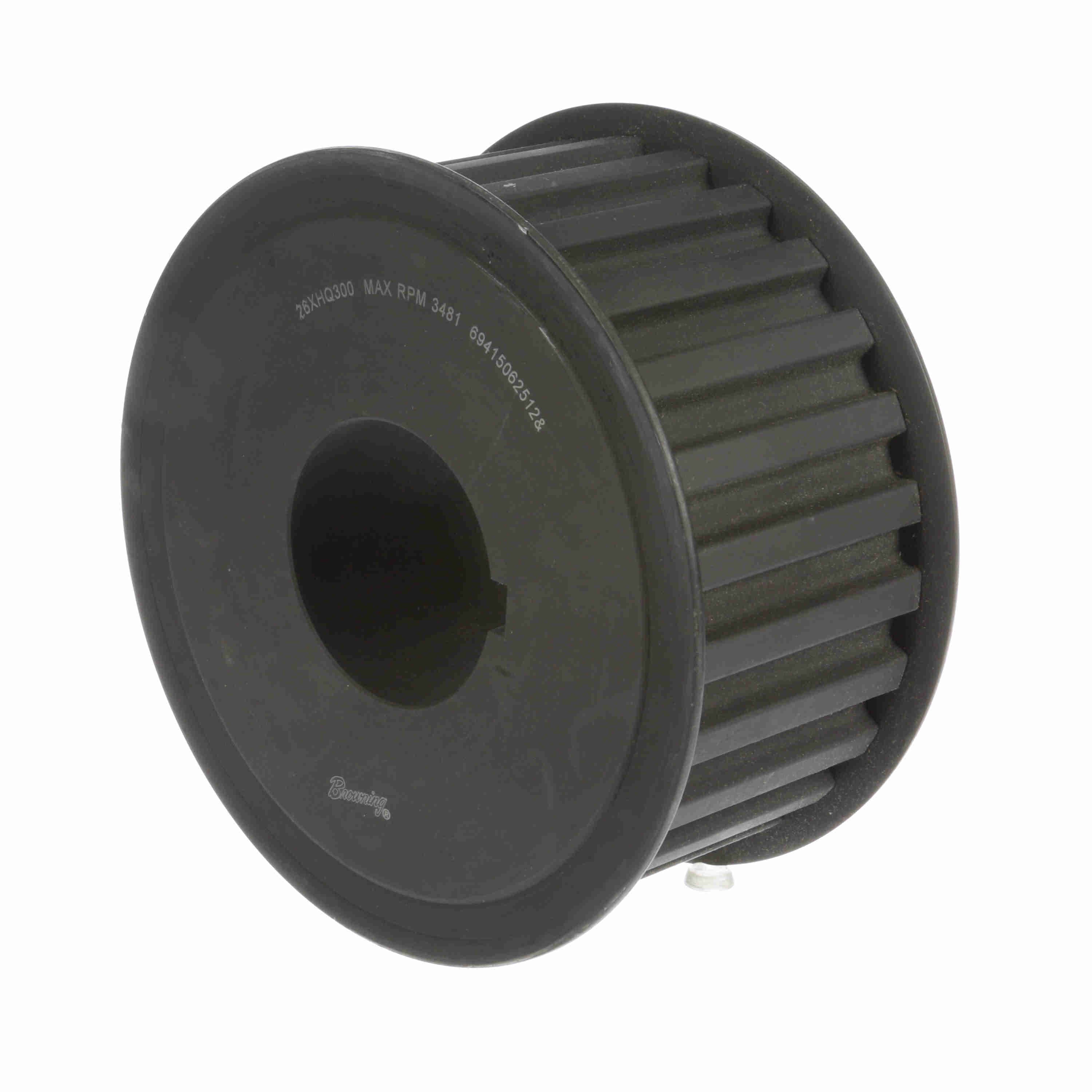

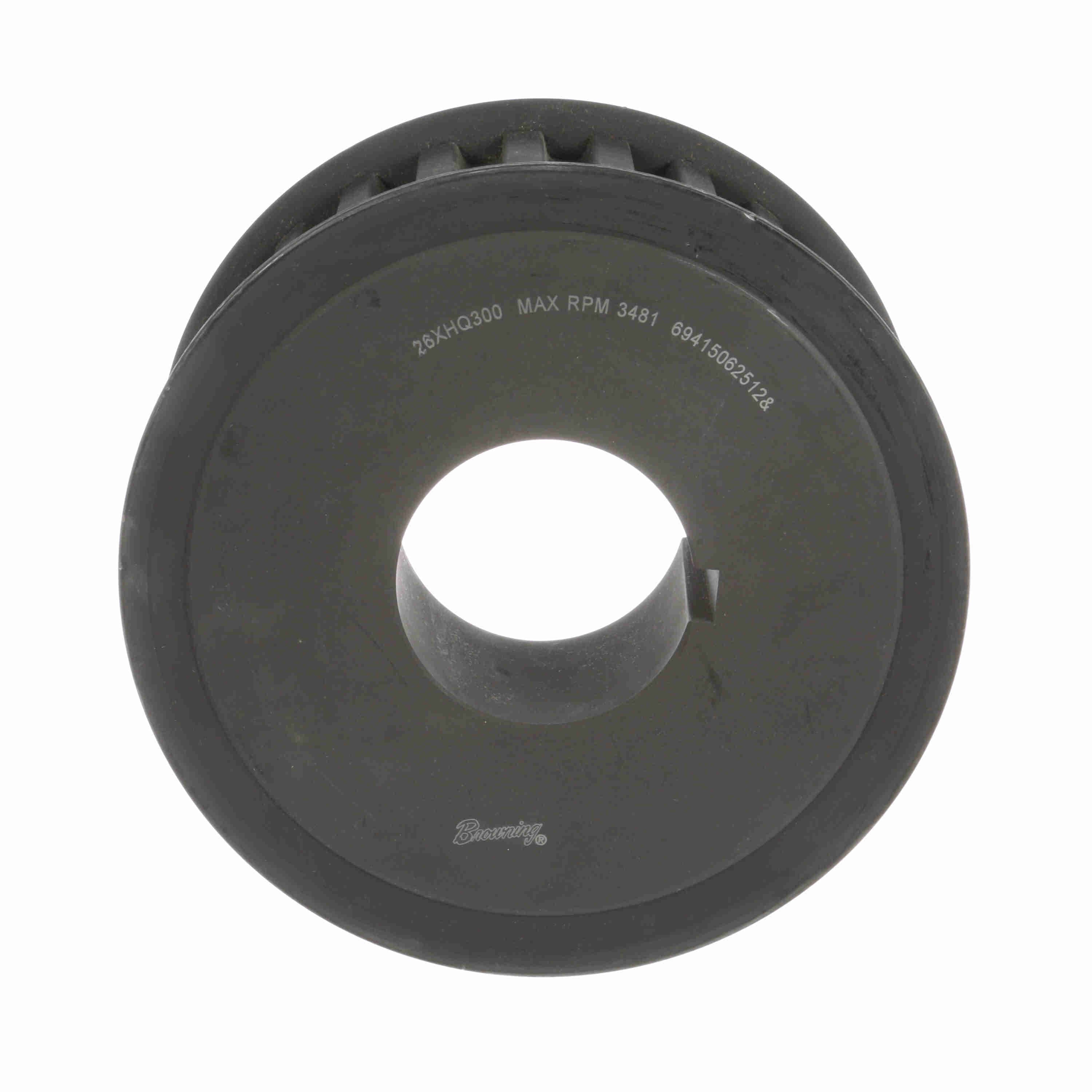

GEARBELT PULLEYS-500
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1057777 |
| Product Name | 26XHQ300 |
| Brand | Browning |
| Material | Steel |
| Weight | 28.11 lb |
| Package Length | 8.2 in |
| Package Width | 8.4 in |
| Package Height | 6.3 in |
| Bore Range | 1 to 2 5/8 |
| Product Type | Gearbelt Pulley |
| Number of teeth | 26 |
| Width (mm) | 76.2 mm |
| Bore Type |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 4 | $1882.80 | — |
| 5 – 9 | $1746.47 | 7% off |
| 10+ | $1671.94 | 11% off |
| Bushed Bore |
| Inside Diameter (in) | 5.5 in |
| Width (in) | 3 in |
| Flange (in) | 7.7500 in |
| Outside Diameter (in) | 7.131 in |
| Belt Section | XH |
| Pitch Diameter (in) | 7.241 in |
| Outside Diameter (mm) | 181.1274 mm |
| Face Width | 3.625 |
| Length Through Bore | 3.5 |
| Pulley Construction | Solid |
| With Flanges | With Flanges |
| Overall Length (in) | 3.859 in |
| HTC | 8483.50.9080 |
| Country of Origin | United States of America |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-102870 |
| Part NumberiManufacturer catalog number | 1057777 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289314676 |
| CategoryiCatalog classification | Power Transmission > V-Belt Sheaves |
