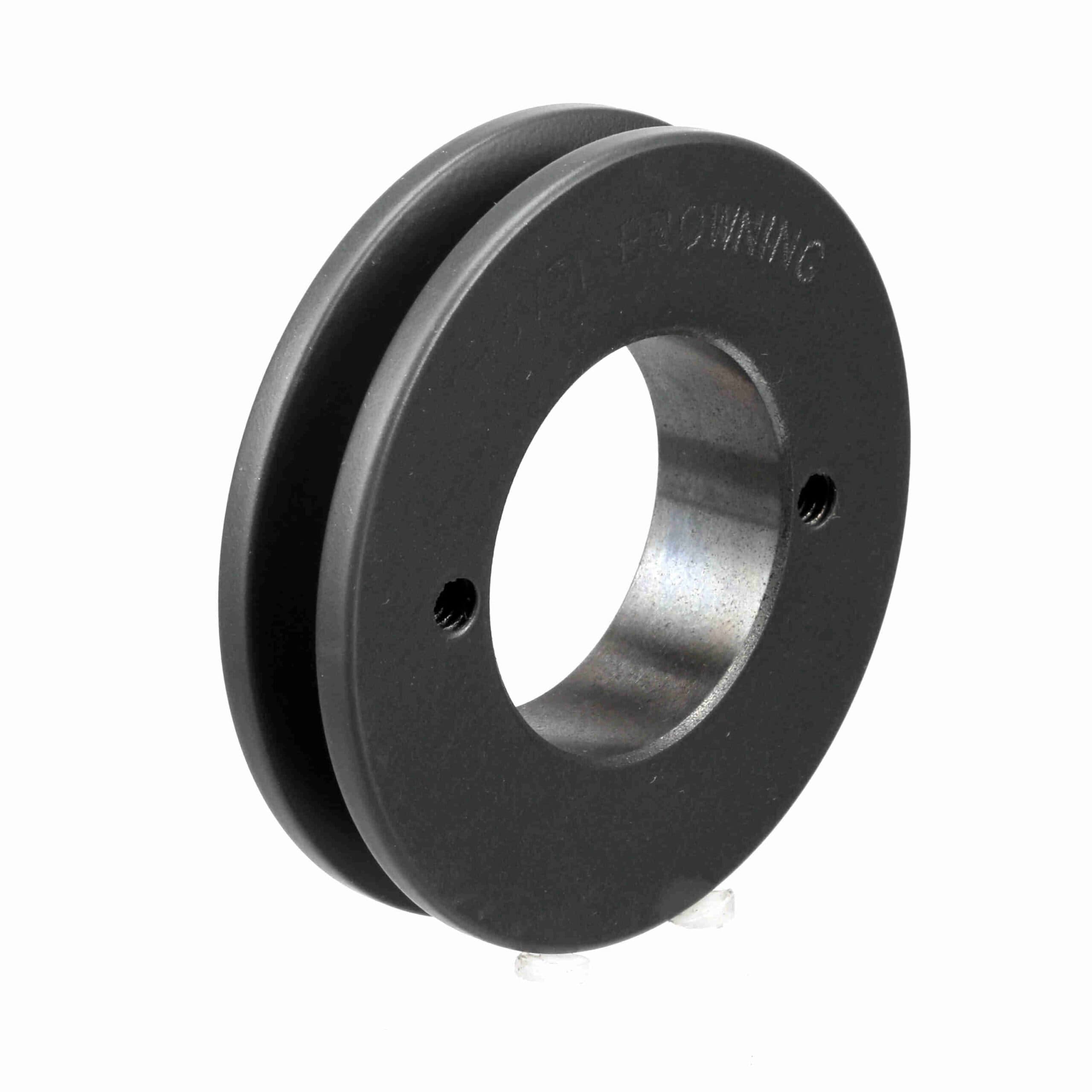

Browning 1 Groove Cast Iron Bushed Bore Multiple Sheave - 1H3V31
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1059310 |
| Product Name | 1H3V31 |
| Brand | Browning |
| Material | Cast Iron |
| Weight | 0.88 lb |
| Package Length | 3.7 in |
| Package Width | 3.9 in |
| Package Height | 1.5 in |
| Number of Grooves | 1 |
| Outside Diameter (in) | 3.15 in |
| Bushing Used | H |
| Overall Length (in) | 1.3125 in |
| Pitch Diameter (3V) |
Datasheets, CAD drawings, and installation instructions are available on request.
Request Documentation| 3.1 |
| Pulley Material | Cast Iron |
| Product Type | Multiple Sheaves |
| Bore (Min) (in) | 0.375 in |
| Belt Section | 3V |
| Bore Type | Split Taper Bushed |
| Face Width (in) | 0.6875 |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-102931 |
| Part NumberiManufacturer catalog number | 1059310 |
| BrandiManufacturer or product brand | Browning |
| CategoryiCatalog classification | Power Transmission > V-Belt Sheaves |
