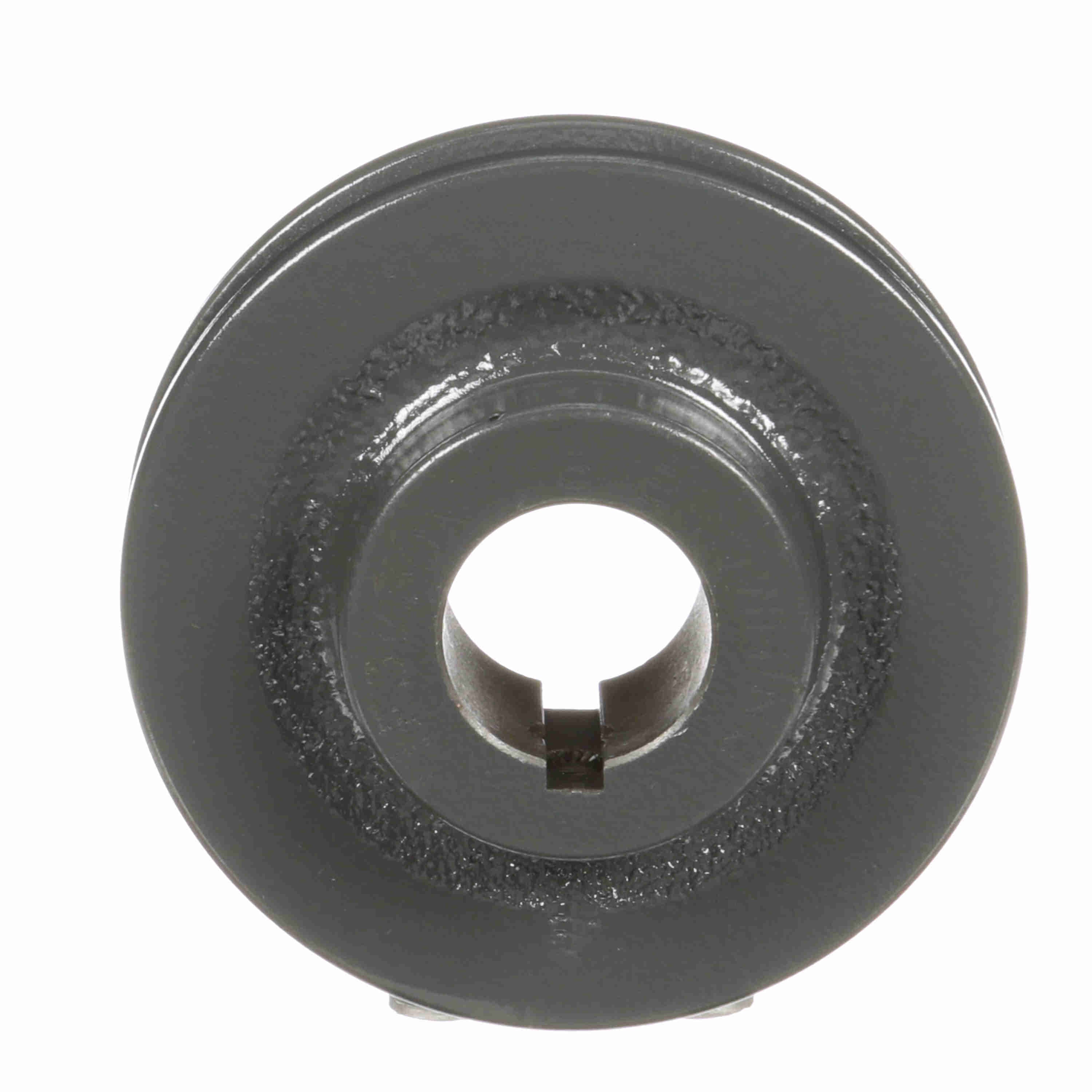

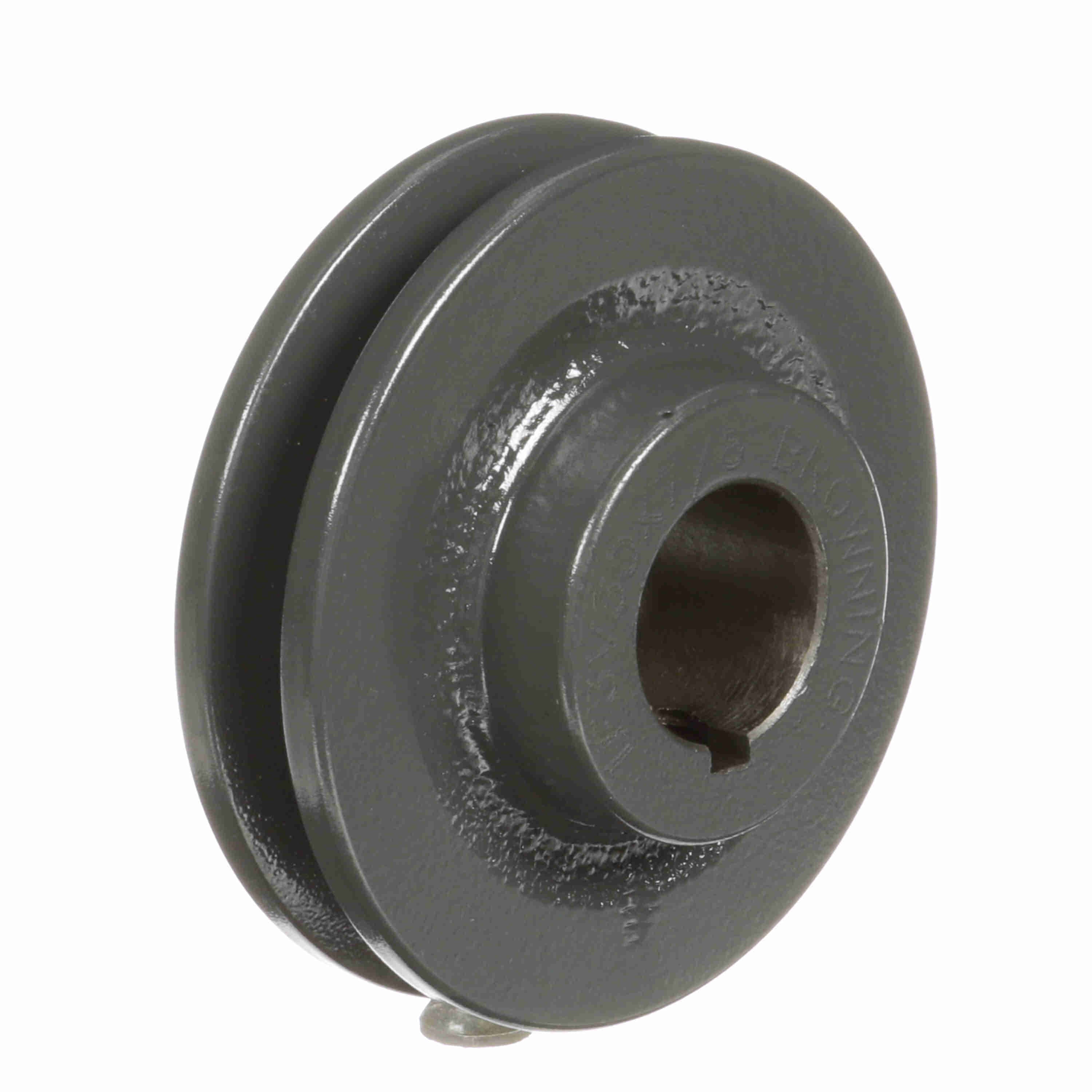

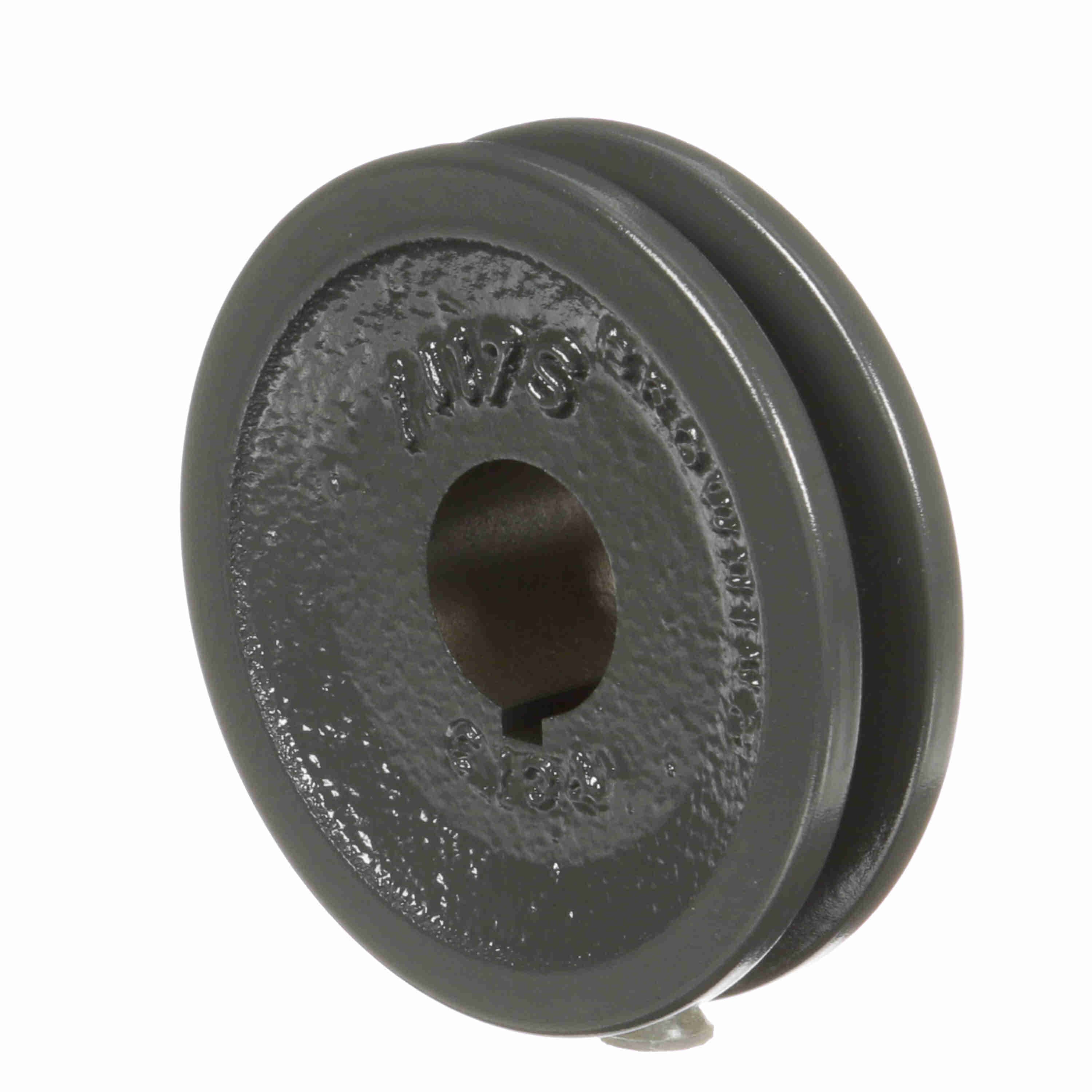

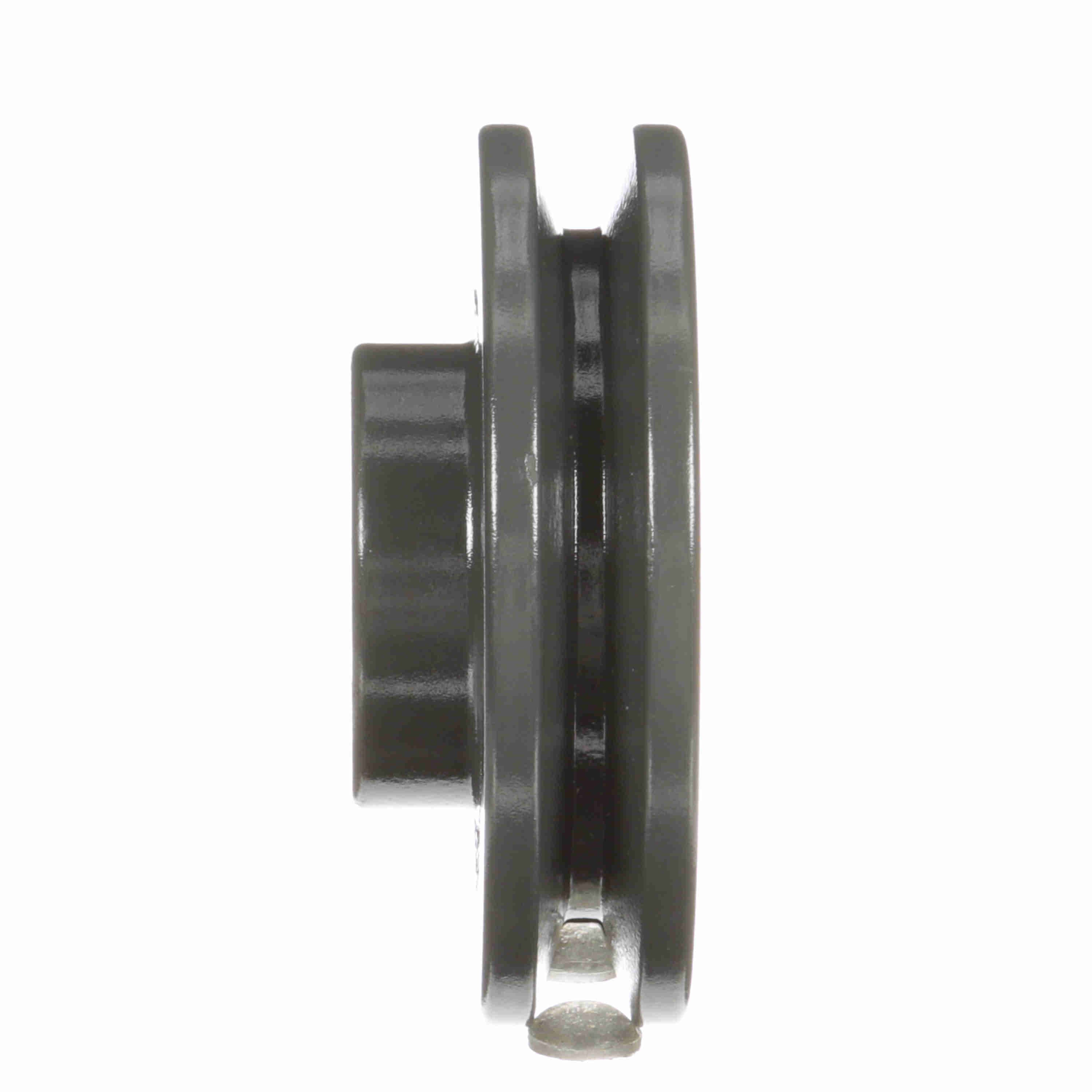

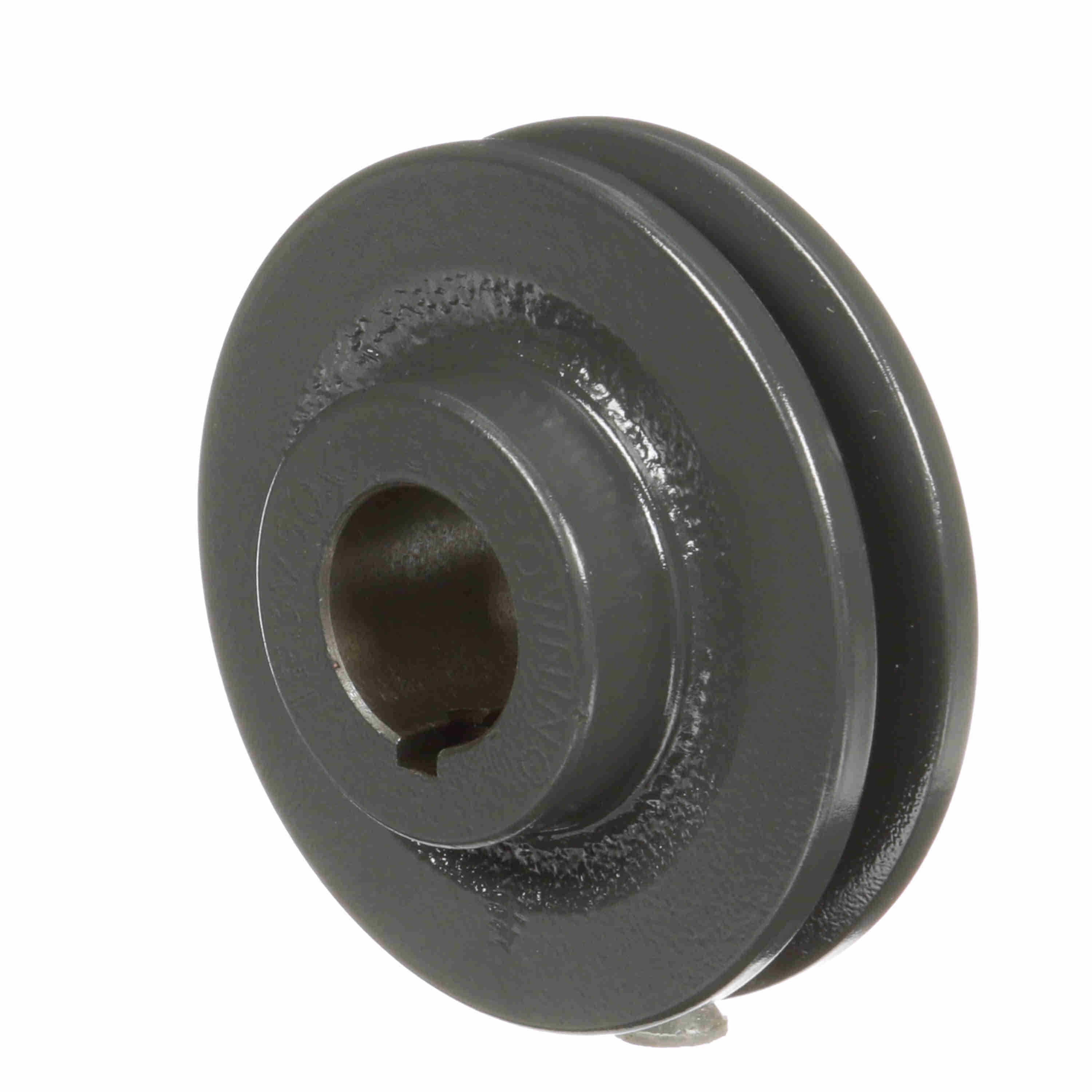

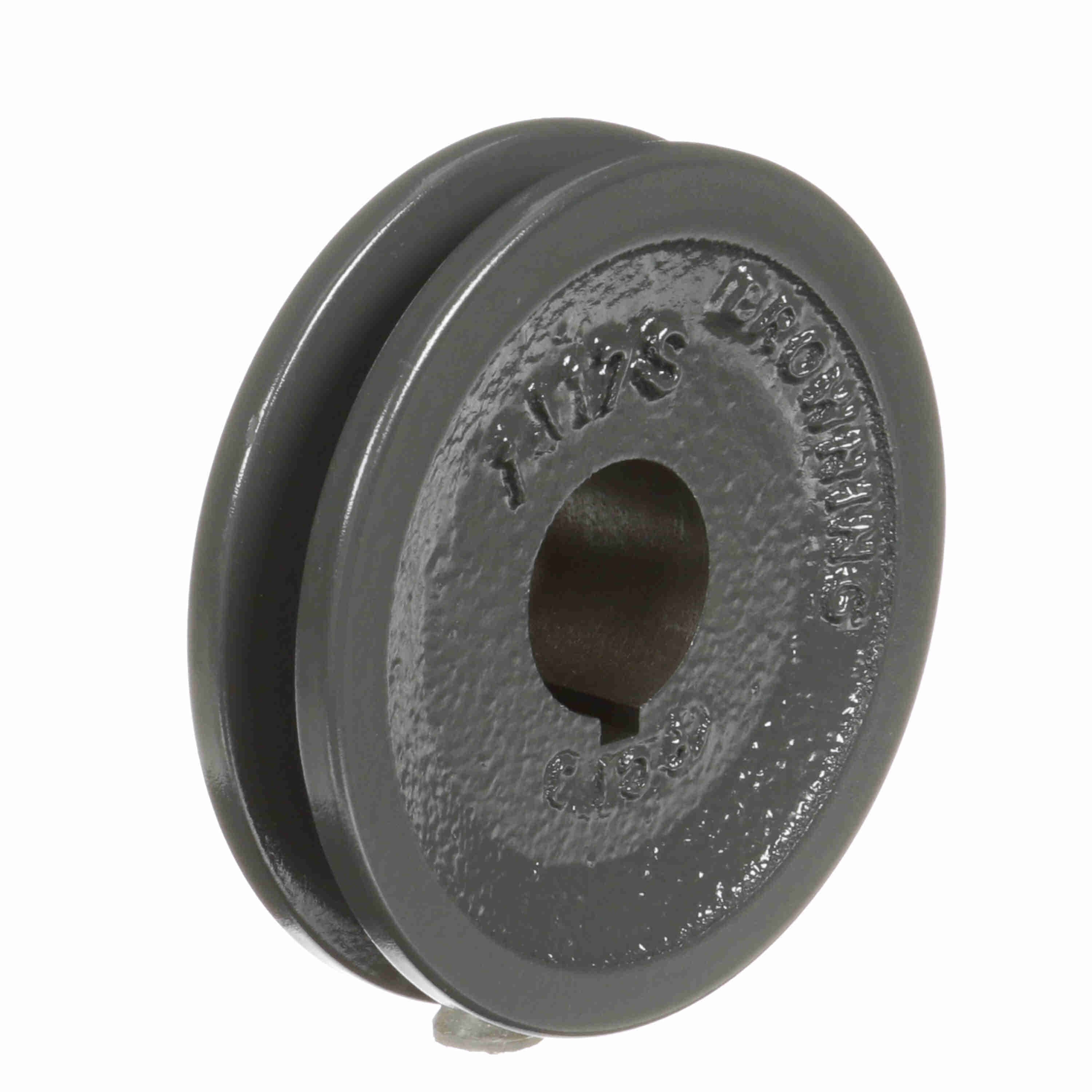

SPLIT TAPER 358 SHEAVES-600
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1059625 |
| Product Name | 1F3V30X7/8 |
| Brand | Browning |
| Material | Cast Iron |
| Weight | 1.05 lb |
| Package Length | 3.2 in |
| Package Width | 3.2 in |
| Package Height | 1.5 in |
| Overall Length (in) | 1.109375 in |
| Model Name | 1F3_SheaveMaster |
| Pulley Material | Cast Iron |
| Pitch Diameter (3V) | 2.95 |
| Number of Grooves |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 4 | $153.30 | — |
| 5 – 9 | $143.32 | 7% off |
| 10+ | $139.78 | 9% off |
This product is a direct replacement for the following discontinued part numbers. Customers searching for these legacy SKUs will find this page.
| 1 |
| Outside Diameter (in) | 3 in |
| Product Type | Multiple Sheaves |
| Bore (Min) (in) | 0.875 in |
| Belt Section | 3V |
| Bore Type | Finished with Keyway and SS |
| Keyway Size | .1875 |
| HTC | 8483.50.9040 |
| Country of Origin | Mexico |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-102954 |
| Part NumberiManufacturer catalog number | 1059625 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289149100 |
| CategoryiCatalog classification | Power Transmission > V-Belt Sheaves |
