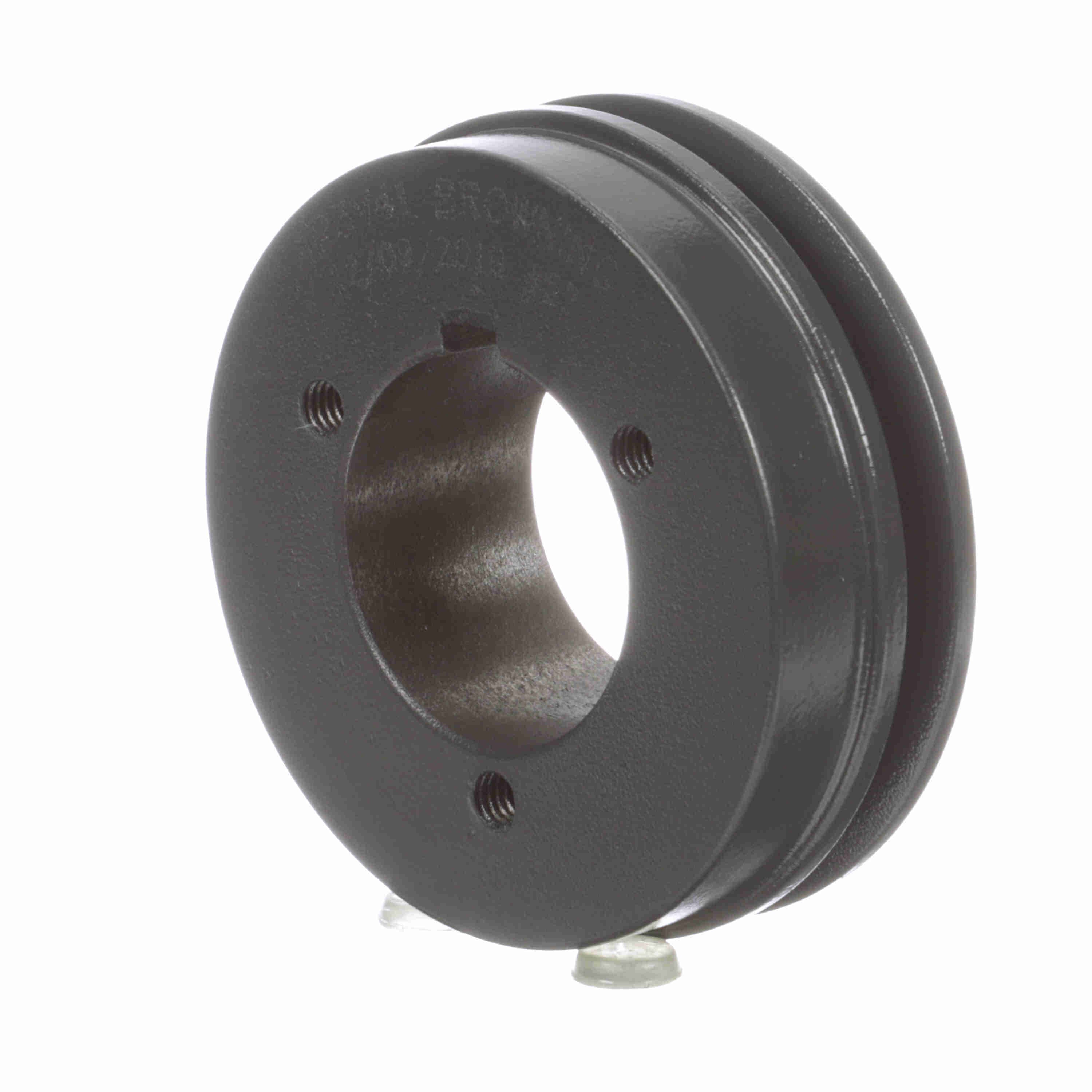

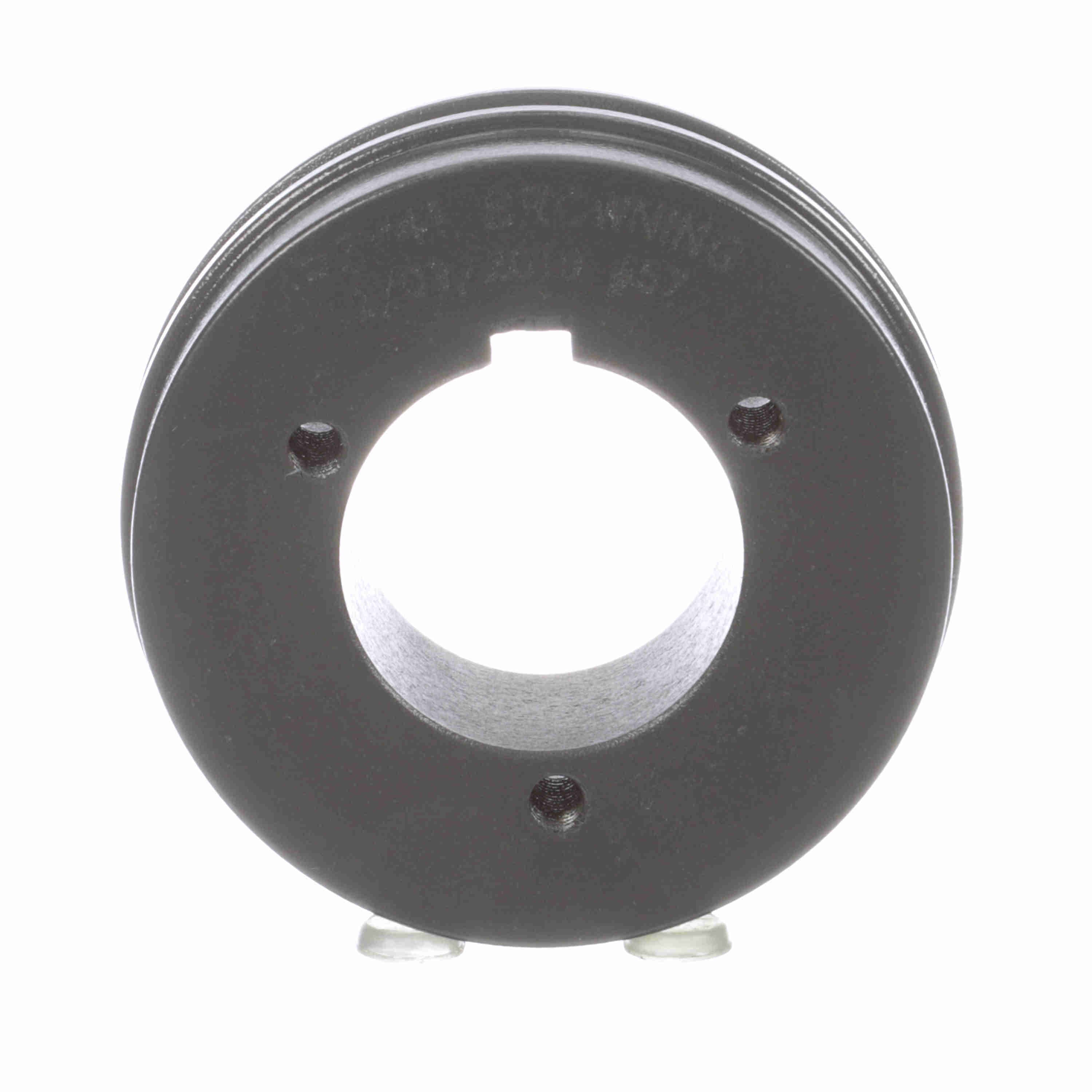

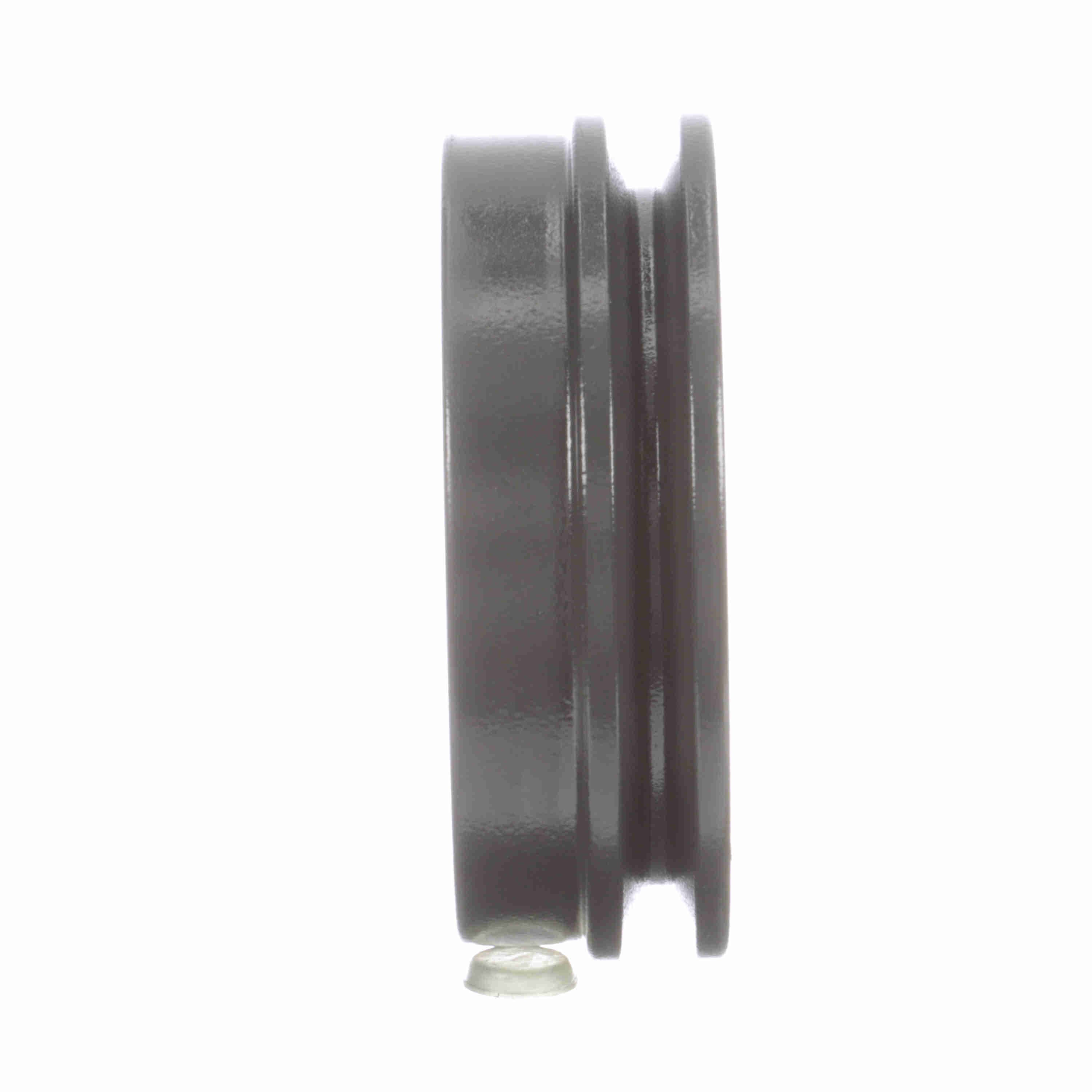

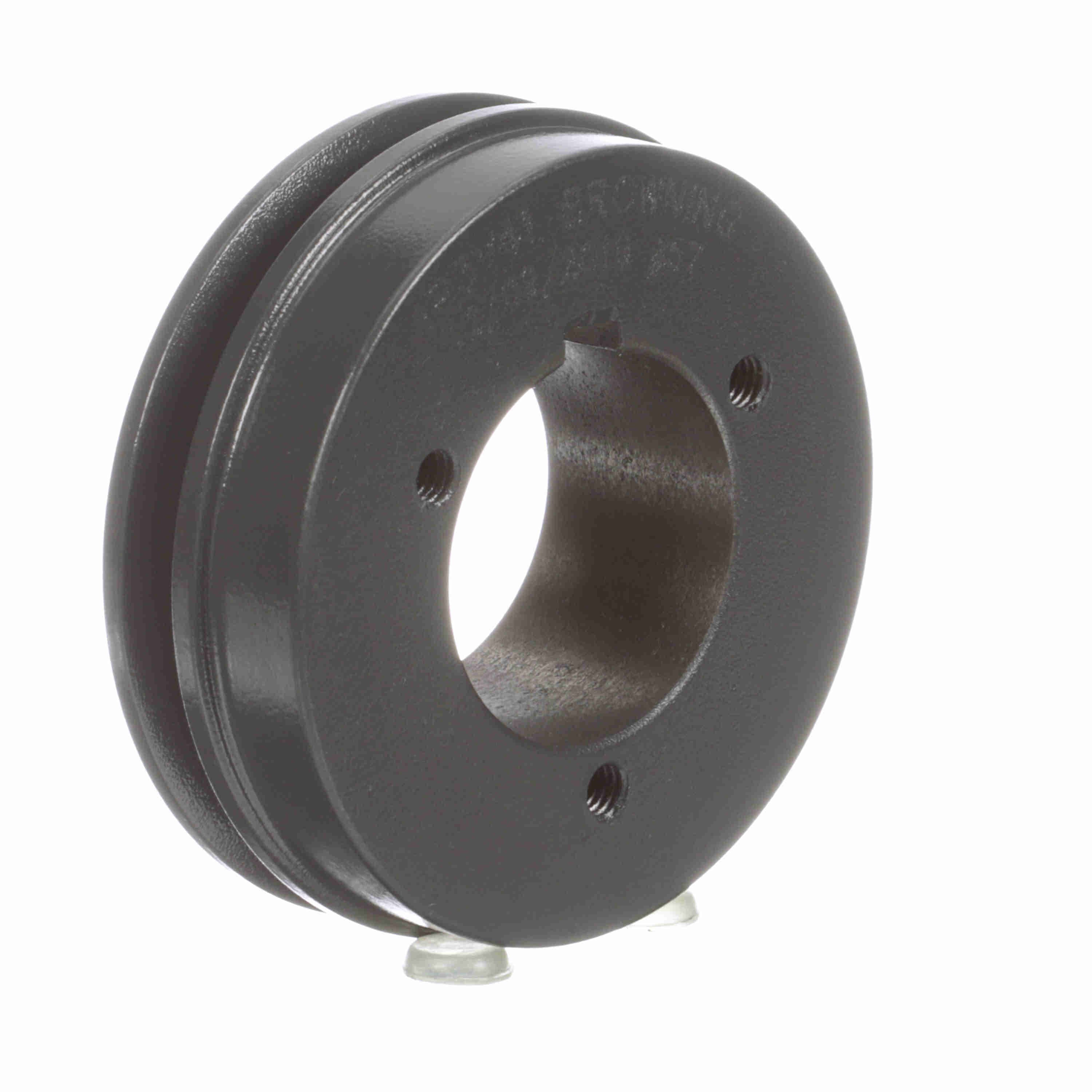

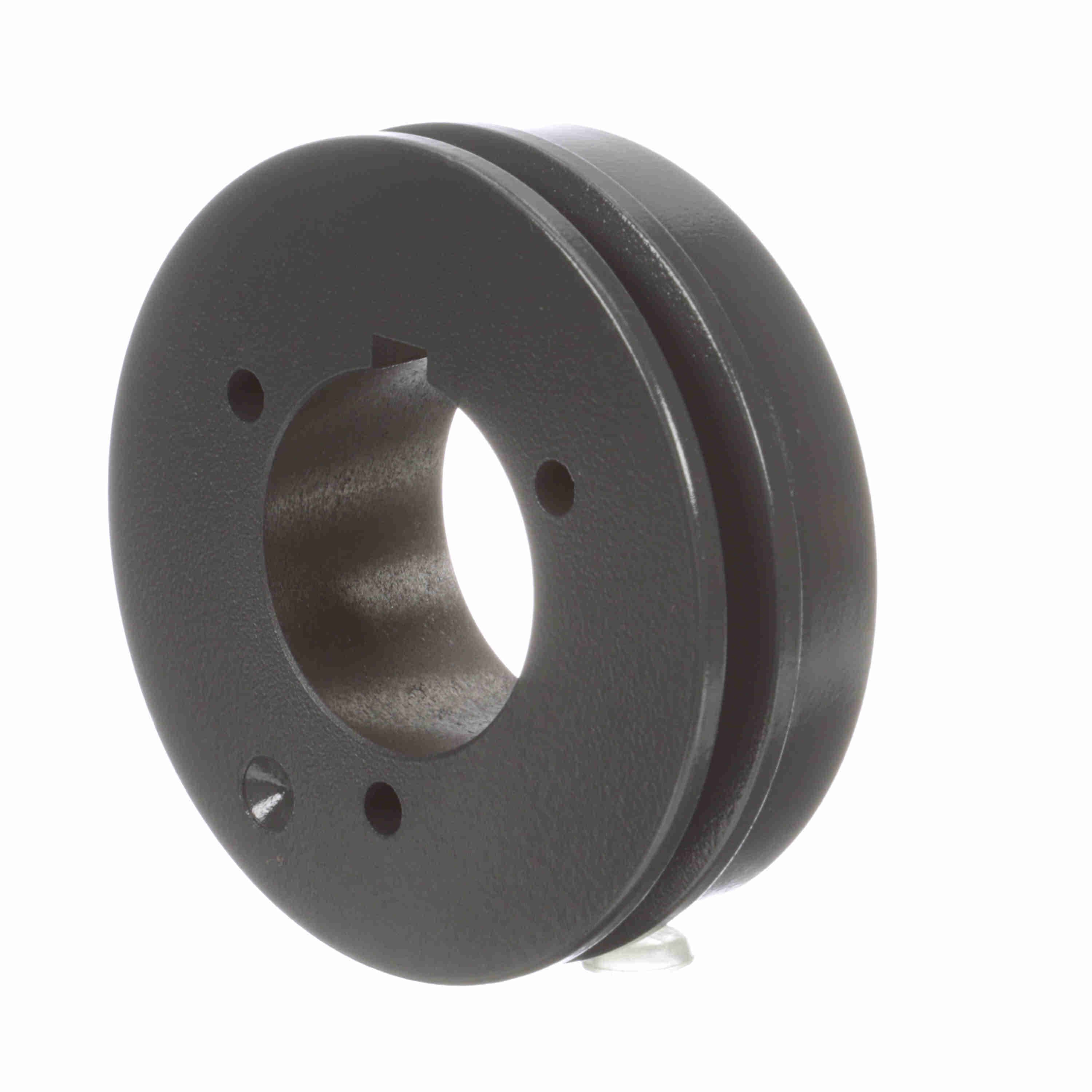

SPLIT TAPER 358 SHEAVES-600
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1059963 |
| Product Name | 1P3V41 |
| Brand | Browning |
| Material | Cast Iron |
| Weight | 3.14 lb |
| Package Length | 5.56 in |
| Package Width | 5.56 in |
| Package Height | 1.31 in |
| Outside Diameter (in) | 4.12 in |
| Pitch Diameter (3V) | 4.07 |
| Bushing Used | P1 |
| Number of Grooves | 1 |
| Overall Length (in) |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 4 | $249.11 | — |
| 5 – 9 | $232.89 | 7% off |
| 10+ | $227.13 | 9% off |
| 2.140625 in |
| Pulley Material | Cast Iron |
| Bore (Min) (in) | 0.5 in |
| Belt Section | 3V |
| Product Type | Multiple Sheaves |
| Bore Type | Split Taper Bushed |
| Pulley Construction | Plain |
| Bushing Bore Range | 0.500 - 1.750 |
| Keyway Size | .375 |
| Overall Width (in) | 2.1875 |
| Face Width (in) | 0.6875 |
| HTC | 8483.50.9040 |
| Country of Origin | Mexico |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-102981 |
| Part NumberiManufacturer catalog number | 1059963 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289139415 |
| CategoryiCatalog classification | Power Transmission > V-Belt Sheaves |
