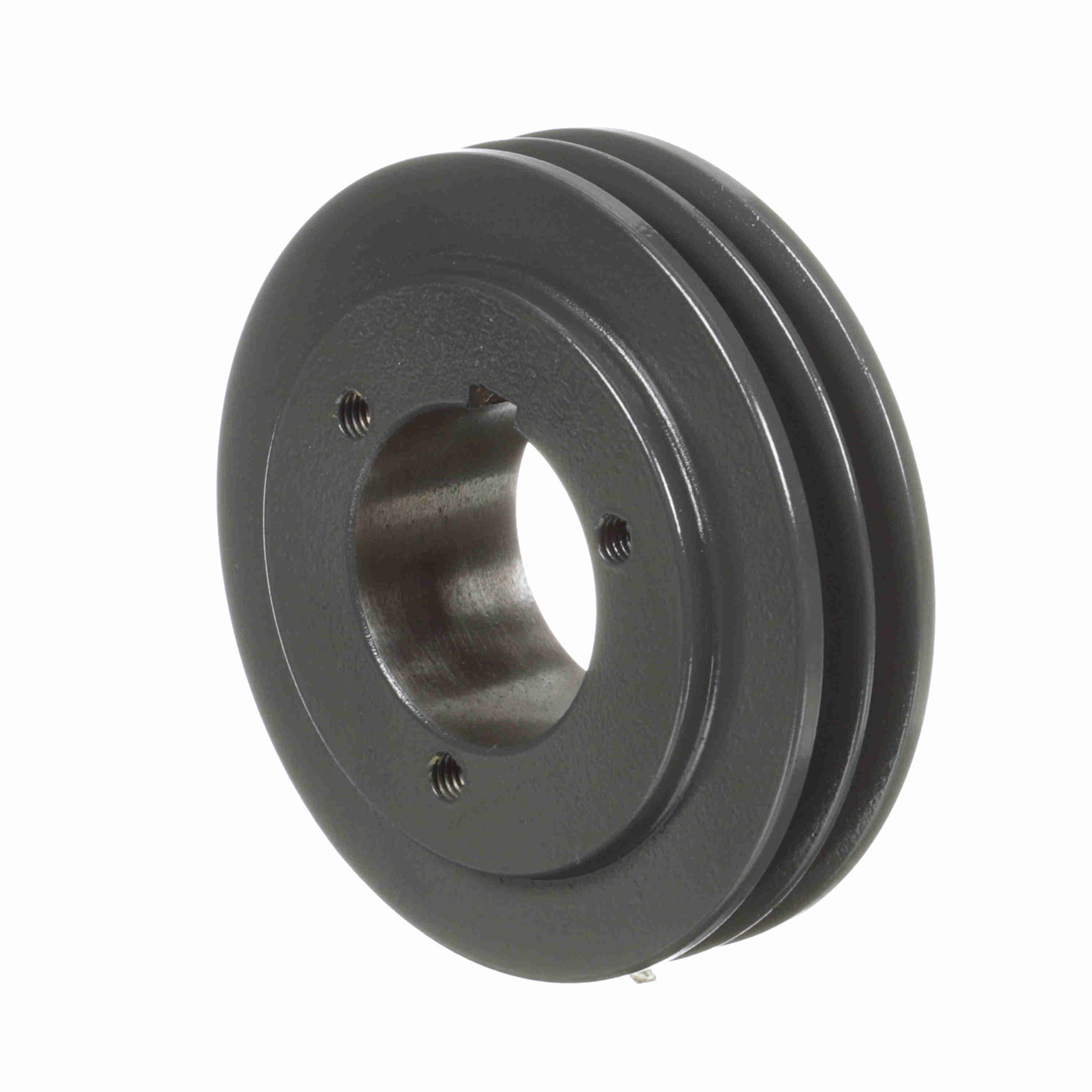

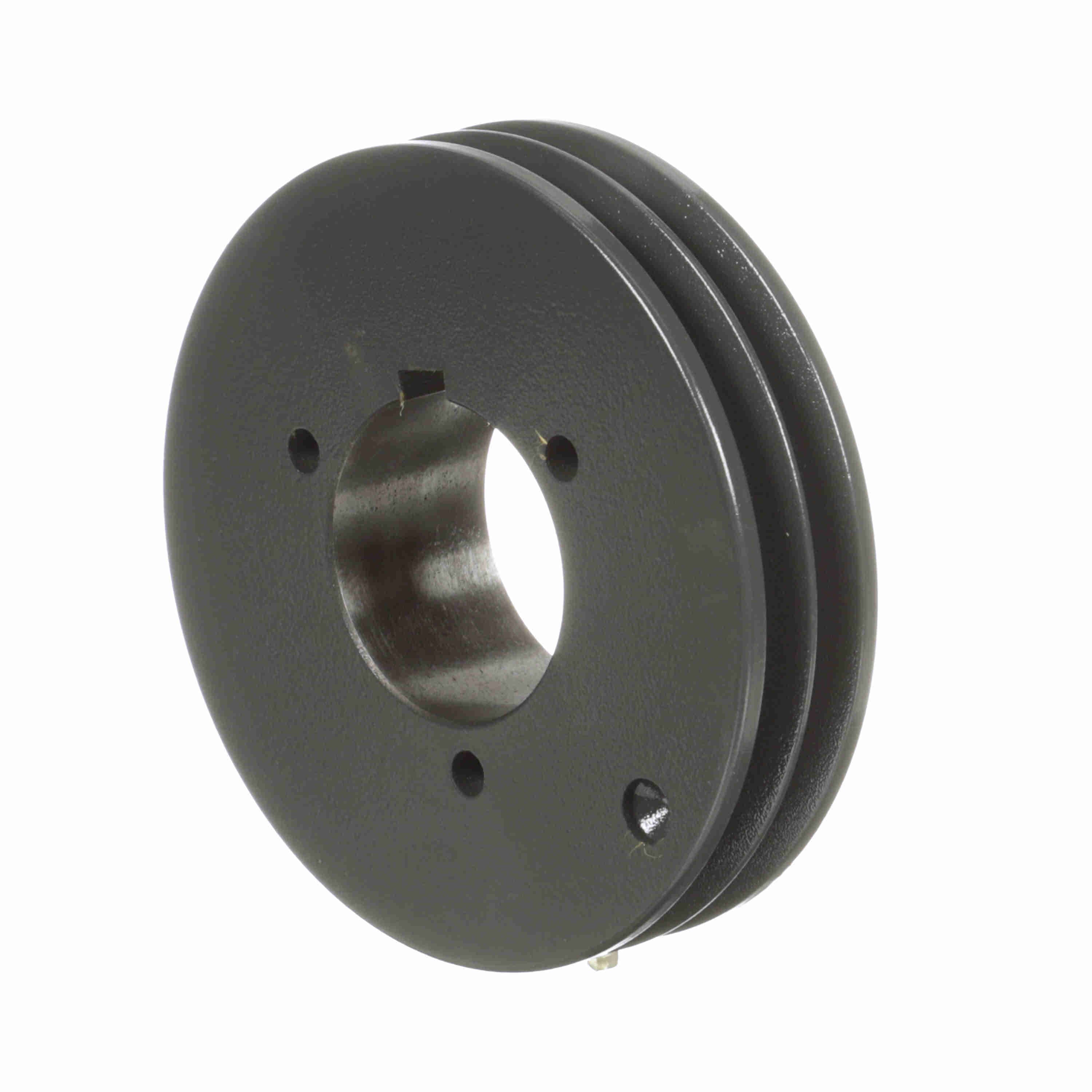

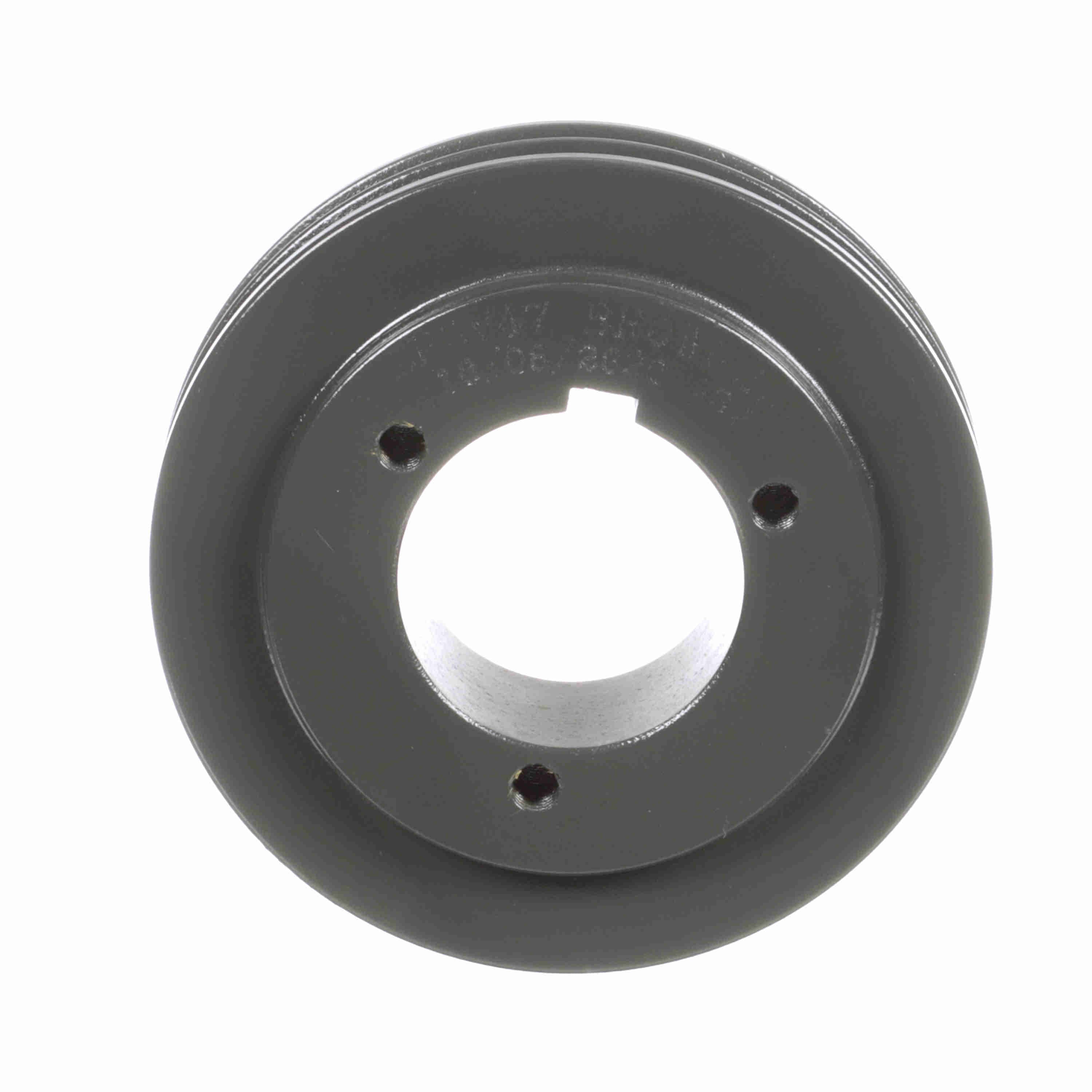

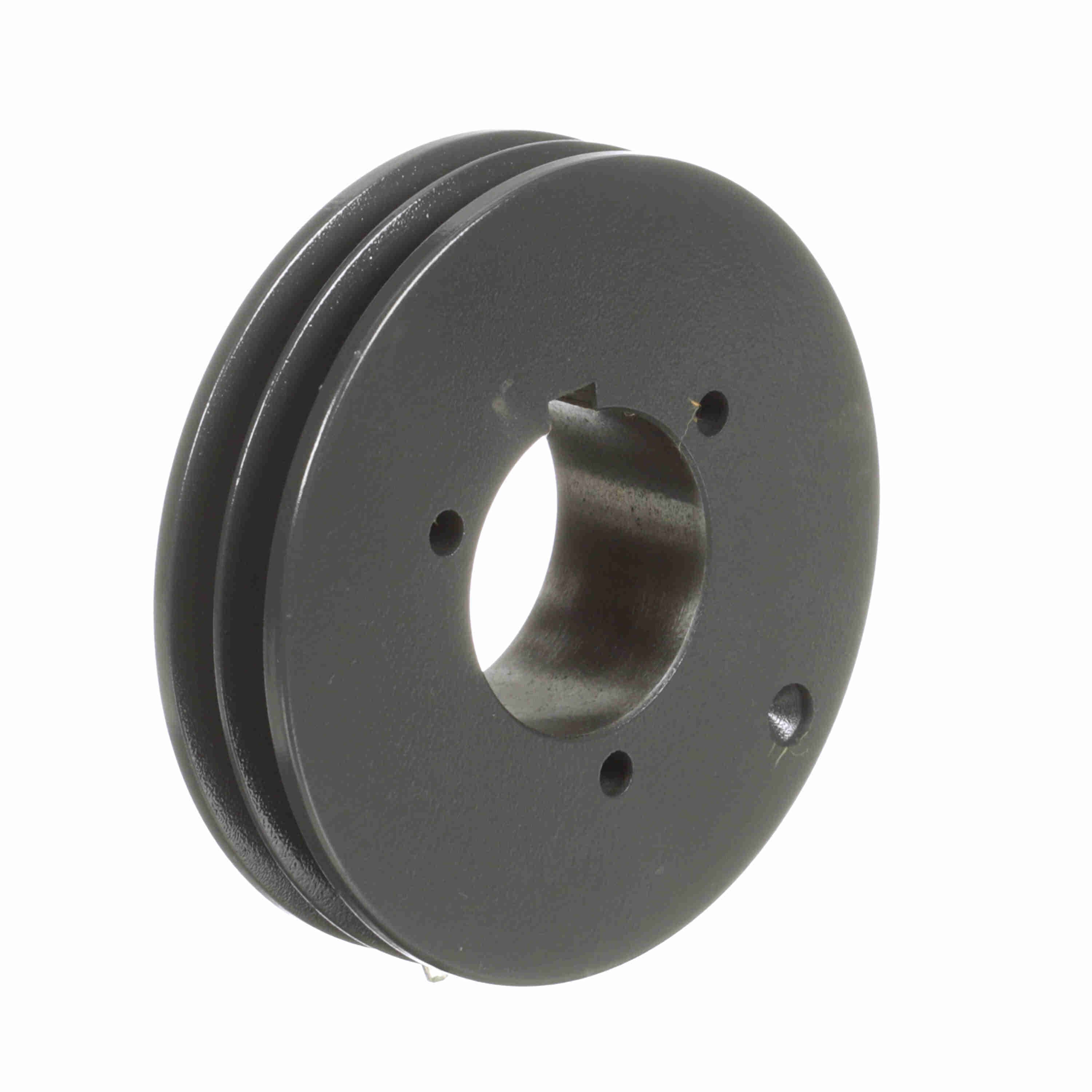

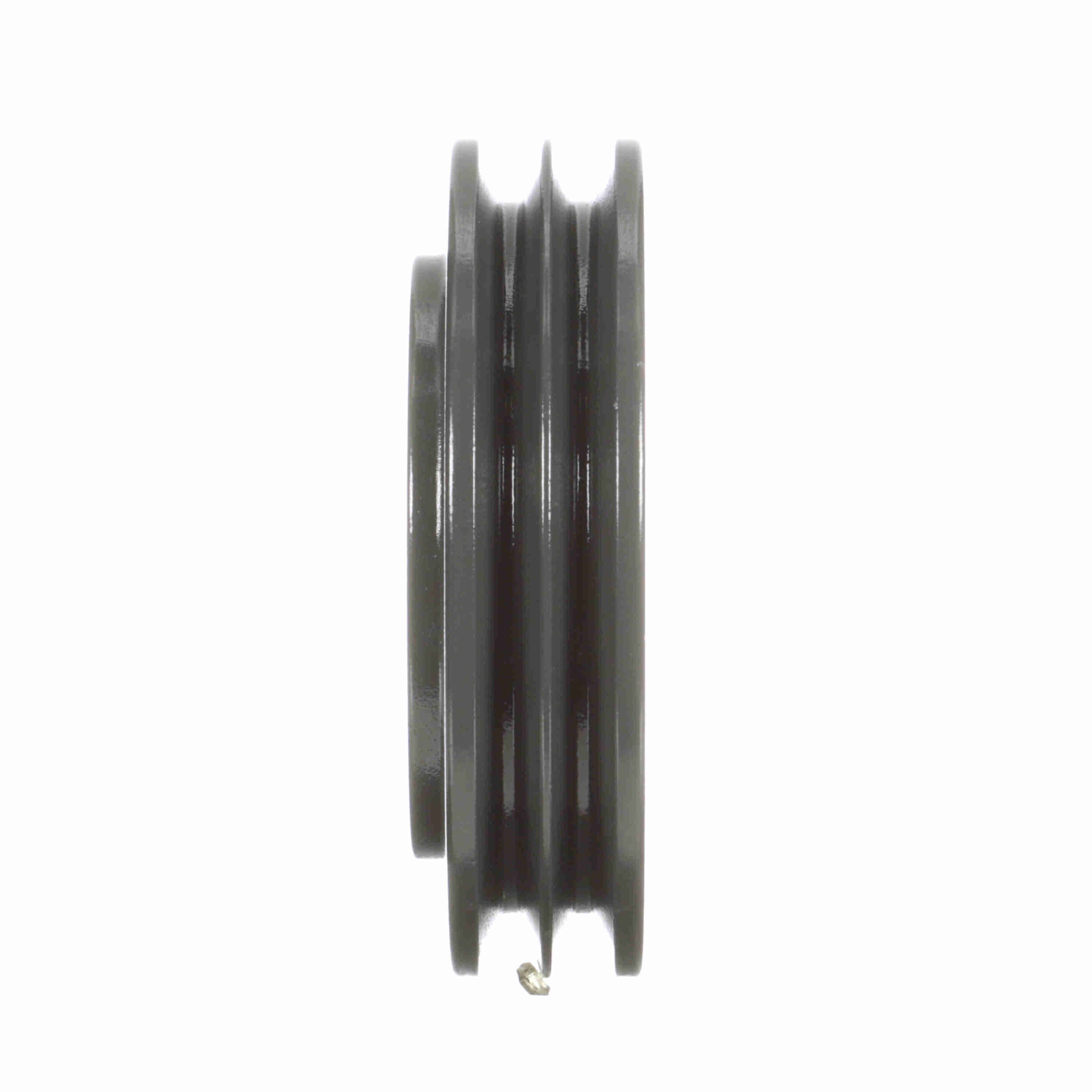

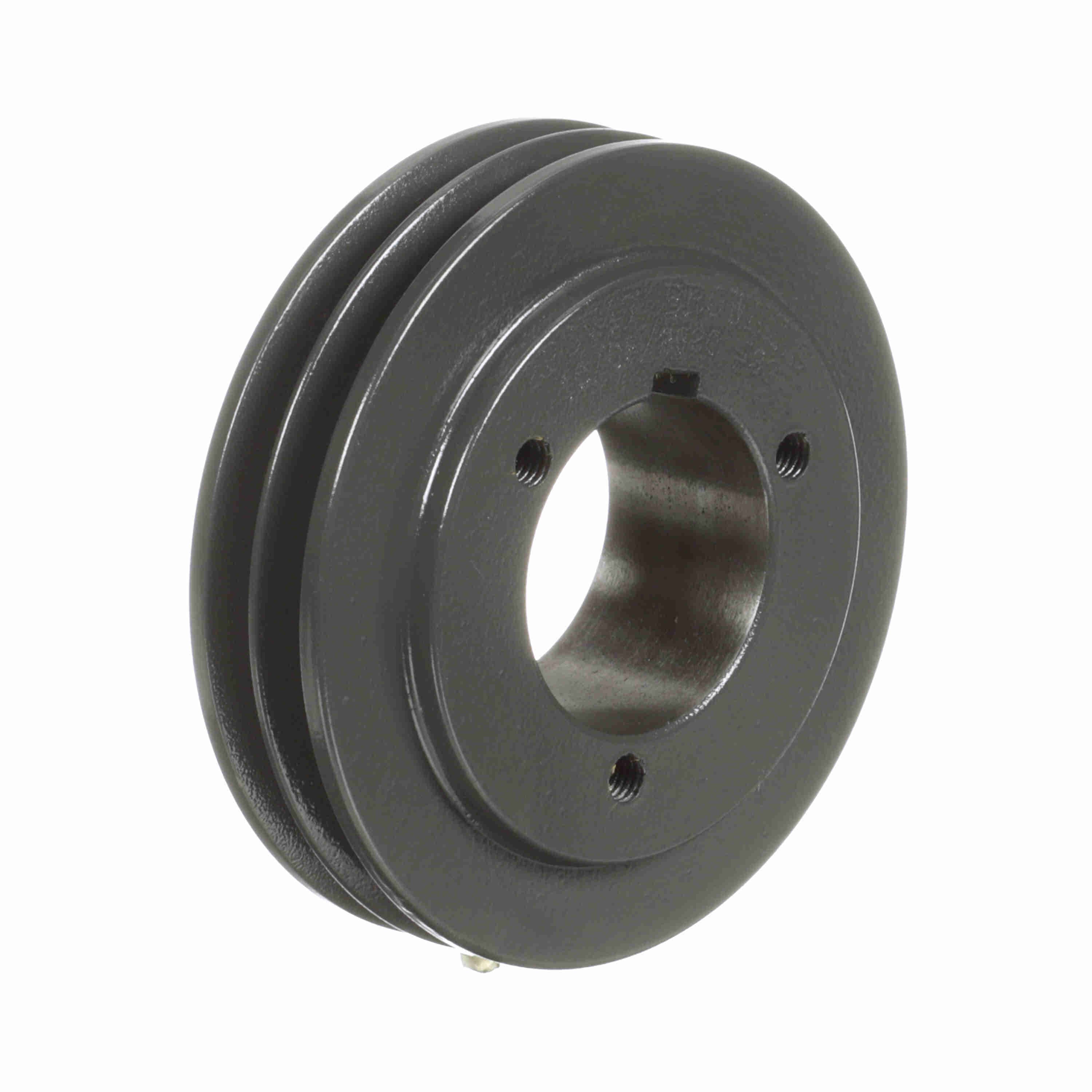

SPLIT TAPER 358 SHEAVES-600
Need help confirming fit? Send us the current part number, shaft size, housing photo, or equipment model.
| Part Number | 1060094 |
| Product Name | 2P3V47 |
| Brand | Browning |
| Material | Cast Iron |
| Weight | 4.05 lb |
| Package Length | 5.56 in |
| Package Width | 5.56 in |
| Package Height | 1.13 in |
| Bushing Used | P1 |
| Overall Length (in) | 2.140625 in |
| Pitch Diameter (3V) | 4.7 |
| Outside Diameter (in) | 4.75 in |
| Number of Grooves |
| Quantity | Price Each | Save |
|---|---|---|
| 1 – 4 | $287.34 | — |
| 5 – 9 | $268.63 | 7% off |
| 10+ | $261.99 | 9% off |
| 2 |
| Pulley Material | Cast Iron |
| Product Type | Multiple Sheaves |
| Belt Section | 3V |
| Bore (Min) (in) | 0.5 in |
| Bore Type | Split Taper Bushed |
| Bushing Bore Range | 0.500 - 1.750 |
| Overall Width (in) | 2.1875 |
| Keyway Size | .375 |
| Pulley Construction | Plain |
| Face Width (in) | 1.0938 |
| HTC | 8483.50.9040 |
| Country of Origin | Mexico |
Always verify dimensions, load ratings, material, and seal type before ordering.
| GDS #iGDS internal part number | GDS-102993 |
| Part NumberiManufacturer catalog number | 1060094 |
| BrandiManufacturer or product brand | Browning |
| UPCiUniversal Product Code | 662289189540 |
| CategoryiCatalog classification | Power Transmission > V-Belt Sheaves |
